| Product SKUs | SuperServer SSG-540P-E1CTR45H (Black) |
|---|---|
| Motherboard | Super X12SPI-TF |
| CPU | Single Socket P+ (LGA-4189), 3rd Gen Intel? Xeon? Scalable processors |
| Core Count | Up to 40C/80T; Up to 60MB Cache per CPU |
| Note | Supports up to 270W TDP CPUs (Air Cooled) |
| Memory | Slot Count: 8 DIMM slots, Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
| SATA | SATA3 (6Gbps) via C621A Chipset; RAID 0, 1, 5, 10 support |
| SAS | SAS3 (12Gbps) via Broadcom 3908; RAID 0, 1, 5, 6, 10, 50, 60 support |
| Chipset | Intel? C621A |
| Network Connectivity | 2x 10GbE BaseT with X550 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Chassis Form Factor | 4U Rackmount |
| Chassis Model | CSE-946LTS-R1K66P1 |
| Height | 7" (178mm) |
| Width | 17.2" (437mm) |
| Depth | 26" (660mm) |
| Package | 22" (H) x 28" (W) x 42" (D) |
| Weight | Net Weight: 85 lbs (38.56 kg), Gross Weight: 120 lbs (54.43 kg) |

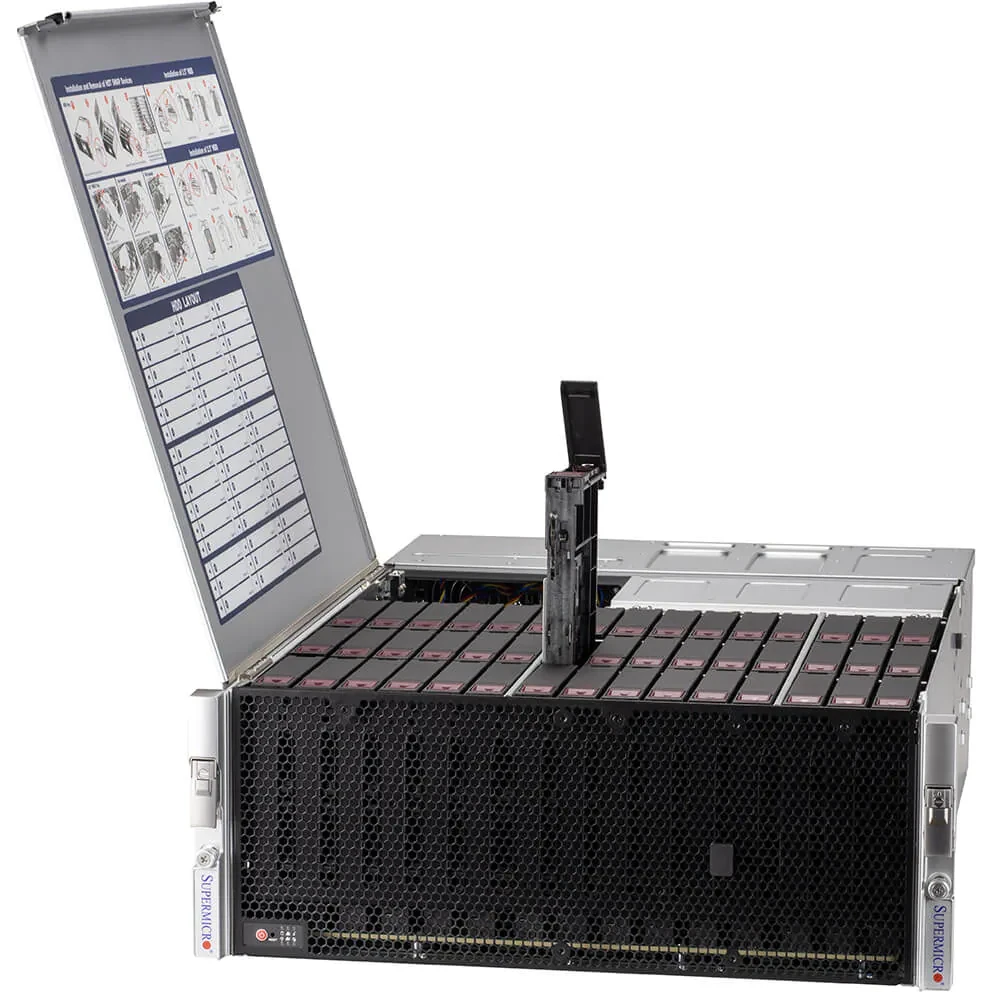

UP Storage SuperServer SSG-540P-E1CTR45H (Complete System Only )
| Product SKUs | SuperServer SSG-540P-E1CTR45H (Black) |
|---|---|
| Motherboard | Super X12SPI-TF |
| CPU | Single Socket P+ (LGA-4189), 3rd Gen Intel? Xeon? Scalable processors |
| Core Count | Up to 40C/80T; Up to 60MB Cache per CPU |
| Note | Supports up to 270W TDP CPUs (Air Cooled) |
