| Product SKUs | SuperServer SSG-110P-NTR10 Standard version (Black) with PWS-860P-1R2 (Platinum Level), SuperServer SSG-110P-NTR10-EU European version (Black) with PWS-861A-1R (Titanium Level) |
|---|---|
| Motherboard | Super X12SPO-NTF |
| CPU | Single Socket P+ (LGA-4189), 3rd Gen Intel? Xeon? Scalable processors |
| Core Count | Up to 40C/80T; Up to 60MB Cache per CPU |
| Note | Supports up to 270W TDP CPUs (Air Cooled) |
| Memory | Slot Count: 8 DIMM slots, Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
| NVMe | NVMe Gen 4 via MB onboard controller; RAID 0, 1, 5, 10 support (with additional VROC module) |
| Chipset | Intel? C621A |
| Network Connectivity | 2x 10GbE BaseT with Intel? X550 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Chassis Form Factor | 1U Rackmount |
| Chassis Model | CSE-116TS-R860CBP-N10 |
| Height | 1.7" (43mm) |
| Width | 17.2" (437mm) |
| Depth | 23.5" (597mm) |
| Package | 8" (H) x 24" (W) x 32" (D) |
| Weight | Net Weight: 25 lbs (11.34 kg), Gross Weight: 38 lbs (17.24 kg) |

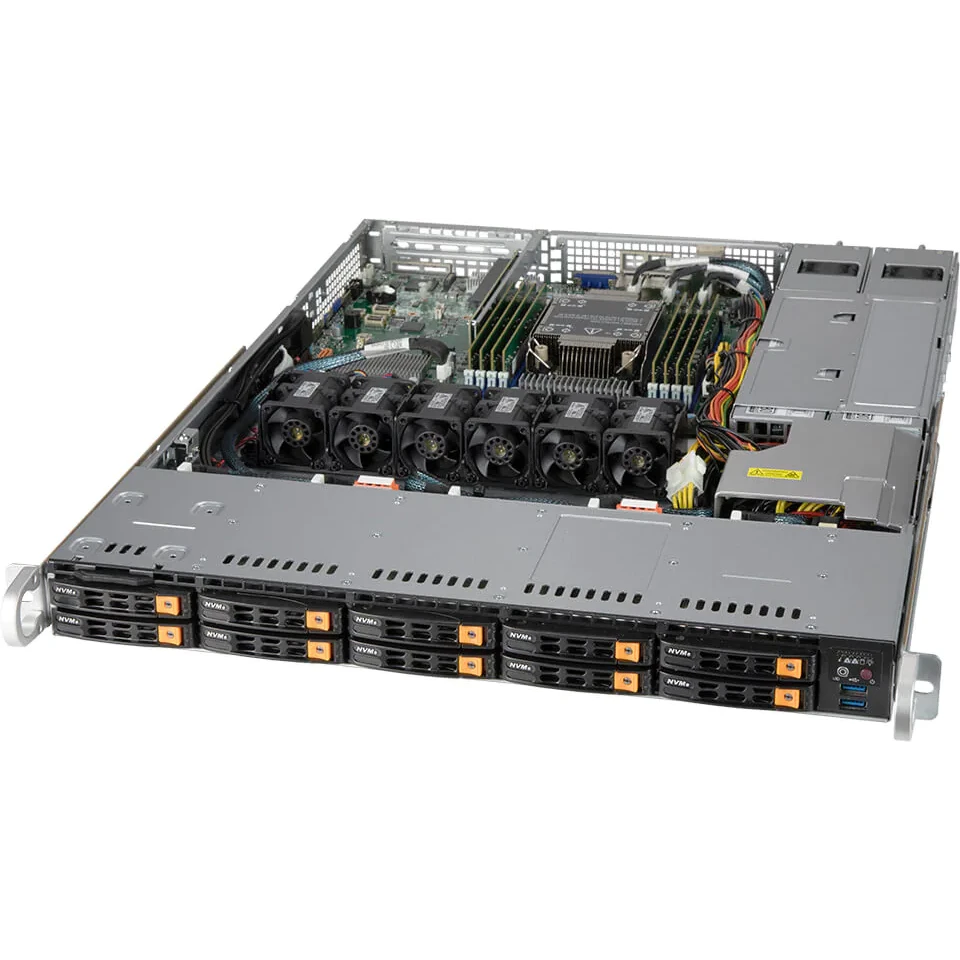

UP Storage SuperServer SSG-110P-NTR10 (Complete System Only )
| Product SKUs | SuperServer SSG-110P-NTR10 Standard version (Black) with PWS-860P-1R2 (Platinum Level), SuperServer SSG-110P-NTR10-EU European version (Black) with PWS-861A-1R (Titanium Level) |
|---|---|
| Motherboard | Super X12SPO-NTF |
| CPU | Single Socket P+ (LGA-4189), 3rd Gen Intel? Xeon? Scalable processors |
| Core Count | Up to 40C/80T; Up to 60MB Cache per CPU |
| Note | Supports up to 270W TDP CPUs (Air Cooled) |
