| Brand | SAPPHIRE |
|---|---|
| Products Status | New |
| Application | Desktop |
| Series | PULSE |
| Model | 11310-01-20G |
| Interface | PCI Express 4.0 |
| Chipset Manufacturer | AMD |
| GPU Series | AMD Radeon RX 6000 Series |
| GPU | Radeon RX 6600 |
| Architecture | RDNA 2 |
| Game Clock | 2044 MHz |
| Boost Clock | 2491 MHz |
| Stream Processors | 1792 Stream Processors |
| Memory Size | 8GB |
| Memory Interface | 128-bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI |
| DisplayPort | 3 x DisplayPort 1.4 |
| Max Resolution | 7680 x 4320 |
| Virtual Reality Ready | Yes |
| Cooler | Double Fans |
| Thermal Design Power | 140W |
| System Requirements | A display with HDMI, or DisplayPort is required., DirectX 12 and Vulkan support., For information on AMD Radeon VR Ready Premium visit amd.com/VRready.??Check gaming pc with Windows 11 Pro, Installation software requires a keyboard, a mouse, and a display., Minimum 500W or greater power supply., Minimum 8GB of system memory. Recommended 16GB., PCI Express compatible motherboard with one x16 PCIe slot., Supported operating systems include Linux, Windows 7*, Windows 10. 64-bit operating system required. (*Does not support all features including but not limited to Hardware Raytracing.) |
| Recommended PSU Wattage | 500W |
| Power Connector | 8-Pin |
| Features | AMD FidelityFX, AMD FreeSync Technology, AMD RDNA 2 Architecture, Compute Units: 28, DirectX 12 Ultimate, DisplayPort 1.4 with DSC, Firmware: UEFI BIOS, Game Driver Optimizations, GDDR6 Memory, HDMI, Infinity Cache: 32MB, PCI Express 4.0 Support, Radeon Anti-Lag, Radeon Image Sharpening, Radeon Software, Radeon VR Ready Premium, Ray Accelerators: 28, TriXX Boost: Yes, Video Streaming up to 8K |
| Form Factor | ATX |
| Max GPU Length | 193 mm |
| Card Dimensions (L x H) | 7.60" x 4.73" |
| Slot Width | 2 Slots |

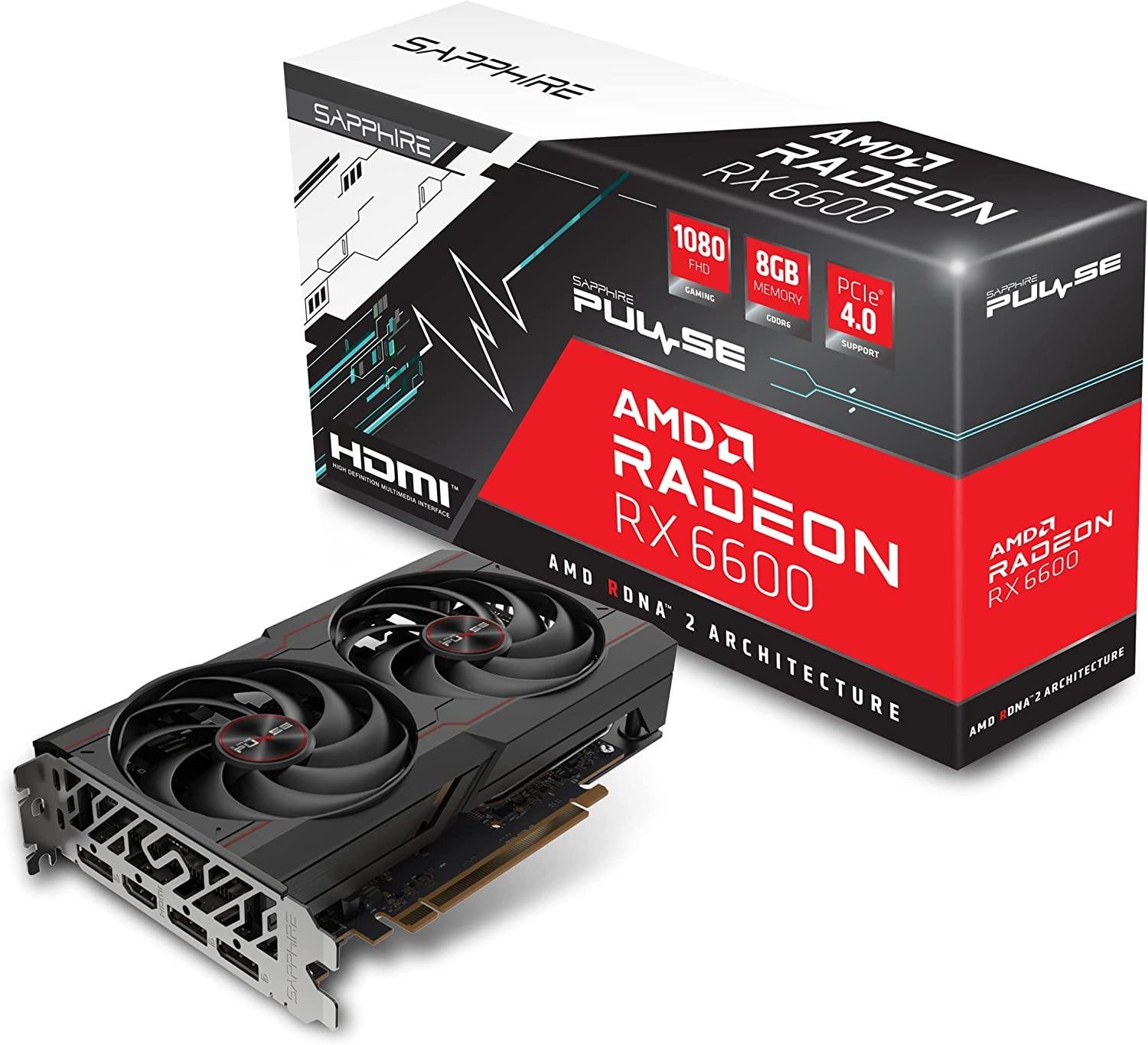

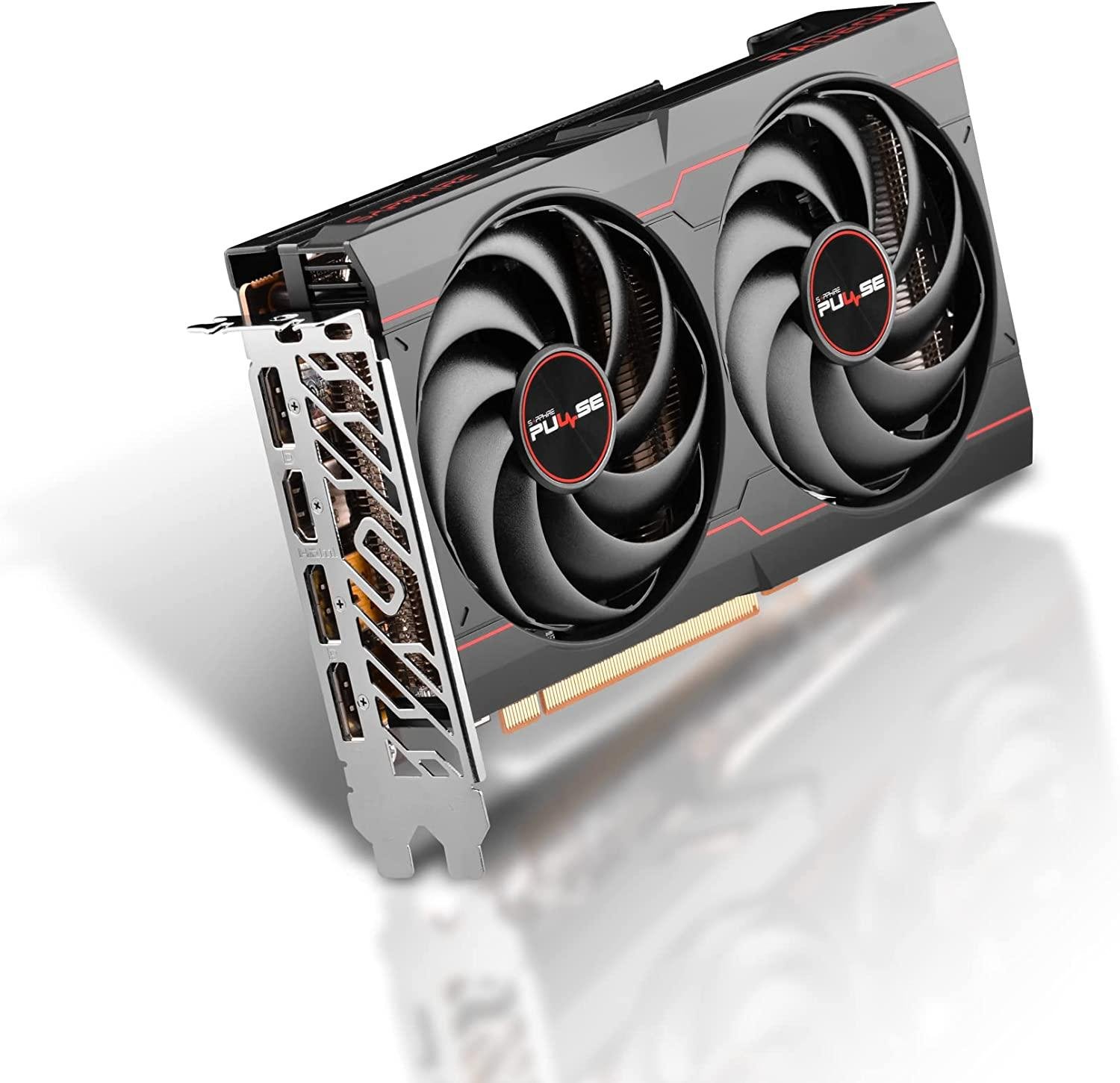

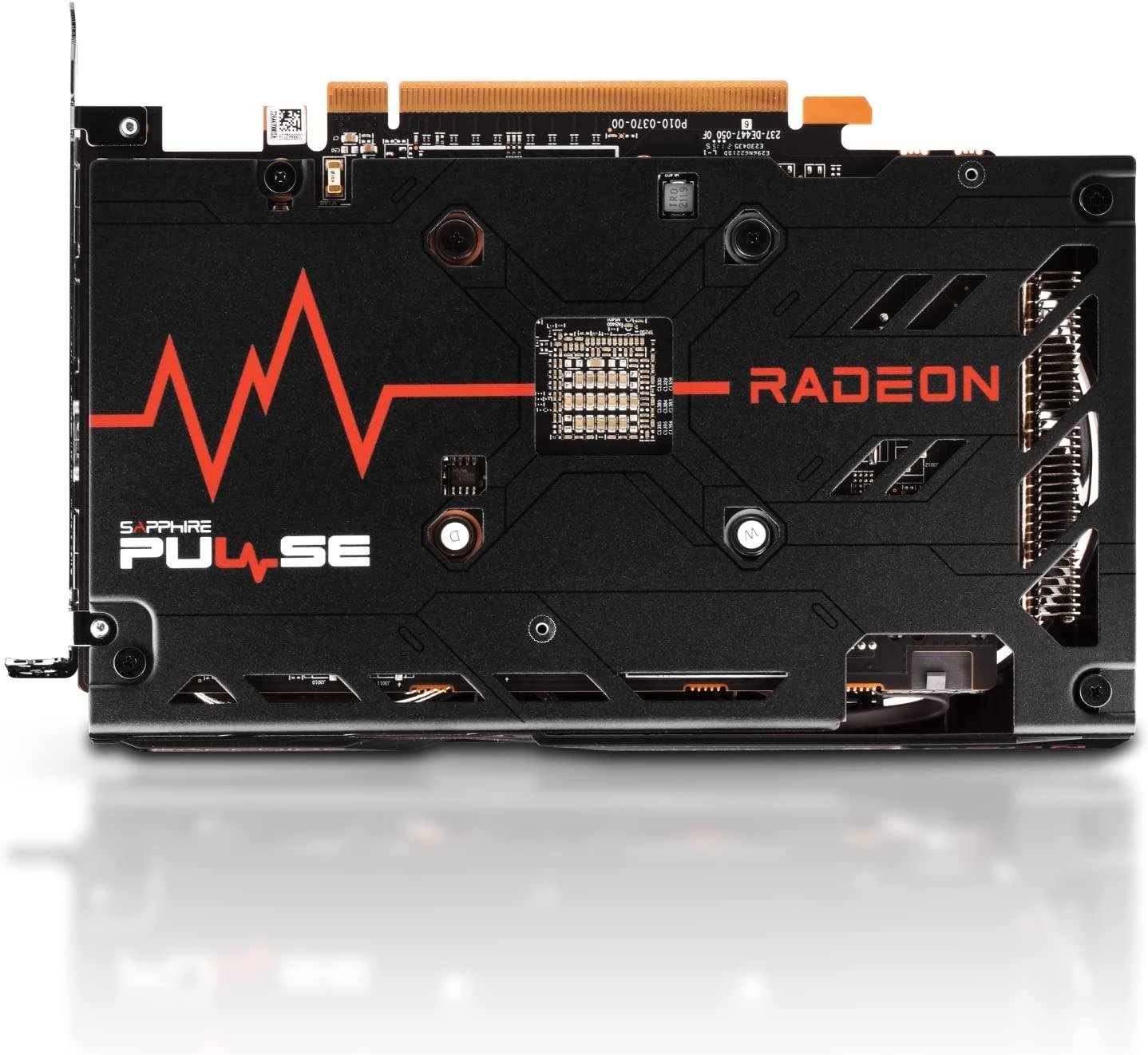

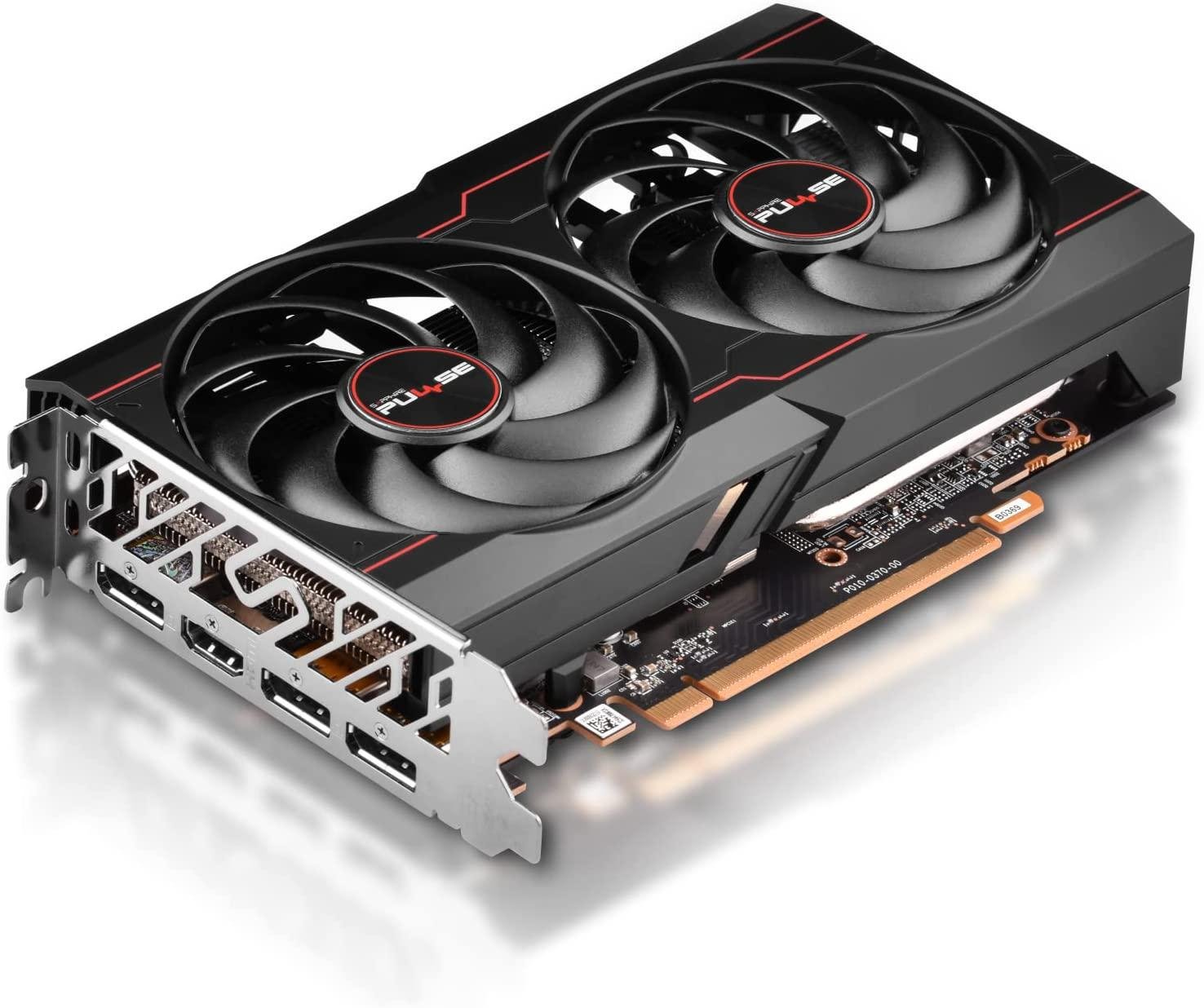

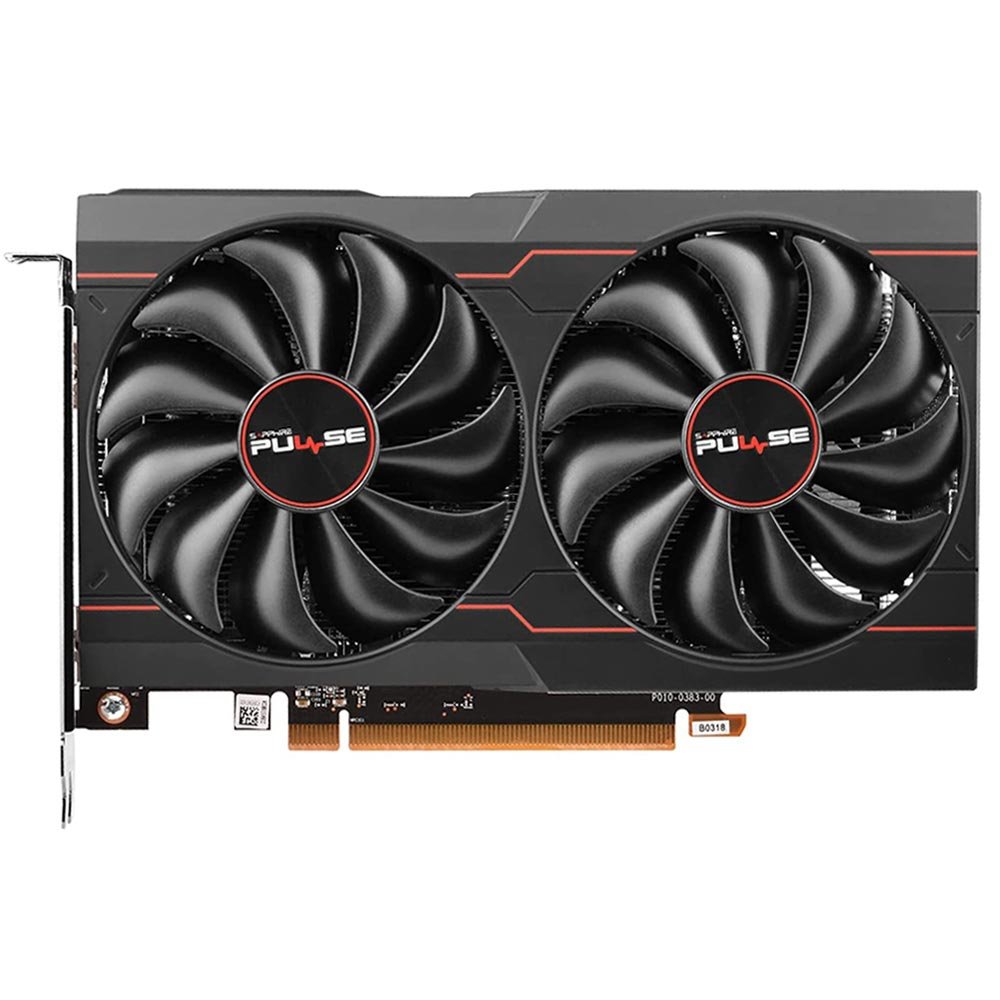

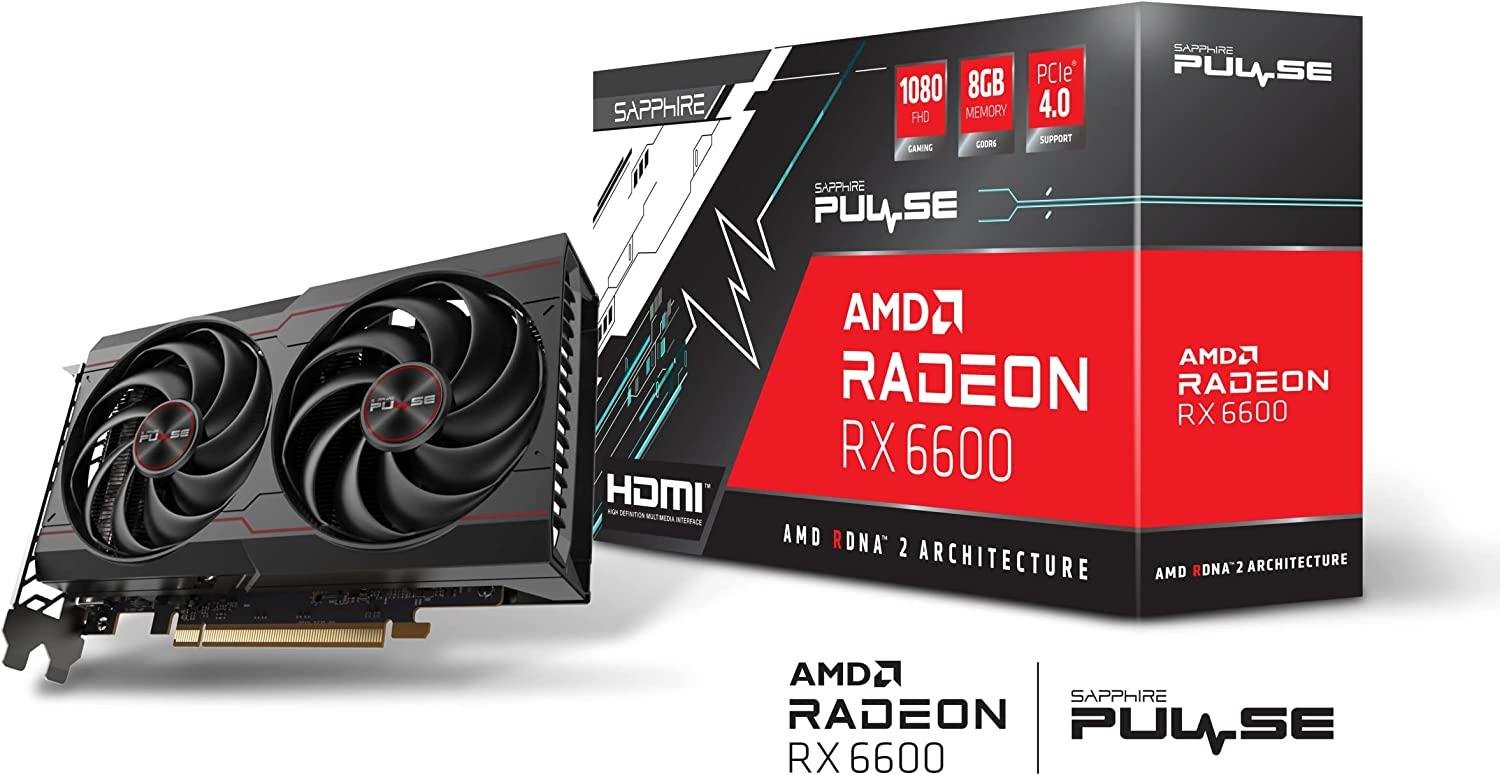

SAPPHIRE PULSE Radeon RX 6600 8GB GDDR6 PCI Express 4.0 ATX Video Card 11310-01-20G
Radeon RX 6600,PCIe 4.0×8,1792 Stream,112 TMUs,64 ROPs,8GB,GDDR6,128Bit
| Brand | SAPPHIRE |
|---|---|
| Products Status | New |
| Application | Desktop |
| Series | PULSE |
| Model | 11310-01-20G |
