| Brand | SAPPHIRE |
|---|---|
| Products Status | New |
| Application | Desktop |
| Series | PULSE |
| Model | 11314-01-20G |
| Interface | PCI Express 4.0 |
| Chipset Manufacturer | AMD |
| GPU Series | AMD Radeon RX 6000 Series |
| GPU | Radeon RX 6500 XT |
| Architecture | RDNA 2 |
| Game Clock | 2685 MHz |
| Boost Clock | 2825 MHz |
| Stream Processors | 1024 Stream Processors |
| Effective Memory Clock | 18 Gbps |
| Memory Size | 4GB |
| Memory Interface | 64-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 2 |
| HDMI | 1 x HDMI |
| DisplayPort | 1 x DisplayPort |
| Max Resolution | 7680 x 4320 |
| Cooler | Double Fans |
| Operating Systems Supported | * Does not support all features including but not limited to Hardware Raytracing.??Check gaming pc with Windows 11 Pro, Linux, Windows 7*, Windows 10, and Windows 11 64-bit operating system required |
| Thermal Design Power | 130W |
| System Requirements | 1 x 6-pin Power Connector., Minimum 400 Watt Power Supply., Minimum 8GB of system memory. 16GB recommended., PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. |
| Recommended PSU Wattage | 400W |
| Power Connector | 6-Pin |
| Form Factor | ATX |
| Max GPU Length | 194 mm |
| Card Dimensions (L x H) | 7.64" x 4.21" |
| Slot Width | 2 Slots |

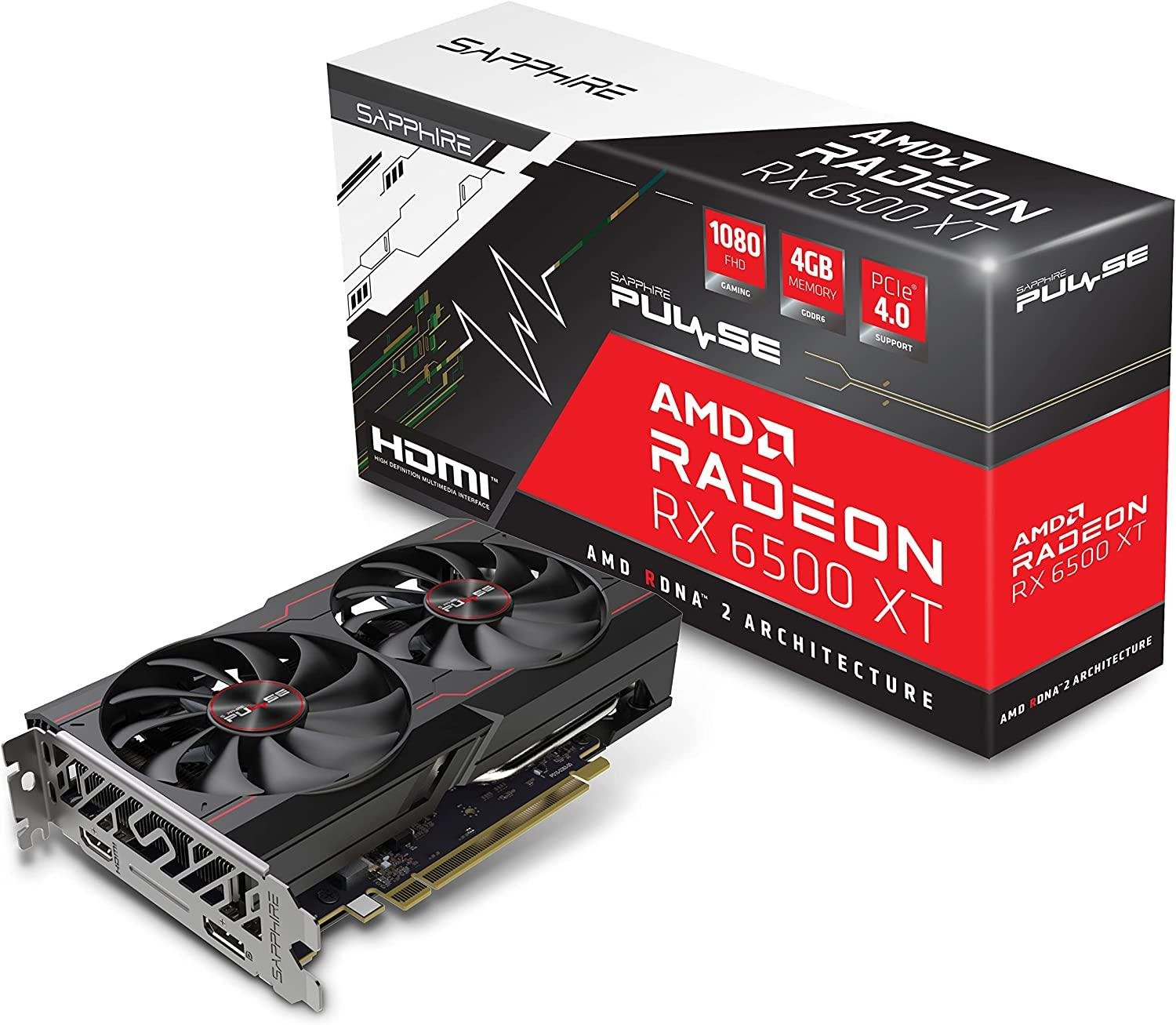

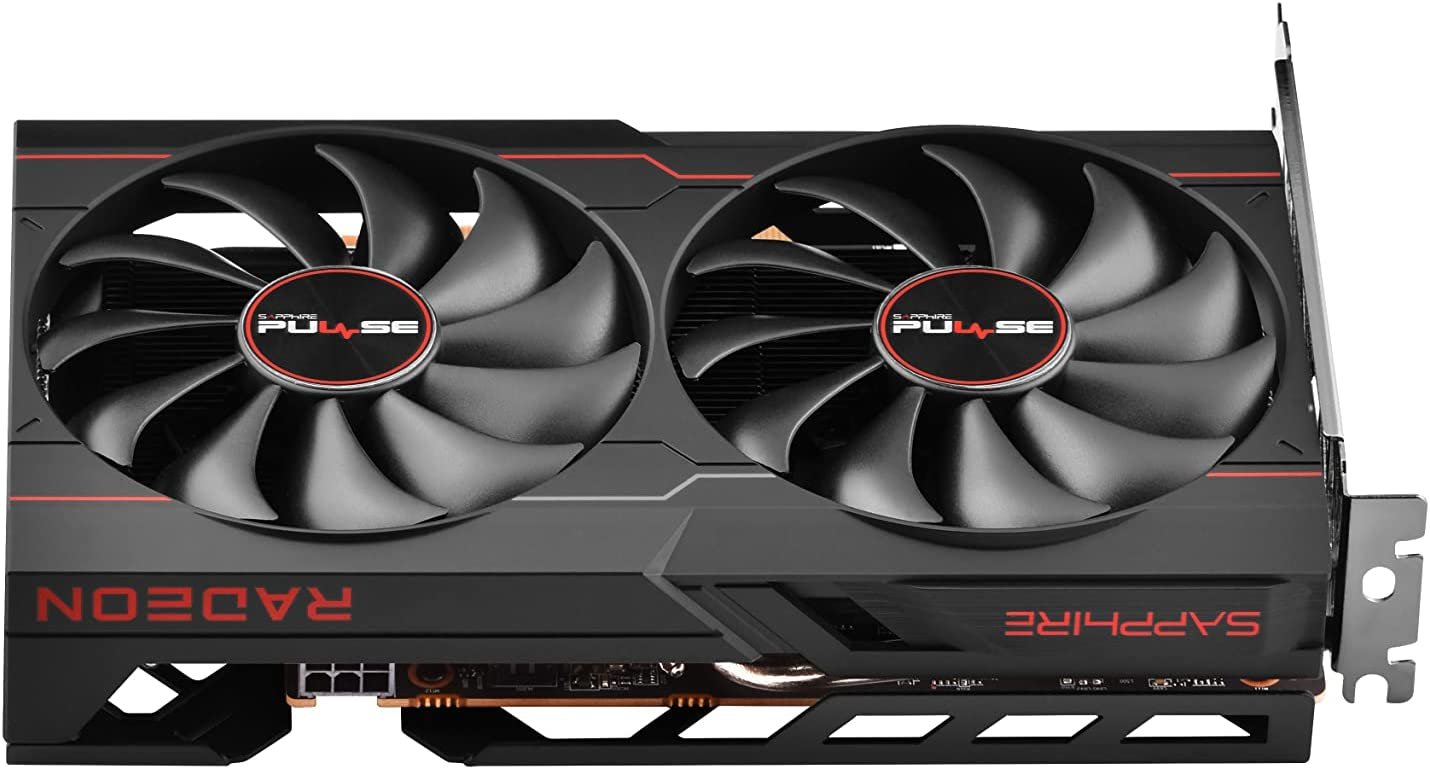

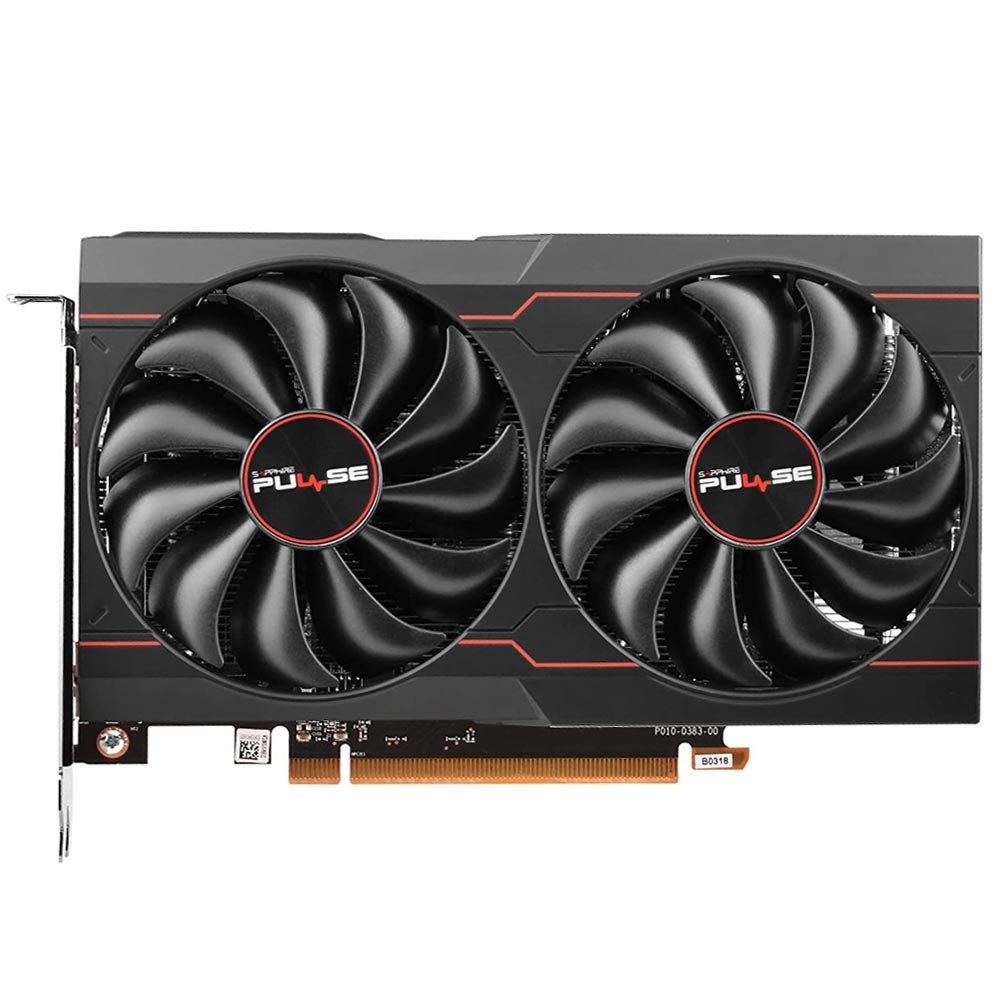

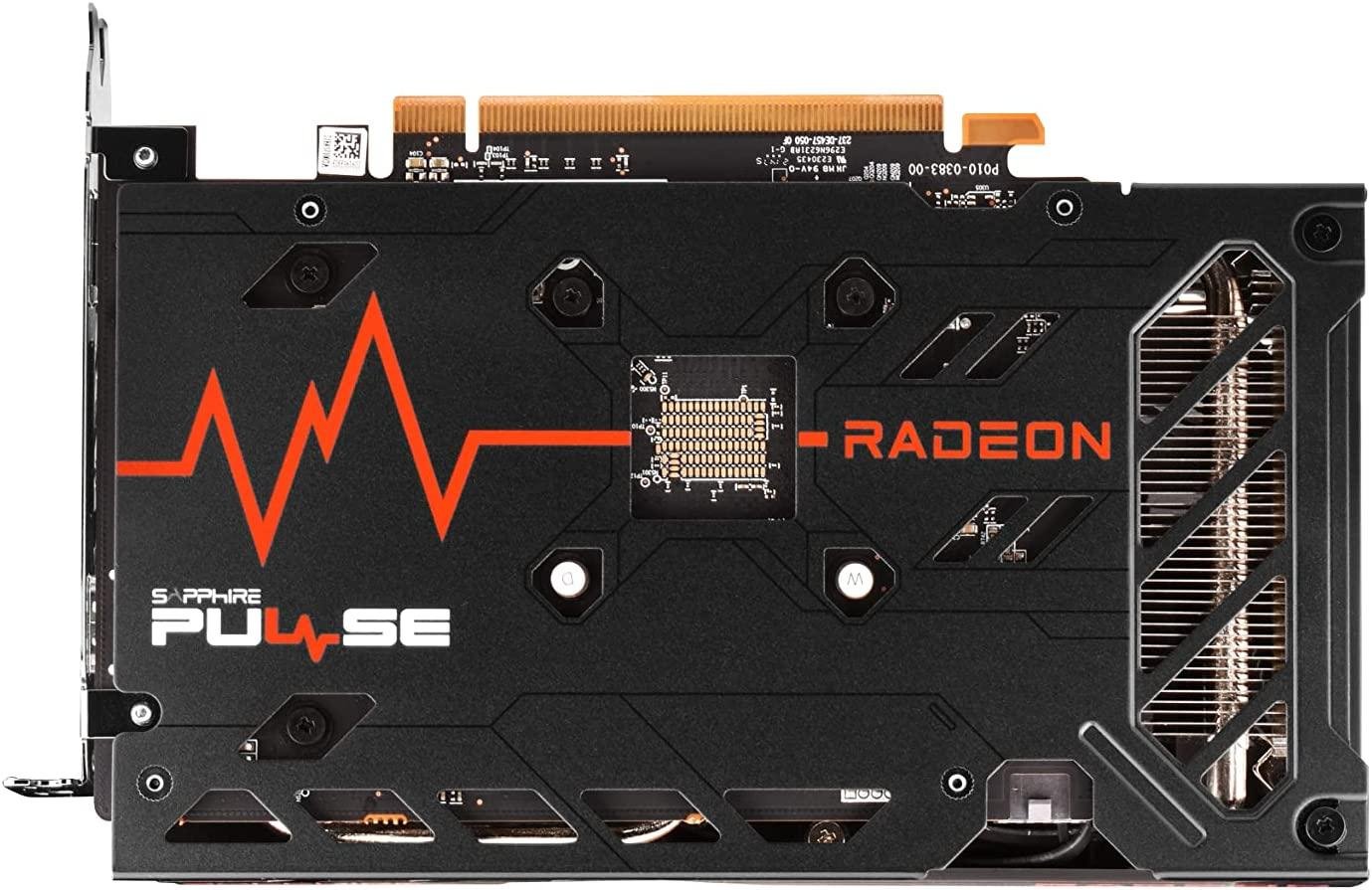

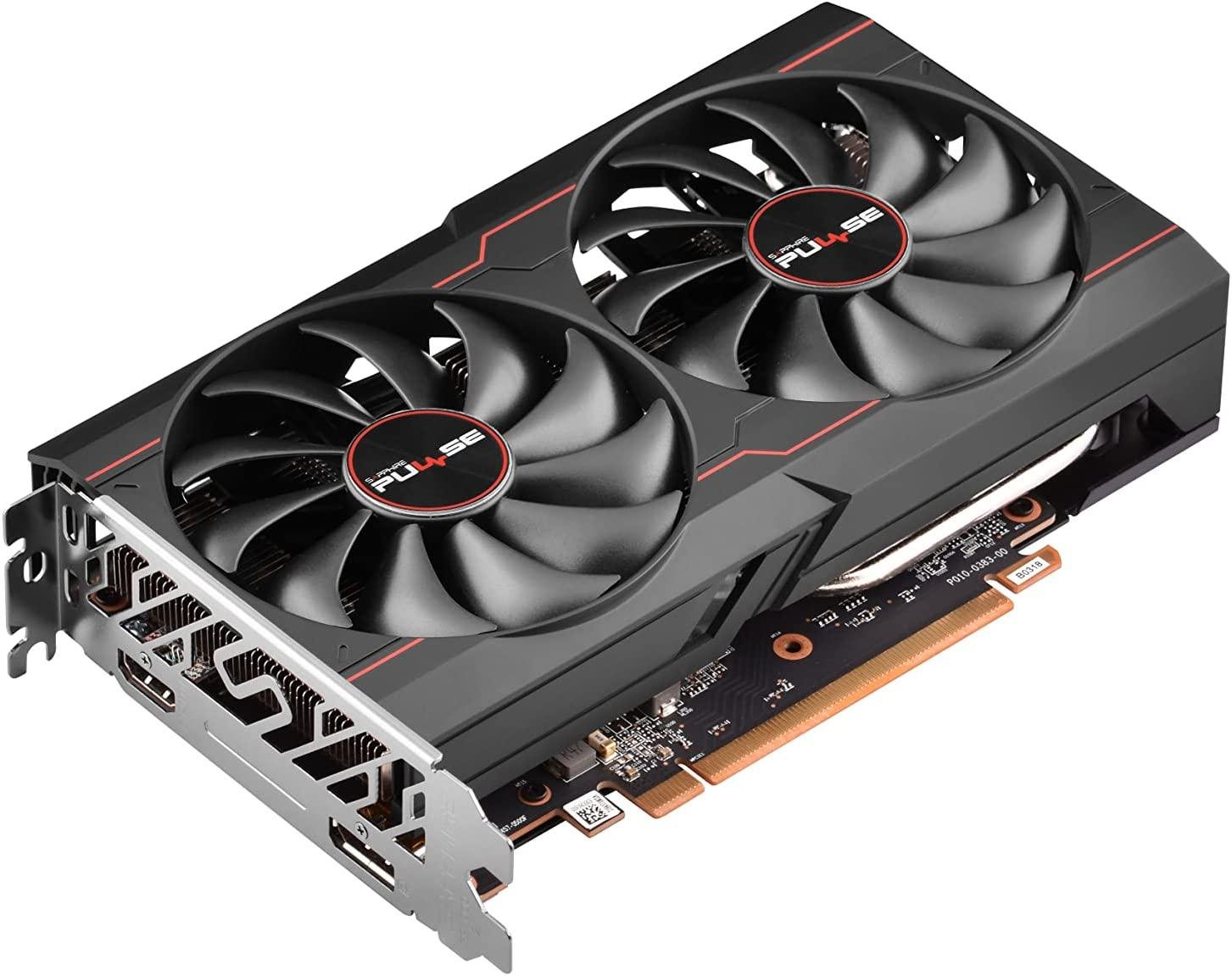

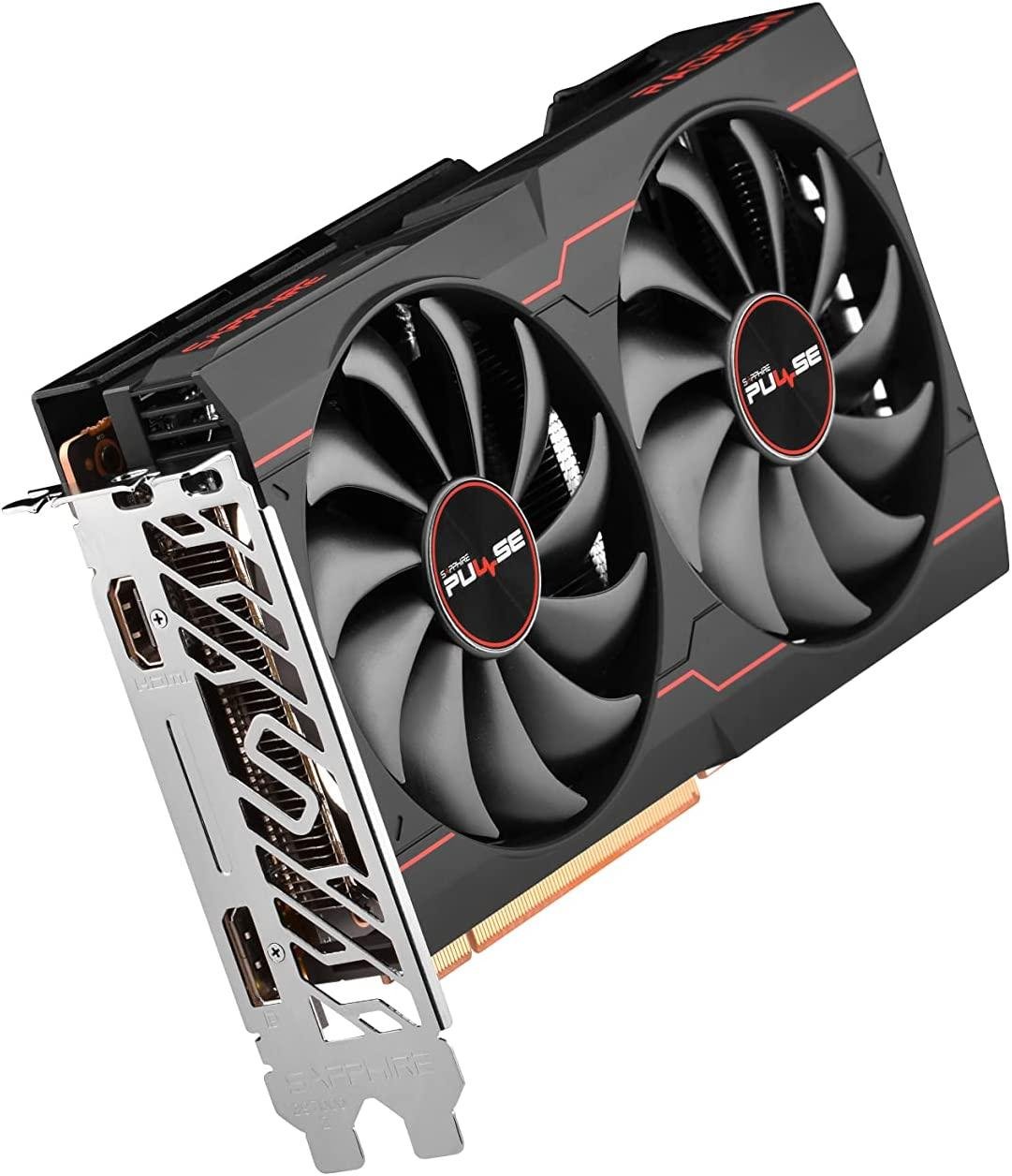

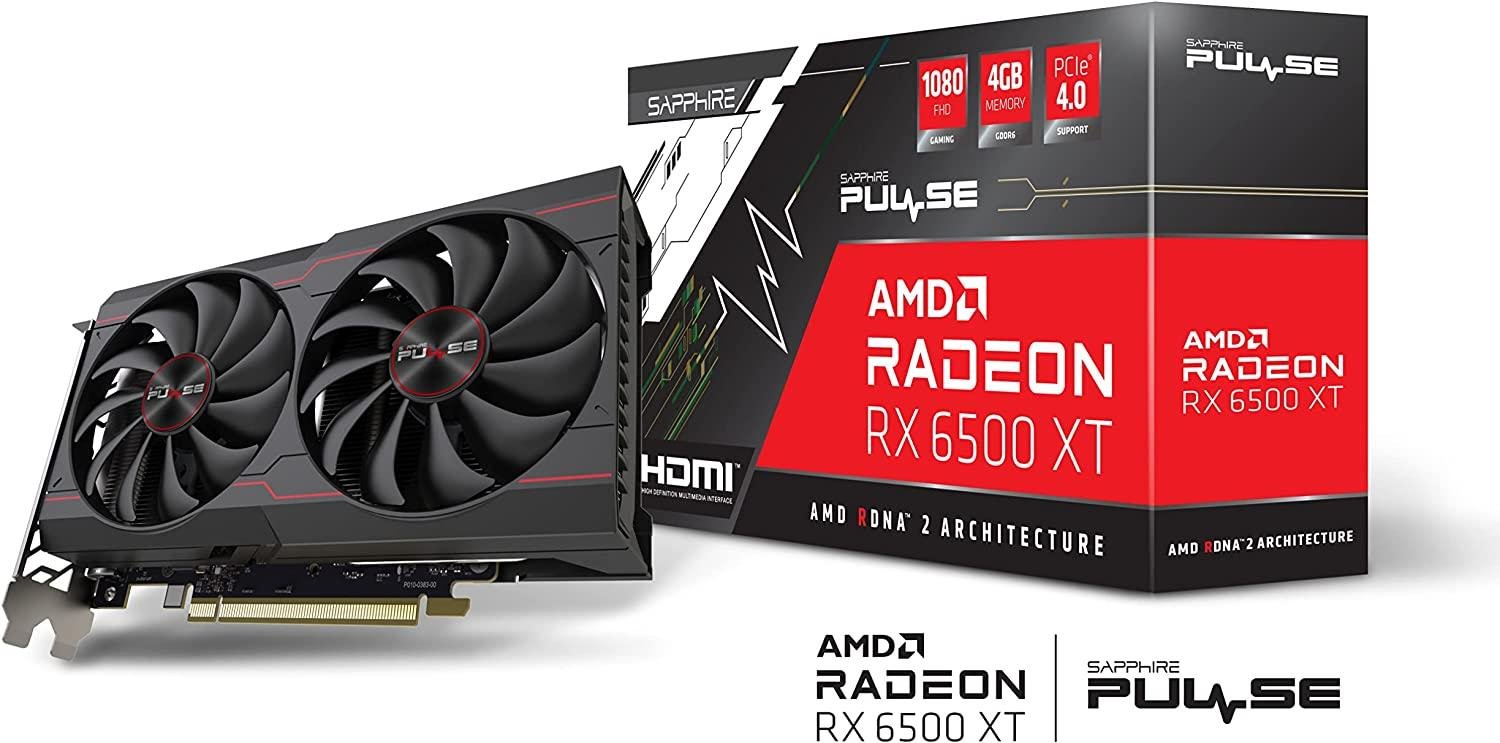

SAPPHIRE PULSE Radeon RX 6500 XT 4GB GDDR6 PCI Express 4.0 ATX Video Card 11314-01-20G
Radeon RX 6500 XT,PCIe 4.0×8,1024 Stream,64 TMUs,32 ROPs,4GB,GDDR6,64Bit
| Brand | SAPPHIRE |
|---|---|
| Products Status | New |
| Application | Desktop |
| Series | PULSE |
| Model | 11314-01-20G |
