| Brand | SamSung |
|---|---|
| Products Status | New |
| Application | Desktop |
| Series | Samsung 980 PRO |
| Model | MZ-V8P1T0B/AM |
| Device Type | Internal Solid State Drive (SSD) |
| Used For | Consumer |
| Form Factor | M.2 2280 |
| Capacity | 1TB |
| Memory Components | Samsung V-NAND 3-bit MLC |
| Interface | PCI-Express Gen 4.0 x4, NVMe 1.3c |
| Controller | Samsung |
| Cache | 1GB LPDDR4 |
| Encryption | AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667) |
| Max Sequential Read | Up to 7000 MBps |
| Max Sequential Write | Up to 5000 MBps |
| 4KB Random Read | QD1: Up to 22,000 IOPS, QD32: Up to 1,000,000 IOPS |
| 4KB Random Write | QD1: Up to 60,000 IOPS, QD32: Up to 1,000,000 IOPS |
| Terabytes Written (TBW) | 600TB |
| MTBF | 1,500,000 hours |
| Power Consumption (Idle) | 35 mW |
| Power Consumption (Active) | Read: 6.2W, Write: 5.7W |
| Operating Temperature | 0??C ~ +70??C |
| Storage Temperature | -40??C ~ +85??C |
| Height | 2.38mm |
| Width | 22.15mm |
| Depth | 80.15mm |
| Weight | 9.00g |

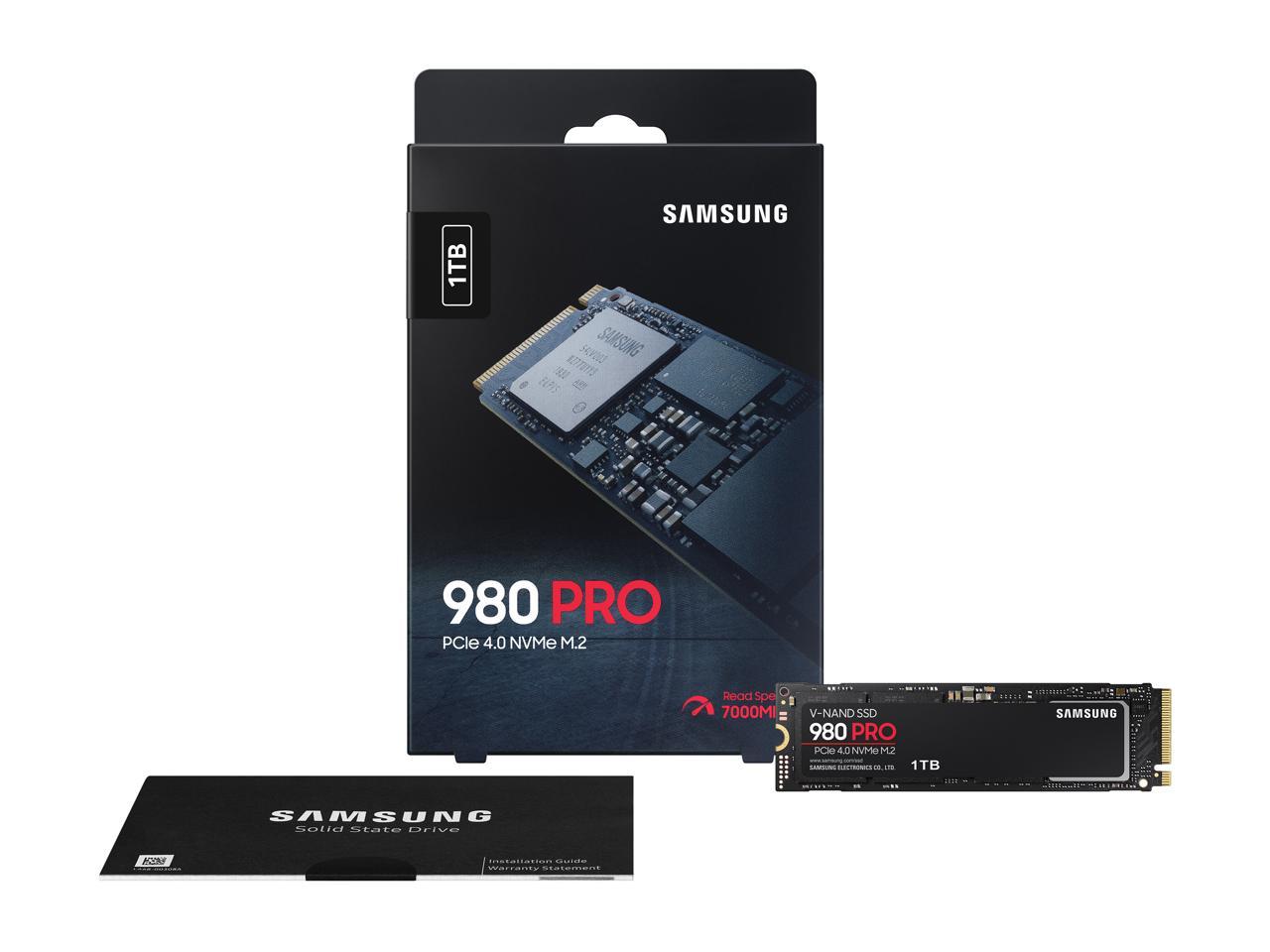

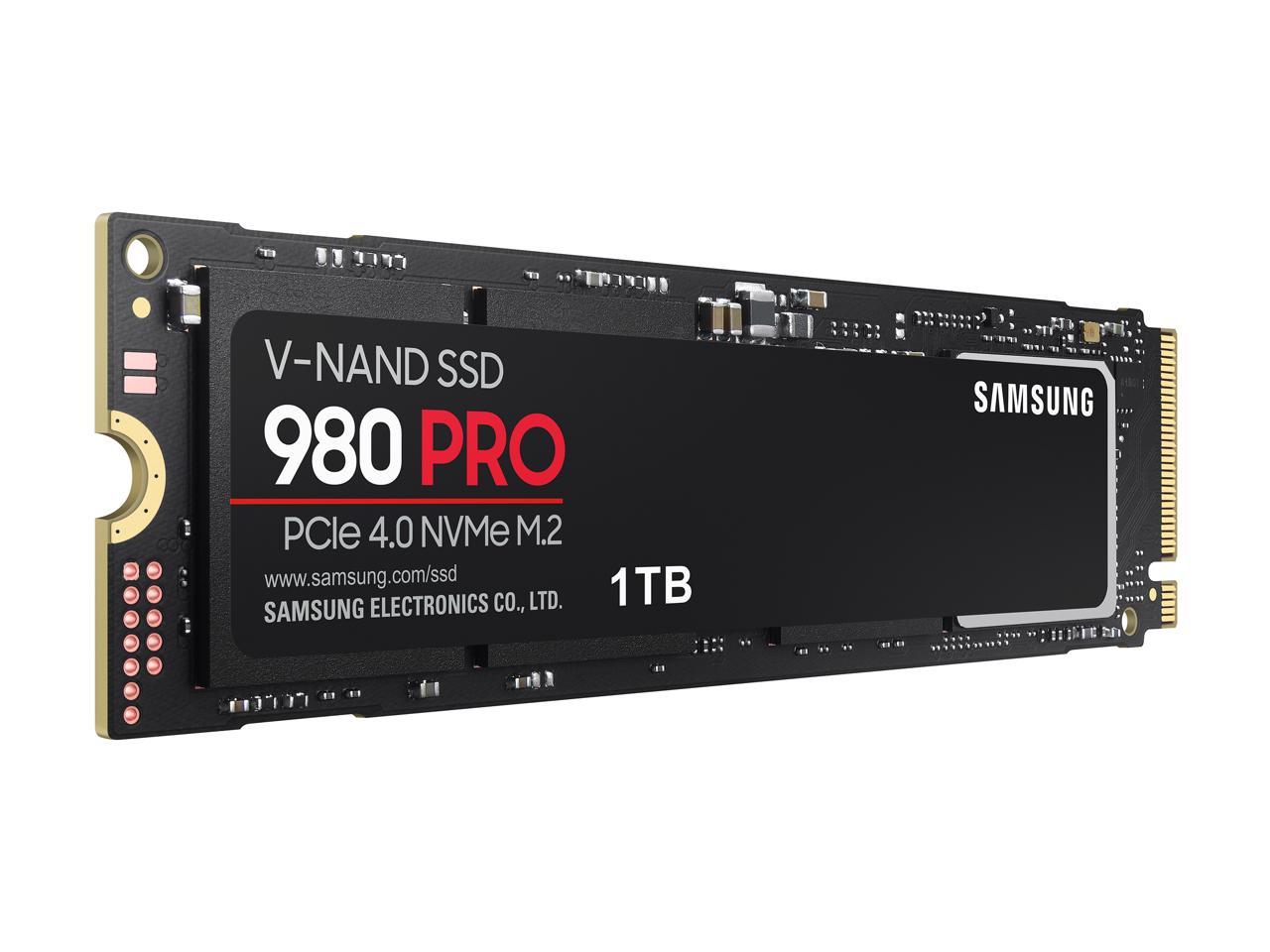

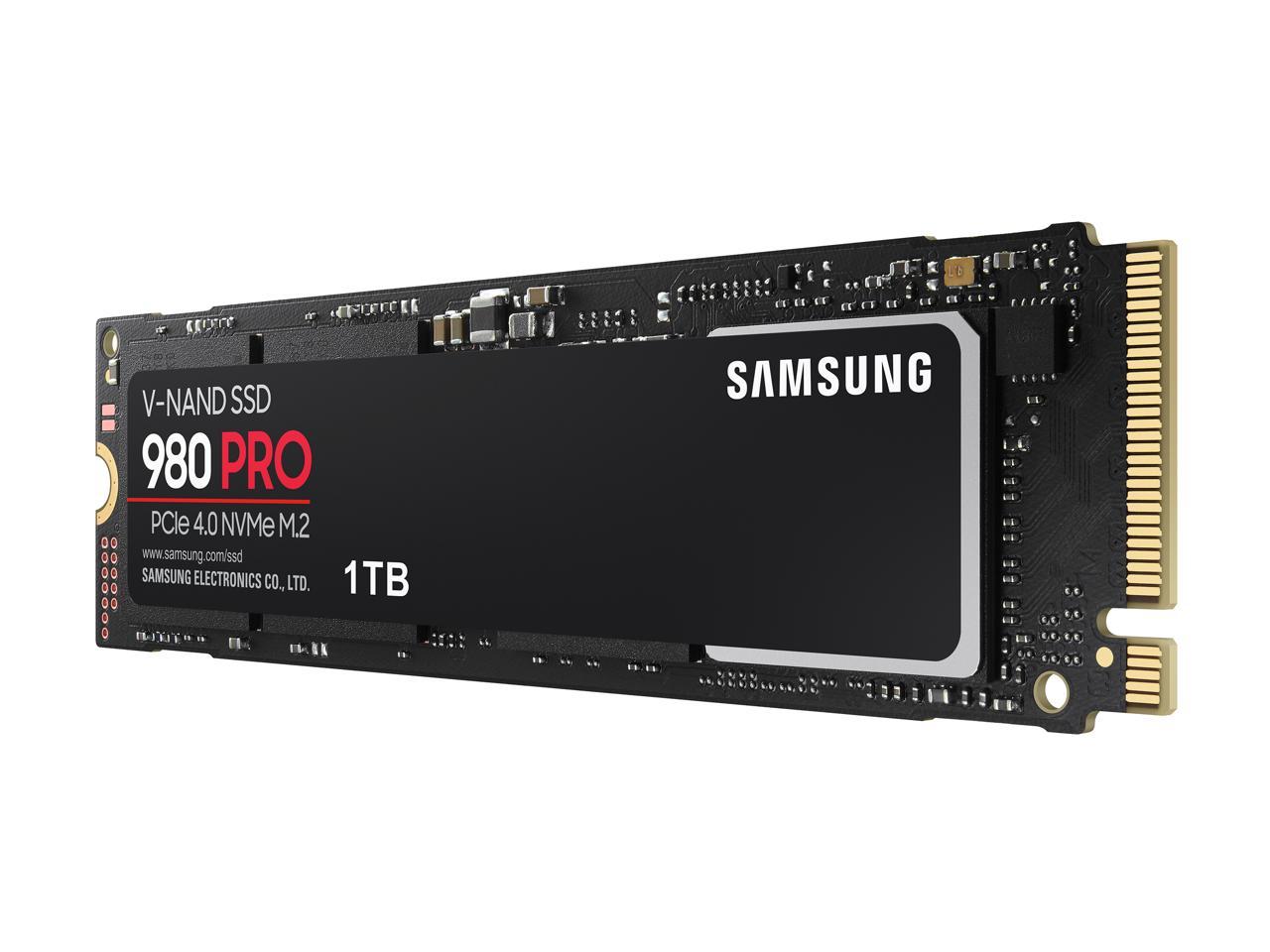

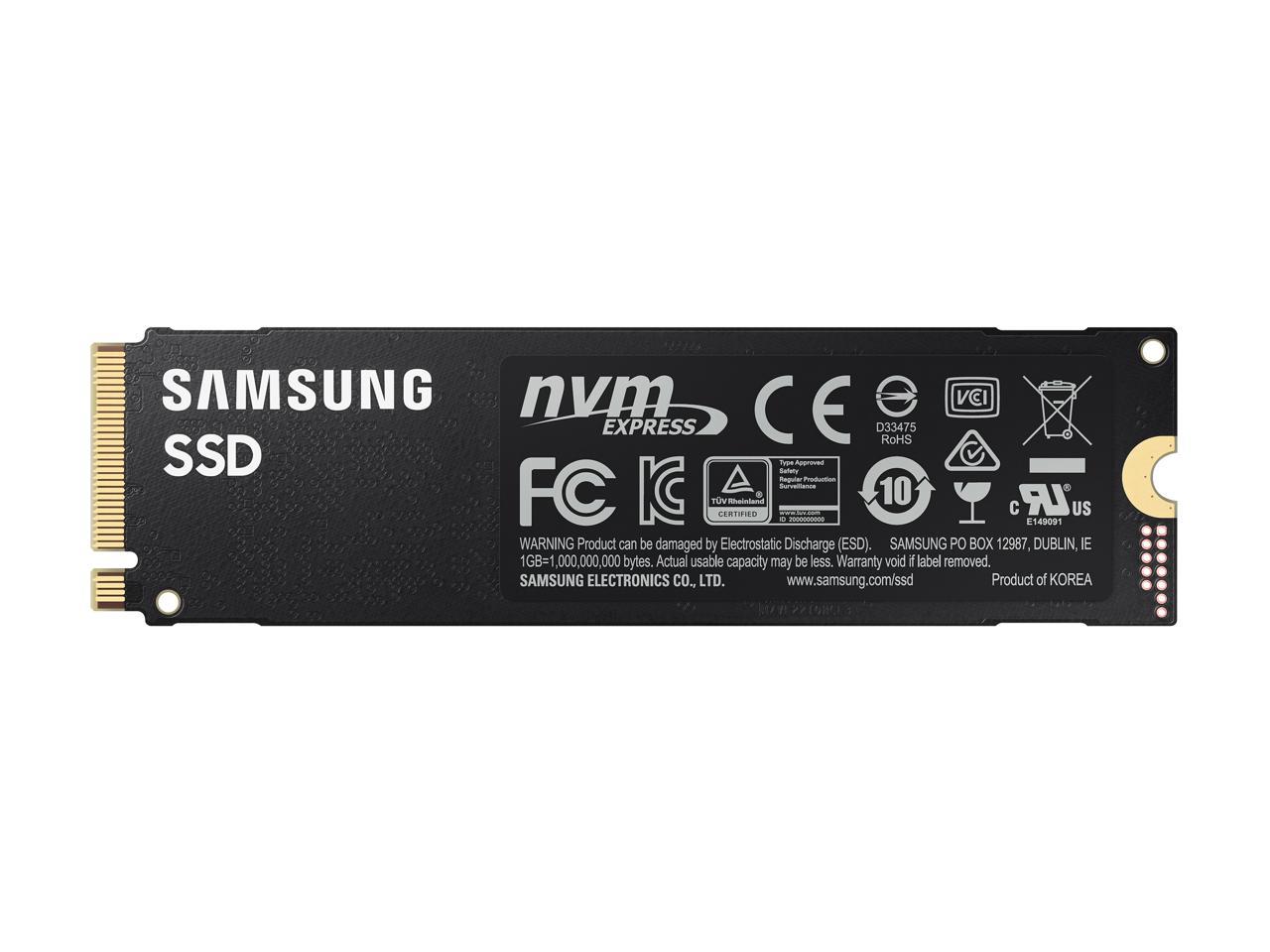

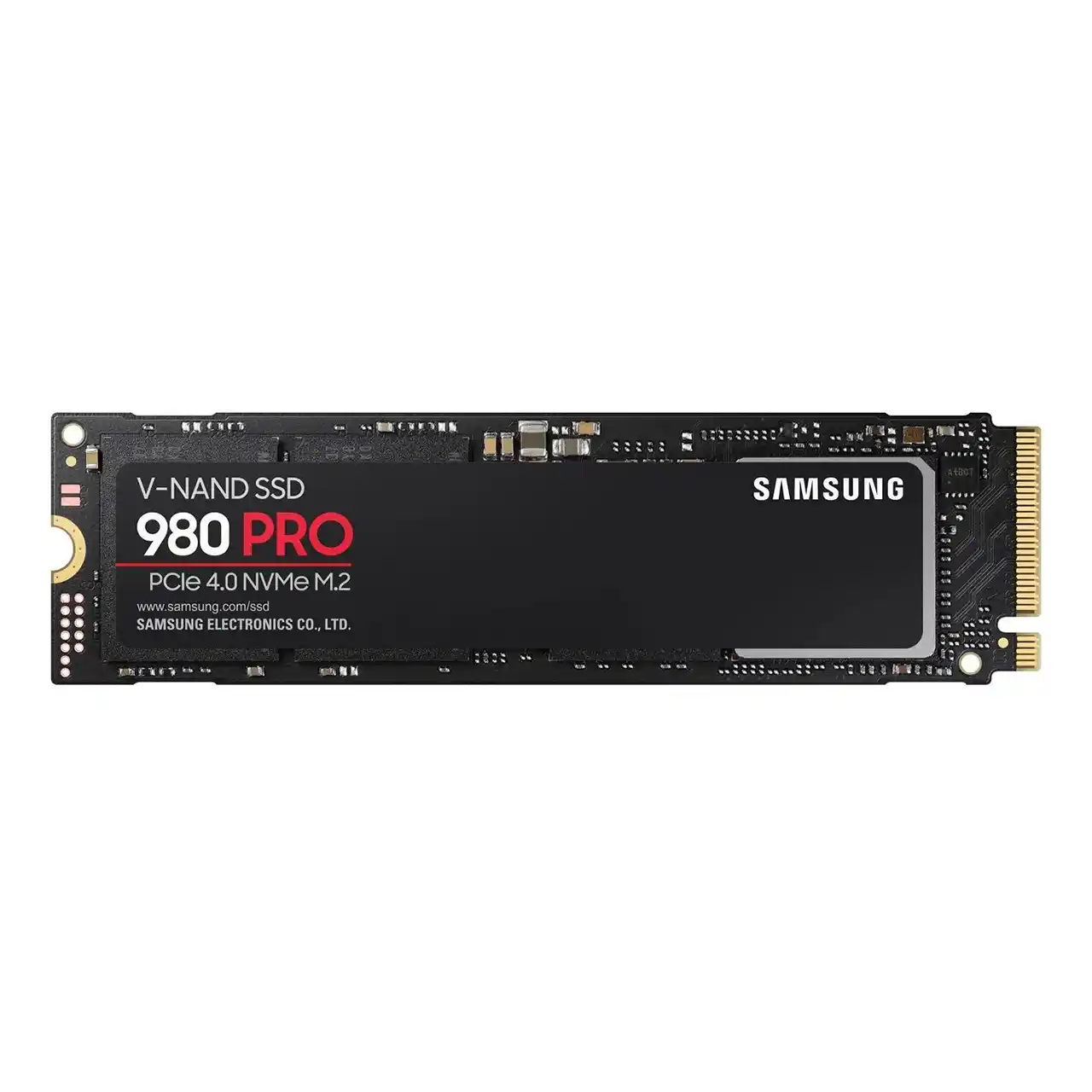

SAMSUNG 980 PRO SSD 1TB, PCIe 4.0 M.2 2280, Speeds Up-to 7,000MB/s Best for High End Computing, Gaming, and Heavy Duty Workstations (MZV8P1T0B/AM)
SamSung 980PRO 1TB M.2 2280 NVMe PCIe 4.0 x4 MZ-V8P1T0B/AM
