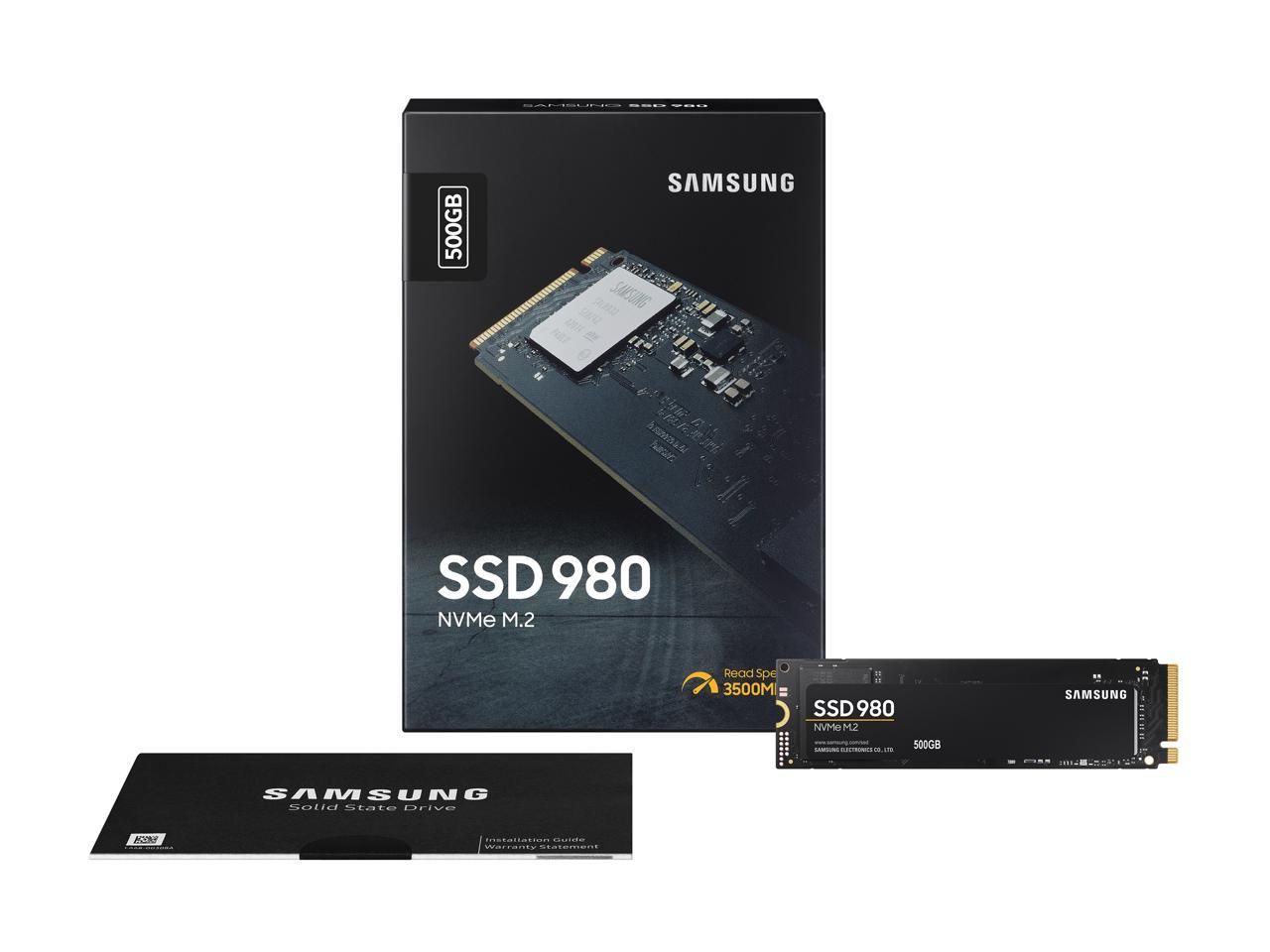

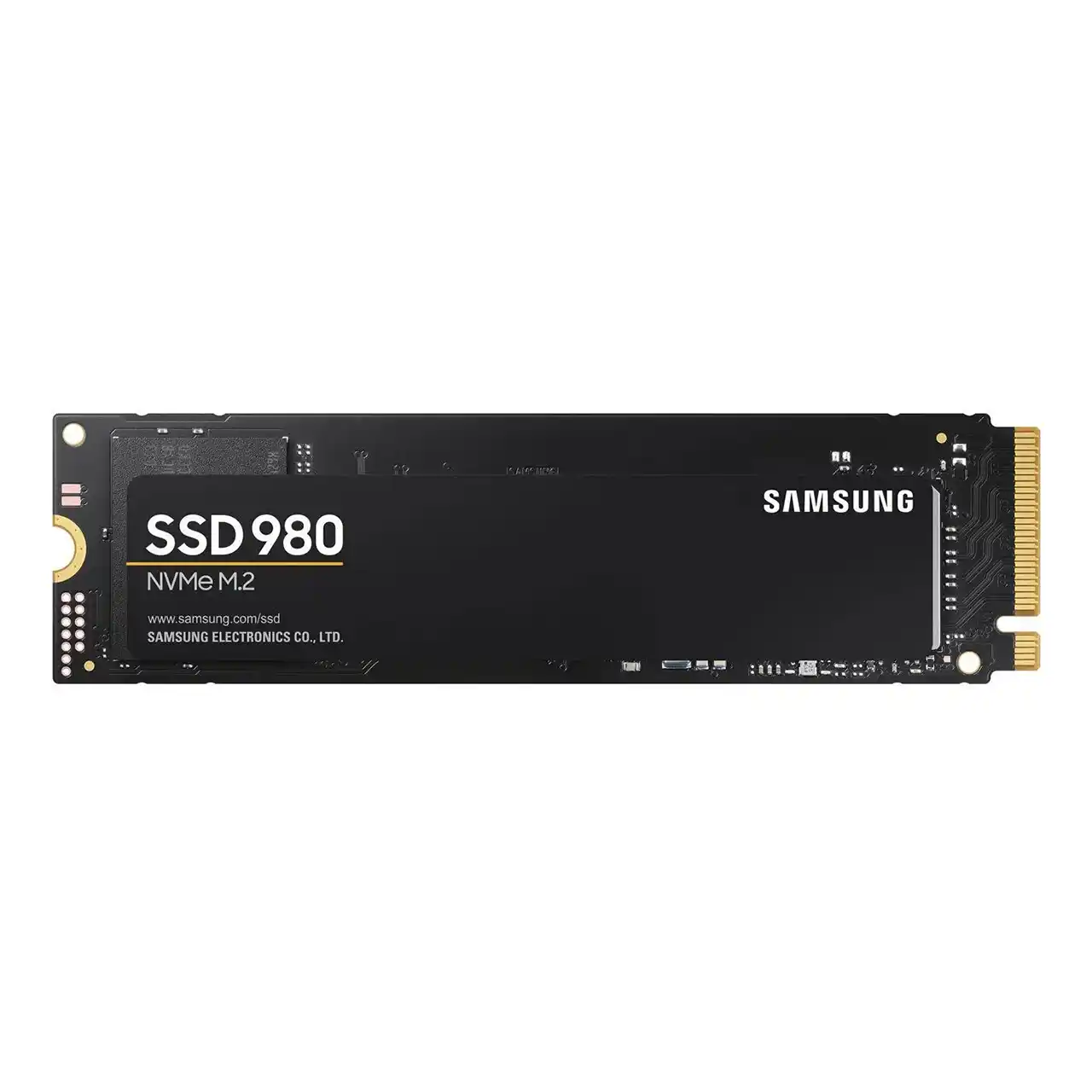

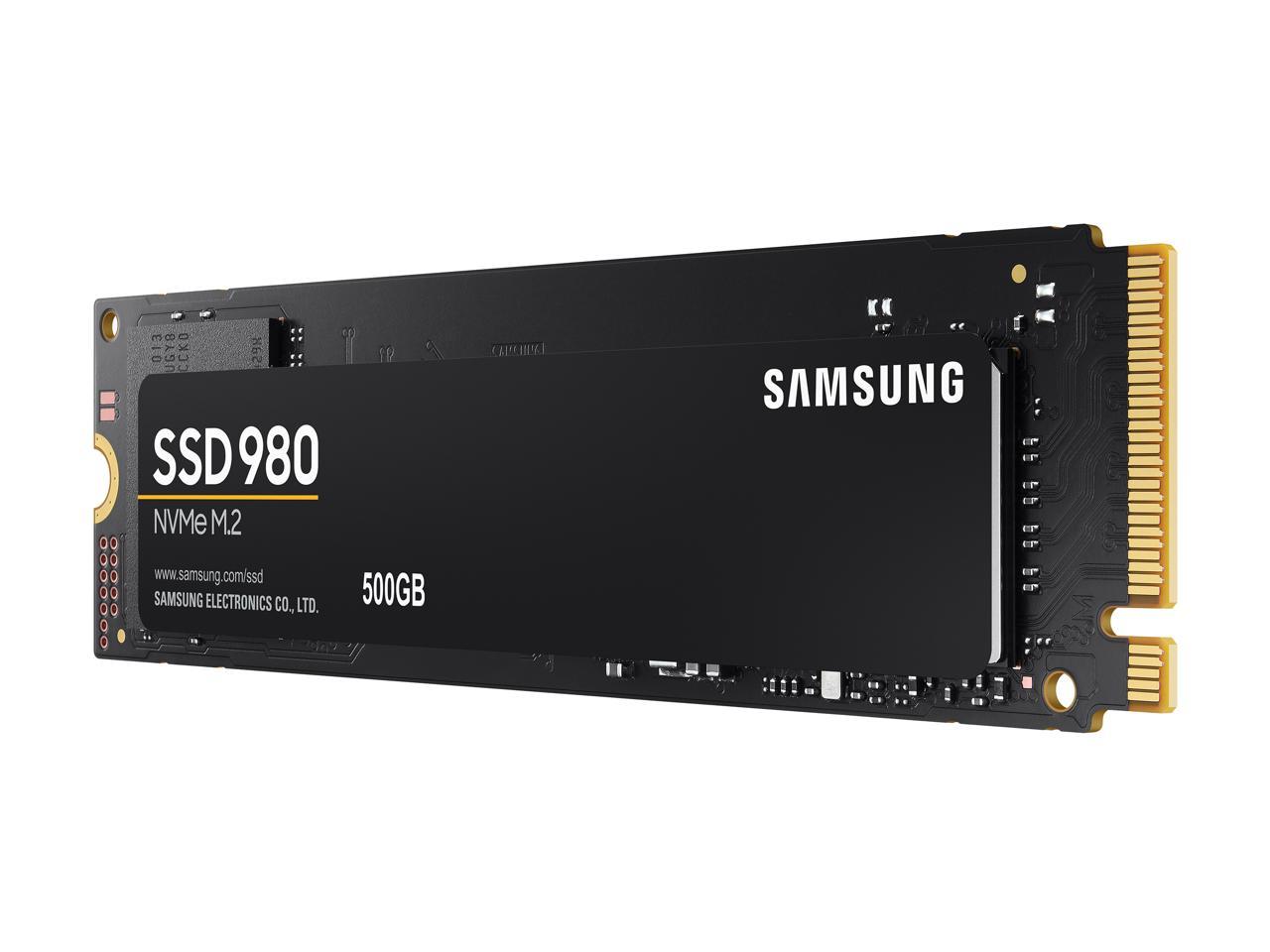

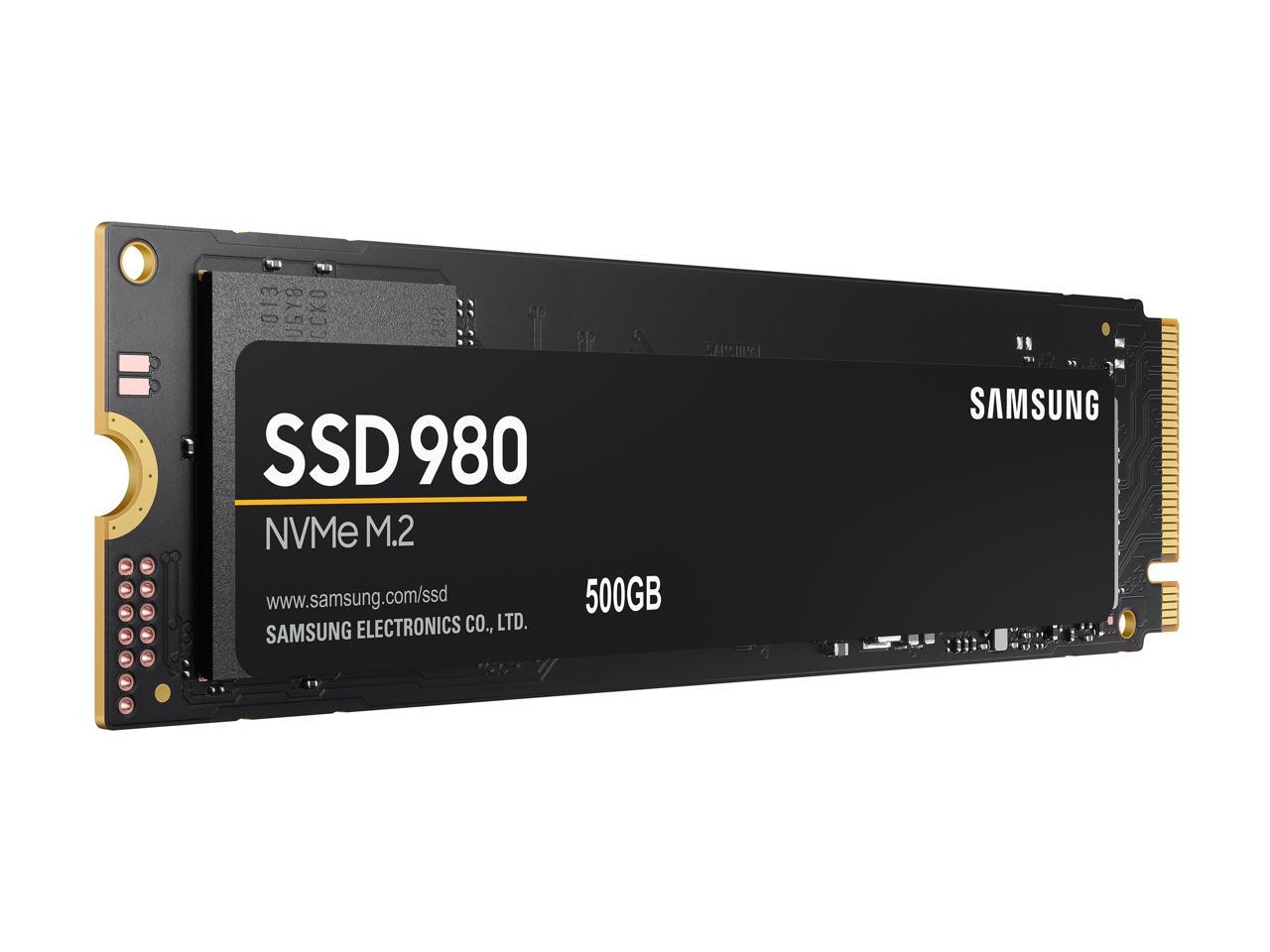

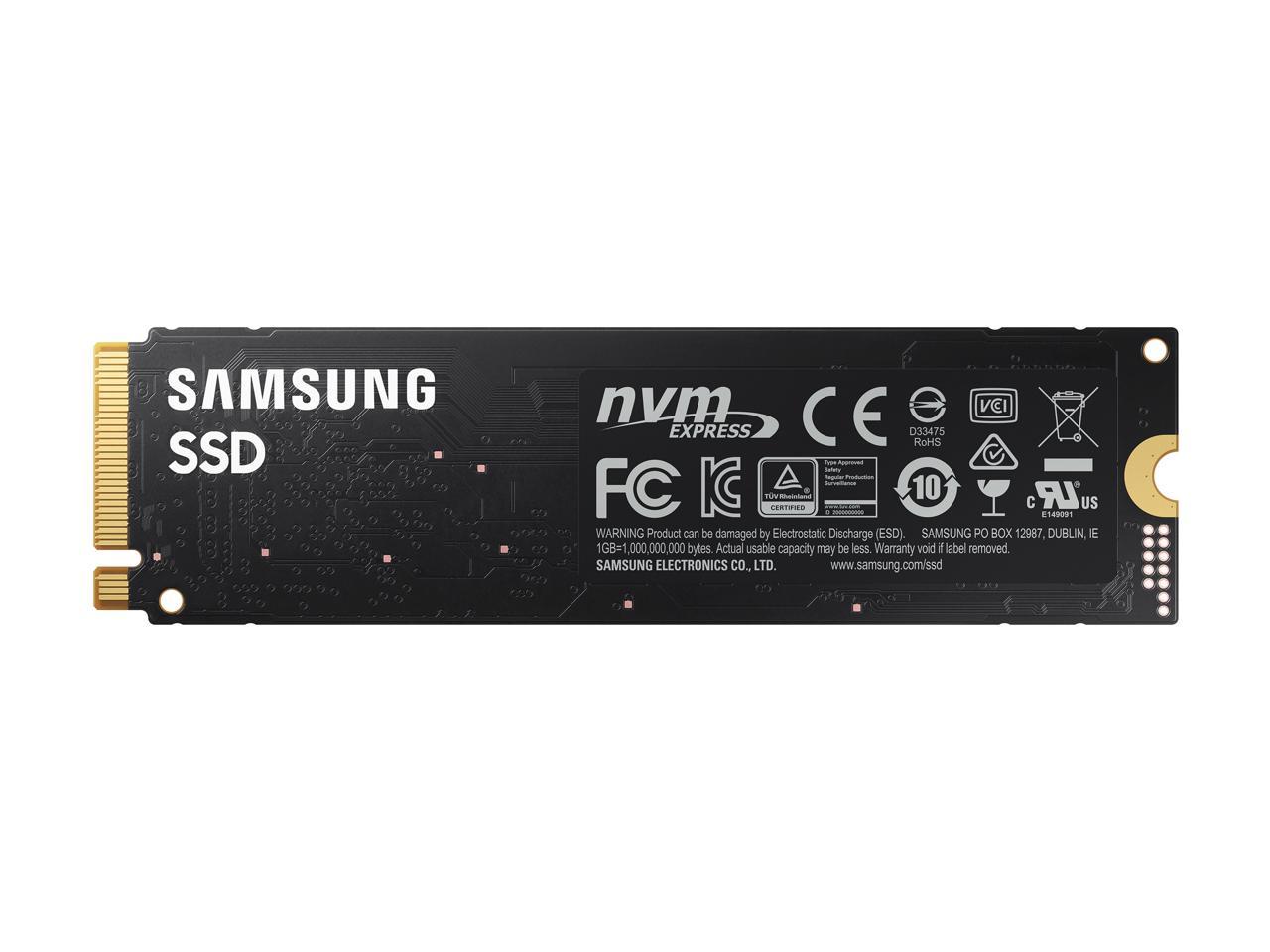

SAMSUNG 980 M.2 2280 500GB PCI-Express 3.0 x4, NVMe 1.4 V-NAND MLC Internal Solid State Drive (SSD) MZ-V8V500B/AM

Brand

SamSung

Products Status

New

Application

Desktop

Series

Samsung 980

Model

MZ-V8V500B/AM

Brand	SamSung
Products Status	New
Application	Desktop
Series	Samsung 980
Model	MZ-V8V500B/AM
Device Type	Internal Solid State Drive (SSD)
Used For	Consumer
Form Factor	M.2 2280
Capacity	500GB
Memory Components	V-NAND MLC
Interface	PCI-Express 3.0 x4, NVMe 1.4
Controller	Pablo
Encryption	AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)
Max Sequential Read	Up to 3100 MBps
Max Sequential Write	Up to 2600 MBps
4KB Random Read	QD1: 17,000 IOPS, QD32: 400,000 IOPS
4KB Random Write	QD1: 54,000 IOPS, QD32: 470,000 IOPS
Terabytes Written (TBW)	300TB
MTBF	1,500,000 hours
Features	– Full Power Mode through Magician 6.3 allows the 980 to run at peak level for nonstop for a consistent high performance, – Host Memory Buffer (HMB) links DRAM in the host directly to the 980 to overcome performance restrain from DRAMless, – Intelligent TurboWrite 2.0 maximize full potential performance with enlarged TurboWrite region up to 5.5 times, – Power consumption is reduced up to 32% and power efficiency is improved up to 56% vs. 970 EVO, – Solid performance with Seq. Read/Write speeds up to 3,100/2,600 MB/s, – Thermal control solution provides 50% less heat vs. the 970 EVO, – Uncompromising endurance with reliability up to 300TBW, OPTIMIZED EFFICIENCY, Proven Reliability, SOLID PERFORMANCE
Power Consumption (Idle)	Max. 45 mW
Power Consumption (Active)	4.3W
Max Shock Resistance	1,500G & 0.5 ms (Half sine)
Height	2.38mm
Width	22.15mm
Depth	80.15mm
