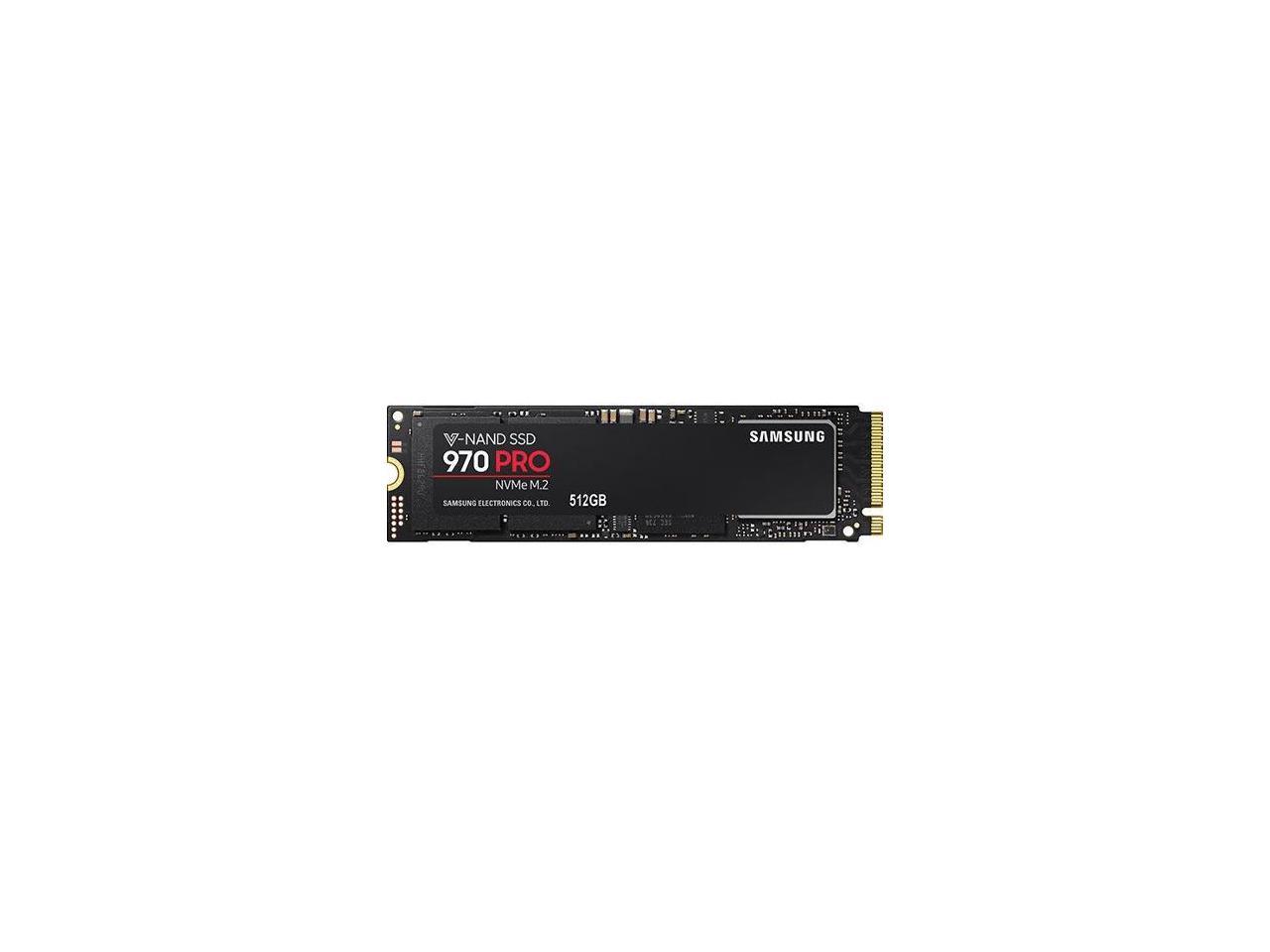

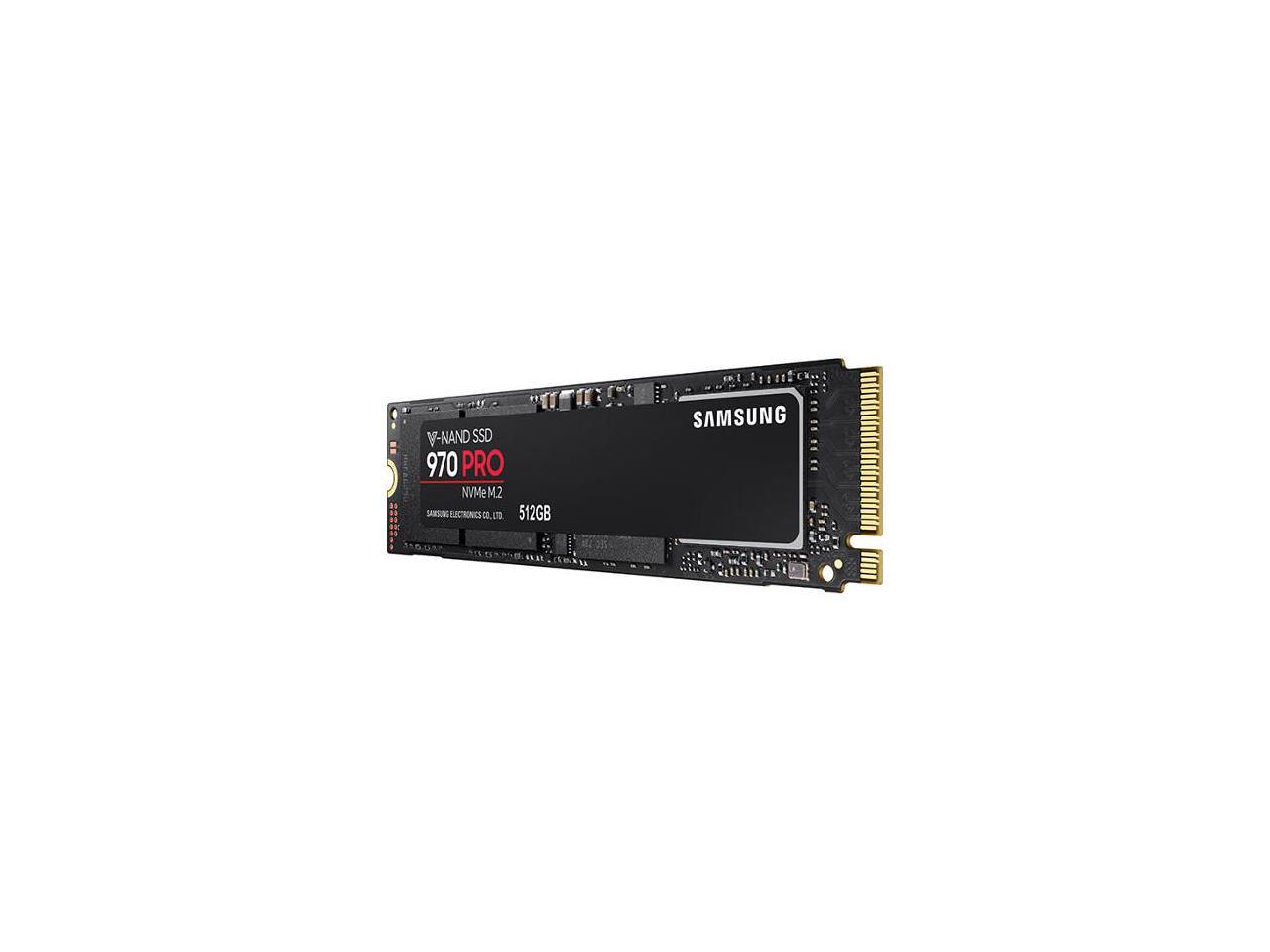

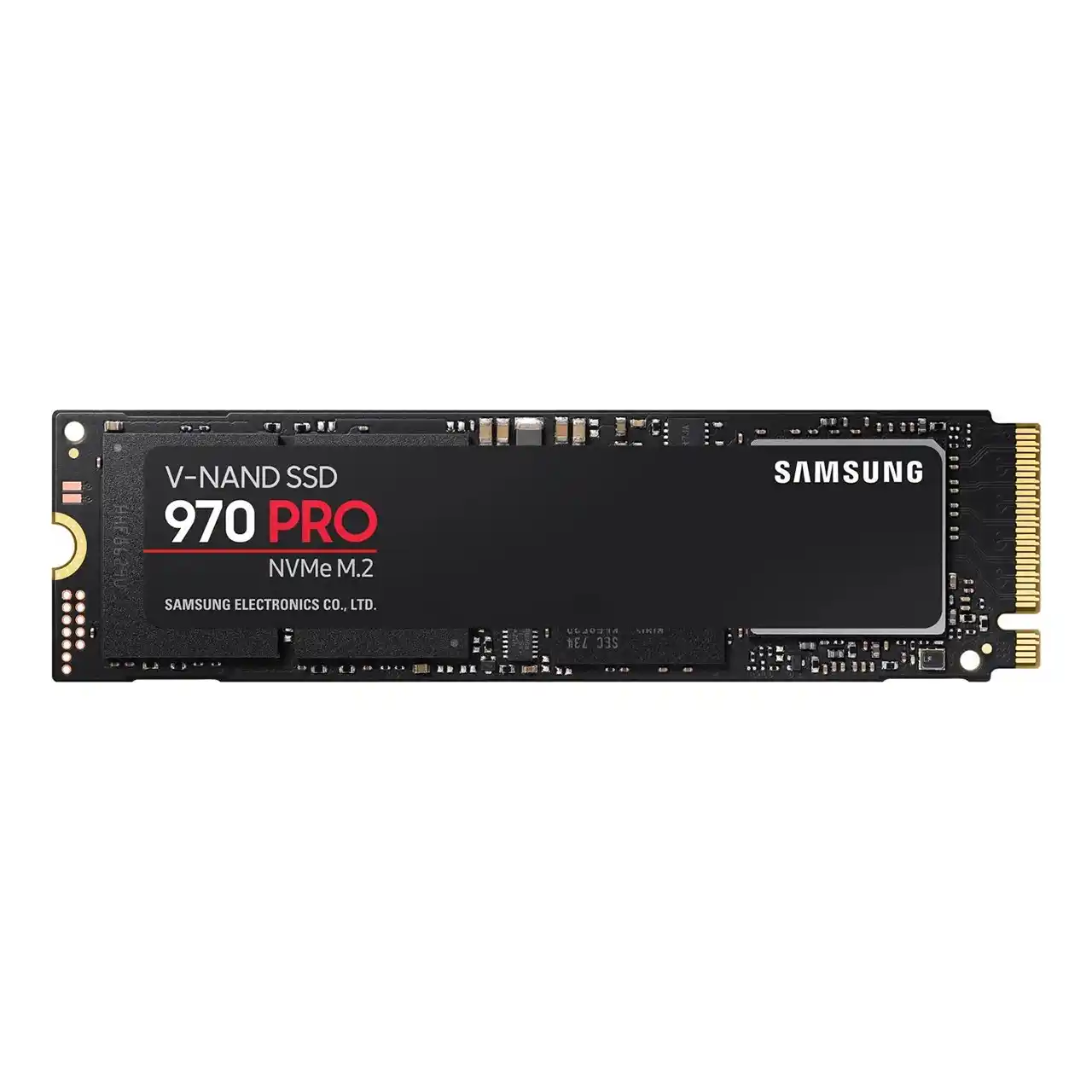

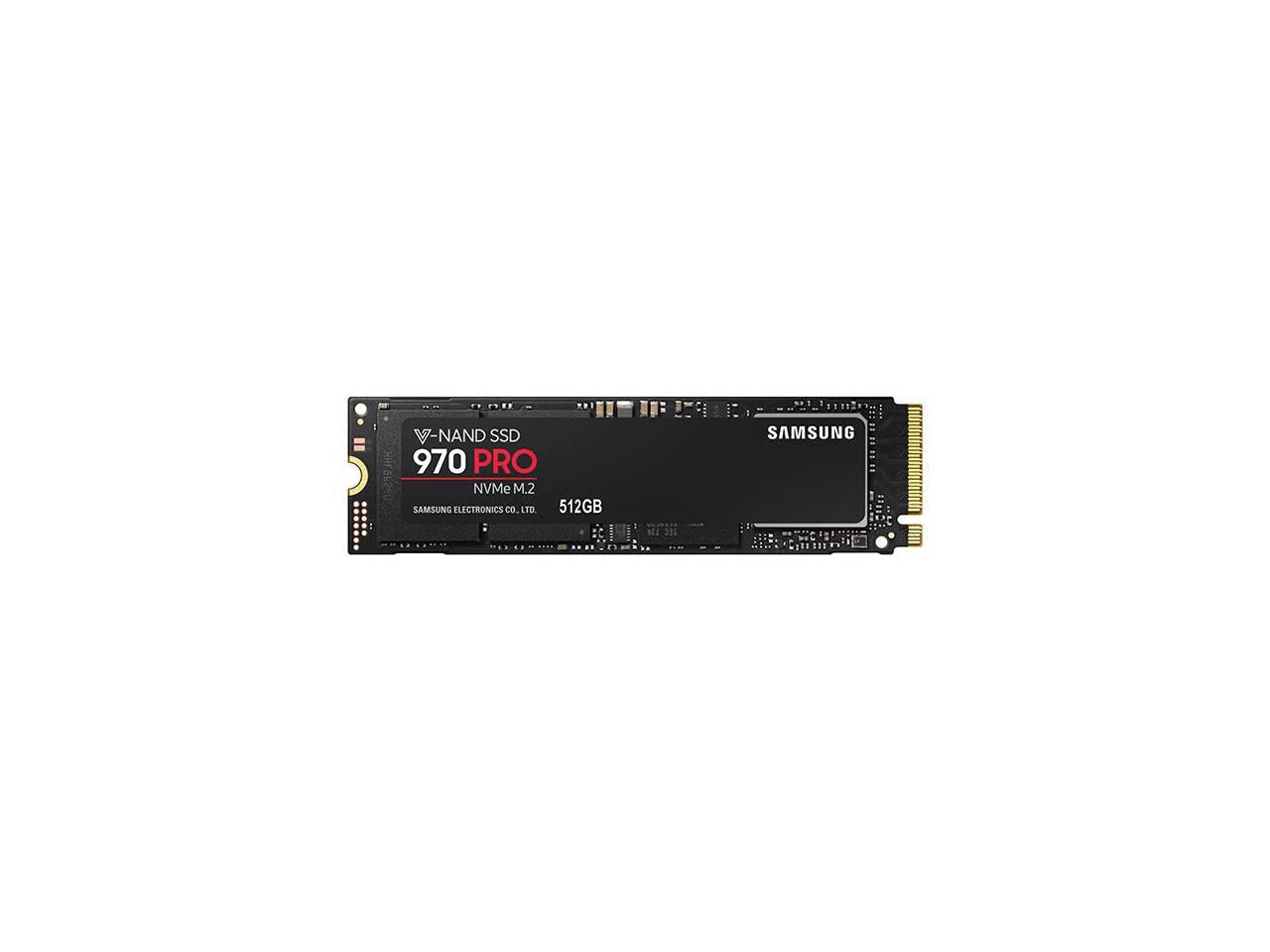

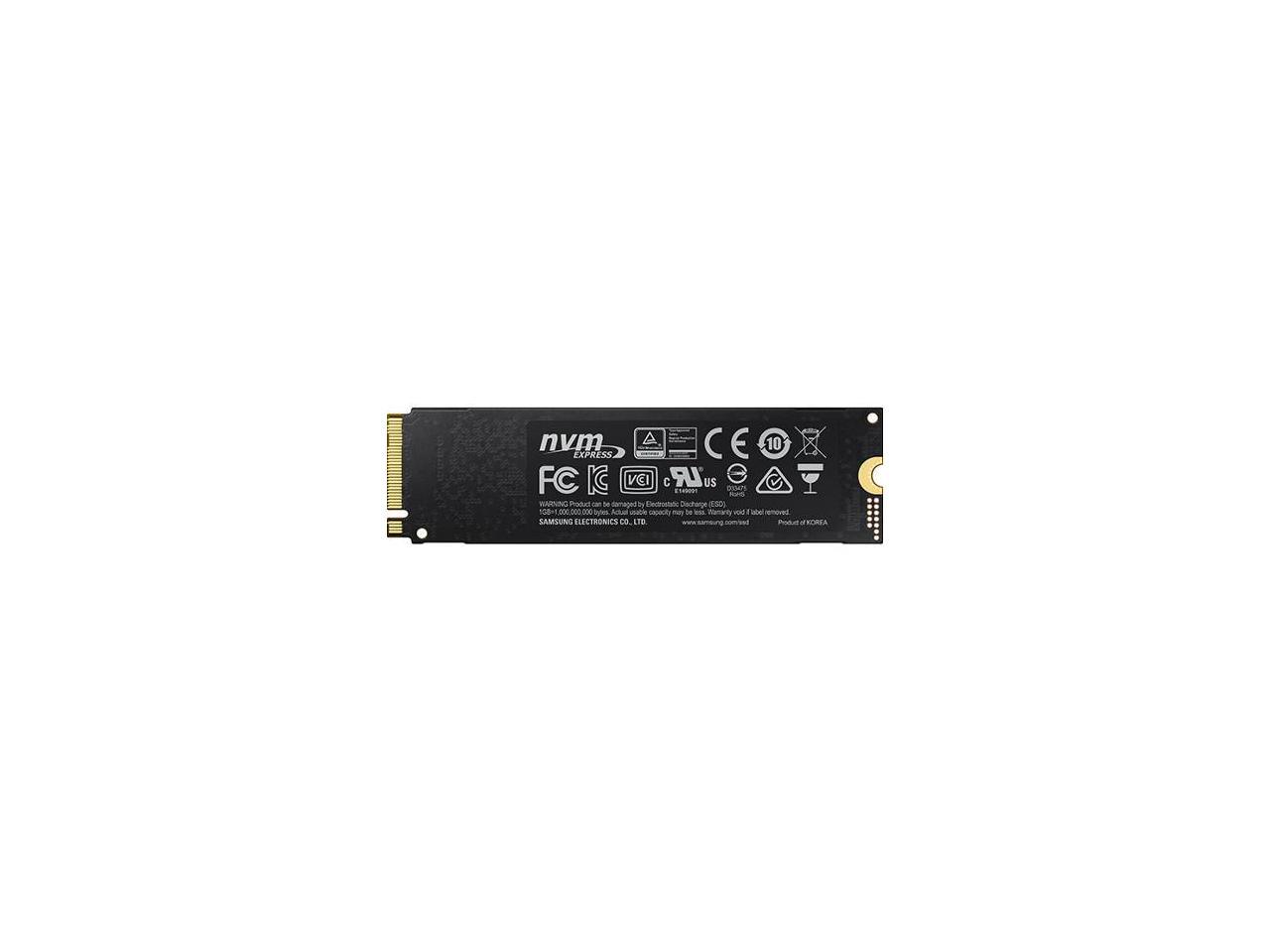

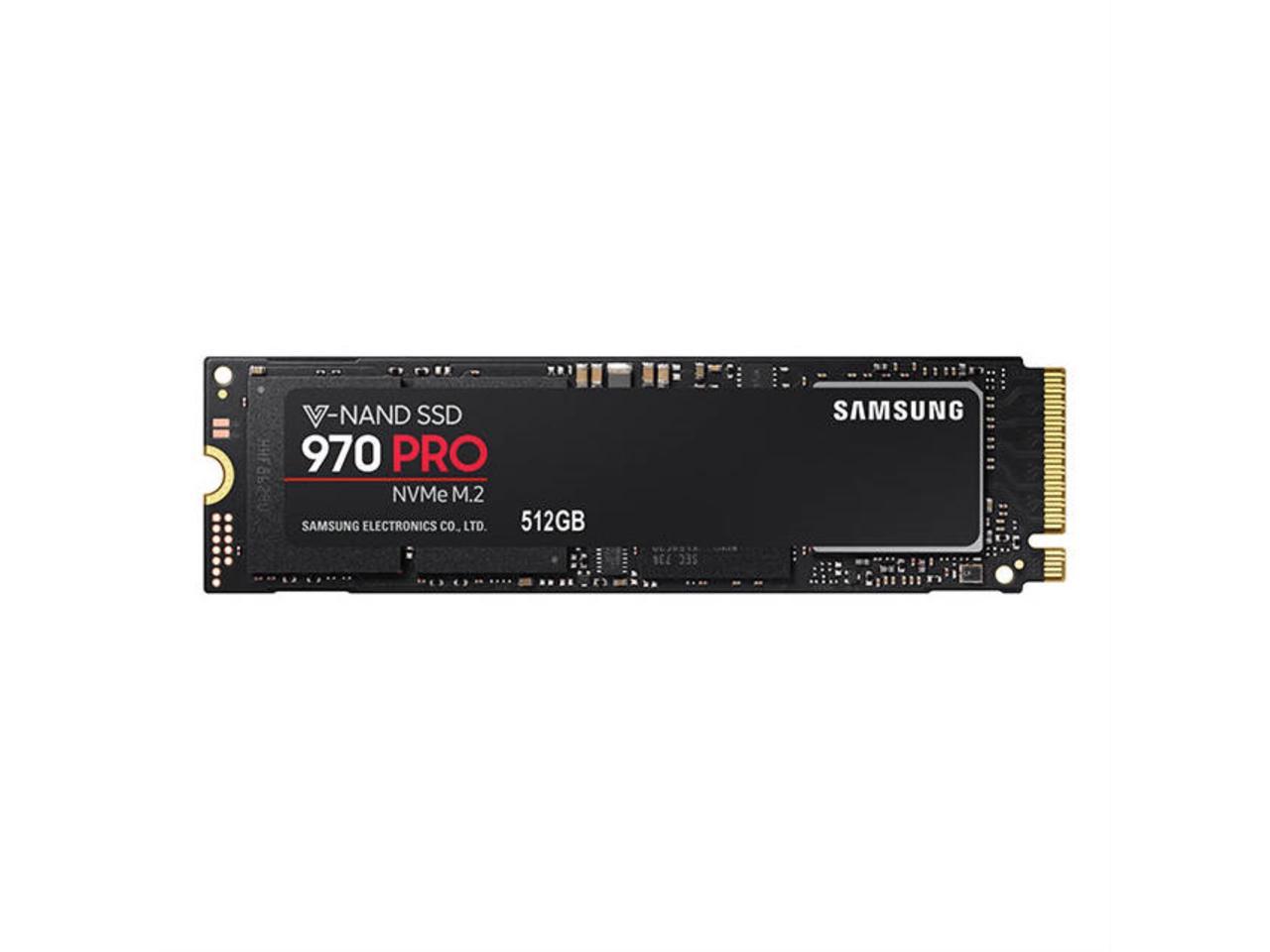

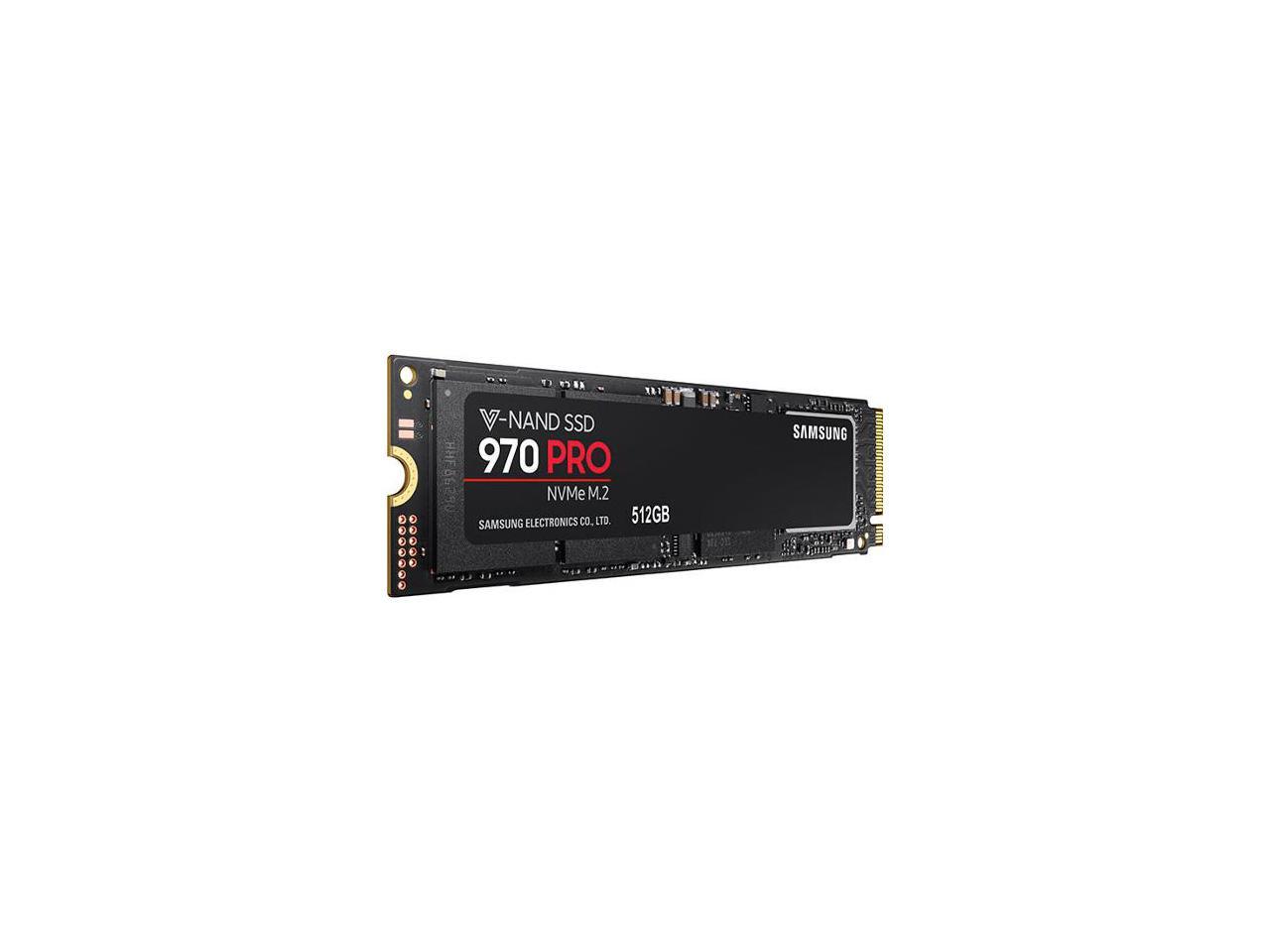

SAMSUNG 970 PRO M.2 2280 512GB PCIe Gen 3.0 x4, NVMe 1.3 V-NAND 2-bit MLC Internal Solid State Drive (SSD) MZ-V7P512E

Brand

SamSung

Products Status

New

Application

Desktop

Series

Samsung 970 PRO

Model

MZ-V7P512E

Brand	SamSung
Products Status	New
Application	Desktop
Series	Samsung 970 PRO
Model	MZ-V7P512E
Device Type	Internal Solid State Drive (SSD)
Used For	Consumer
Form Factor	M.2 2280
Capacity	512GB
Memory Components	V-NAND 2-bit MLC
Interface	PCIe Gen 3.0 x4, NVMe 1.3
Controller	Samsung Phoenix
Cache	512MB Low Power DDR4 SDRAM
Max Sequential Read	Up to 3500 MBps
Max Sequential Write	Up to 2300 MBps
4KB Random Read	QD1: 15,000 IOPS, QD32: 370,000 IOPS
4KB Random Write	QD1: 55,000 IOPS, QD32: 500,000 IOPS
MTBF	1,500,000 hours
Features	Dynamic Thermal Guard, Highly-Efficient Power Management, Non-Volatile Memory Express (NVMe), Professional-Quality Drive Management, SSD Data Security, Thanks to exceptionally low active power consumption, you can work efficiently for long periods of time. Device Sleep Mode is also supported for ultra-thin laptop PCs and high-end desktop main boards., This drive includes an AES-256-bit hardware based, full disk encryption engine that secures your data without sacrificing performance and is compliant with TCG/OPAL V2.0 and IEEE1667., V-NAND Technology
Power Consumption (Idle)	30 mW (max)
Power Consumption (Active)	Average: 5.2W / Maximum: 8.5W (Burst mode)
Operating Temperature	0??C ~ +70??C
Max Shock Resistance	1,500G & 0.5 ms (Half sine)
Height	2.38mm
Width	22.15mm
Depth	80.15mm
Weight	8.00g
