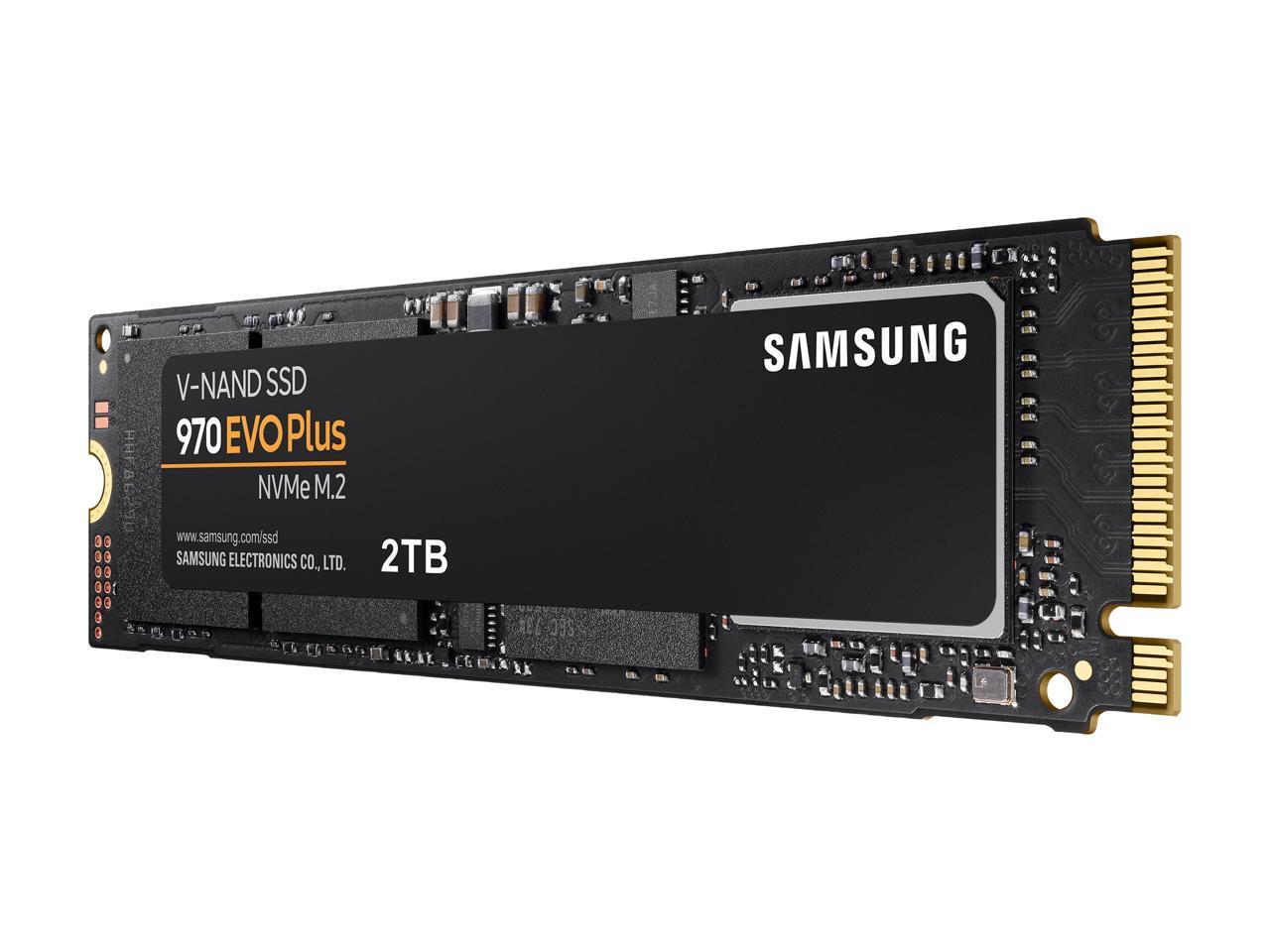

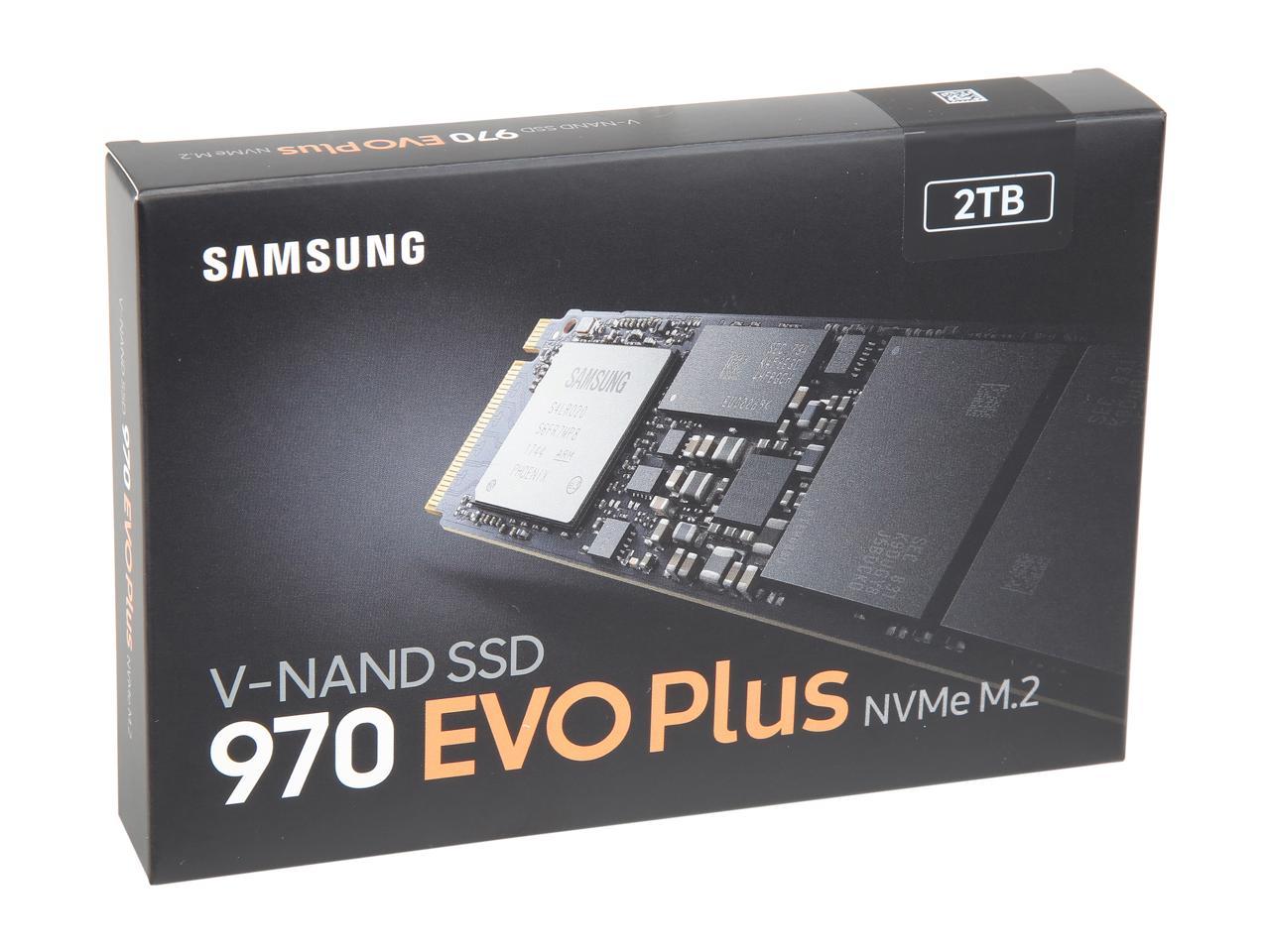

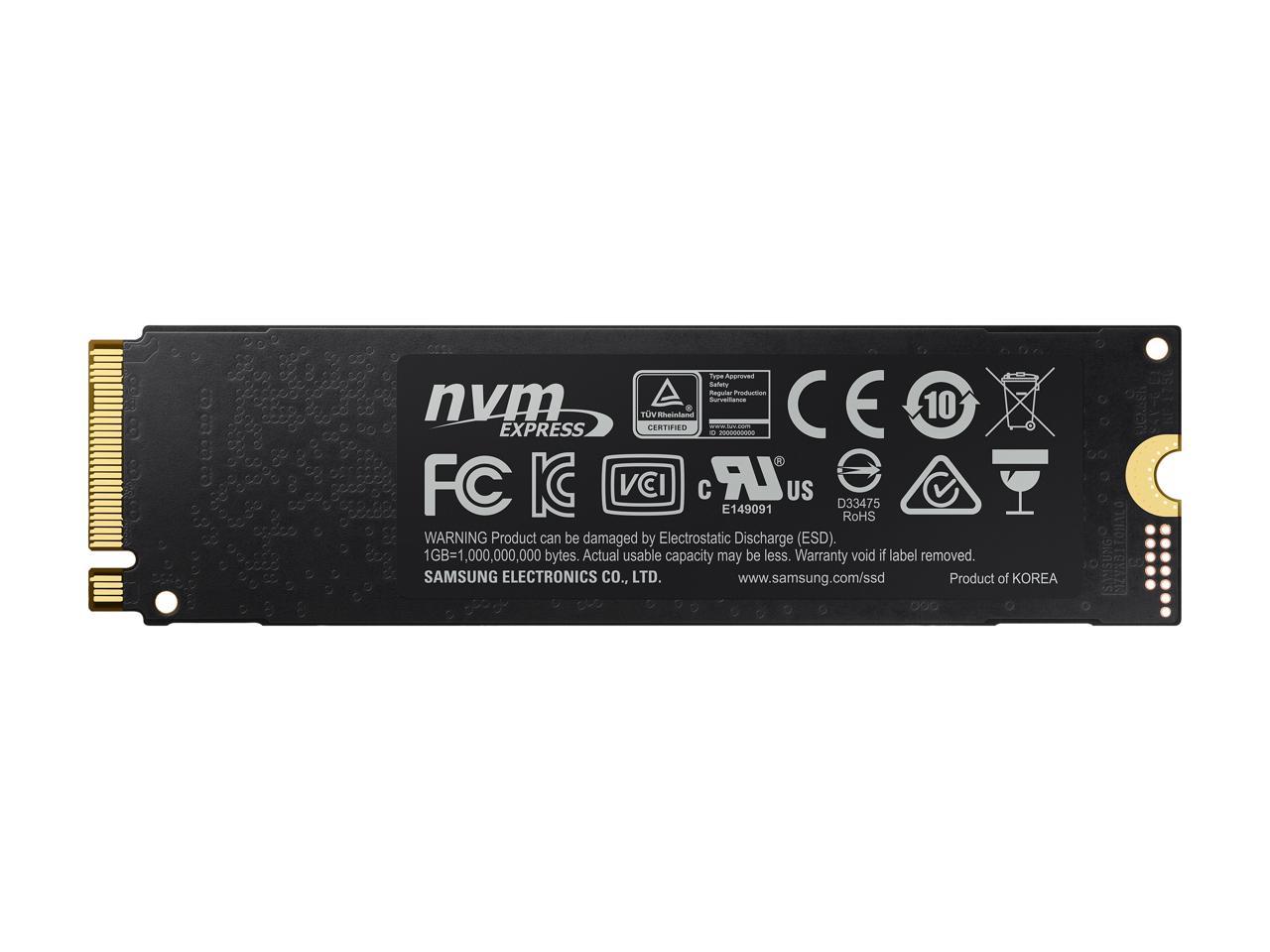

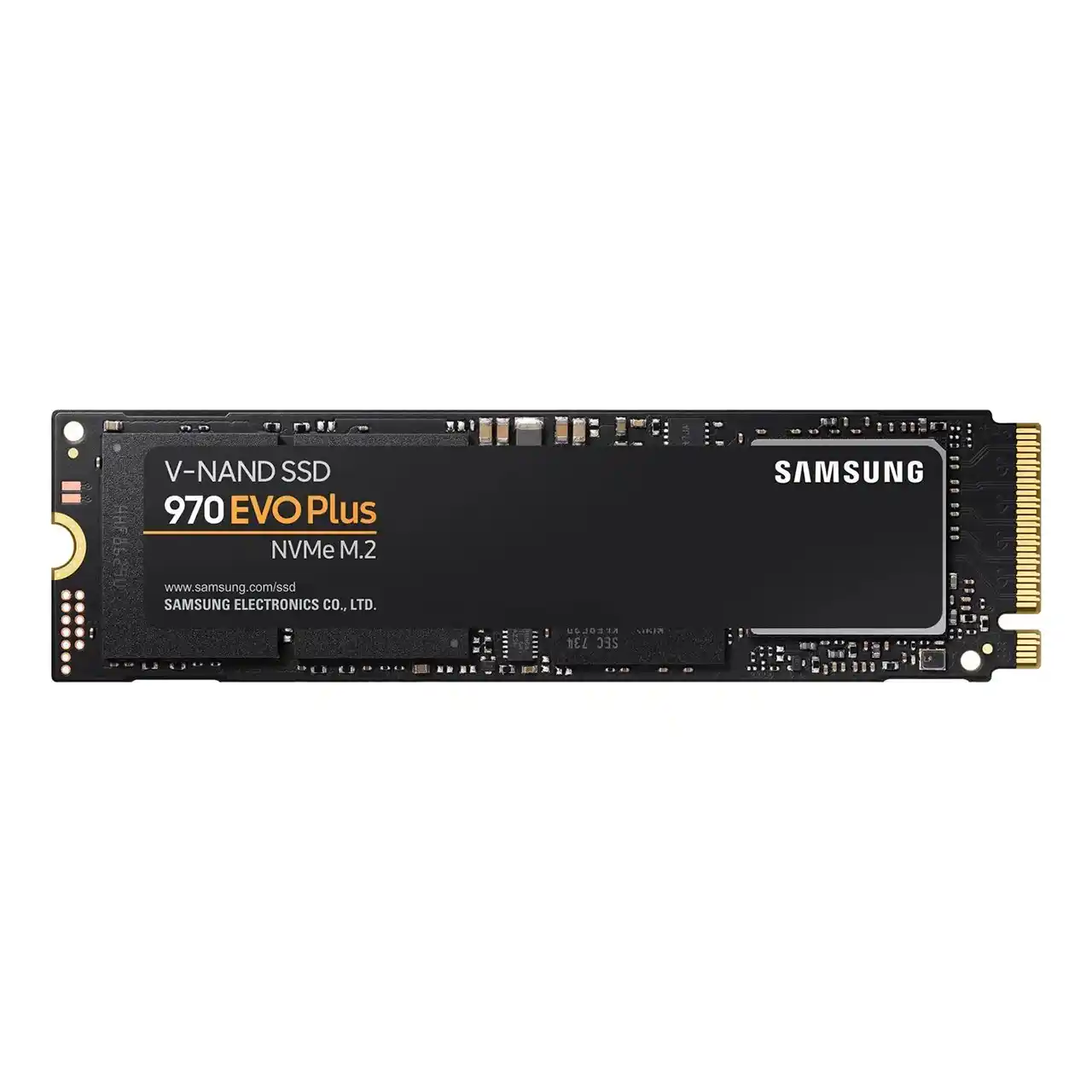

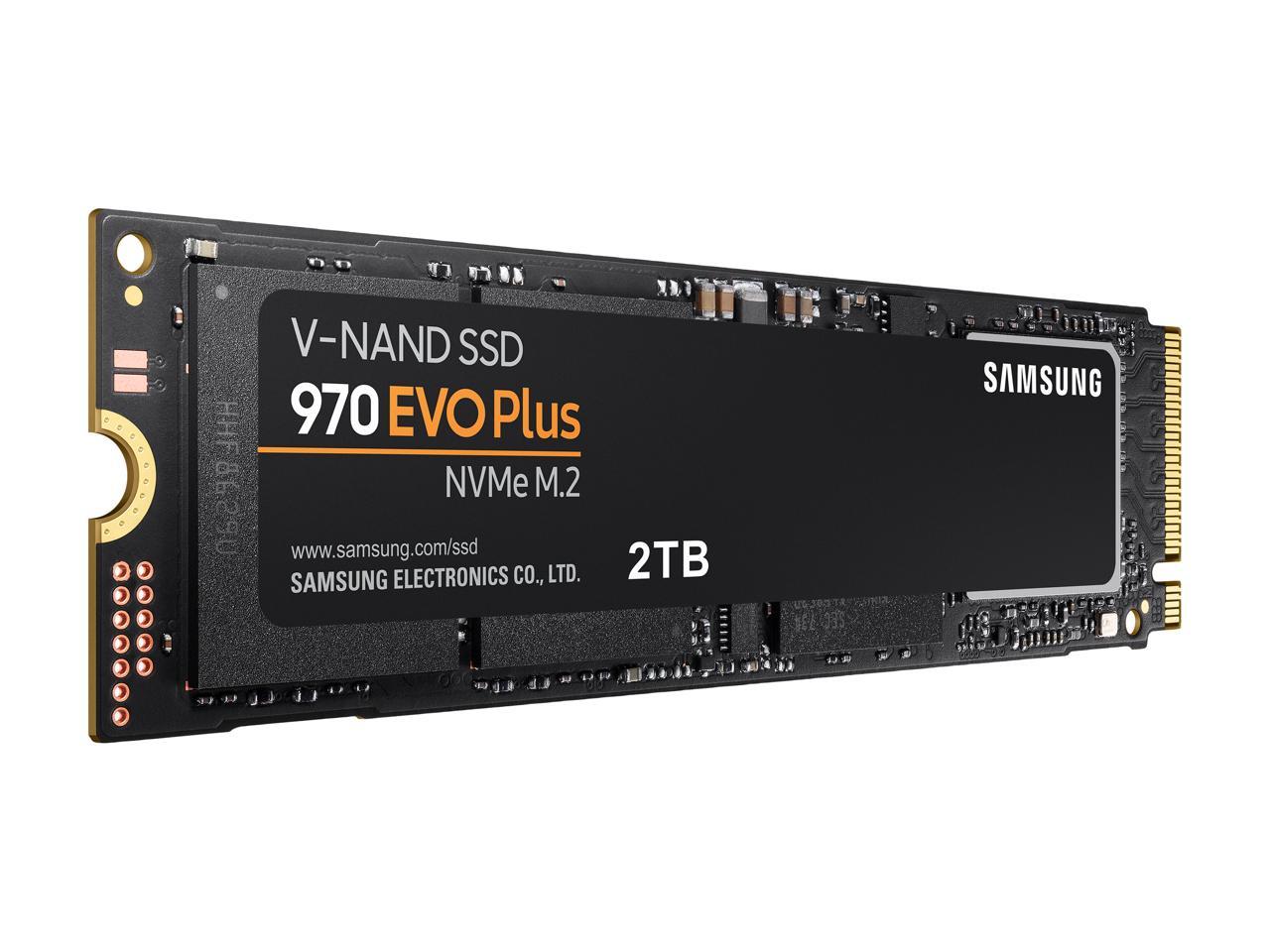

SAMSUNG 970 EVO PLUS M.2 2280 2TB PCIe Gen 3.0 x4, NVMe 1.3 V-NAND Internal Solid State Drive (SSD) MZ-V7S2T0B/AM

$135.86

Have a question about purchasing a product or solution that you are interested in? Fill in the form and we’ll respond in 12 hours.

Brand	SamSung
Products Status	New
Application	Desktop
Series	Samsung 970 EVO PLUS
Model	MZ-V7S2T0B/AM
Device Type	Internal Solid State Drive (SSD)
Used For	Consumer
Form Factor	M.2 2280
Capacity	2TB
Memory Components	Samsung V-NAND 3-bit MLC
Interface	PCIe Gen 3.0 x4, NVMe 1.3
Controller	Samsung Phoenix Controller
Cache	Samsung 1GB Low Power DDR4 SDRAM
Encryption	AES 256-bit Encryption (Class 0), TCG/Opal IEEE1667 (Encrypted drive)
Max Sequential Read	Up to 3500 MBps
Max Sequential Write	Up to 3300 MBps
4KB Random Read	4KB, QD1: Up to 19,000 IOPS, 4KB, QD32: Up to 620,000 IOPS
4KB Random Write	4KB, QD1: Up to 62,000 IOPS, 4KB, QD32: Up to 560,000 IOPS
MTBF	1,500,000 hours
Features	Reliability: 1200 TBW
Power Consumption (Idle)	Max. 30 mW
Power Consumption (Active)	Average: 6W, Maximum: 9W (Burst mode)
Operating Temperature	0??C ~ +70??C
Max Shock Resistance	1,500G & 0.5 ms (Half sine)
Height	2.38mm
Width	22.15mm
Depth	80.15mm
Weight	8.00g
