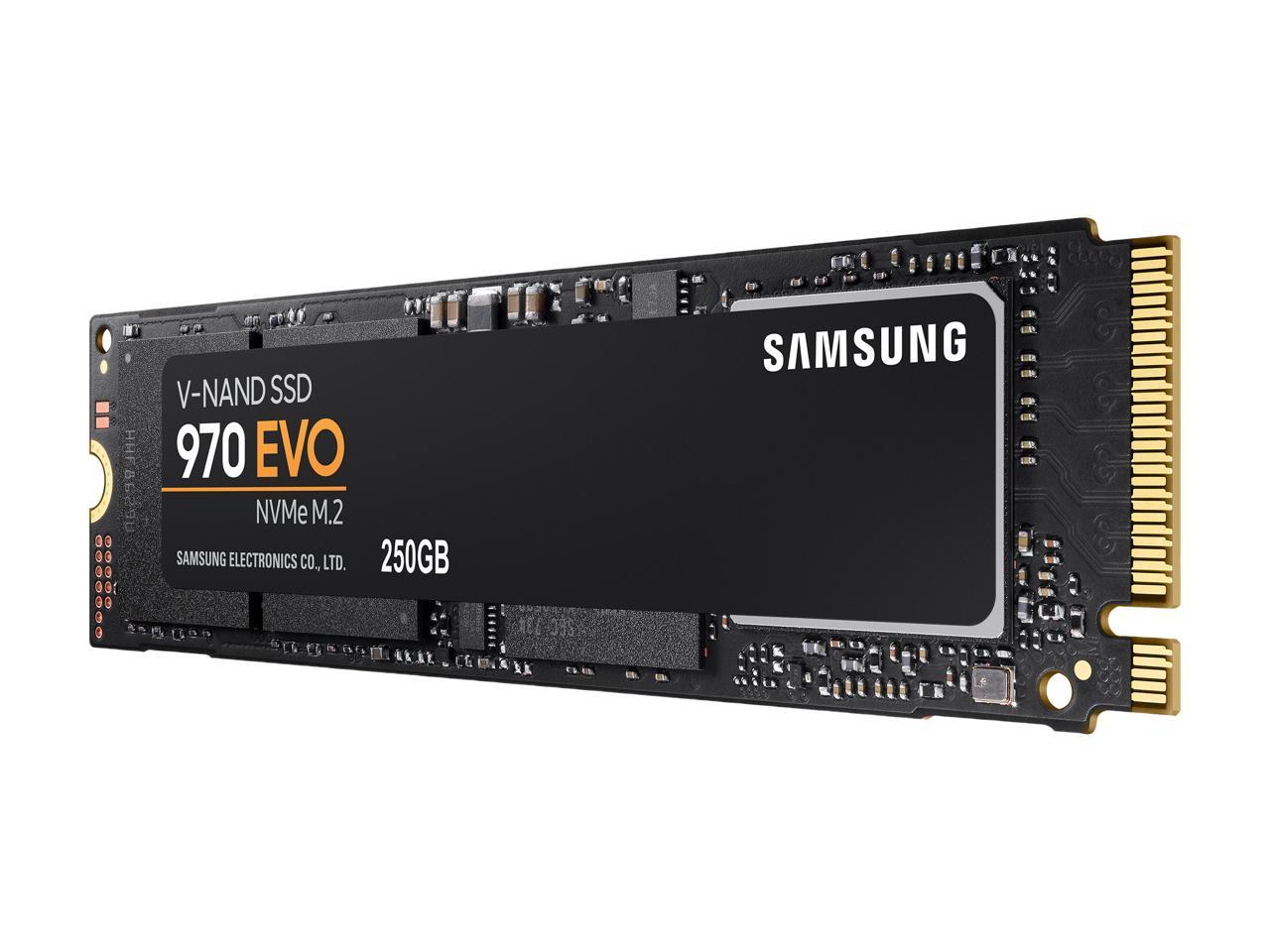

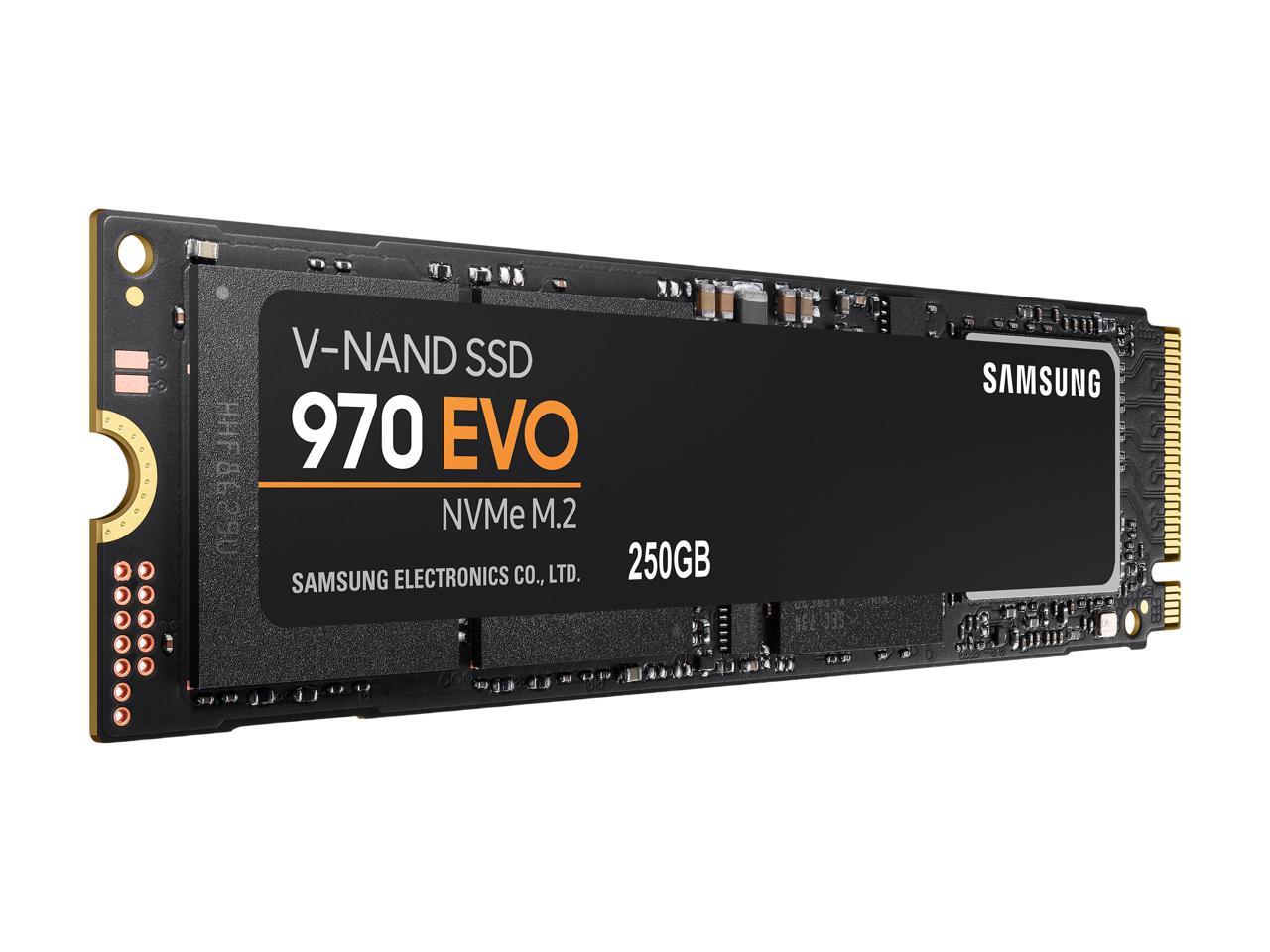

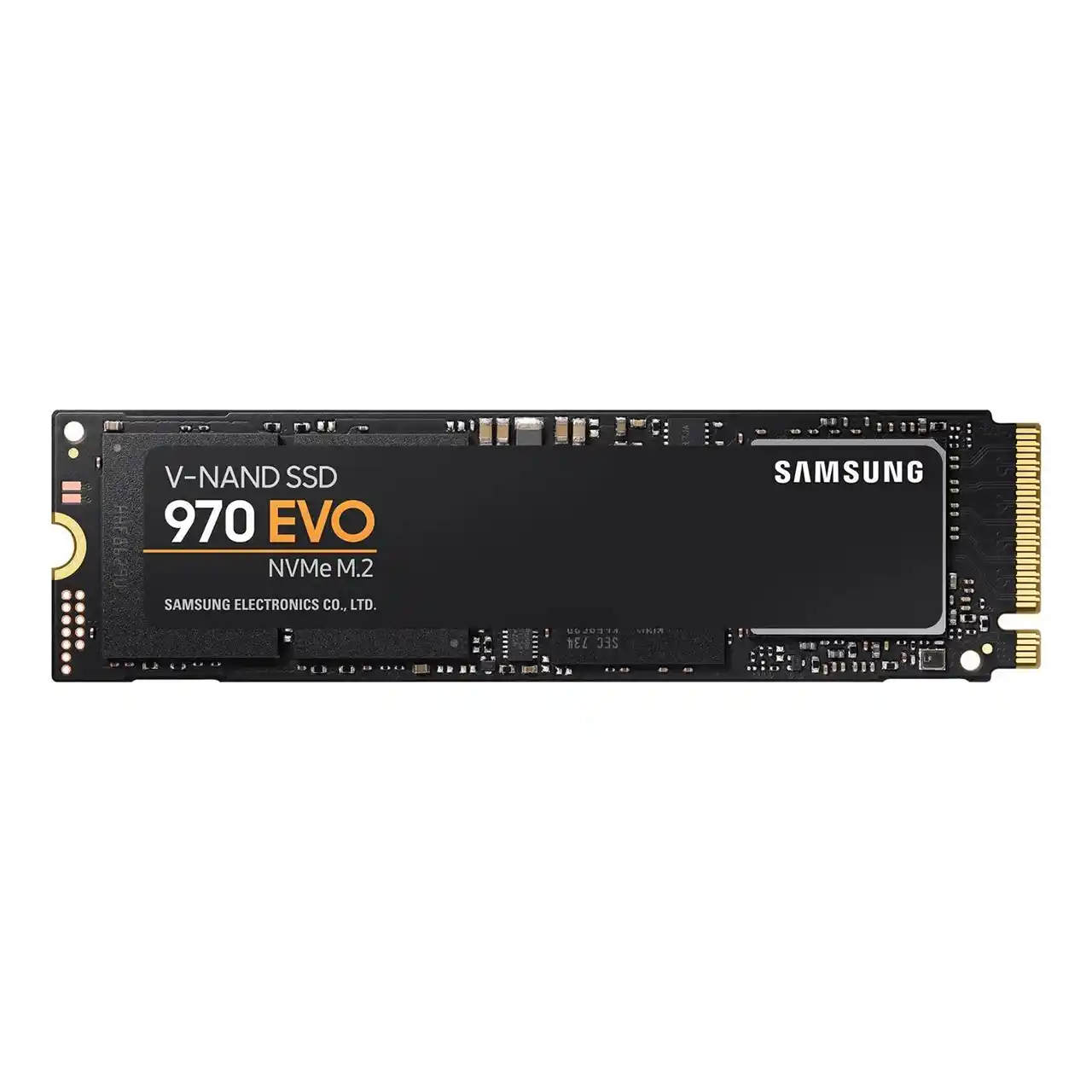

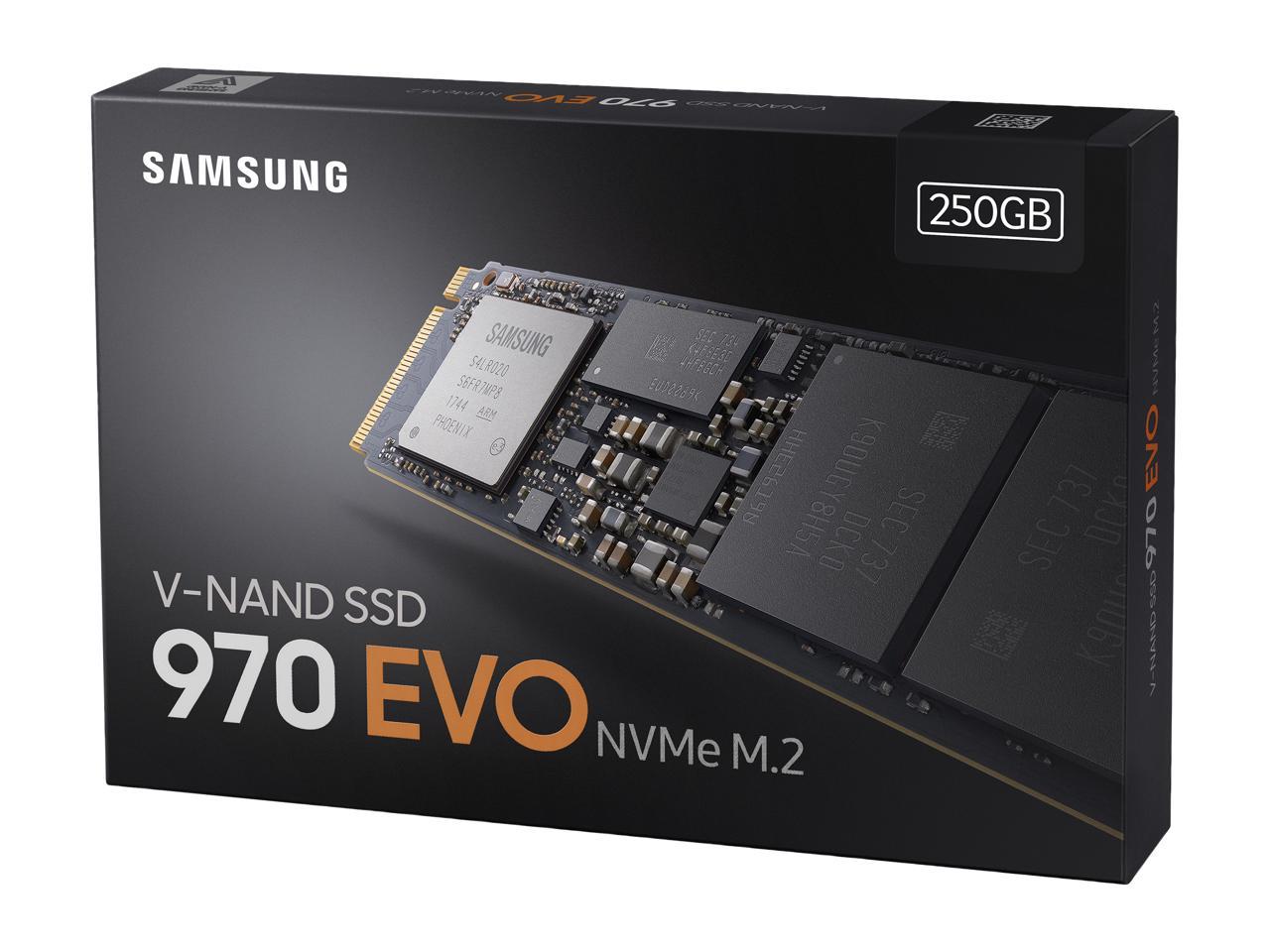

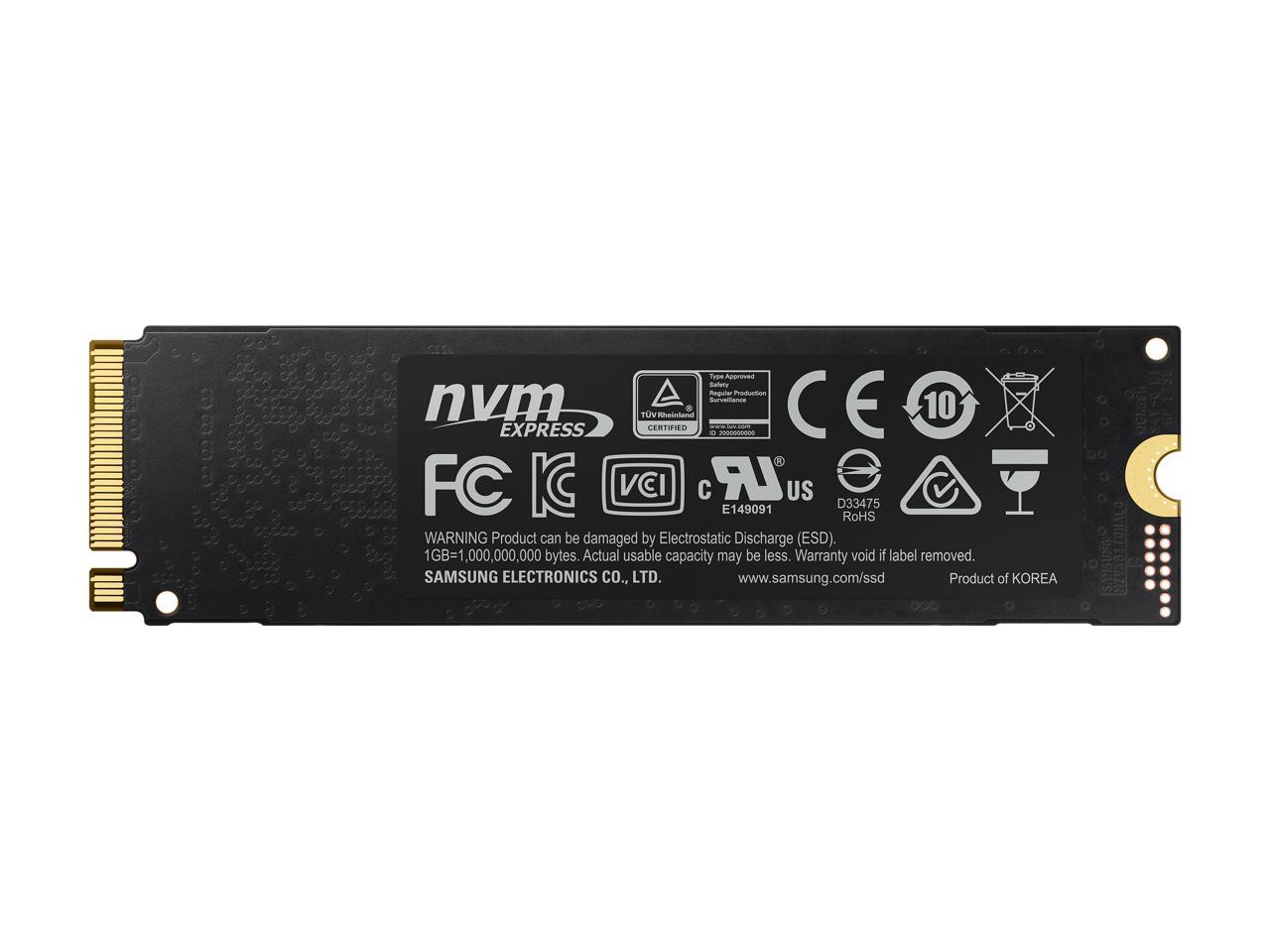

SAMSUNG 970 EVO M.2 2280 250GB PCIe Gen3. X4, NVMe 1.3 64L V-NAND 3-bit MLC Internal Solid State Drive (SSD) MZ-V7E250BW

Brand

SamSung

Products Status

New

Application

Desktop

Series

Samsung 970 EVO

Model

MZ-V7E250BW

Brand	SamSung
Products Status	New
Application	Desktop
Series	Samsung 970 EVO
Model	MZ-V7E250BW
Device Type	Internal Solid State Drive (SSD)
Used For	Consumer
Form Factor	M.2 2280
Capacity	250GB
Memory Components	64L V-NAND MLC
Interface	PCIe Gen3. X4, NVMe 1.3
Controller	Samsung Phoenix Controller
Cache	512MB LPDDR4 DRAM
Max Sequential Read	Up to 3400 MBps
Max Sequential Write	Up to 1500 MBps
4KB Random Read	QD1: Up to 15,000 IOPS, QD32: Up to 200,000 IOPS
4KB Random Write	QD1: Up to 50,000 IOPS, QD32: Up to 350,000 IOPS
MTBF	1,500,000 hours
Features	150 TBW, AES Encryption: AES 256-bit Encryption (Class 0) TCG / Opal IEEE1667 (Encrypted drive), Device Sleep Mode Support: Yes, GC (Garbage Collection): Auto Garbage Collection Algorithm, Management SW: Magician Software for SSD management, S.M.A.R.T. Support: Supported, Temperature proof: Yes, TRIM Support: Supported
Power Consumption (Idle)	Max. 30 mW
Power Consumption (Active)	Average: 5.4W, Maximum: 10W (Burst mode)
Operating Temperature	0??C ~ +70??C
Max Shock Resistance	1,500G & 0.5 ms (Half sine)
Height	2.30mm
Width	22.10mm
Depth	80.26mm
Weight	7.94g
