| Brand | SamSung |
|---|---|
| Products Status | New |
| Application | Desktop |
| Series | Samsung 960 EVO |
| Model | MZ-V6E1T0BW |
| Device Type | Internal Solid State Drive (SSD) |
| Used For | Consumer |
| Form Factor | M.2 2280 |
| Capacity | 1TB |
| Memory Components | 3D NAND |
| Interface | PCI-Express 3.0 x4 |
| Controller | Samsung Polaris controller |
| Cache | 1024MB |
| Max Sequential Read | Up to 3200 MBps |
| Max Sequential Write | Up to 1900 MBps |
| 4KB Random Read | Up to 14,000 IOPS (4KB, QD1), Up to 380,000 IOPS (4KB, QD32) |
| 4KB Random Write | Up to 360,000 IOPS (4KB, QD32), Up to 50,000 IOPS (4KB, QD1) |
| MTBF | 1,500,000 hours |
| Features | Device Sleep Mode Support: 5mW (L1.2), Encryption Support: AES 256-bit for User Data EncryptionTCG Opal Family Spec and eDrive (IEEE1667) to be supported by FW update, GC (Garbage Collection): Auto Garbage Collection Algorithm, S.M.A.R.T Support: S.M.A.R.T Supported, TRIM Support: TRIM Supported |
| Power Consumption (Idle) | 1.2W |
| Power Consumption (Active) | 5.7W |
| Operating Temperature | 0??C ~ +70??C |
| Max Shock Resistance | 1500G, duration 0.5m sec, 3 axis |
| Height | 2.38mm |
| Width | 22.15mm |
| Depth | 80.15mm |
| Weight | 8.20g |

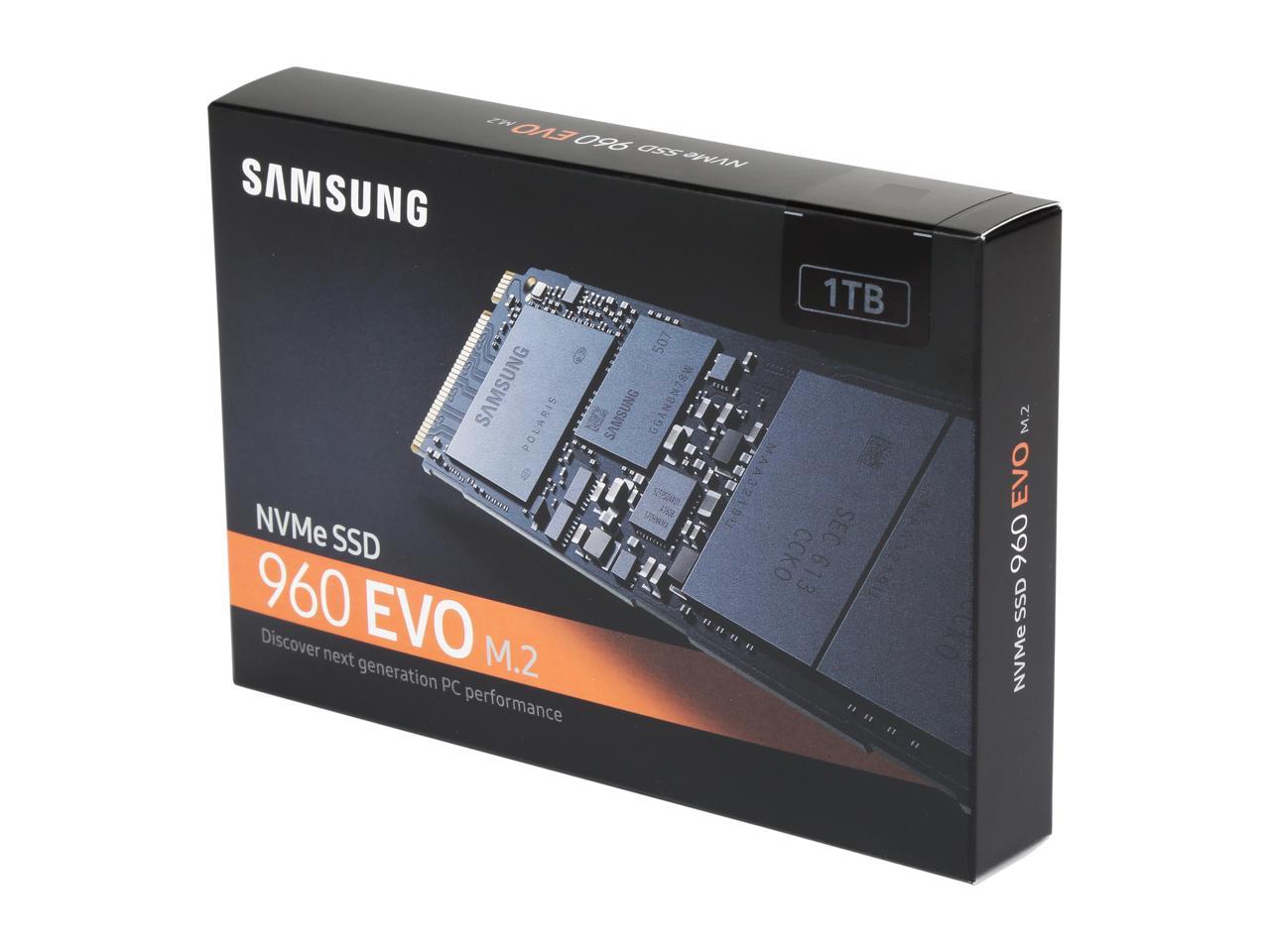

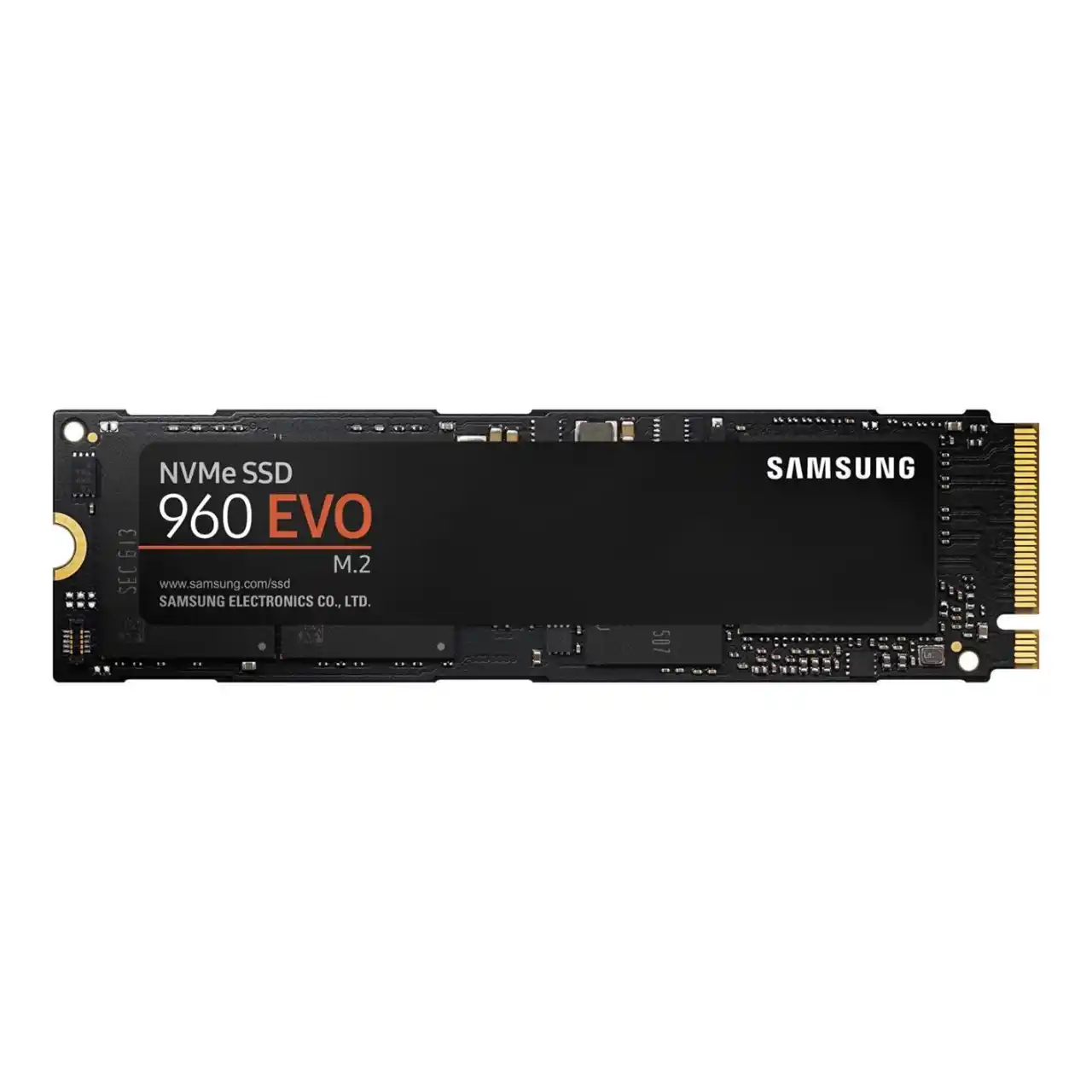

SAMSUNG 960 EVO M.2 1TB NVMe PCI-Express 3.0 x4 Internal Solid State Drive (SSD) MZ-V6E1T0BW
| Brand | SamSung |
|---|---|
| Products Status | New |
| Application | Desktop |
| Series | Samsung 960 EVO |
| Model | MZ-V6E1T0BW |
