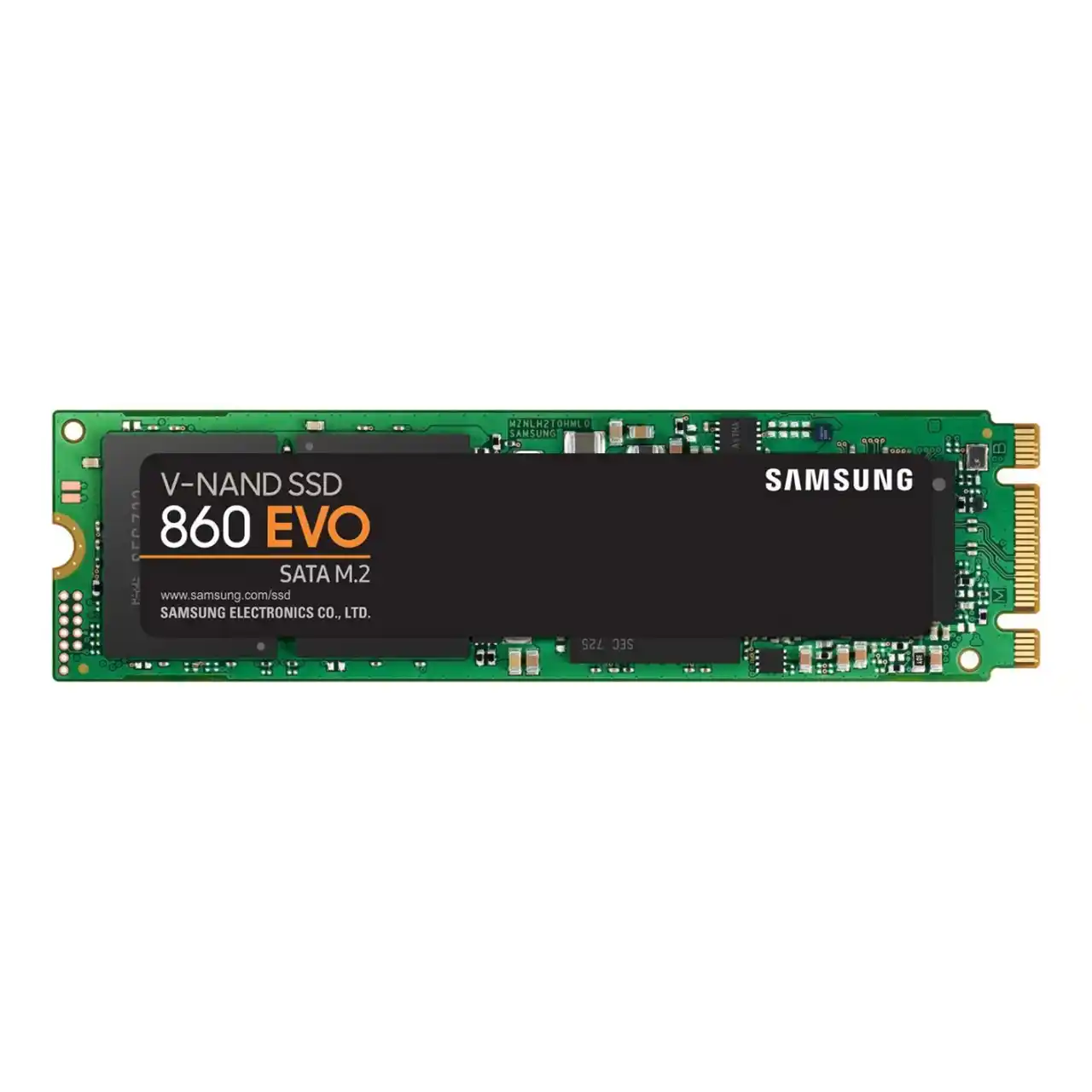

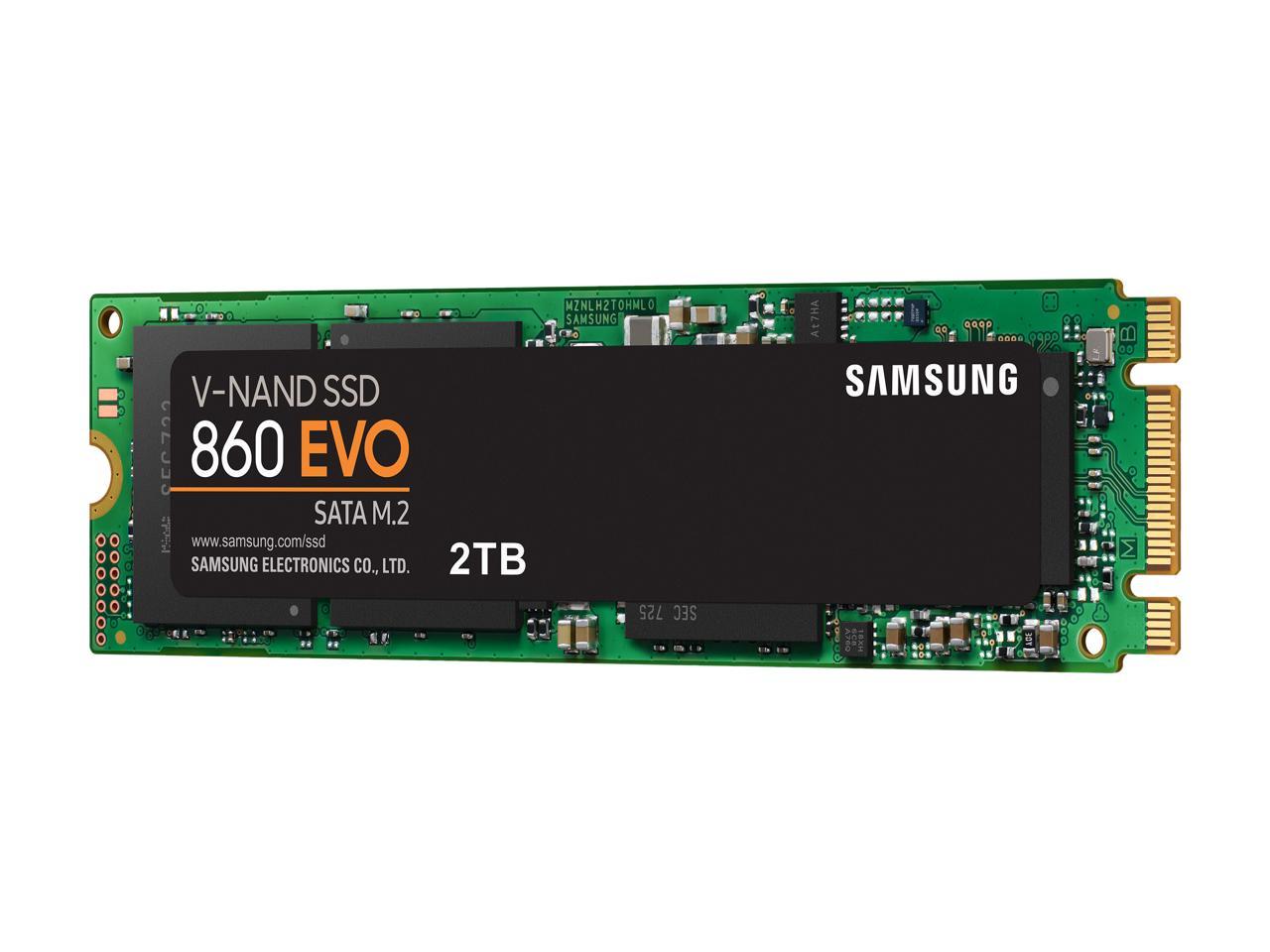

SAMSUNG 860 EVO Series M.2 2280 2TB SATA III V-NAND 3-bit MLC Internal Solid State Drive (SSD) MZ-N6E2T0BW

Brand

SamSung

Products Status

New

Application

Desktop

Series

Samsung 860 EVO

Model

MZ-N6E2T0BW

Brand	SamSung
Products Status	New
Application	Desktop
Series	Samsung 860 EVO
Model	MZ-N6E2T0BW
Device Type	Internal Solid State Drive (SSD)
Used For	Consumer
Form Factor	M.2 2280
Capacity	2TB
Memory Components	V-NAND 3-bit MLC
Interface	SATA III
Controller	MJX
Cache	Samsung 2GB Low Power DDR4 SDRAM
Max Sequential Read	Up to 550 MBps
Max Sequential Write	Up to 520 MBps
4KB Random Read	4KB, QD1: Up to 10,000 IOPS, 4KB, QD32: Up to 97,000 IOPS
4KB Random Write	4KB, QD1: Up to 42,000 IOPS, 4KB, QD32: Up to 88,000 IOPS
MTBF	1,500,000 hours
Features	1,200 TBW, AES Encryption: AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive), Device Sleep Mode Support: Yes, GC (Garbage Collection): Auto Garbage Collection Algorithm, Management SW: Magician Software for SSD management, S.M.A.R.T. Support: Yes, Security: AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667), Trim Support: Yes, WWN Support: World Wide Name supported
Power Consumption (Active)	Average: 3.0W, Maximum: 4.5W (Burst mode)
Operating Temperature	0??C ~ +70??C
Max Shock Resistance	1,500G & 0.5 ms (Half sine)
Height	2.30mm
Width	22.00mm
Depth	80.00mm
