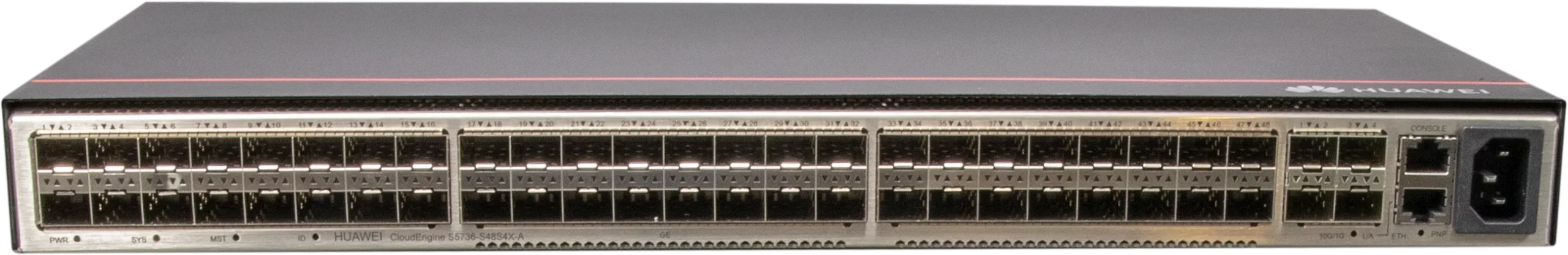

S5736-S48S4X-A base (48*GE SFP ports, optional RTU upgrade to 10G, 4*10GE SFP+ ports, AC power supply, front access)

Brand

Huawei

Warranty

1 Year

Part Number

98011606

Model

S5736-S48S4X-A

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 228.0 mm (1.72 in. x 17.4 in. x 9.0 in.)

Brand	Huawei
Warranty	1 Year
Part Number	98011606
Model	S5736-S48S4X-A
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 228.0 mm (1.72 in. x 17.4 in. x 9.0 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90 mm ?? 555 mm ?? 345 mm (3.54 in. x 21.85 in. x 13.58 in.)
Chassis height [U]	1 U
Weight without packaging [kg(lb)]	3.6 kg (7.9 lb)
Weight with packaging [kg(lb)]	4.7 kg (10.36 lb)
Typical power consumption [W]	87 W
Typical heat dissipation [BTU/hour]	296.85 BTU/hour
Maximum power consumption [W]	111 W
Maximum heat dissipation [BTU/hour]	378.74 BTU/hour
Static power consumption [W]	39 W
MTBF [years]	41.97 years
MTTR [hours]	2 hours
Availability	> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]	56.8 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]	44.8 dB(A)
Number of card slots	0
Number of power slots	0
