| Brand | Huawei |
|---|---|
| Part Number | 98012120 |
| Model | S5735-L48P4XE-A-V2 |
| Height [mm] | 43.6 mm |
| Depth [mm] | 420.0 mm |
| Wide [mm] | 442.0 mm |
| Chassis height [U] | 1 |
| Weight with packaging [kg(lb)] | 8.90 (19.62) |
| Weight without packaging [kg(lb)] | 6.10 (13.45) |
| Maximum power consumption [W] | – Without PoE: 76.66 W, – Full PoE load: 993.74 W (PoE: 846 W) |
| Typical power consumption [W] | 54.78 |
| Typical heat dissipation [BTU/hour] | 186.91 |
| Maximum heat dissipation [BTU/hour] | – Without PoE: 261.57, – Full PoE load: 3390.74 |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Power supply mode | Pluggable power supply |
| Input voltage range [V] | – AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz, – High-voltage DC input: 190 V DC to 290 V DC |
| Rated input voltage [V] | – AC input: 100 V AC to 240 V AC, 50/60 Hz, – High-voltage DC input: 240 V DC |
| USB | Supported |
| Number of card slots | 0 |
| Number of power slots | 1 |
| Memory | 2 GB |

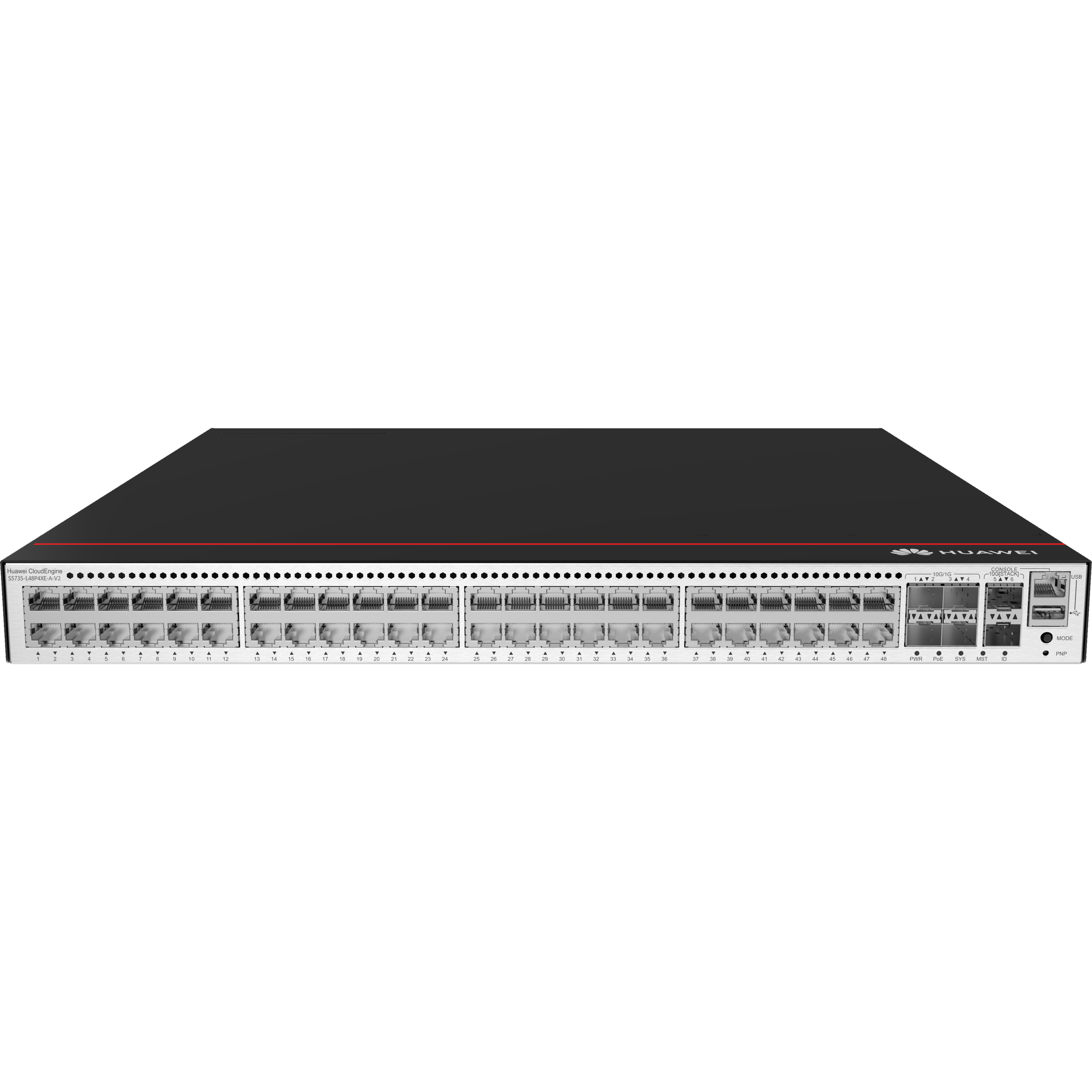

S5735-L48P4XE-A-V2 (48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 2*12GE stack ports, PoE+, 1*built-in AC power)
| Brand | Huawei |
|---|---|
| Part Number | 98012120 |
| Model | S5735-L48P4XE-A-V2 |
| Height [mm] | 43.6 mm |
| Depth [mm] | 420.0 mm |
