| Brand | AMD |
|---|---|
| Products Status | New |
| Application | Workstation |
| Packaging Details | Work Packages |
| Series | AMD Radeon Pro |
| Model | 100-505940 |
| Chipset Manufacturer | AMD |
| GPU | Radeon Pro WX 5100 |
| Core Clock | Peak: 1086 MHz, Typical: 713 MHz |
| Stream Processors | 1792 Stream Processing Units |
| Memory Size | 8GB |
| Memory Interface | 256-bit |
| Memory Type | GDDR5 |
| DirectX | DirectX 12 |
| OpenGL | OpenGL 4.5 |
| DisplayPort | 4 x DP 1.4 |
| Digital Resolution | 5120 x 2880 |
| CrossFire Supported | Yes |
| Cooler | With Fan |
| Operating Systems Supported | Linux 64-bit, Windows 10 64-bit, Windows 7 64-bit |
| System Requirements | Typical Board Power: 75W |
| Features | 1792 Stream Processors (28 CUs), 256-Bit Memory Interface, 3.9 TFLOPS Peak Single Precision Compute Performance, 75W TDP Maximum Power Consumption, AMD Eyefinity Multidisplay Technology, Application Optimizations 8GB GDDR5 GPU Memory, Direct Graphics Memory Access (DirectGMA), FCC, CE, C-Tick, BSMI, KCC, UL, VCCL, RoHS and WEEE Compliance, Four DisplayPort Outputs (Ready For DisplayPort 1.4 HDR), Full-Height/Half-Length Single-Slot Form Factor, OpenCL, DirectX, OpenGL, and Vulkan support, Support for Microsoft Windows 10, Windows 7, and Linux (64-Bit) |
| Form Factor | Full-Height |
| Slot Width | Single slot |

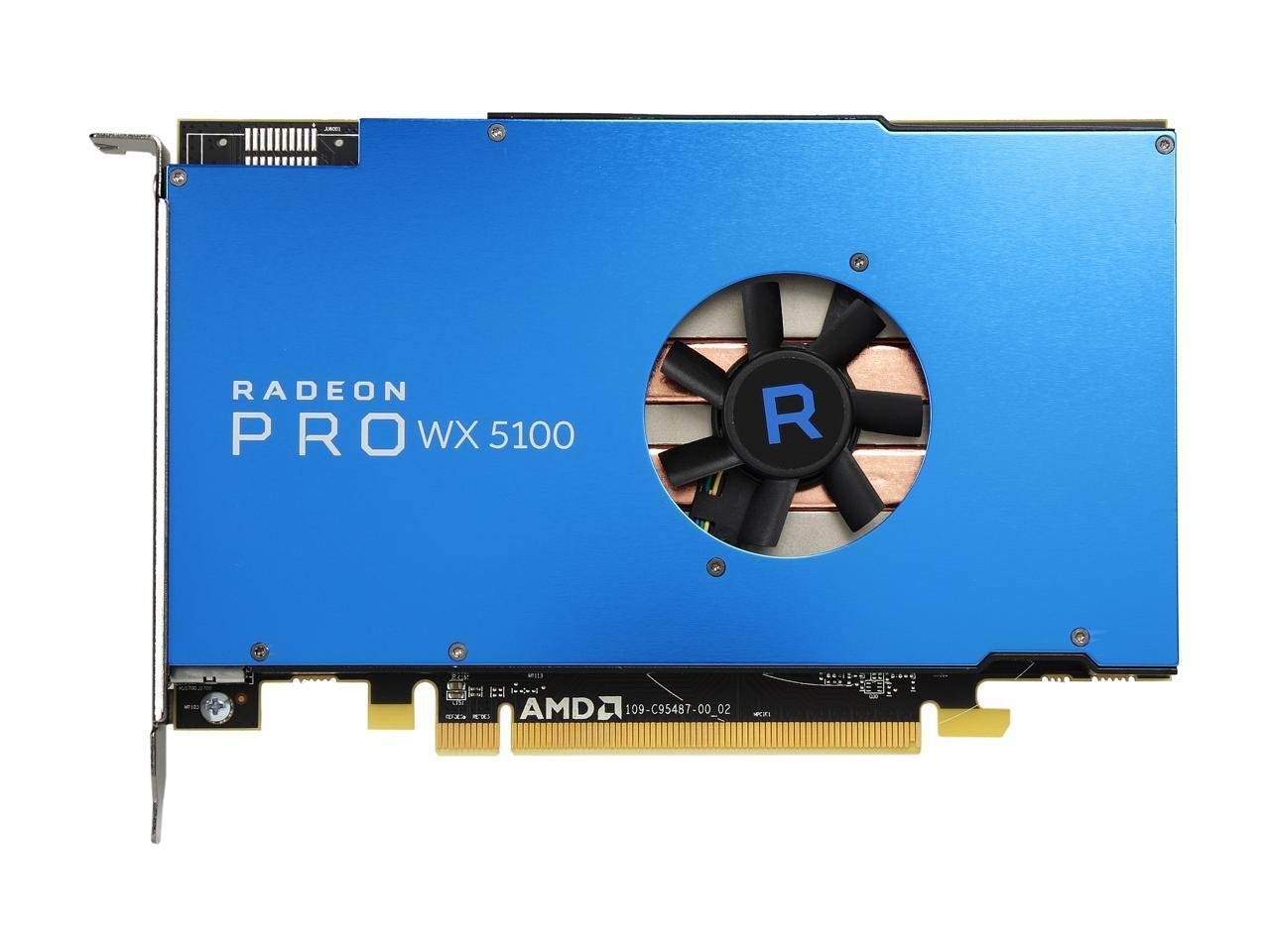

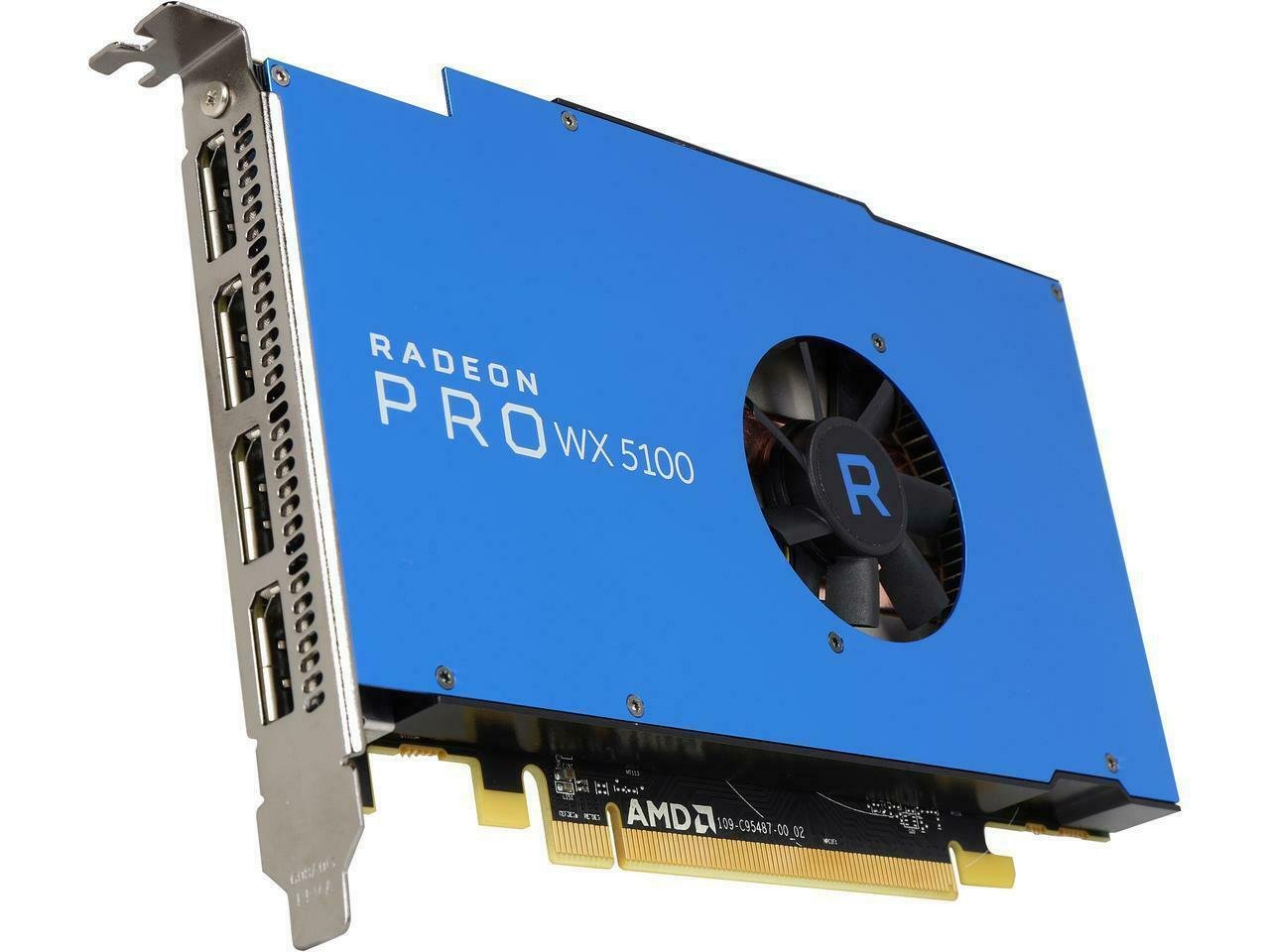

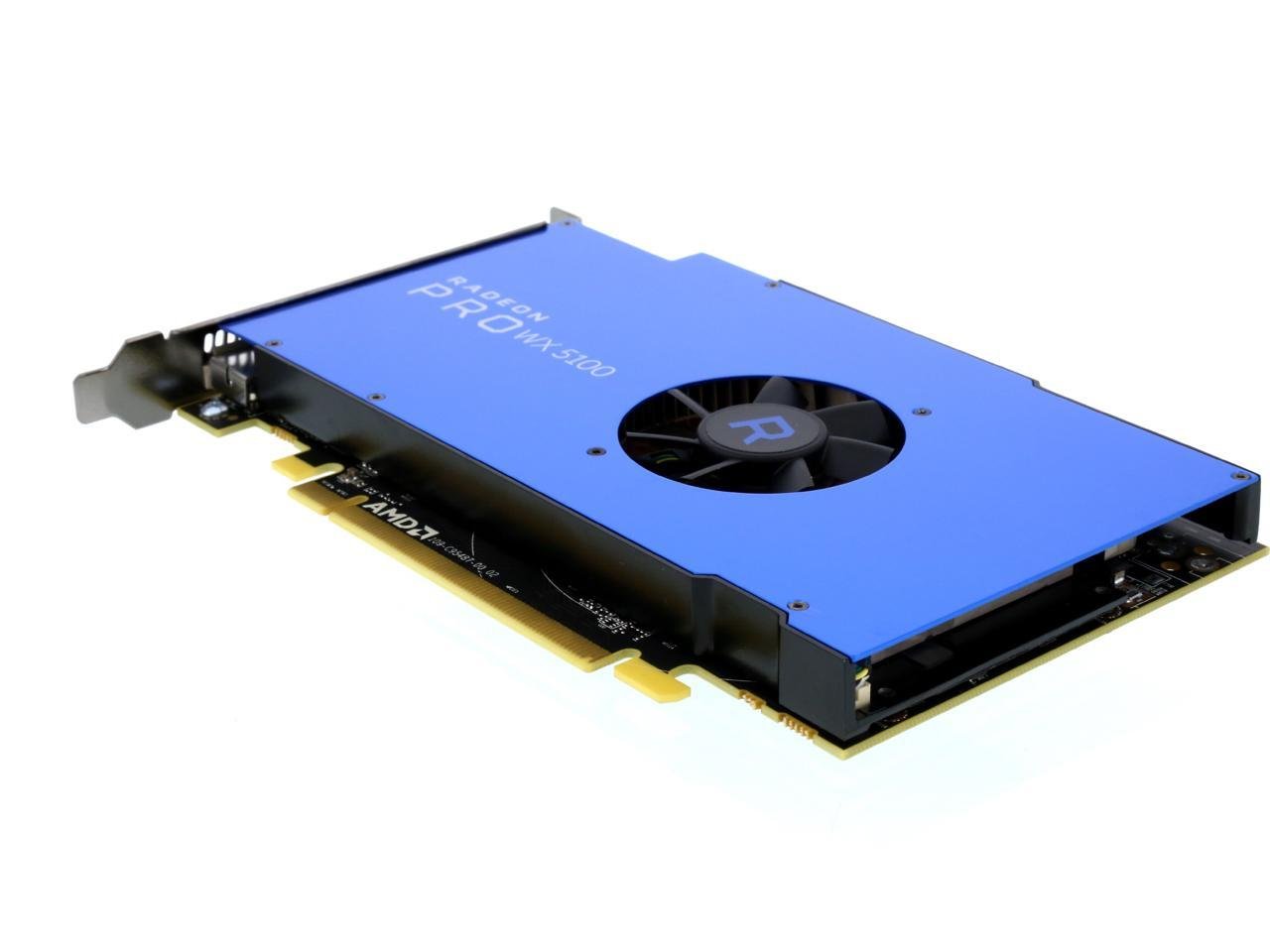

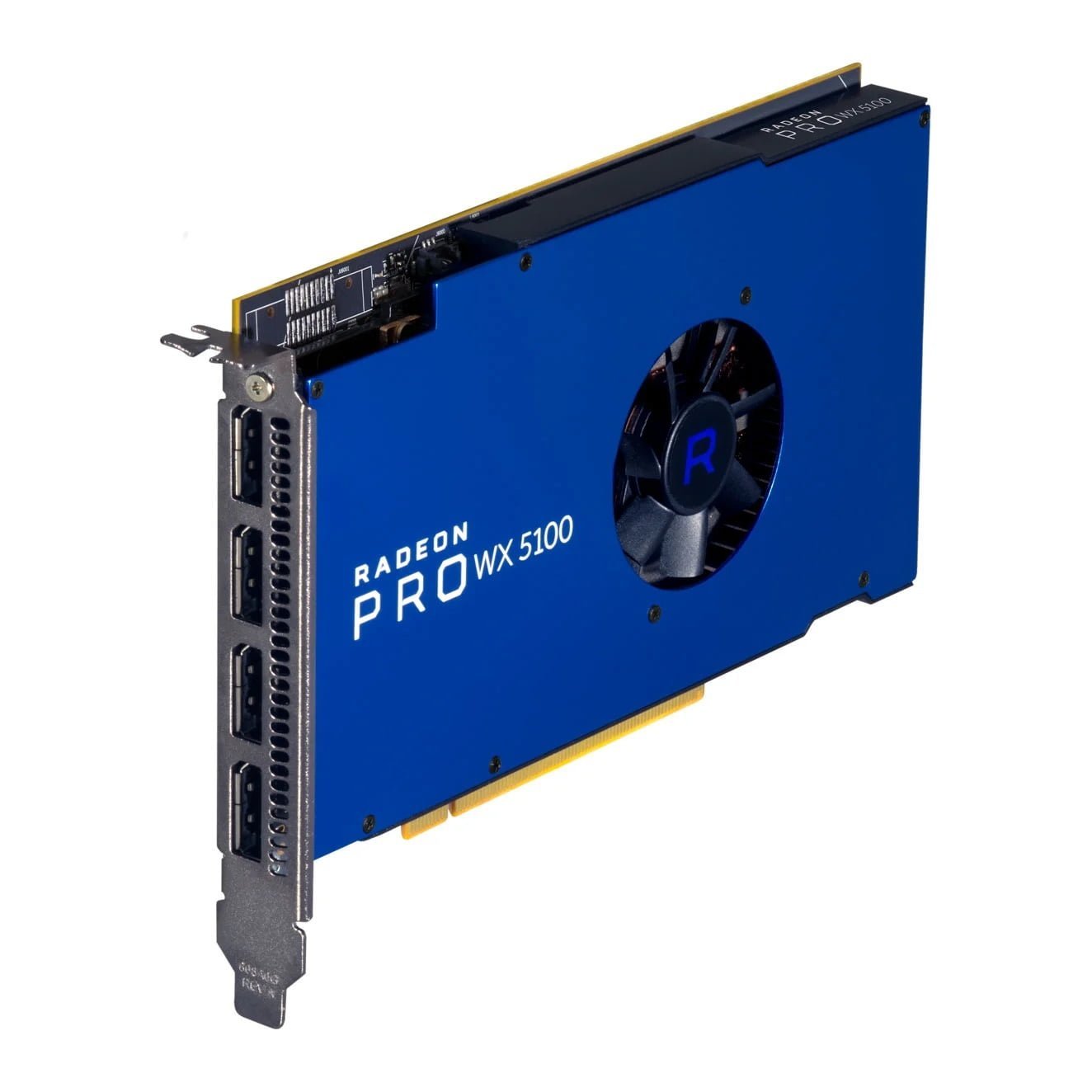

Radeon Pro WX 5100 100-505940 8GB 256-bit GDDR5 Workstation Video Card
Radeon Pro WX5100,PCIe 3.0×16,1792 Stream,112 TMUs,32 ROPs,8GB,GDDR5,256Bit
| Brand | AMD |
|---|---|
| Products Status | New |
| Application | Workstation |
| Packaging Details | Work Packages |
| Series | AMD Radeon Pro |
