| Architecture | All-in-one |
|---|---|
| Storage OS | QSM |
| Processor | Intel ? Pentium ? |
| CPU Architecture | 64-bit |
| CPU Frequency | Quad-Core 1.6GHz |
| System Flash | 8GB SATA DOM |
| Memory Module Pre-installed | 8GB DDR4 ECC U-DIMM |
| Total Memory Slots | 4 |
| Memory Expandable up to | 128 GB |
| Drive Bays | 3.5" Slot x 24 |
| Maximum Drive Bays with Expansion Unit | 216 |
| Compatible Drive Type | 3.5" SAS HDD, 3.5" SATA HDD, 2.5" SAS SSD, 2.5" SATA HDD, 2.5" SATA SSD |
| Drive Interface | SAS 12Gb/s and SATA 6Gb/s (backward compatible with SAS 6Gb/s and SATA 3Gb/s) |
| Maximum Internal Raw Capacity | 480TB |
| Maximum Raw Capacity with Expansion Units | 8,640TB |
| Hot Swappable Drive | Yes |
| Dimension (H x W x D) (mm) | 170.3 x 438 x 515 |
| Chassis Form Factor | 19" Rackmount 4U 24 Bay |
| Net Weight (kg) | 26 |
| Gross Weight (kg) | 30.3 |

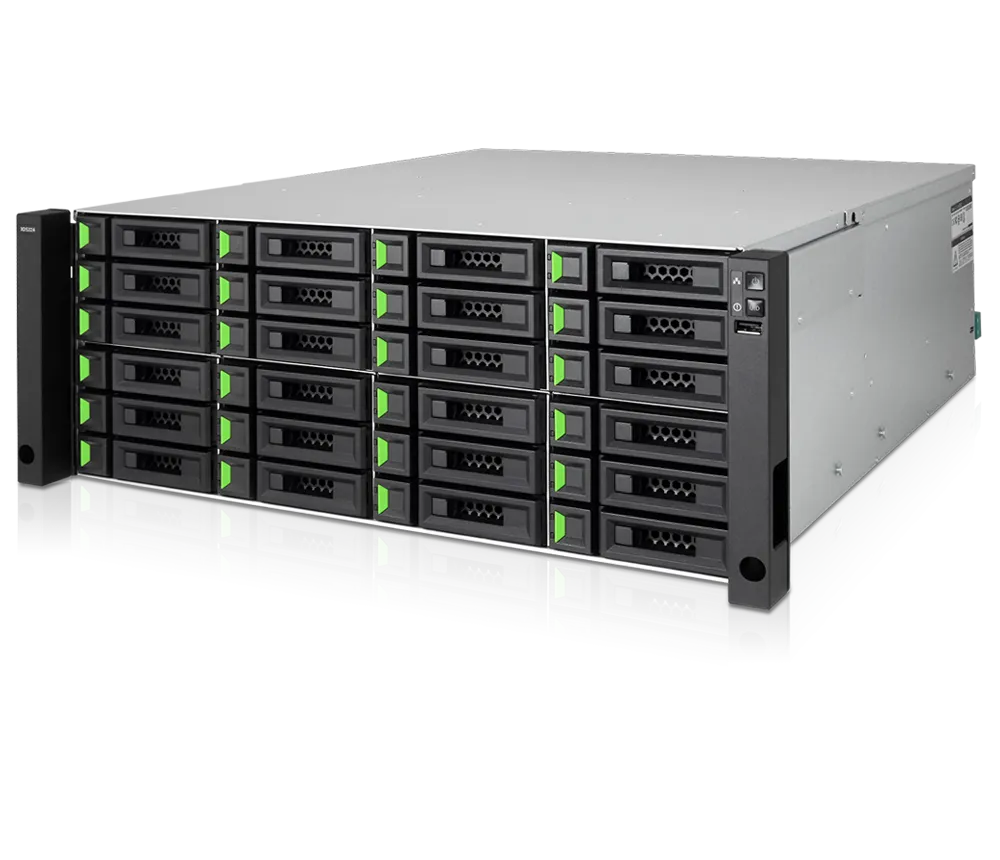

QSAN XCubeNAS XN7024R
| Architecture | All-in-one |
|---|---|
| Storage OS | QSM |
| Processor | Intel ? Pentium ? |
| CPU Architecture | 64-bit |
| CPU Frequency | Quad-Core 1.6GHz |
