| Brand | Intel |
|---|---|
| Products Status | New |
| Series | Intel Xeon W |
| Part Number | W-2245 |
| Model | CD8069504393801 |
| Shipping Media | TRAY |
| Application | Workstation |
| CPU Socket Type | FCLGA2066 |
| Code Name | Cascade Lake |
| Total Cores | 8 |
| Total Threads | 16 |
| Max Turbo Frequency | 4.50 GHz |
| Processor Base Frequency | 3.90 GHz |
| Cache | 16.5 MB |
| Bus Speed | 8 GT/s |
| TDP | 155 W |
| Manufacturing Tech | 14 nm |
| 64-Bit Support | Yes |
| Hyper-Threading Support | Yes |
| Embedded Options Available | No |
| Max Memory Size | 1 TB |
| Memory Types | DDR4 2933 |
| Max # of Memory Channels | 4 |
| ECC Memory Supported | Yes |
| Scalability | 1S Only |
| PCI Express Revision | 3 |
| PCI Express Configurations | x16, x4, x8 |
| Max # of PCI Express Lanes | 48 |
| Max CPU Configuration | 1 |
| Instruction Set | 64-bit |
| Package Size | 45mm x 52.5mm |
| Max Memory Bandwidth | 93.85 GB/s |
| Physical Address Extensions | 46-bit |

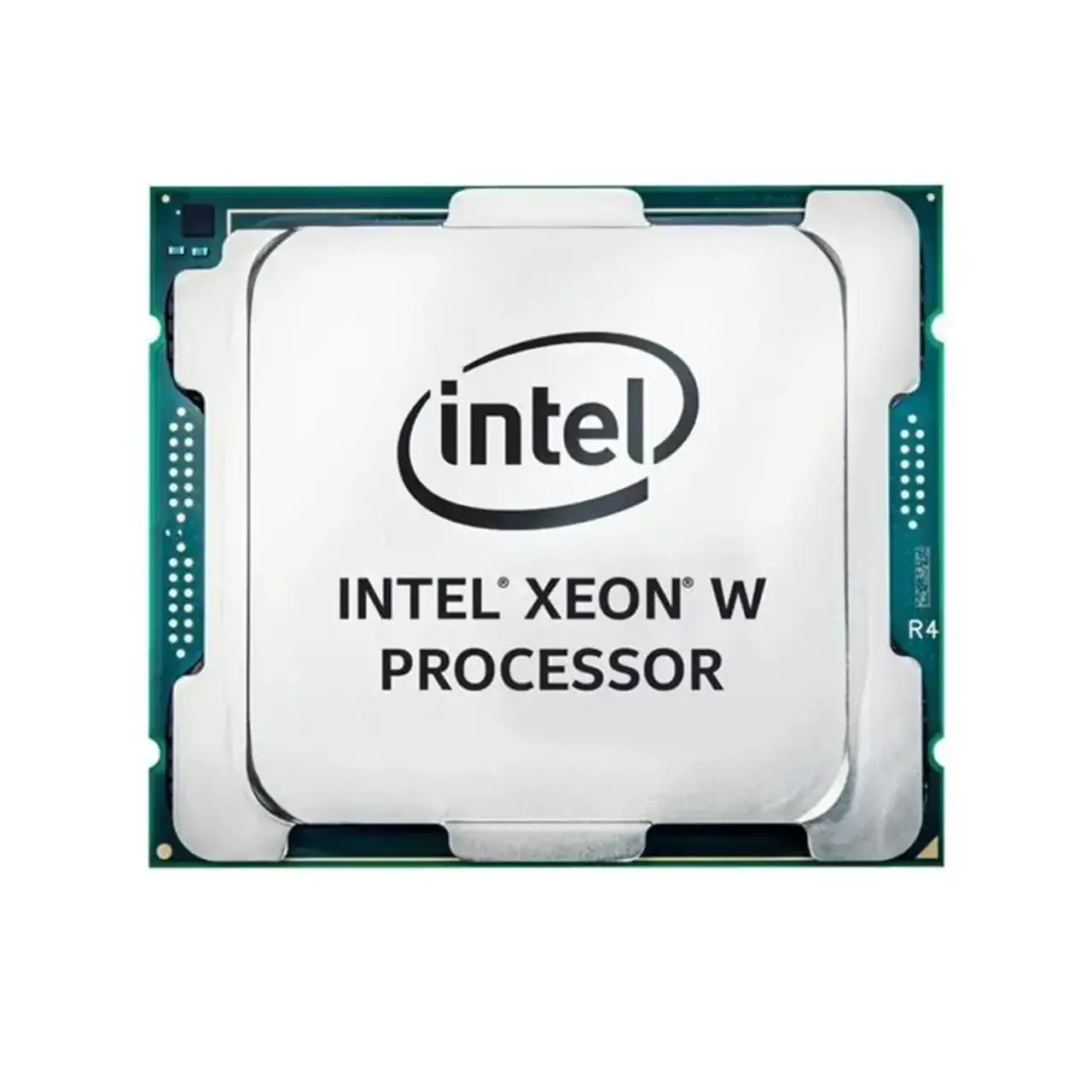

Intel Xeon W-2245 Processor (16.5M Cache, 3.90 GHz)
| Brand | Intel |
|---|---|
| Products Status | New |
| Series | Intel Xeon W |
| Part Number | W-2245 |
| Model | CD8069504393801 |
