| Brand | Intel |
|---|---|
| Products Status | New |
| Series | Intel Xeon W |
| Part Number | W-1390 |
| Model | CM8070804497319 |
| Shipping Media | TRAY |
| Application | Workstation |
| CPU Socket Type | FCLGA1200 |
| Code Name | Rocket Lake |
| Total Cores | 8 |
| Total Threads | 16 |
| Max Turbo Frequency | 5.20 GHz |
| Processor Base Frequency | 2.80 GHz |
| Cache | 16 MB Intel Smart Cache |
| Bus Speed | 8 GT/s |
| TDP | 80 W |
| Manufacturing Tech | 14 nm |
| 64-Bit Support | Yes |
| Hyper-Threading Support | Yes |
| Embedded Options Available | No |
| Max Memory Size | 128 GB |
| Memory Types | DDR4-3200 |
| Max # of Memory Channels | 2 |
| ECC Memory Supported | Yes |
| Scalability | 1S Only |
| PCI Express Revision | 4 |
| PCI Express Configurations | 1×8+3×4, 2×8+1×4, Up to 1×16+1×4 |
| Max # of PCI Express Lanes | 20 |
| Max CPU Configuration | 1 |
| Instruction Set | 64-bit |
| Graphics Max Dynamic Frequency | 1.30 GHz |
| Execution Units | 32 |
| DirectX* Support | 12.1 |
| OpenGL* Support | 4.5 |
| OpenCL* Support | 3 |
| Intel Quick Sync Video | Yes |
| # of Displays Supported | 3 |
| Device ID | 0x4C90 |
| T JUNCTION | 100??C |
| Package Size | 37.5 mm x 37.5 mm |
| Graphics Base Frequency | 350 MHz |
| Clear Video HD Technology | Yes |
| 4K Support | at 60Hz, Yes |
| Max Memory Bandwidth | 50 GB/s |

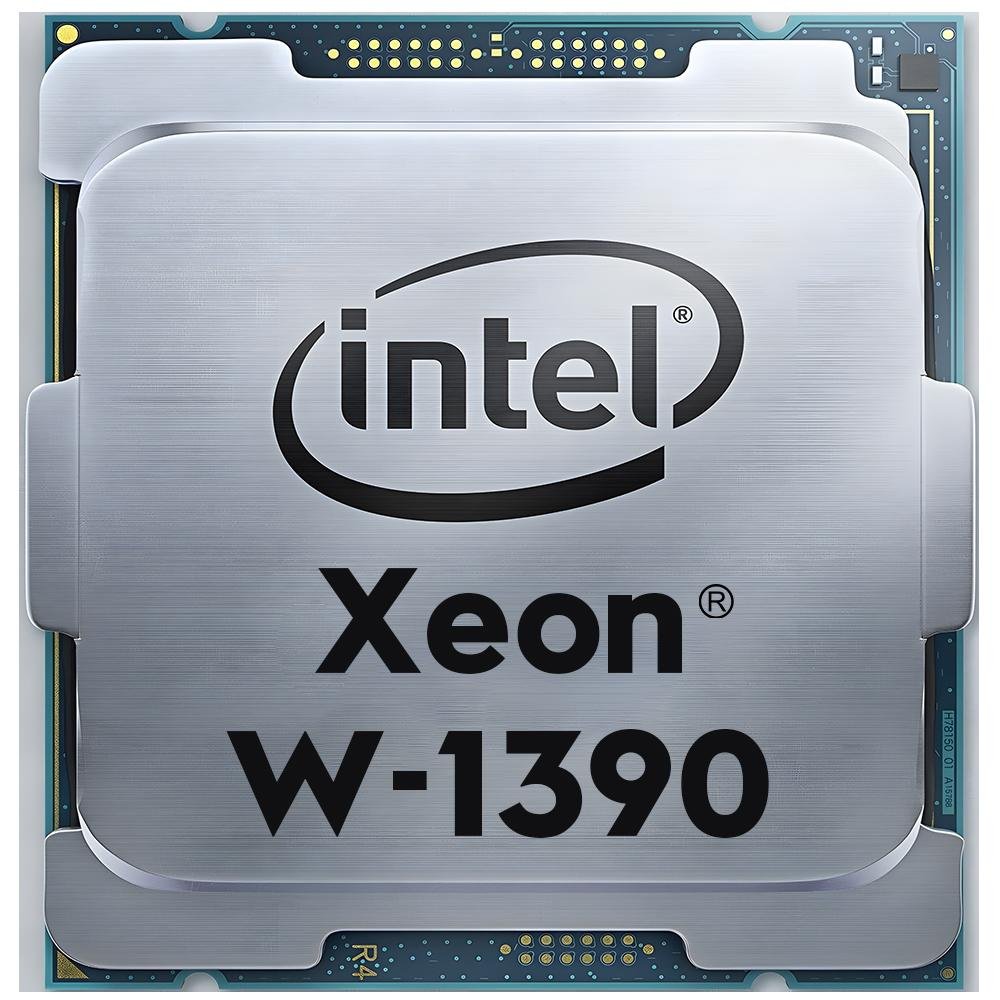

Intel Xeon W-1390 Processor (16M Cache, up to 5.20 GHz)
W-1390 Intel Xeon
| Brand | Intel |
|---|---|
| Products Status | New |
| Series | Intel Xeon W |
| Part Number | W-1390 |
| Model | CM8070804497319 |
