| Brand | Intel |
|---|---|
| Products Status | New |
| Series | Intel Xeon W |
| Part Number | W-11955M |
| Model | FH8069004352312 |
| Shipping Media | TRAY |
| Application | Workstation |
| CPU Socket Type | FCBGA1787 |
| Code Name | Tiger Lake |
| Total Cores | 8 |
| Total Threads | 16 |
| Max Turbo Frequency | 5.00 GHz |
| Cache | 24 MB Intel Smart Cache |
| Bus Speed | 8 GT/s |
| Manufacturing Tech | 10 nm SuperFin |
| Hyper-Threading Support | Yes |
| Embedded Options Available | No |
| Max Memory Size | 128 GB |
| Memory Types | Up to 3200 MT/s |
| Max # of Memory Channels | 2 |
| ECC Memory Supported | Yes |
| Microprocessor PCIe Revision | Gen 4 |
| PCI Express Configurations | 1×8+3×4, 2×8+1×4, Up to 1×16+1×4 |
| Max # of PCI Express Lanes | 20 |
| Max CPU Configuration | 1 |
| Instruction Set | 64-bit |
| Graphics Max Dynamic Frequency | 1.45 GHz |
| Graphics Output | DP 1.4, eDP 1.4b, HDMI 2.0b |
| Execution Units | 32 |
| DirectX* Support | 12.1 |
| OpenGL* Support | 4.6 |
| OpenCL* Support | 3 |
| Intel Quick Sync Video | Yes |
| # of Displays Supported | 4 |
| Device ID | 0x9A70 |
| Chipset / PCH PCIe Revision | Gen 3 |
| T JUNCTION | 100??C |
| Package Size | 50 x 26.5 |
| Image Processing Unit | 6 |
| Graphics Base Frequency | 350 MHz |
| Max Memory Bandwidth | 51.2 GB/s |

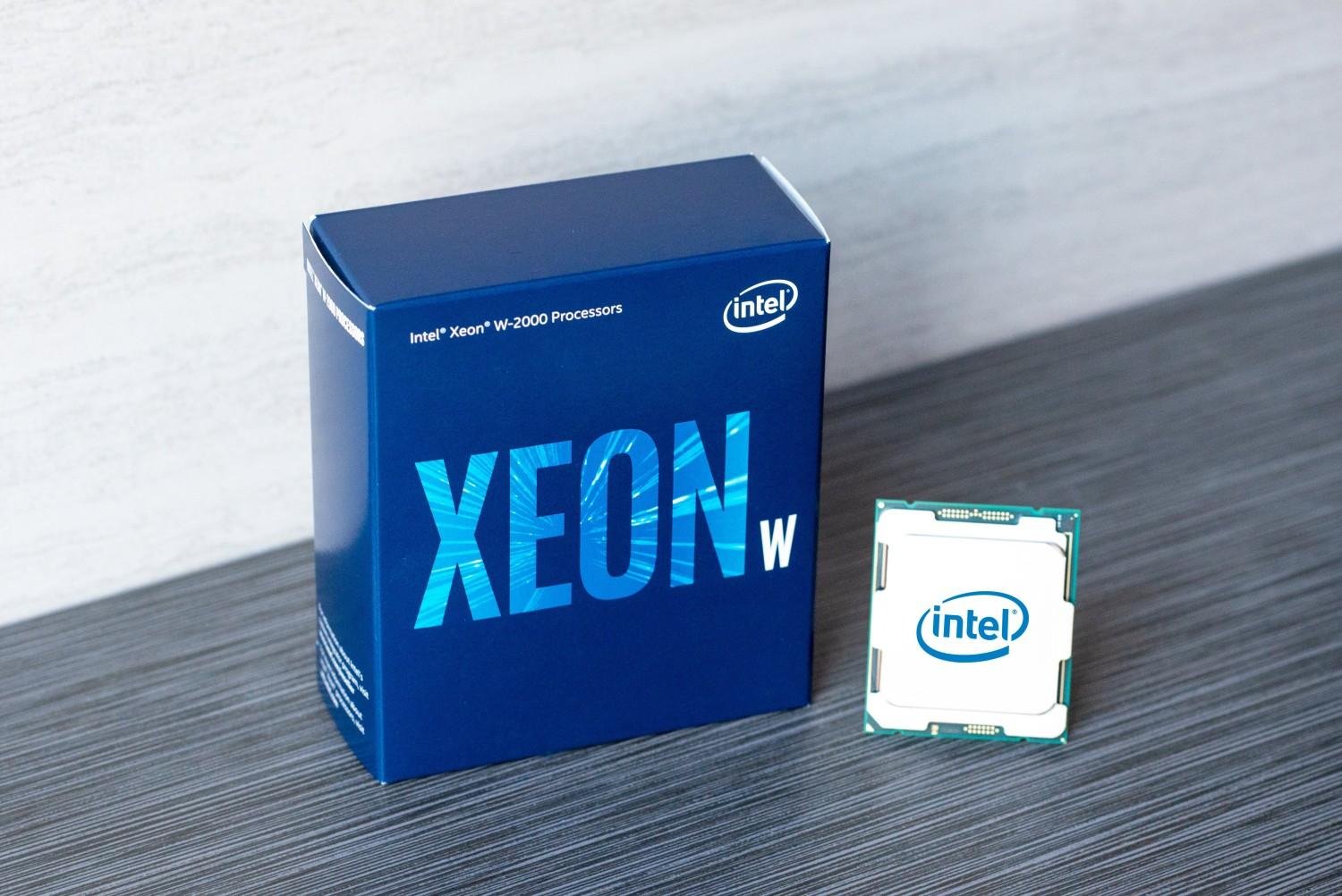

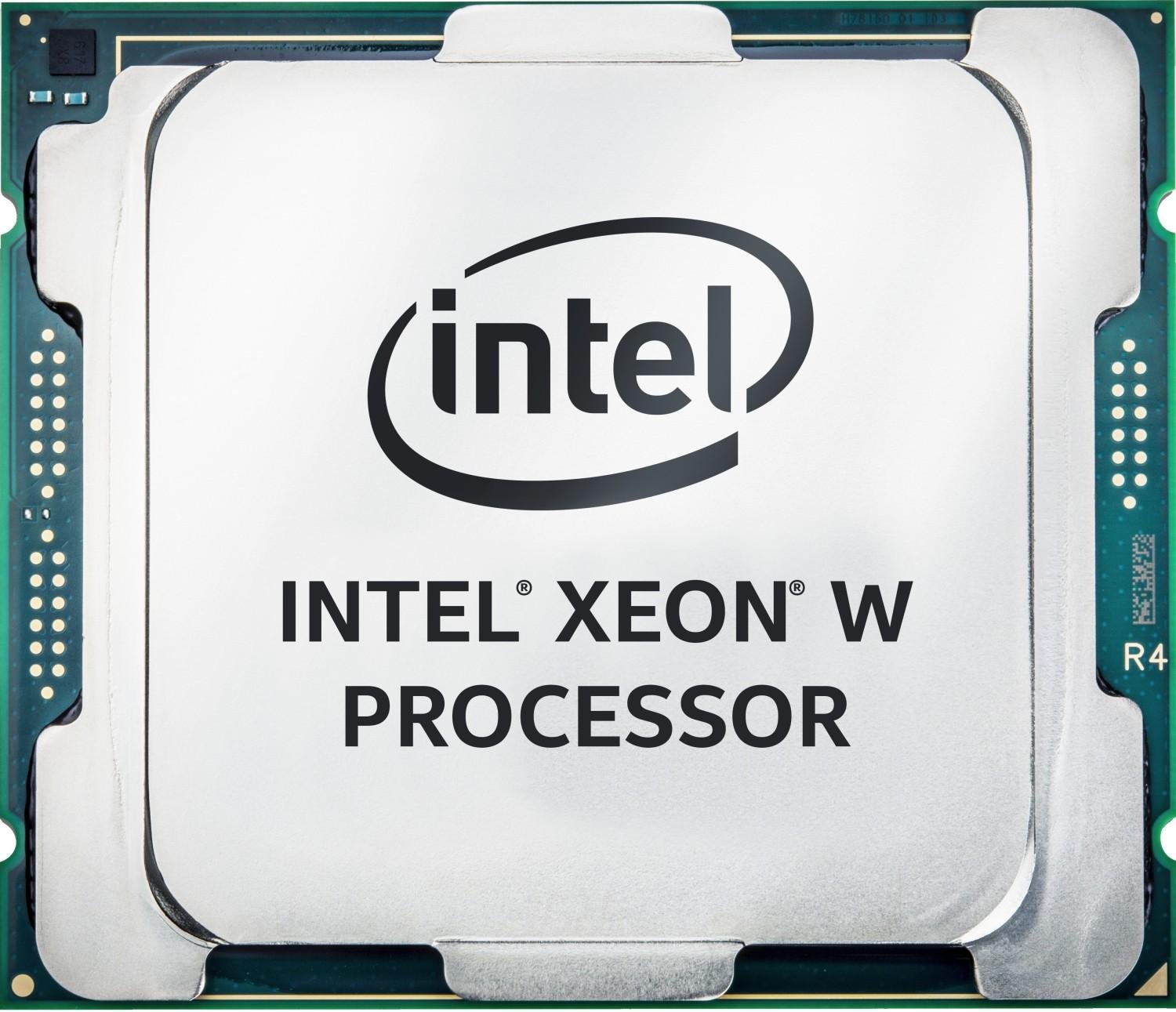

Intel Xeon W-11955M Workstation Processor (24M Cache, 2.60 GHz)
| Brand | Intel |
|---|---|
| Products Status | New |
| Series | Intel Xeon W |
| Part Number | W-11955M |
| Model | FH8069004352312 |
