| Brand | Intel |
|---|---|
| Products Status | New |
| Series | Intel Xeon E5 v4 |
| Part Number | E5-2630V4 |
| Model | CM8066002032301 |
| Application | Server |
| CPU Socket Type | FCLGA2011 |
| Code Name | Broadwell |
| Total Cores | 10 |
| Total Threads | 20 |
| Max Turbo Frequency | 3.10 GHz |
| Processor Base Frequency | 2.20 GHz |
| Cache | 25 MB Intel Smart Cache |
| Bus Speed | 8 GT/s |
| TDP | 85 W |
| Manufacturing Tech | 14 nm |
| 64-Bit Support | Yes |
| Hyper-Threading Support | Yes |
| Embedded Options Available | No |
| Max Memory Size | 1.5 TB |
| Memory Types | DDR4 1600/1866/2133 |
| Max # of Memory Channels | 4 |
| ECC Memory Supported | Yes |
| Scalability | 2S |
| PCI Express Revision | 3 |
| PCI Express Configurations | x16, x4, x8 |
| Max # of PCI Express Lanes | 40 |
| Max CPU Configuration | 2 |
| Instruction Set | 64-bit |
| Package Size | 45mm x 52.5mm |
| Max Memory Bandwidth | 68.3 GB/s |
| Physical Address Extensions | 46-bit |

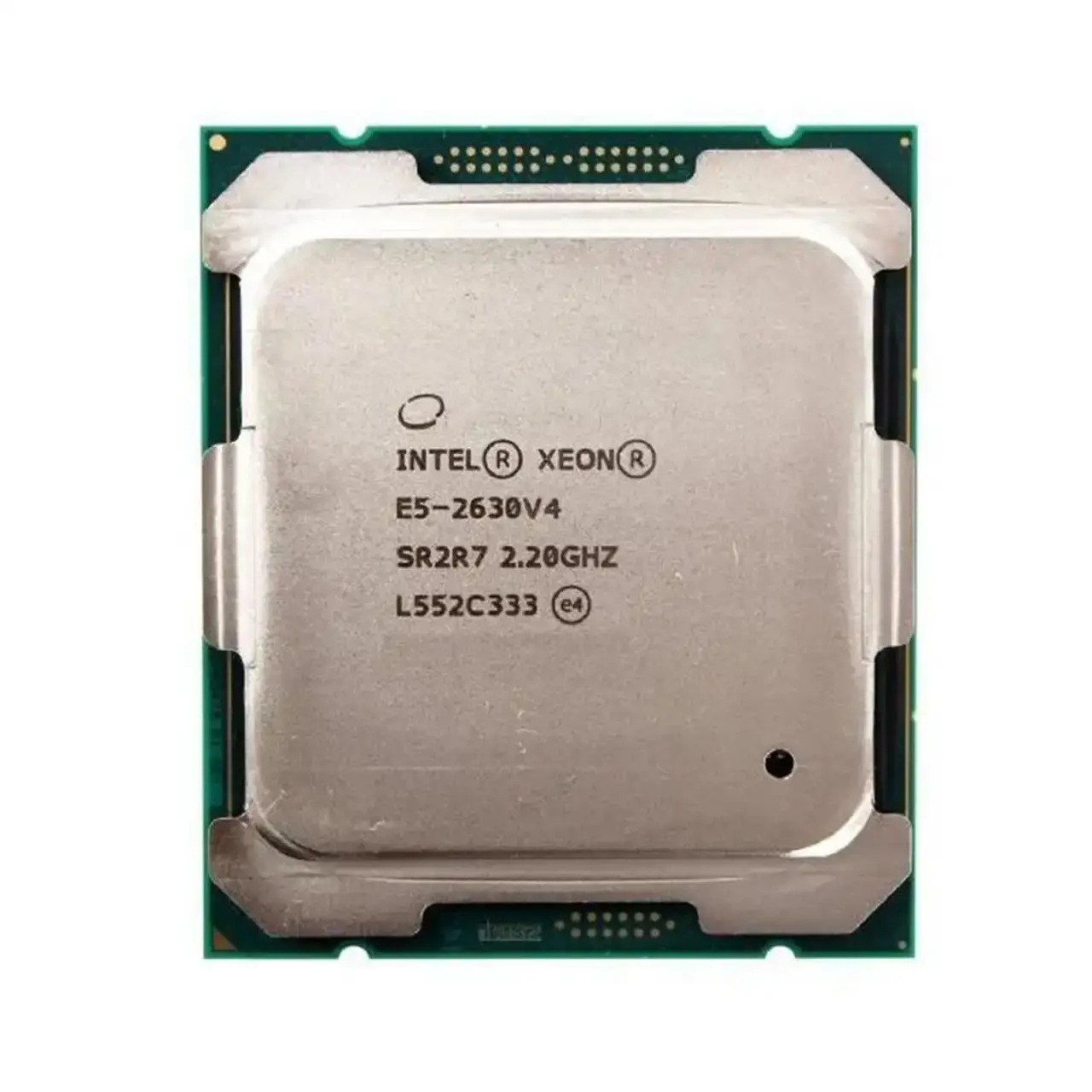

Intel Xeon E5-2630 v4 Broadwell 2.2 GHz 10 x 256KB L2 Cache 25MB L3 Cache LGA 2011-3 85W CM8066002032301 Server Processor
| Brand | Intel |
|---|---|
| Products Status | New |
| Series | Intel Xeon E5 v4 |
| Part Number | E5-2630V4 |
| Model | CM8066002032301 |
