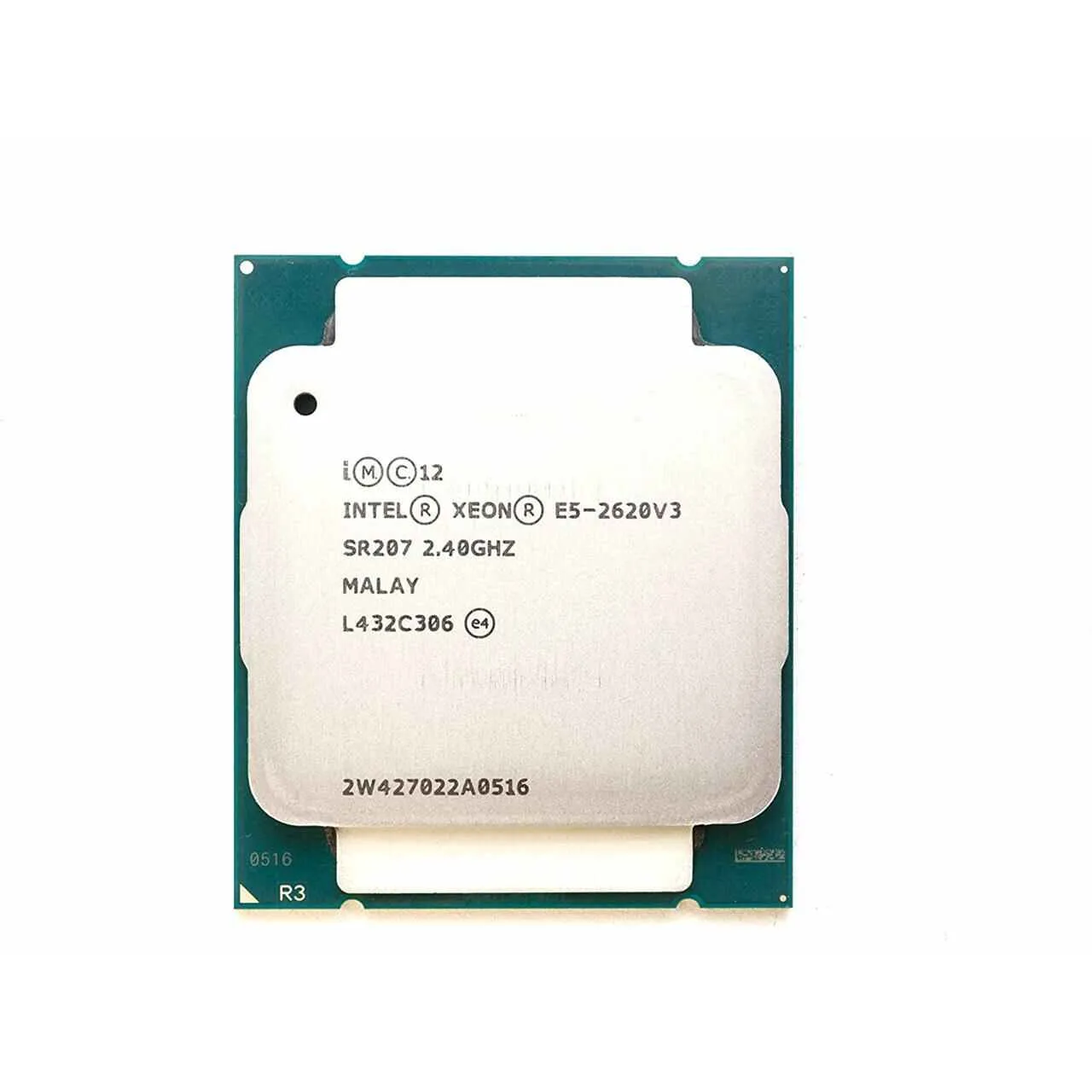

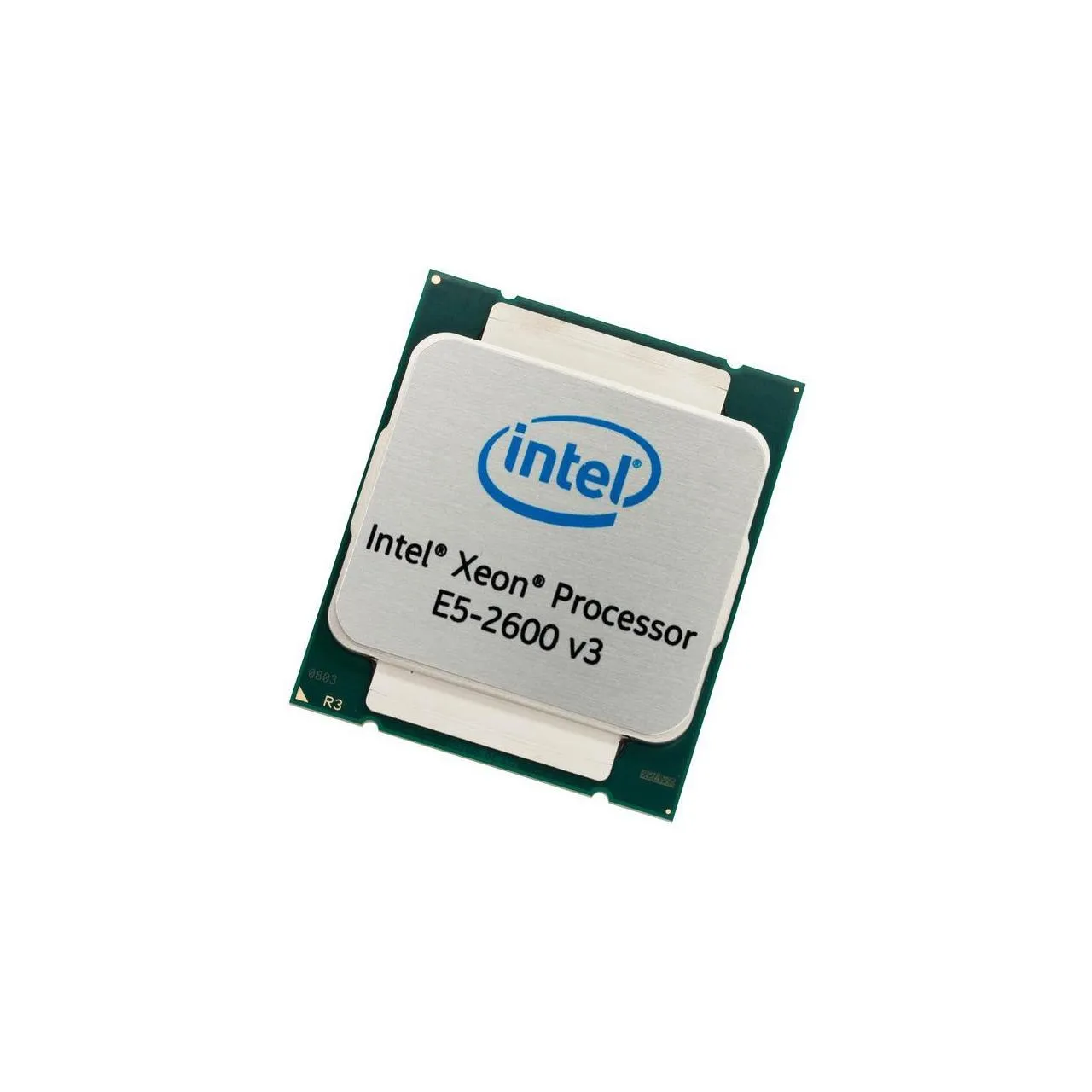

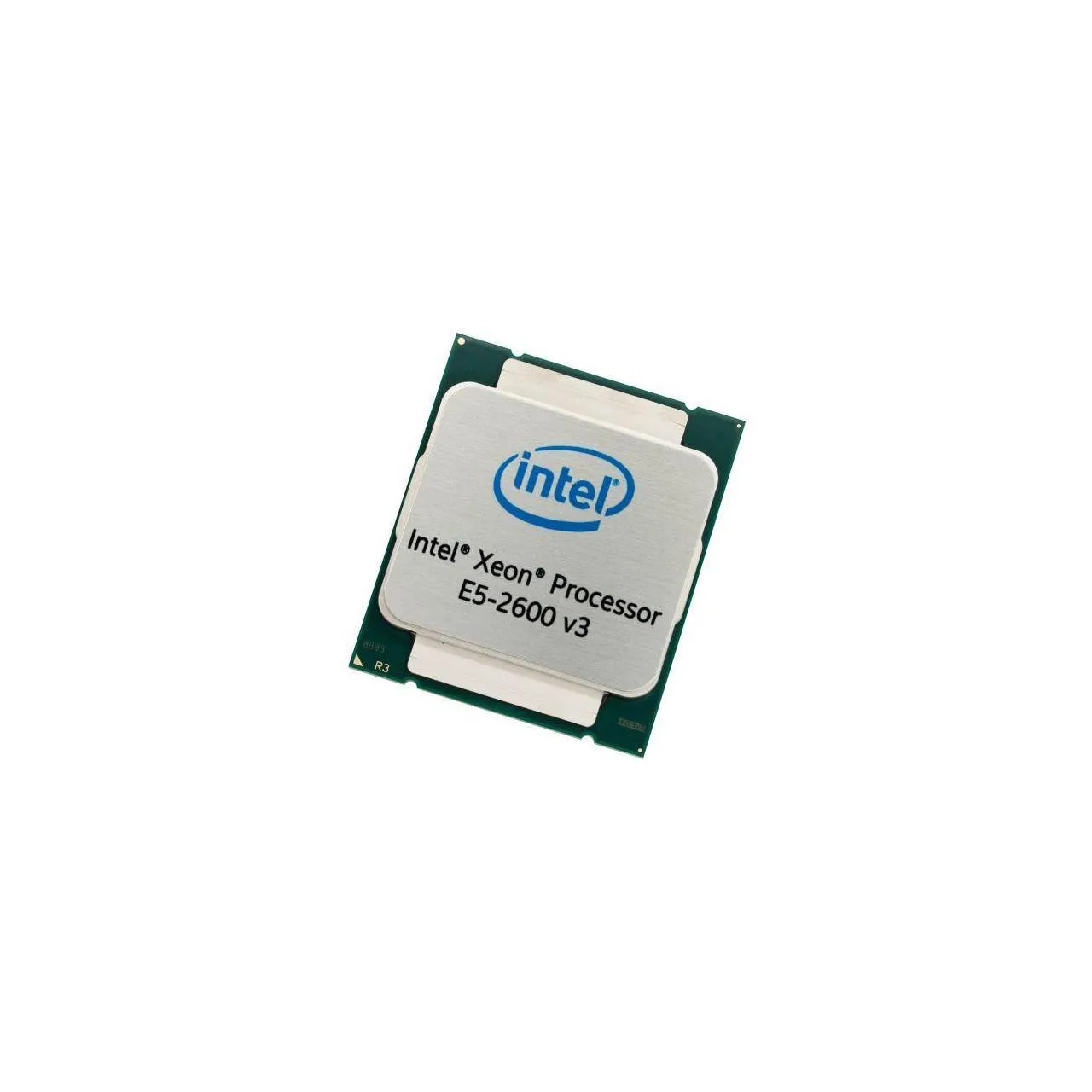

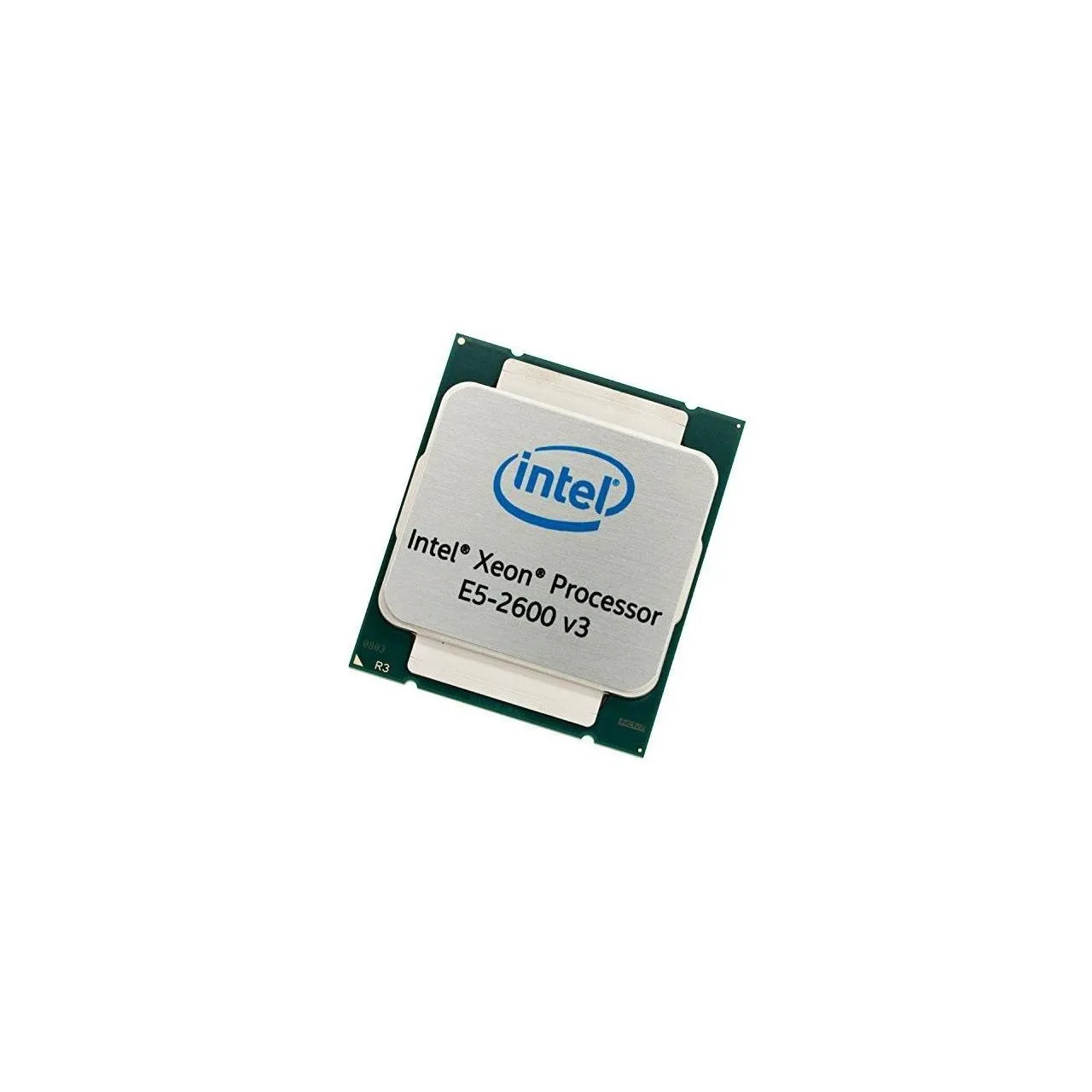

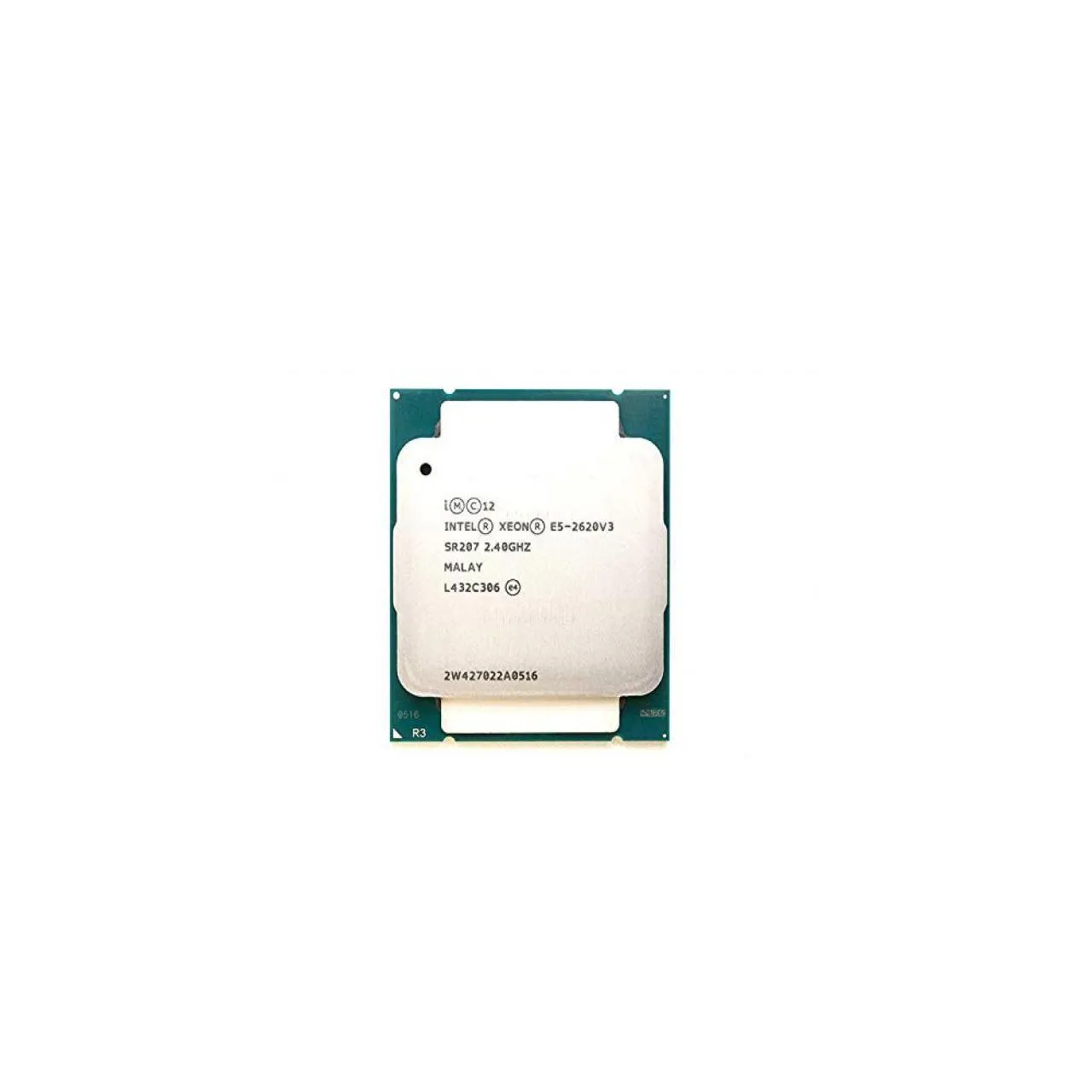

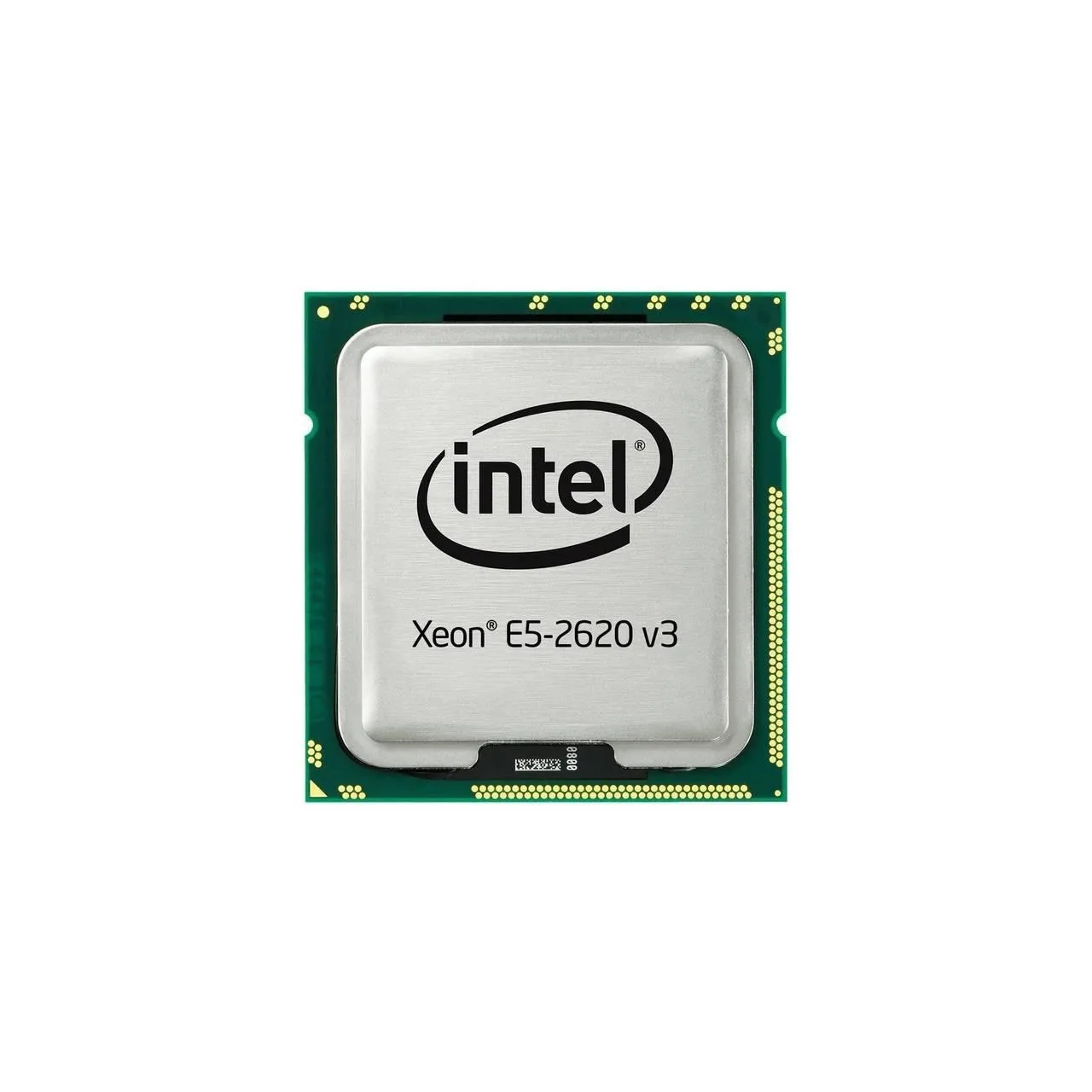

The Intel Xeon E5-2600 v3 processors take huge leaps forward in performance and power efficiency. Based on 22nm Haswell EP micro architecture and with LGA 2011-3 packaging, the Intel Xeon E5-2600 v3 family has core count ranging from four to eighteen, and supports DDR4 of up to four channels to feed these cores with adequate data. The support for two processors configuration and Hyper-Threading technology take the parallel computing capability to the next level.
The new Intel Xeon processor E5-2600 v3 family product helps IT address the growing demands placed on infrastructure, from supporting business growth to enabling new services faster, delivering new applications in the enterprise, technical computing, communications, storage, and cloud. It also enables powerful, agile data centers by supporting a Software-Defined Infrastructure (SDI) to address the imminent need of greater flexibility with higher levels of automation and orchestration. In addition, with the significant benefits in virtualization and security, as well as a low total cost of ownership and Intel??s acclaimed product quality, the Intel Xeon Processor E5-2600 v3 product family is a compelling solution for any organization.
| Brand | Intel |
|---|---|
| Products Status | New |
| Series | Intel Xeon Processor E5 v3 Family |
| Part Number | E5-2620V3 |
| Model | CM8064401831400 |
| Application | Server |
| CPU Socket Type | FCLGA2011 |
| Code Name | Haswell |
| Total Cores | 6 |
| Total Threads | 12 |
| Max Turbo Frequency | 3.20 GHz |
| Processor Base Frequency | 2.40 GHz |
| Cache | 15 MB Intel Smart Cache |
| Bus Speed | 8 GT/s |
| TDP | 85 W |
| Manufacturing Tech | 22 nm |
| 64-Bit Support | Yes |
| Hyper-Threading Support | Yes |
| Embedded Options Available | Yes |
| Max Memory Size | 768 GB |
| Memory Types | DDR4 1600/1866 |
| Max # of Memory Channels | 4 |
| ECC Memory Supported | Yes |
| Scalability | 2S |
| PCI Express Revision | 3 |
| PCI Express Configurations | x16, x4, x8 |
| Max # of PCI Express Lanes | 40 |
| Max CPU Configuration | 2 |
| Instruction Set | 64-bit |
| Package Size | 52.5mm x 45mm |
| Max Memory Bandwidth | 59 GB/s |
| Physical Address Extensions | 46-bit |
