| Chassis Dimensions | 117 x 112 x 51mm |
|---|---|
| # of Internal Drives Supported | 2 |
| Total Cores | 4 |
| TPM | No |
| M.2 Card Slot (storage) | 22×42/80 |
| USB Configuration | 2x front and 3x rear USB 3.1 Gen2; 2x USB 2.0 via internal headers |
| USB 3.0 Configuration (External + Internal) | 2B 2F + 0 |
| Max Memory Size (dependent on memory type) | 64 GB |
| # of USB Ports | 6 |
| USB Revision | 2.0, 3.1 Gen2 |
| Consumer Infrared Rx Sensor | Yes |
| Intel Optane? Memory Supported | Yes |
| ECC Memory Supported | No |
| PCI Express Revision | Gen3 |
| Removable Memory Card Slot | microSDXC with UHS-I support |
| Code Name | Products formerly BEAN CANYON |
| Product Name | Intel NUC Kit NUC8i5BEHS |
| Graphics Output | HDMI 2.0a; USB-C (DP1.2) |
| Max # of Memory Channels | 2 |
| Processor Included | Intel Core? i5-8260U Processor (6M Cache, up to 3.90 GHz) |
| Integrated Graphics | Yes |
| Max # of DIMMs | 2 |
| Product Collection | Intel NUC Kit with 8th Generation Intel Core? Processors |
| Total Threads | 8 |
| Integrated Wireless | Intel Wireless-AC 9560 + Bluetooth 5.0 |
| P/N | NUC8i5BEHS |
| Packaging Details | BOX |
| Max Turbo Frequency | 3.90 GHz |
| Supported Operating Systems | Windows 11, 64-bit*, Windows 10, 64-bit* |
| Integrated Bluetooth | Yes |
| Integrated LAN | Intel Ethernet Connection I219-V |
| Internal Drive Form Factor | M.2 and 2.5" Drive |
| USB 2.0 Configuration (External + Internal) | 0 + 2 |
| Audio (back channel + front channel) | 7.1 digital (HDMI mDP); L+R mic (F) |
| Intel HD Audio Technology | Yes |
| Max Memory Bandwidth | 38.4 GB/s |
| Total # of SATA Ports | 2 |
| Max # of SATA 6.0 Gb/s Ports | 2 |
| Intel Rapid Storage Technology | Yes |
| Warranty | 1 Year |
| Lithography | 14 nm |
| Description | Other features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes microSDXC card slot, dual microphones |
| Intel Platform Trust Technology (Intel PTT) | Yes |
| PCI Express Configurations | M.2 slot with PCIe X4 lanes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Brand | Intel |
| # of Thunderbolt? Ports | 1x Thunderbolt? 3 |
| Products Status | New |
| DC Input Voltage Supported | 12-19 VDC |
| Memory Types | DDR4-2400 1.2V SO-DIMM |
| Application | PC |
| Board Number | NUC8BEB |
| Embedded Options Available | No |
| Socket | Soldered-down BGA |

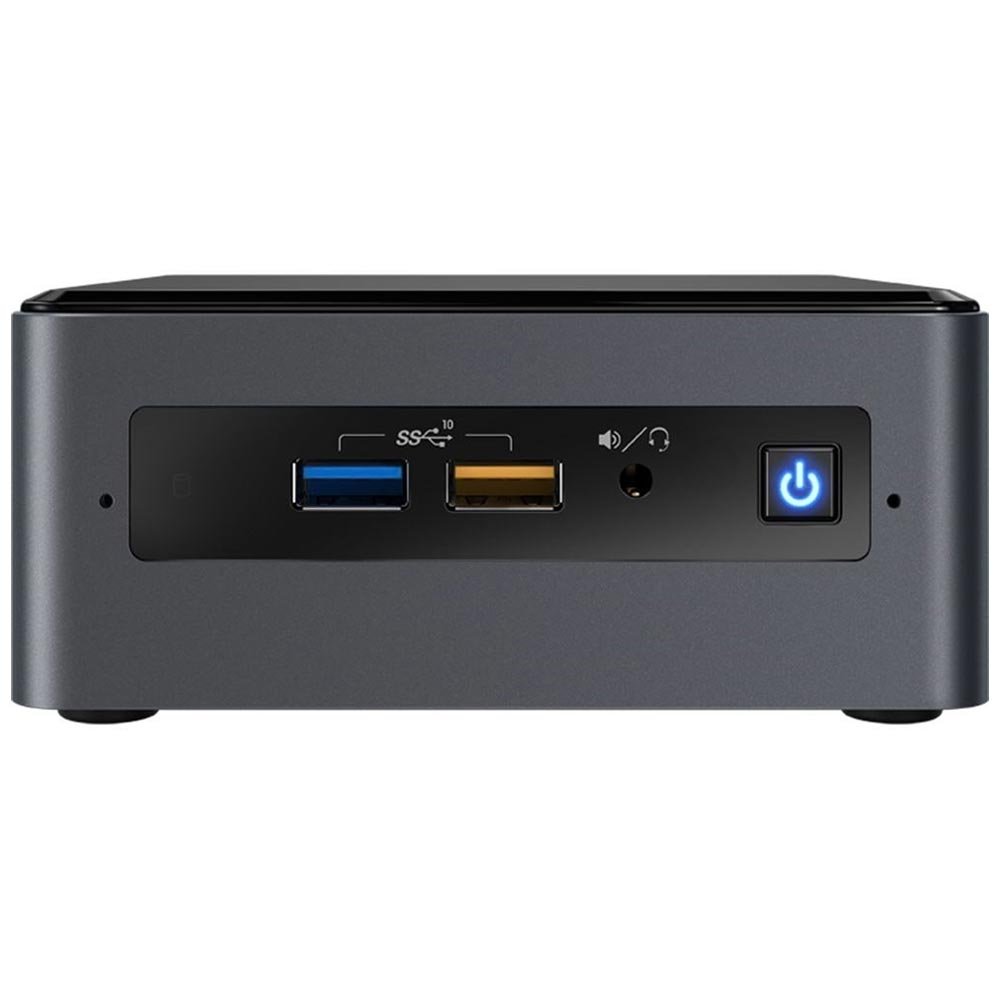

Intel NUC Kit NUC8i5BEHS
Intel Core i5-8260U Processor (6M Cache | up to 3.90 GHz)
| Chassis Dimensions | 117 x 112 x 51mm |
|---|---|
| # of Internal Drives Supported | 2 |
| Total Cores | 4 |
| TPM | No |
| M.2 Card Slot (storage) | 22x42/80 |
