| Embedded Options Available | No |
|---|---|
| Brand | Intel |
| Removable Memory Card Slot | SDXC with UHS-I support |
| Code Name | Products formerly JUNE CANYON |
| Lithography | 14 nm |
| Intel Platform Trust Technology (Intel PTT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |

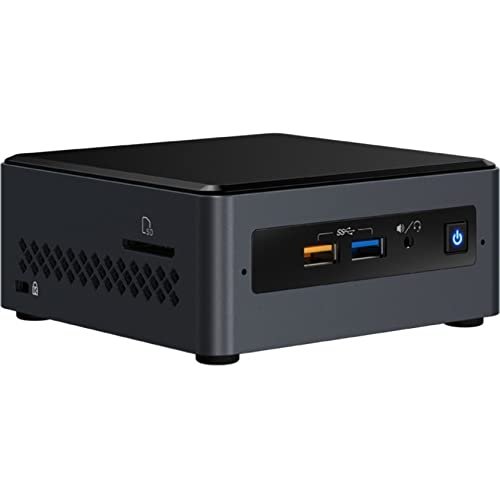

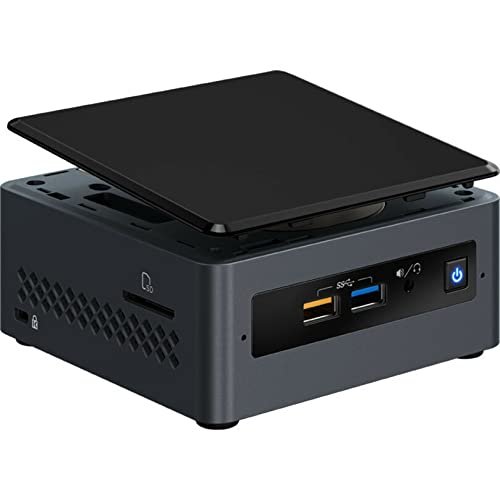

| Product Name | Intel NUC Kit NUC7PJYH |

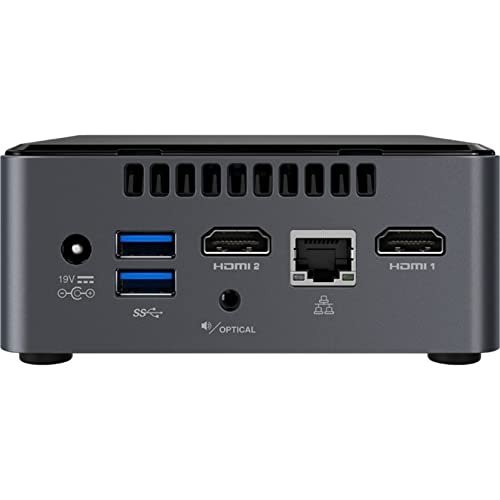

| Graphics Output | 2x HDMI 2.0a |
| Max # of Memory Channels | 2 |
| Processor Included | Intel Pentium Silver J5005 Processor (4M Cache, up to 2.80 GHz) |
| Integrated Graphics | Yes |
| Warranty | 1 Year |
| Products Status | New |
| Max # of DIMMs | 2 |
| Product Collection | Intel NUC Kit with Intel Pentium Processors |
| Total Threads | 4 |
| Integrated Wireless | Intel Wireless-AC 9462 + Bluetooth 5.0 |
| DC Input Voltage Supported | 12-19 VDC |
| Memory Types | DDR4-2400 1.2V SO-DIMM |
| Application | PC |
| Board Number | NUC7JYB |
| Supported Operating Systems | Windows 11, 64-bit*, Windows 10, 64-bit* |
| Max # of SATA 6.0 Gb/s Ports | 1 |
| Description | Other features: Includes SDXC card slot, dual microphones |
| Internal Drive Form Factor | 2.5" Drive |
| Packaging Details | BOX |
| S/PDIF Out Connector | TOSLINK |
| Chassis Dimensions | 115 x 111 x 51mm |
| P/N | NUC7PJYH |
| Total Cores | 4 |
| TPM | No |
| Integrated Bluetooth | Yes |

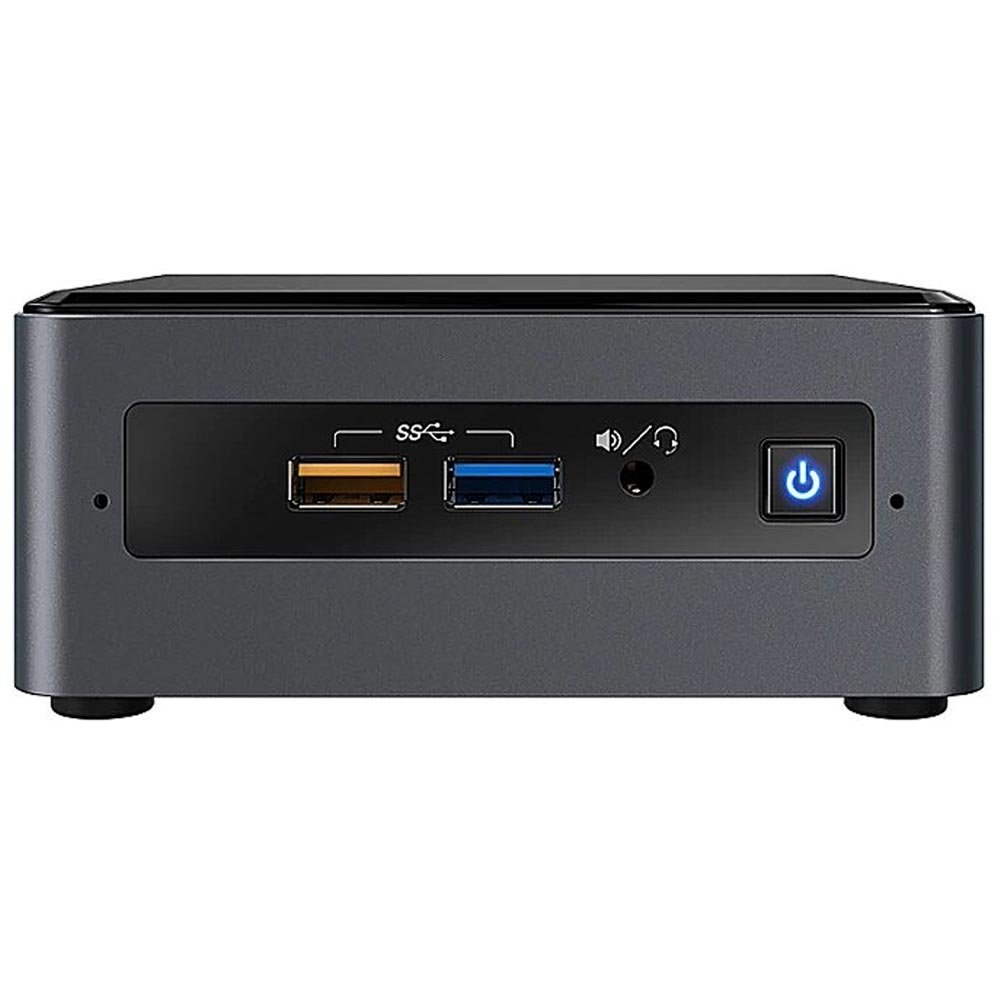

| USB Configuration | 2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers |
| Integrated LAN | Realtek 8111H-CG |
| USB 2.0 Configuration (External + Internal) | 0 + 2 |
| ECC Memory Supported | No |
| USB 3.0 Configuration (External + Internal) | 2B 2F + 0 |
| Audio (back channel + front channel) | 7.1 digital; L+R+mic (F); L+R+TOSLINK (R) |
| Max Memory Size (dependent on memory type) | 8 GB |
| # of USB Ports | 6 |
| USB Revision | 2.0, 3.0 |
| Intel HD Audio Technology | Yes |
| Consumer Infrared Rx Sensor | Yes |
| Max Memory Bandwidth | 38.4 GB/s |
| Total # of SATA Ports | 1 |
| # of Internal Drives Supported | 1 |
| Socket | Soldered-down BGA |
Intel NUC Kit NUC7PJYH
Intel Pentium Silver J5005 Processor (4M Cache | up to 2.80 GHz)
