| Chassis Dimensions | 115 x 111 x 52 mm |
|---|---|
| Total Cores | 4 |
| M.2 Card Slot (storage) | 22×80 (key M) slot |

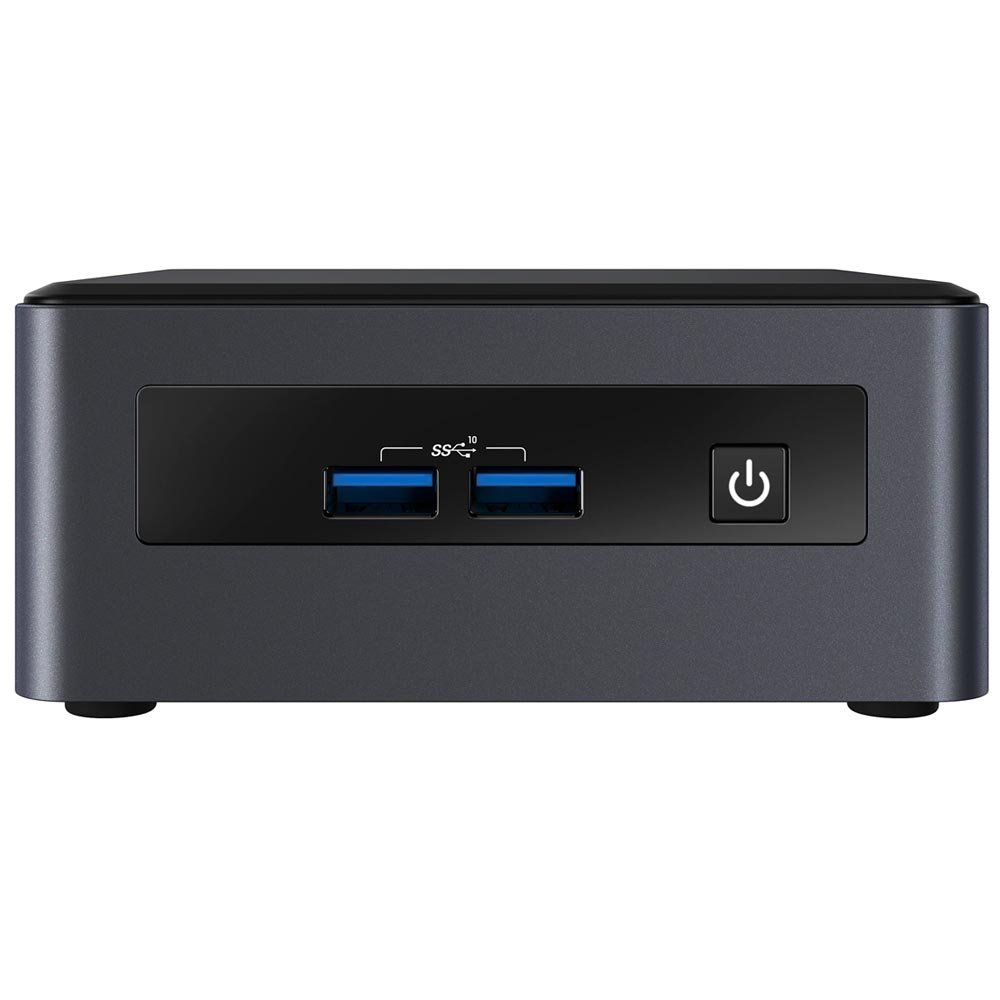

| USB Configuration | 2x front and 2x rear USB 3.0; 1x USB 3.0 and 2x USB 2.0 via internal headers |
| USB 3.0 Configuration (External + Internal) | 2B 2F +1 |
| Max Memory Size (dependent on memory type) | 32 GB |
| # of USB Ports | 4 |
| USB Revision | 2.0, 3.0 |
| Intel Optane? Memory Supported | Yes |
| PCI Express Revision | Gen 3 |
| P/N | NUC7i7DNHE |
| Code Name | Products formerly Dawson Canyon |
| Product Name | Intel NUC Kit NUC7i7DNHE |

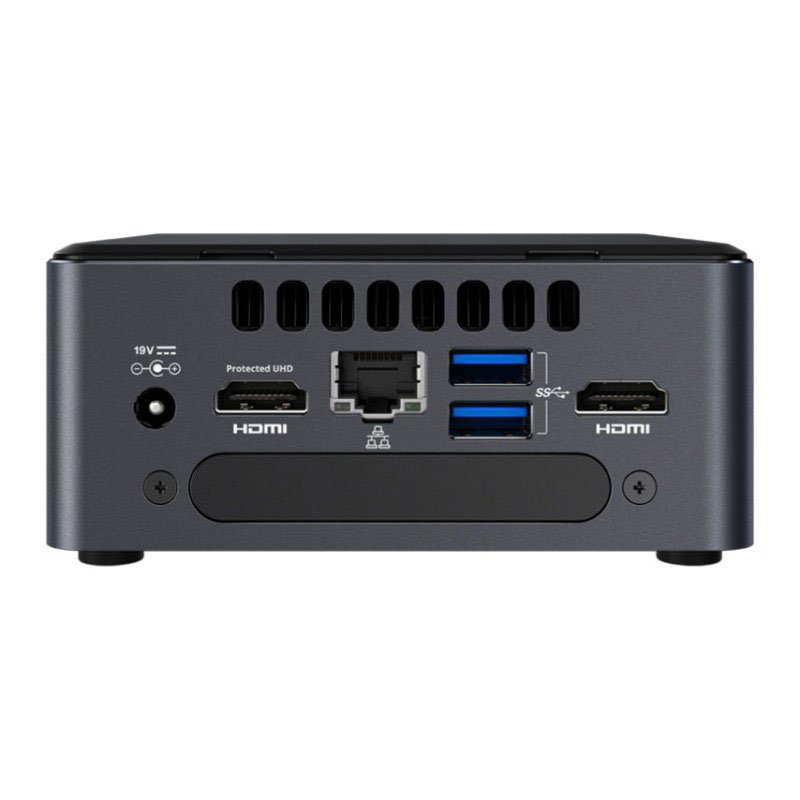

| Graphics Output | Dual HDMI 2.0a, 4-lane eDP 1.4 |
| Max # of Memory Channels | 2 |
| Processor Included | Intel Core? i7-8650U Processor (8M Cache, up to 4.20 GHz) |
| Integrated Graphics | Yes |
| Max # of DIMMs | 2 |
| Product Collection | Intel NUC Kit with 8th Generation Intel Core? Processors |
| Total Threads | 8 |
| Integrated Wireless | Intel Wireless-AC 8265 vPro (IEEE 802.11ac 2×2) |
| Socket | Soldered-down BGA |
| Brand | Intel |
| TPM | Yes |
| # of Internal Drives Supported | 2 |
| ECC Memory Supported | No |
| Description | 8th Gen Commercial Intel NUC |
| Integrated Bluetooth | Yes |
| Integrated LAN | Intel i219-LM 10/100/1000 Mbps Ethernet |
| Internal Drive Form Factor | M.2 and 2.5" Drive |
| USB 2.0 Configuration (External + Internal) | 0 + 2 |
| Total # of SATA Ports | 2 |
| Max # of SATA 6.0 Gb/s Ports | 2 |
| Intel Rapid Storage Technology | Yes |
| Warranty | 1 Year |
| Supported Operating Systems | Windows 10, 64-bit*, Windows 10 IoT Enterprise*, Ubuntu 16.04* |
| Max Turbo Frequency | 4.20 GHz |
| Intel Platform Trust Technology (Intel PTT) | No |
| PCI Express Configurations | PCIe x4: M.2 22×80 (key M) slot PCIe x1: M.2 22×30 (key E) slot |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| M.2 Card Slot (wireless) | 22×30 (key E) slot |
| DC Input Voltage Supported | 12-24 VDC |
| Memory Types | DDR4-2400 1.2V SO-DIMM |
| Application | PC |
| Board Number | NUC7i7DNB |
| Embedded Options Available | Yes |
| Lithography | 14 nm |

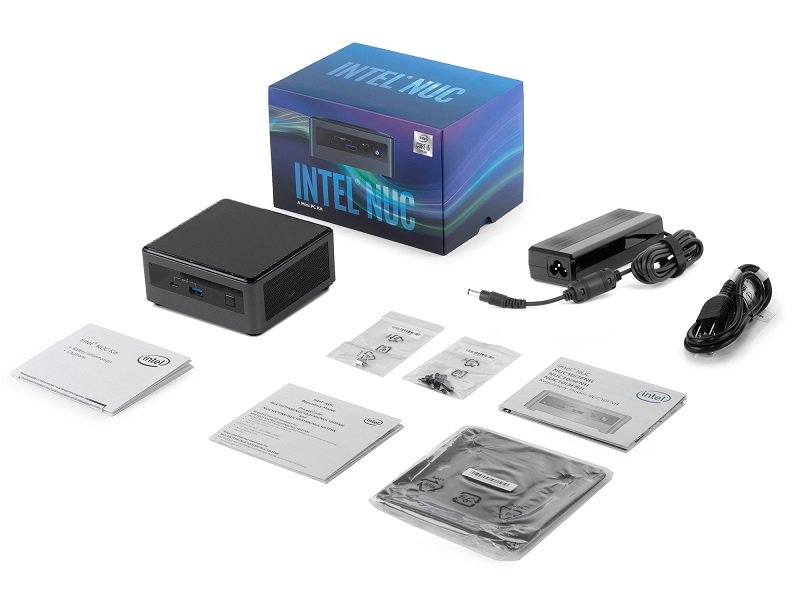

| Packaging Details | BOX |
| Products Status | New |

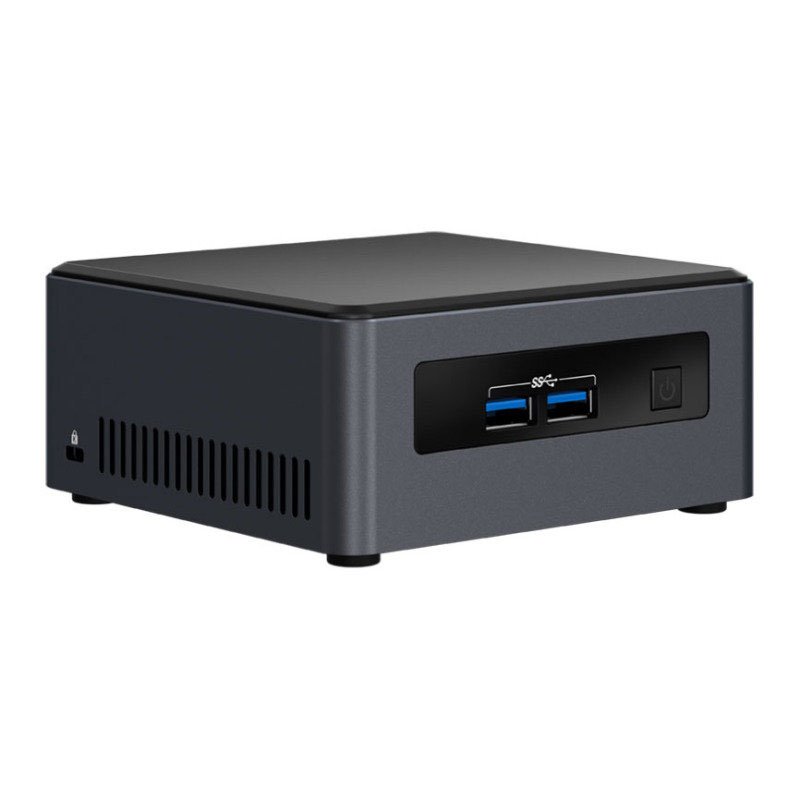

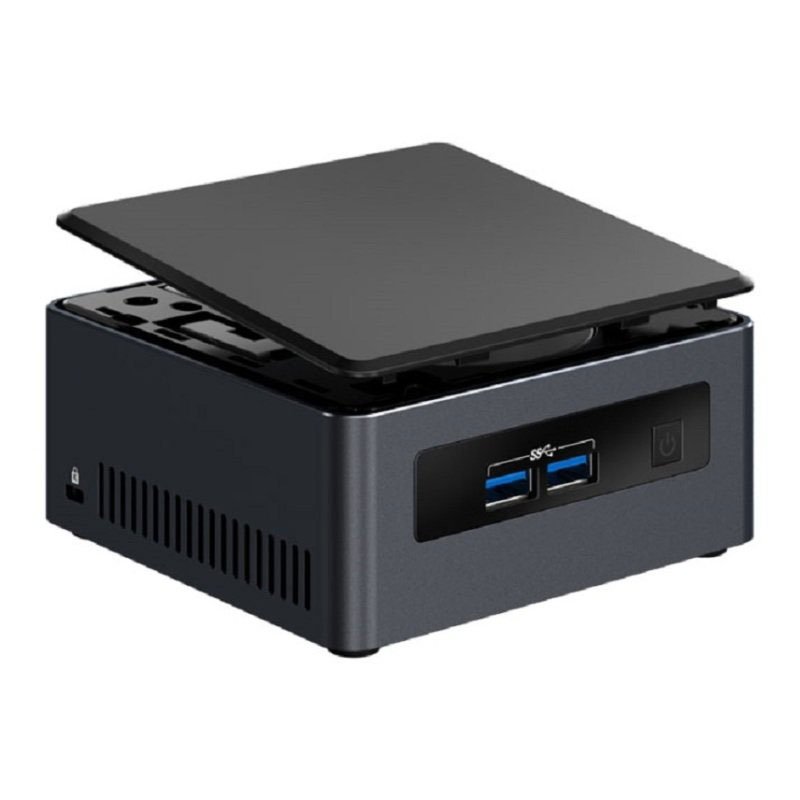

Intel NUC Kit NUC7i7DNHE
Intel Core i7-8650U Processor (8M Cache | up to 4.20 GHz)
| Chassis Dimensions | 115 x 111 x 52 mm |
|---|---|
| Total Cores | 4 |
| M.2 Card Slot (storage) | 22x80 (key M) slot |
| USB Configuration | 2x front and 2x rear USB 3.0; 1x USB 3.0 and 2x USB 2.0 via internal headers |
| USB 3.0 Configuration (External + Internal) | 2B 2F +1 |
