| Embedded Options Available | No |
|---|---|
| Product Collection | Intel NUC Kit with Intel Celeron Processors |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Product Name | Intel NUC 8 Rugged Kit NUC8CCHKR |
| Graphics Output | HDMI 2.0, HDMI 1.4, 4-lane eDP 1.4 |
| Processor Included | Intel Celeron Processor N3350 (2M Cache, up to 2.40 GHz) |
| Intel Platform Trust Technology (Intel PTT) | Yes |
| Supported Operating Systems | Windows 10, 64-bit* |
| Total Threads | 2 |
| Warranty | 1 Year |
| Integrated Wireless | Intel Dual Band Wireless-AC 3168 |
| DC Input Voltage Supported | 12V – 24V |
| Application | PC |
| Code Name | Products formerly Chaco Canyon |
| Board Number | NUC8CCHB |
| Brand | Intel |
| Lithography | 14 nm |
| M.2 Card Slot (wireless) | 22×30 slot (key E) |
| M.2 Card Slot (storage) | 22×80 slot (key M; NVMe/SATA) |
| PCI Express Revision | Gen 2 |
| P/N | NUC8CCHKR |
| Total Cores | 2 |
| TPM | No |
| Integrated Bluetooth | Yes |
| USB Configuration | 1x front and 1x rear USB 3.0; 2x rear USB 2.0; 1x USB 3.0 and 2x USB 2.0 via internal headers |
| Integrated LAN | Intel i211-AT (10/100/1000 Mbps) |
| Included Memory | 4GB LPDDR3 (dual-channel, soldered-down) |
| Packaging Details | BOX |
| Internal Drive Form Factor | M.2 SSD |
| Audio (back channel + front channel) | 1/8" line out |
| # of USB Ports | 4 |
| Intel HD Audio Technology | Yes |
| ECC Memory Supported | No |
| Included Storage | 64GB eMMC |
| Chassis Dimensions | 154 x 108 x 32 mm |
| Products Status | New |

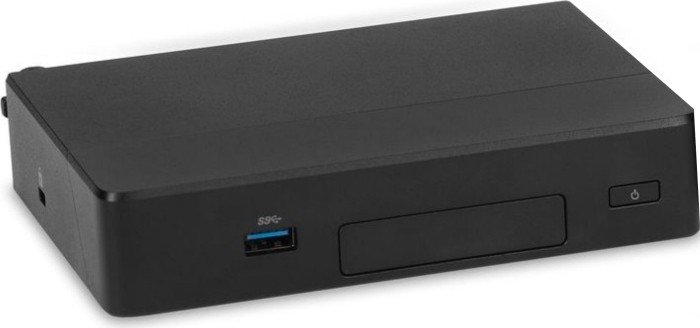

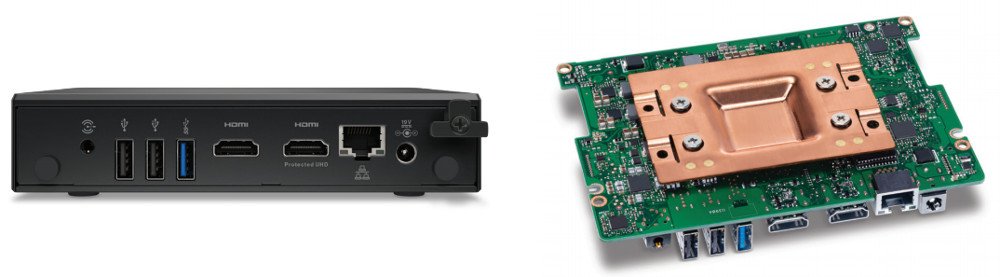

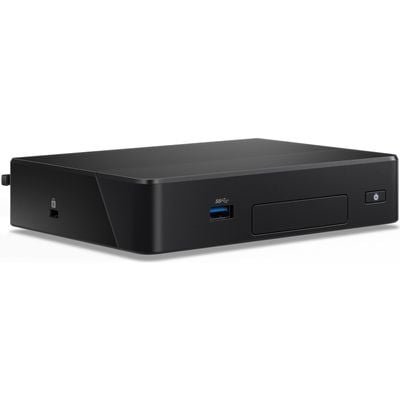

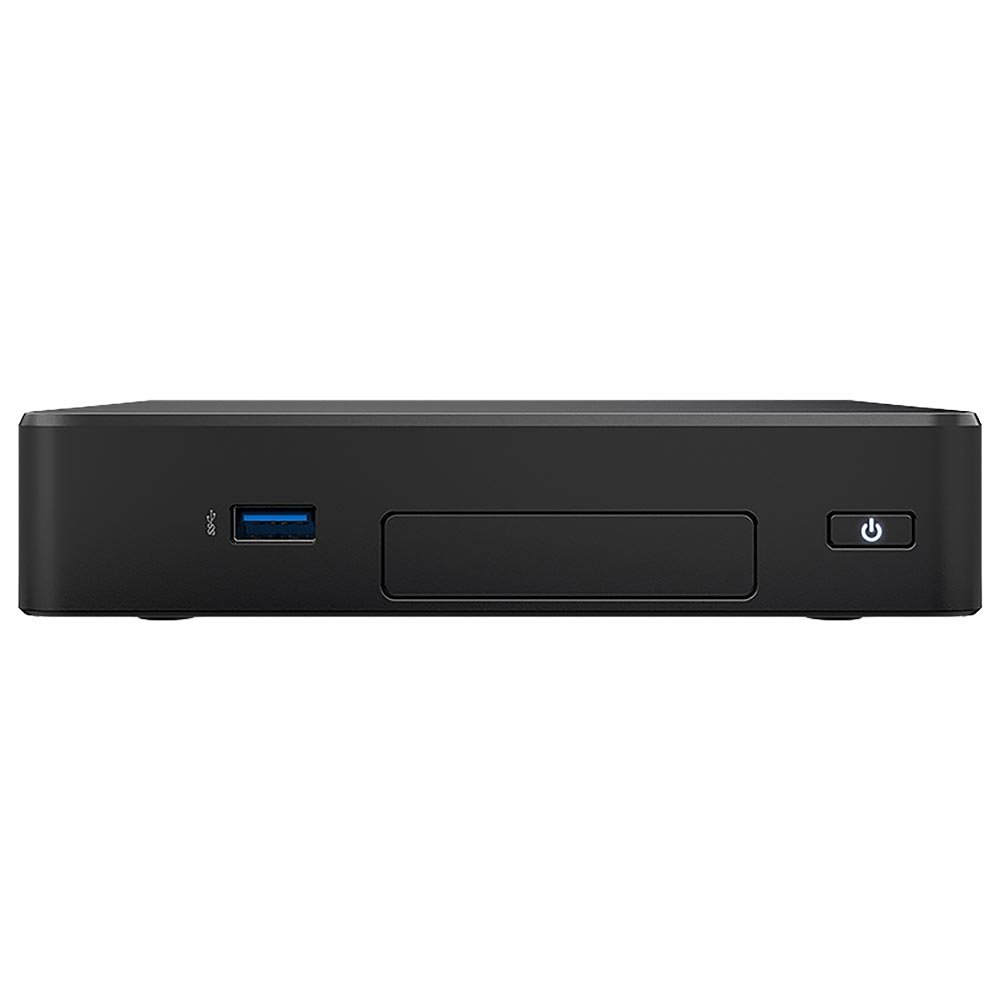

Intel NUC 8 Rugged Kit NUC8CCHKR
Intel Celeron Processor N3350 (2M Cache | up to 2.40 GHz)
| Embedded Options Available | No |
|---|---|
| Product Collection | Intel NUC Kit with Intel Celeron Processors |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Product Name | Intel NUC 8 Rugged Kit NUC8CCHKR |
| Graphics Output | HDMI 2.0, HDMI 1.4, 4-lane eDP 1.4 |
