| Description | Intel NUC 8 Pro Kit |
|---|---|
| Max # of DIMMs | 2 |
| Product Name | Intel NUC 8 Pro Kit NUC8v5PNH |

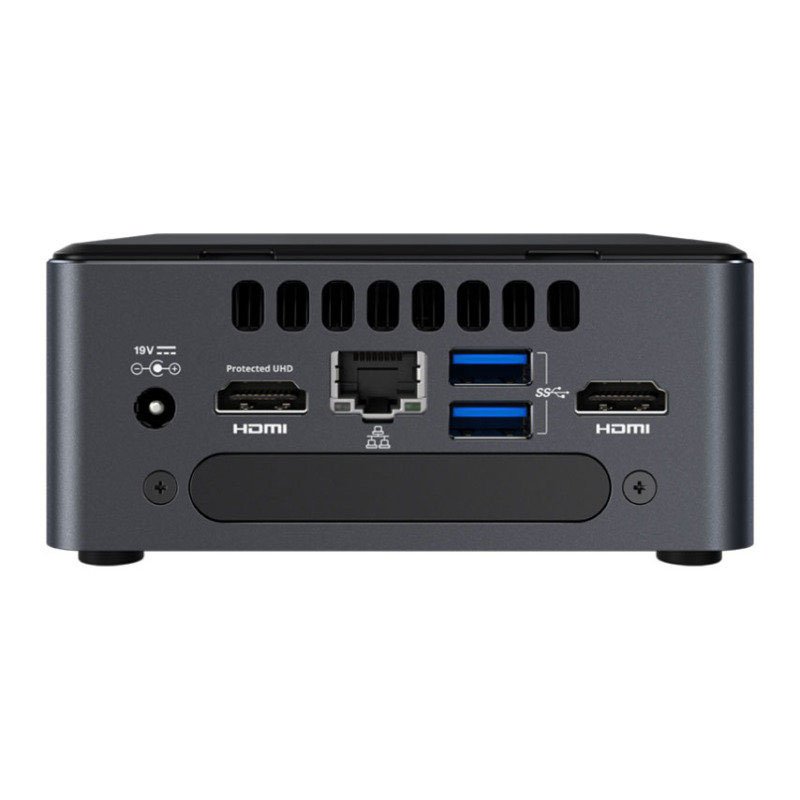

| Graphics Output | Dual HDMI 2.0a, DP 1.2 via Type C, 4-lane eDP 1.4 |
| Max # of Memory Channels | 2 |
| Processor Included | Intel Core? i5-8365U Processor (6M Cache, up to 4.10 GHz) |
| M.2 Card Slot (wireless) | 22×30 (key E) slot |
| # of Thunderbolt? Ports | 1x Thunderbolt? 3 |
| Lithography | 14 nm |
| PCI Express Configurations | PCIe x4: M.2 22×80 (key M) slot PCIe x1: M.2 22×30 (key E) slot |
| Product Collection | Intel NUC Kit with 8th Generation Intel Core? Processors |
| Integrated LAN | Intel i219-LM 10/100/1000 Mbps Ethernet |
| Total Threads | 8 |
| Integrated Wireless | Intel Wireless-AC 9560 + Bluetooth 5.0 |
| DC Input Voltage Supported | 12-24 VDC |
| Memory Types | DDR4-2400 1.2V SO-DIMM |
| Application | PC |
| Board Number | NUC8v5PNB |
| Socket | Soldered-down BGA |
| Brand | Intel |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Integrated Graphics | Yes |
| Code Name | Products formerly Provo Canyon |
| Supported Operating Systems | Windows 11, 64-bit*, Windows 10, 64-bit*, Windows 10 IoT Enterprise*, Red Hat Linux*, Ubuntu 18.04 LTS* |
| Chassis Dimensions | 117 x 112 x 53 mm |
| Max Turbo Frequency | 4.10 GHz |
| PCI Express Revision | Gen 3 |
| P/N | NUC8v5PNH |
| Total Cores | 4 |
| TPM | Yes |
| Integrated Bluetooth | Yes |
| M.2 Card Slot (storage) | 22×80 (key M) slot |
| Internal Drive Form Factor | M.2 and 2.5" Drive |
| Packaging Details | BOX |
| Max Memory Size (dependent on memory type) | 64 GB |
| # of USB Ports | 4 |
| Total # of SATA Ports | 1 |
| Intel Optane? Memory Supported | Yes |
| # of Internal Drives Supported | 2 |
| ECC Memory Supported | No |
| Warranty | 1 Year |
| USB Configuration | USB 3.1 (type C): 1 rear USB 3.1 (type A): 2 front, 1 rear USB 3.0: 1 header USB 2.0: 1 rear, 2 headers |
| Products Status | New |
Intel NUC 8 Pro Kit NUC8v5PNH
Intel Core i5-8365U Processor (6M Cache | up to 4.10 GHz)
| Description | Intel NUC 8 Pro Kit |
|---|---|
| Max # of DIMMs | 2 |
| Product Name | Intel NUC 8 Pro Kit NUC8v5PNH |
| Graphics Output | Dual HDMI 2.0a, DP 1.2 via Type C, 4-lane eDP 1.4 |
| Max # of Memory Channels | 2 |
