| Embedded Options Available | No |
|---|---|
| Intel Platform Trust Technology (Intel PTT) | Yes |
| PCI Express Configurations | PCIe x4 Gen 4: M.2 22×80 (key M) PCIe x1 Gen 3: M.2 22×42 (key B) PCIe x1: M.2 22×30 (key E) |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Product Name | Intel NUC 12 Pro Kit NUC12WSHi3 |
| Graphics Output | 2x HDMI 2.1 TMDS Compatible, 2x DP 1.4a via Type C |
| Max # of Memory Channels | 2 |
| Processor Included | Intel Core? i3-1220P Processor (12M Cache, up to 4.40 GHz) |
| M.2 Card Slot (wireless) | 22×30 (E) |
| Lithography | Intel 7 |
| Max # of DIMMs | 2 |
| Internal Drive Form Factor | M.2 and 2.5" Drive |
| Product Collection | Intel NUC Kit with 12th Generation Intel Core? Processors |
| Total Threads | 12 |
| Integrated Wireless | Intel Wi-Fi 6E AX211(Gig+) |
| DC Input Voltage Supported | 12-20 VDC |
| Memory Types | DDR4-3200 1.2V SODIMMs |
| Application | PC |
| Board Number | NUC12WSBi3 |
| Socket | Soldered-down BGA |
| Brand | Intel |
| Integrated Graphics | Yes |
| # of Thunderbolt? Ports | 2x Thunderbolt? 4 |
| Packaging Details | BOX |
| Chassis Dimensions | 117 x 112 x 54 [mm] (LxWxH) |
| Max Turbo Frequency | 4.40 GHz |
| PCI Express Revision | Gen 4 (m.2 22×80 slot); Gen 3 (otherwise) |
| P/N | NUC12WSHi3 |
| Total Cores | 10 |
| Integrated Bluetooth | Yes |
| M.2 Card Slot (storage) | 22×80 NVMe (M); 22×42 SATA (B) |

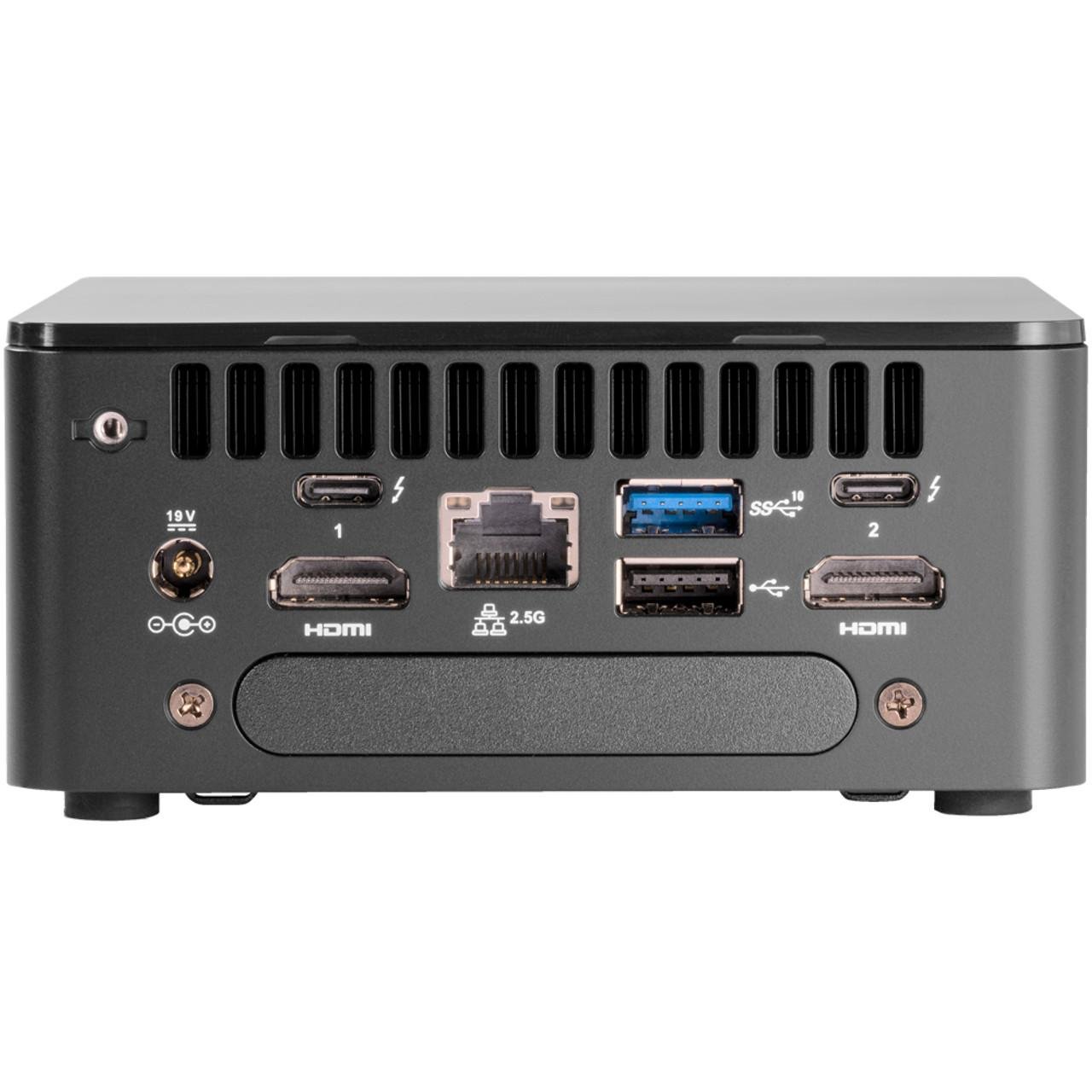

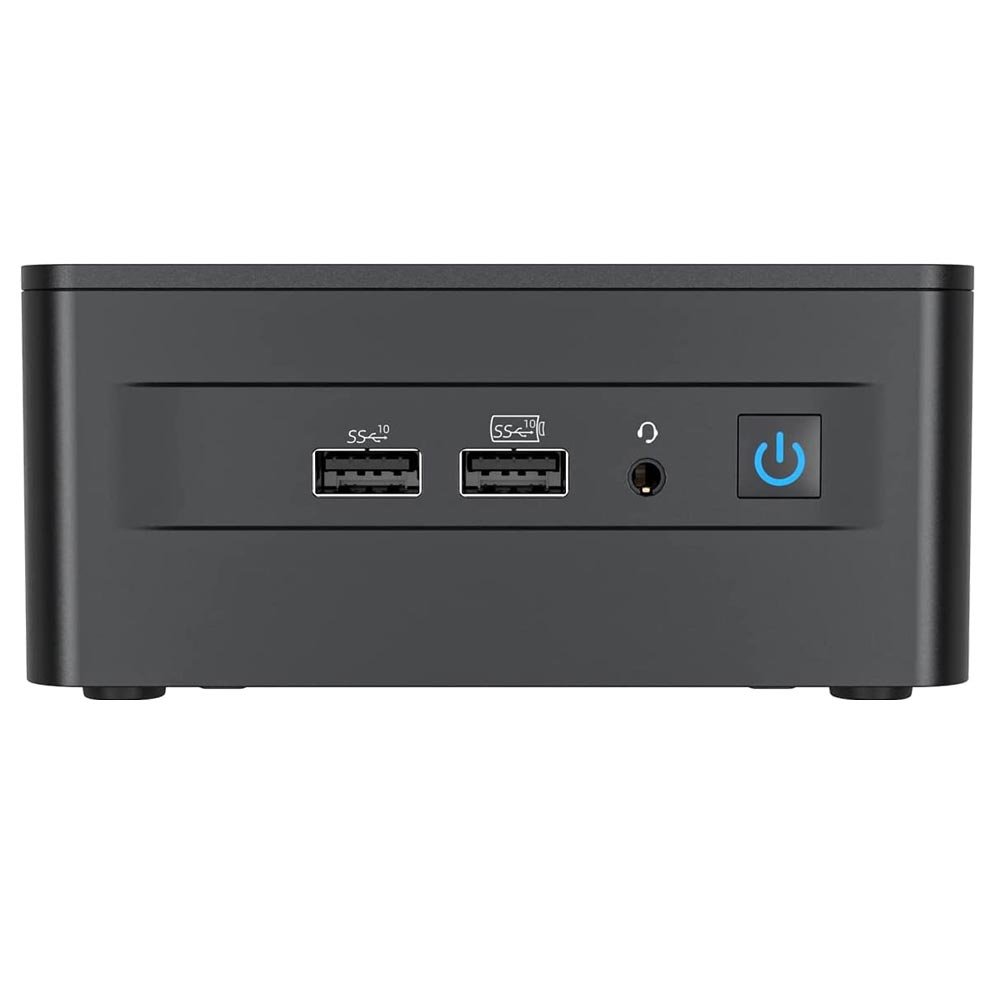

| USB Configuration | Front: 2x USB 3.2 Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0 Internal: 1x USB 3.2 on m.2 22×42 (pins), 2x USB 2.0 (headers) |
| Supported Operating Systems | Windows 11 Home*, Windows 11 Pro*, Windows 10 Home*, Windows 10 IoT Enterprise*, Windows 10 Pro*, Red Hat Linux*, Ubuntu 20.04 LTS* |
| Code Name | Products formerly Wall Street Canyon |
| Integrated LAN | Intel Ethernet Controller i225-V |
| Audio (back channel + front channel) | Front panel: 3.5mm headphone/mic jack |
| Max Memory Size (dependent on memory type) | 64 GB |
| # of USB Ports | 4 |
| Intel HD Audio Technology | Yes |
| Total # of SATA Ports | 1 |
| Intel Optane? Memory Supported | No |
| # of Internal Drives Supported | 3 |
| ECC Memory Supported | No |
| Warranty | 1 Year |
| Products Status | New |

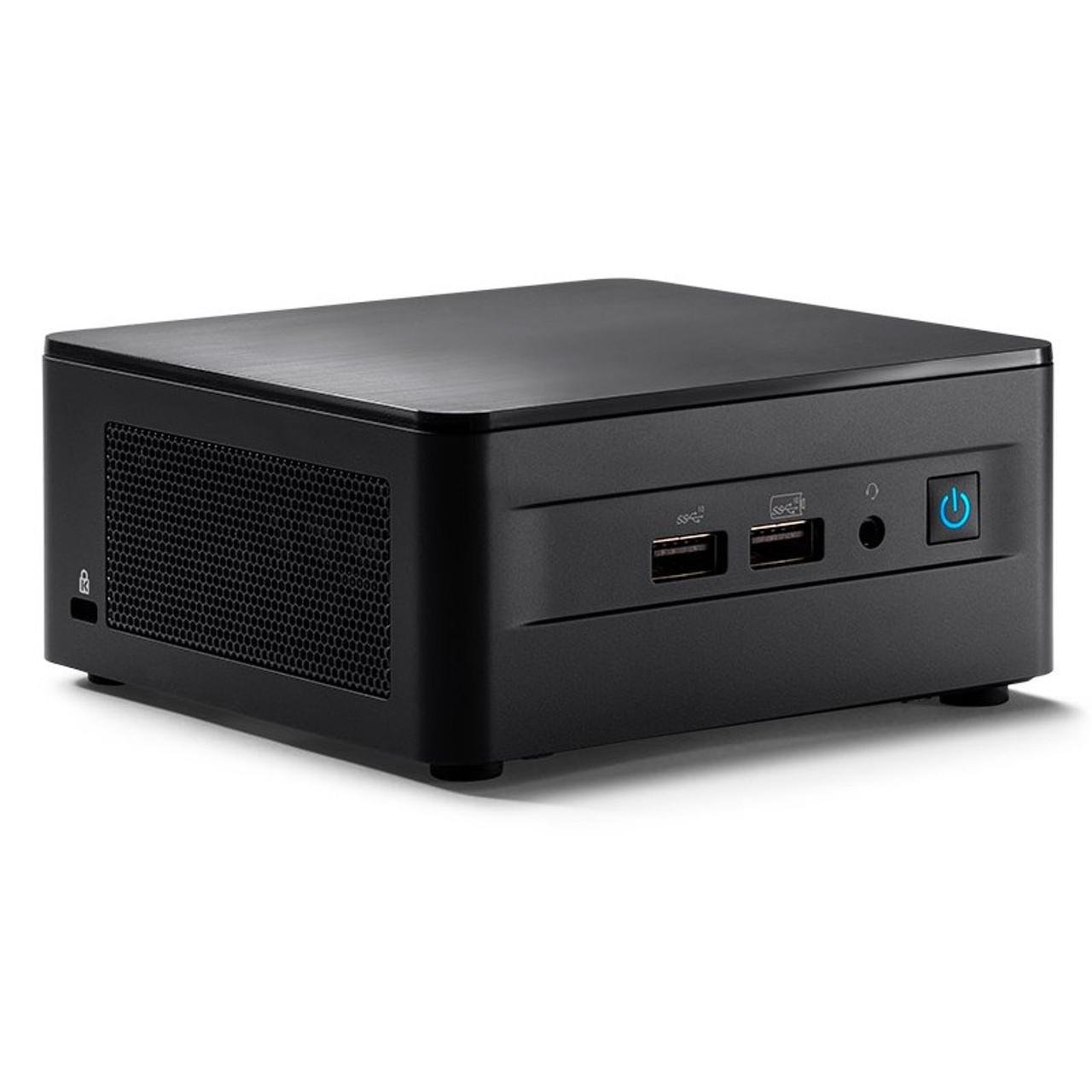

Intel NUC 12 Pro Kit NUC12WSHi3
Other features: Intel NUC Kit with 12th Generation Intel Core Processors 2x HDMI 2.1 TMDS Compatible | 2x DP 1.4a via Type C
| Embedded Options Available | No |
|---|---|
| Intel Platform Trust Technology (Intel PTT) | Yes |
| PCI Express Configurations | PCIe x4 Gen 4: M.2 22x80 (key M) PCIe x1 Gen 3: M.2 22x42 (key B) PCIe x1: M.2 22x30 (key E) |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Product Name | Intel NUC 12 Pro Kit NUC12WSHi3 |
