| Chassis Dimensions | 357 x 189 x 120mm |
|---|---|
| ECC Memory Supported | No |
| P/N | NUC12DCMi9 |
| Total Cores | 16 |
| M.2 Card Slot (storage) | 2x via PCH + 1x via CPU (NVMe) |

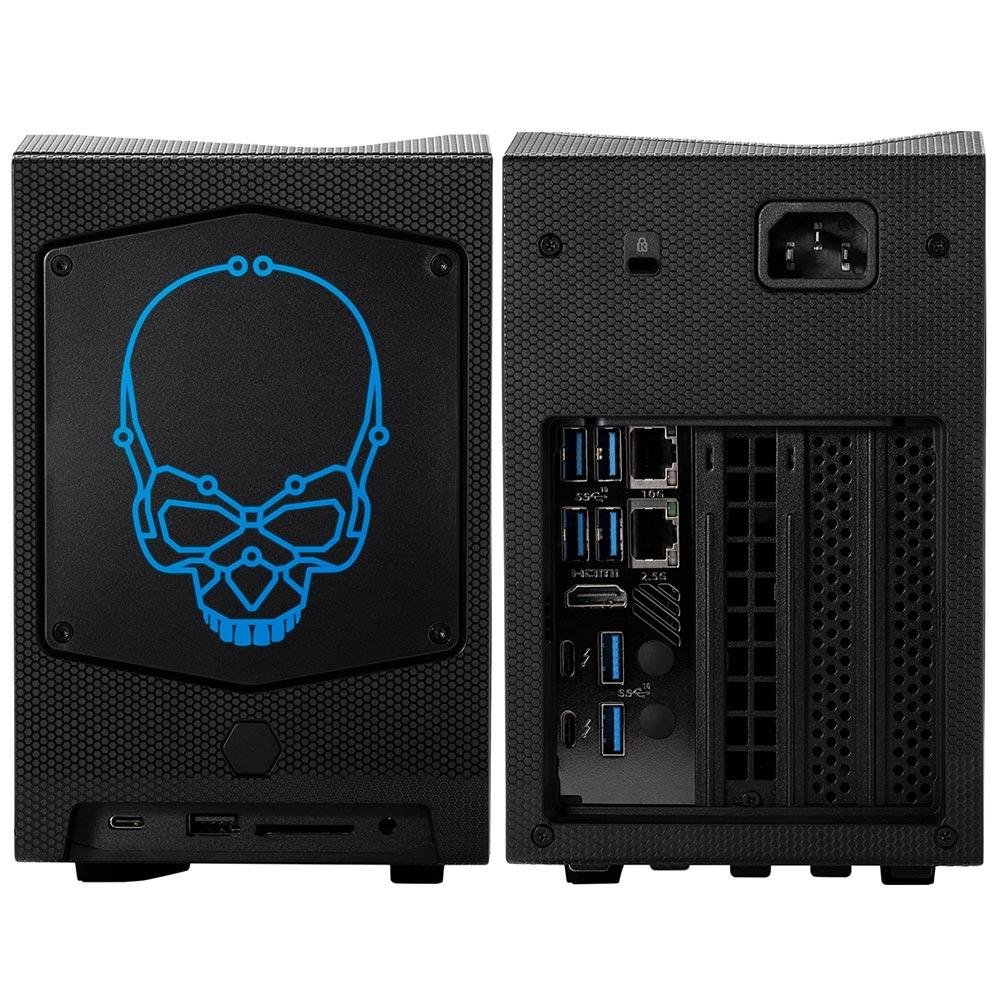

| USB Configuration | Rear: 6x USB 3.2g2, 2x TB4 (USB 3.2g2); Front: USB 3.2g2 Type-A and Type-C; Internal Header: 2x USB 2.0 |
| Max Memory Size (dependent on memory type) | 64 GB |
| # of USB Ports | 12 |
| USB Revision | 3.2 Gen2, 2.0 |
| Intel? Optane? Memory Supported | Yes |
| # of Internal Drives Supported | 3 |
| Removable Memory Card Slot | SDXC with UHS-II support |
| Packaging Details | BOX |
| Code Name | Products formerly Dragon Canyon |
| Product Name | Intel? NUC 12 Extreme Kit – NUC12DCMi9 |
| Graphics Output | 2x Thunderbolt 4, HDMI 2.0b |
| Discrete Graphics | Via PCIe add-in card |
| Max # of Memory Channels | 2 |
| Processor Included | Intel? Core? i9-12900 Processor (30M Cache, up to 5.10 GHz) |
| Integrated Graphics | Yes |
| Max # of DIMMs | 2 |
| Product Collection | Intel? NUC Kit with 12th Generation Intel? Core? Processors |
| Total Threads | 24 |
| PCI Express Revision | Gen5, Gen4 |
| Embedded Options Available | No |
| Max Turbo Frequency | 5.10 GHz |
| Warranty | 1 Year |
| Integrated Bluetooth | Yes |
| Integrated LAN | 10GbE (AQC113) + Intel? i225-LM |
| Internal Drive Form Factor | M.2 SSD |
| USB 2.0 Configuration (External + Internal) | 2x int. |
| Audio (back channel + front channel) | 7.1 digital; L+R+mic (F) |
| Max Memory Bandwidth | 51.2 GB/s |
| Total # of SATA Ports | 2 |
| Max # of SATA 6.0 Gb/s Ports | 2 |
| Intel? Rapid Storage Technology | Yes |
| Supported Operating Systems | Windows 11, 64-bit*, Windows 10, 64-bit* |

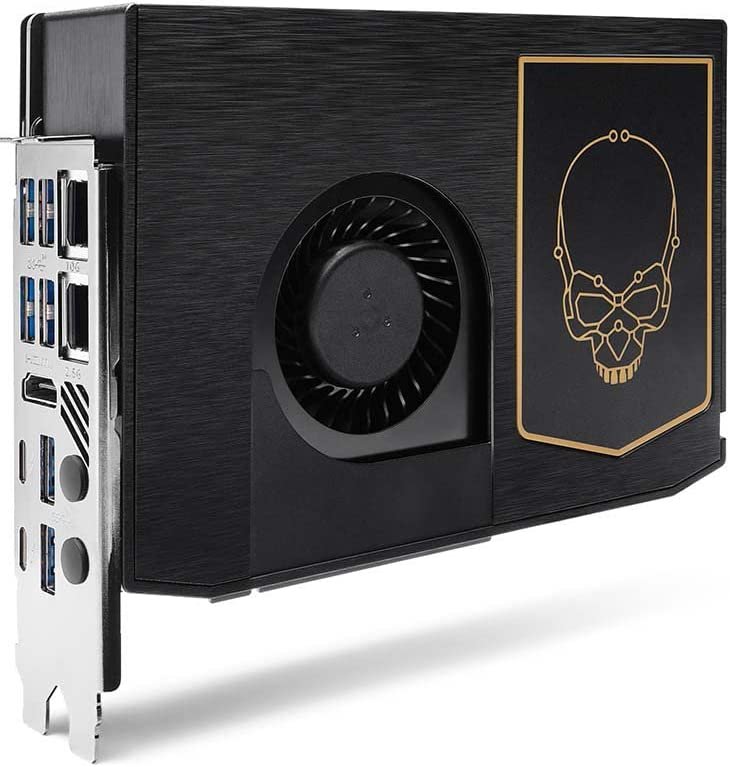

| Board Number | NUC12EDBi9 |
| Lithography | Intel 7 |
| Intel? Platform Trust Technology (Intel? PTT) | Yes |
| PCI Express Configurations | 2x M.2 PCIe X4 Gen4 slots (PCH), M.2 PCIe X4 Gen4 slots (CPU); Double-wide PCIe X16 Gen5 (CPU) slot, 12" max card length |
| Intel? Virtualization Technology for Directed I/O (VT-d) | Yes |
| Brand | Intel |
| M.2 Card Slot (wireless) | Intel? Wi-Fi 6E AX211 |
| # of Thunderbolt? Ports | 2x Thunderbolt? 4 |
| Products Status | New |
| Memory Types | DDR4 3200MHz 1.2V SO-DIMM DDR4 3200 MHz 1.35V SO-DIMM – XMP is required to enable 1.35V memory |
| Application | PC |
| Integrated Wireless | Intel? Wi-Fi 6E AX211(Gig+) |

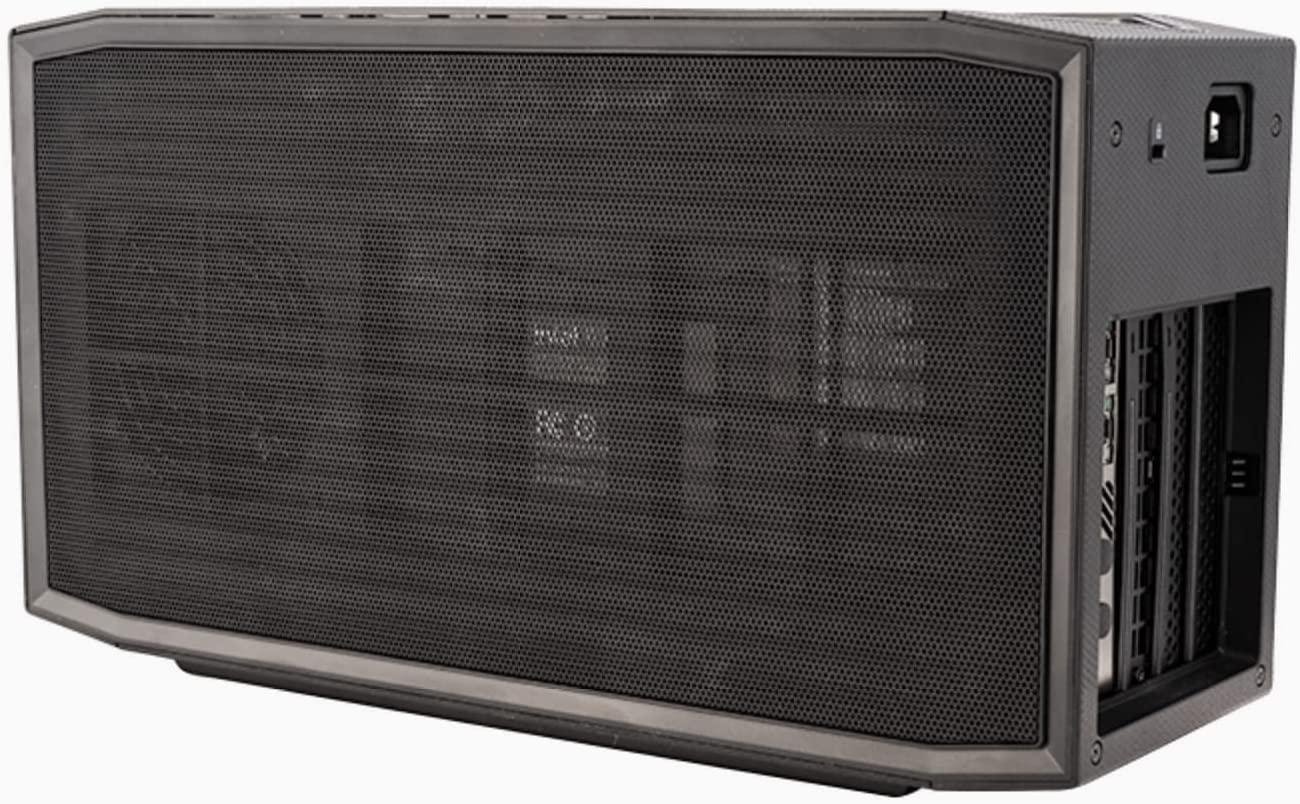

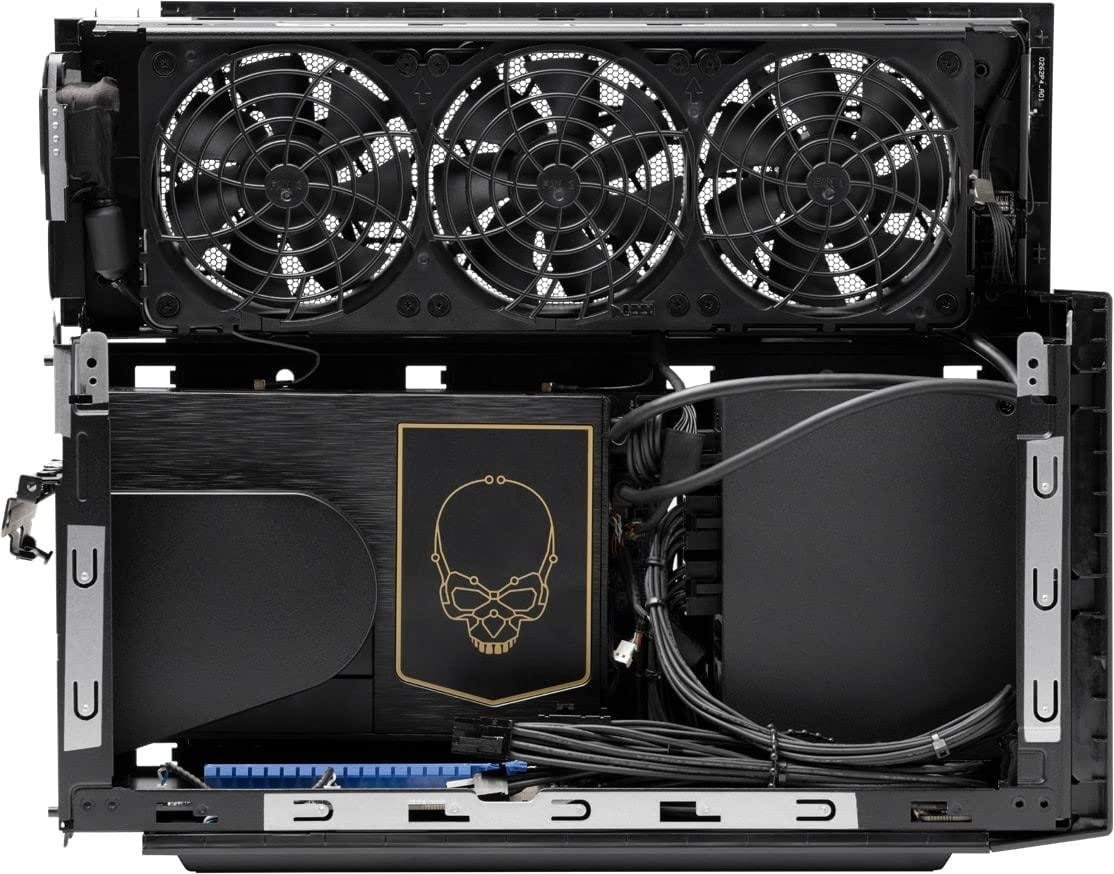

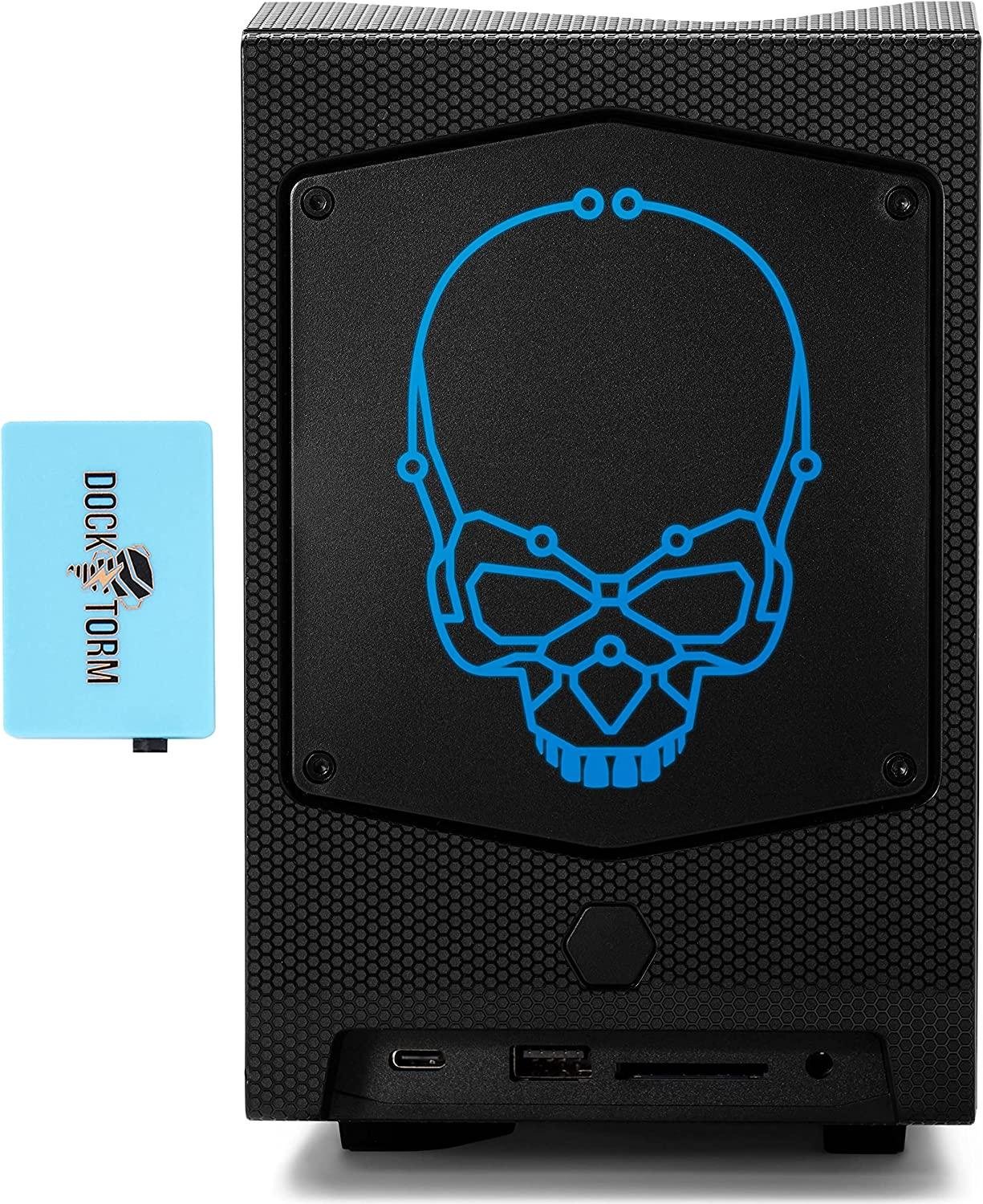

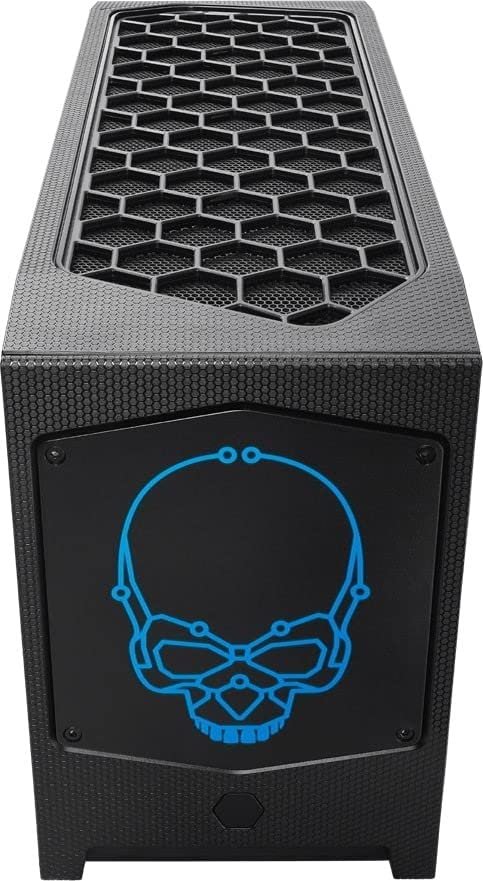

Intel NUC 12 Extreme Kit-NUC12DCMi9
Intel Core i9-12900 Processor (30M Cache | up to 5.10 GHz)
| Chassis Dimensions | 357 x 189 x 120mm |
|---|---|
| ECC Memory Supported | No |
| P/N | NUC12DCMi9 |
| Total Cores | 16 |
| M.2 Card Slot (storage) | 2x via PCH + 1x via CPU (NVMe) |
