| S/PDIF Out Connector | TOSLINK |
|---|---|
| ECC Memory Supported | No |
| Total Cores | 14 |
| TPM | No |
| M.2 Card Slot (storage) | 3x 22×80 |
| USB Configuration | 3x front (2x Type-A, 1x Type-C) and 5x rear (4x Type-A, 1x Type-C); 2x USB 2.0 via internal headers |
| USB 3.0 Configuration (External + Internal) | 8 |
| Max Memory Size (dependent on memory type) | 64 GB |
| # of USB Ports | 10 |
| USB Revision | 2.0, 3.2 Gen2 |
| Consumer Infrared Rx Sensor | Yes |
| Intel Optane? Memory Supported | Yes |
| # of Internal Drives Supported | 3 |
| Removable Memory Card Slot | SD Express PCIe G3 NVMe UHS-I |
| PCI Express Revision | Gen4, Gen3 |
| Code Name | Products formerly Serpent Canyon |
| Product Name | Intel NUC 12 Enthusiast Kit – NUC12SNKi72 |
| Graphics Output | 2x Thunderbolt? 4, HDMI (4K60), 2x DP 1.4 Cert |
| Discrete Graphics | Intel Arc? A770M Graphics w/ 16GB GDDR6 VRAM |
| Max # of Memory Channels | 2 |
| Processor Included | Intel Core? i7-12700H Processor (24M Cache, up to 4.70 GHz) |
| Integrated Graphics | Yes |
| Max # of DIMMs | 2 |
| Product Collection | Intel NUC Kit with 12th Generation Intel Core? Processors |
| Total Threads | 20 |
| Integrated Wireless | Intel Killer(tm) Wi-Fi 6E AX1690 (i/s) |
| P/N | NUC12SNKi72 |
| Packaging Details | BOX |
| Max Turbo Frequency | 4.70 GHz |
| Supported Operating Systems | Windows 11, 64-bit* |
| Integrated Bluetooth | Yes |
| Integrated LAN | Intel Ethernet Connection i225-LM |
| Internal Drive Form Factor | M.2 SSD |
| USB 2.0 Configuration (External + Internal) | 2 |
| Audio (back channel + front channel) | 7.1 digital; L+R+mic (F); L+R+TOSLINK (R) |
| Intel HD Audio Technology | Yes |
| Max Memory Bandwidth | 51.2 GB/s |
| Total # of SATA Ports | 1 |
| Max # of SATA 6.0 Gb/s Ports | 1 |
| Intel Rapid Storage Technology | Yes |
| Warranty | 1 Year |
| Lithography | Intel 7 |
| Description | Other features: Includes far-field dual array microphones, stand for vertical operating orientation, VESA mounting plate, RGB-backlit logo with replaceable mask. |
| Intel Platform Trust Technology (Intel PTT) | Yes |
| PCI Express Configurations | 2x M.2 slots w/ PCIe x4 Gen4, 1x M.2 slot w/ PCIe x4 Gen3 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Brand | Intel |
| M.2 Card Slot (wireless) | 22×30 |
| # of Thunderbolt? Ports | 2x Thunderbolt? 4 |
| Products Status | New |
| DC Input Voltage Supported | 19.5 VDC |
| Memory Types | DDR4-3200 1.2V SO-DIMM |
| Application | PC |
| Board Number | NUC12SNKi72 |
| Embedded Options Available | No |
| Socket | Soldered-down BGA |

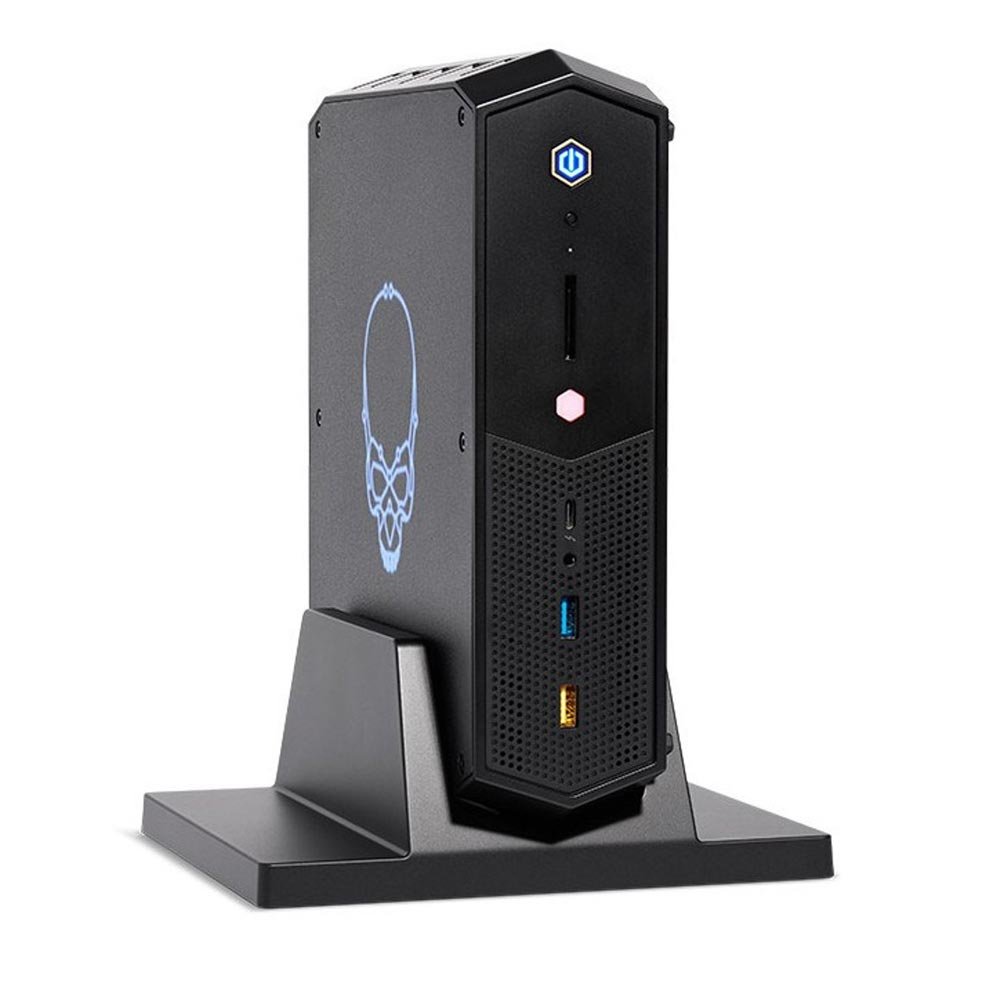

Intel NUC 12 Enthusiast Kit-NUC12SNKi72
Other features: Includes far-field dual array microphones | stand for vertical operating orientation | VESA mounting plate | RGB-backlit logo with replaceable mask.
| S/PDIF Out Connector | TOSLINK |
|---|---|
| ECC Memory Supported | No |
| Total Cores | 14 |
| TPM | No |
| M.2 Card Slot (storage) | 3x 22x80 |
