| Embedded Options Available | No |
|---|---|
| Max # of DIMMs | 2 |
| Product Name | Intel NUC 11 Pro Kit NUC11TNHv5 |
| Graphics Output | Dual HDMI 2.0b w/HDMI CEC, Dual DP 1.4a via Type C |
| Max # of Memory Channels | 2 |
| Processor Included | Intel Core? i5-1145G7 Processor (8M Cache, up to 4.40 GHz, with IPU) |
| M.2 Card Slot (wireless) | 22×30 (E) |
| # of Thunderbolt? Ports | 1x Thunderbolt? 4 | 1x Thunderbolt? 3 |
| Lithography | 10 nm SuperFin |
| PCI Express Configurations | PCIe x4 Gen 4: M.2 22×80 (key M) PCIe x1 Gen 3: M.2 22×42 (key B) PCIe x1: M.2 22×30 (key E) |
| Product Collection | Intel NUC Kit with 11th Generation Intel Core? Processors |
| Integrated LAN | Intel Ethernet Controller i225-LM |
| Total Threads | 8 |
| Integrated Wireless | Intel Wi-Fi 6 AX201 |
| DC Input Voltage Supported | 12-20 VDC |
| Memory Types | DDR4-3200 1.2V SO-DIMMs |
| Application | PC |
| Board Number | NUC11TNBv5 |
| Socket | Soldered-down BGA |
| Brand | Intel |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Integrated Graphics | Yes |
| Code Name | Products formerly Tiger Canyon |
| Supported Operating Systems | Windows 11 Home*, Windows 11 Pro*, Windows 10 Home, 64-bit*, Windows 10 IoT Enterprise*, Windows 10 Pro, 64-bit*, Red Hat Linux*, Ubuntu 20.04 LTS* |
| Chassis Dimensions | 117 x 112 x 54 [mm] (LxWxH) |
| Max Turbo Frequency | 4.40 GHz |
| PCI Express Revision | Gen 4 (m.2 22×80 slot); Gen 3 (otherwise) |
| P/N | NUC11TNHv5 |
| Total Cores | 4 |
| TPM | Yes |
| Integrated Bluetooth | Yes |
| M.2 Card Slot (storage) | 22×80 NVMe (M); 22×42 SATA (B) |
| Internal Drive Form Factor | M.2 and 2.5" Drive |

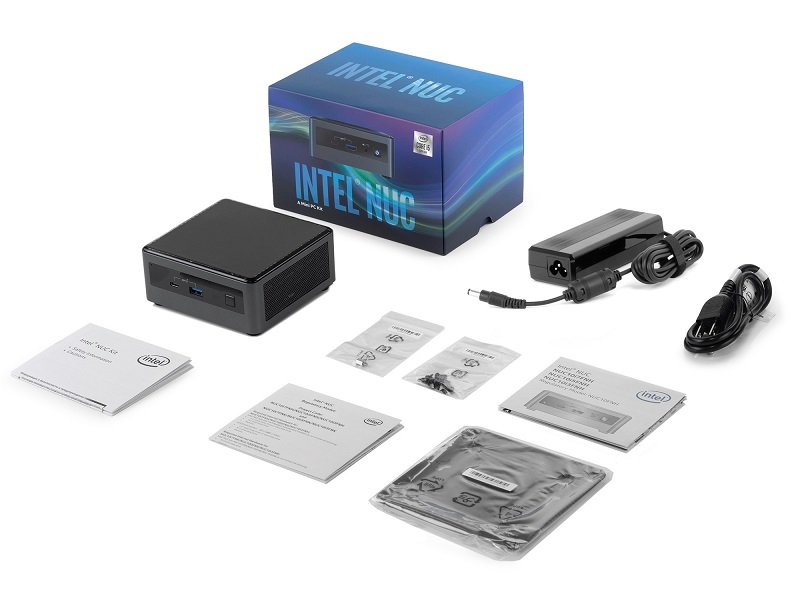

| Packaging Details | BOX |
| Max Memory Size (dependent on memory type) | 64 GB |
| # of USB Ports | 4 |
| Total # of SATA Ports | 1 |
| Intel Optane? Memory Supported | No |
| # of Internal Drives Supported | 3 |
| ECC Memory Supported | No |
| Warranty | 1 Year |
| USB Configuration | Front: 2x USB 3.2 Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0 Internal: 1x USB 3.2 on m.2 22×42 (pins), 2x USB 2.0 (headers) |
| Products Status | New |

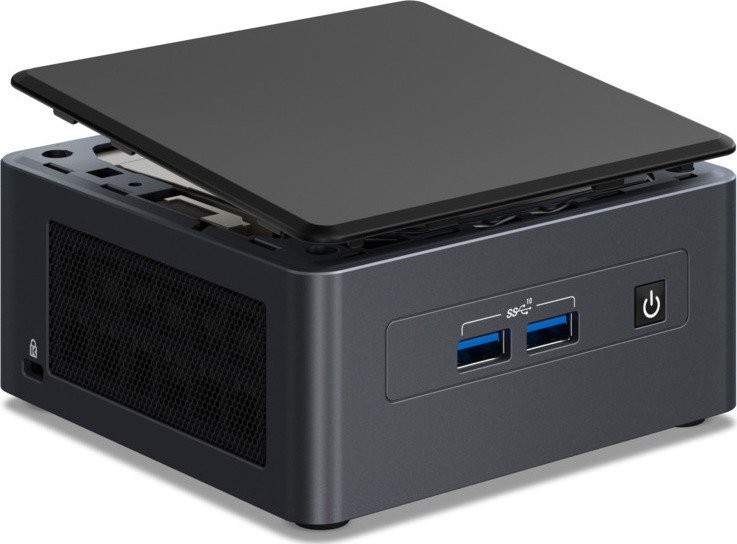

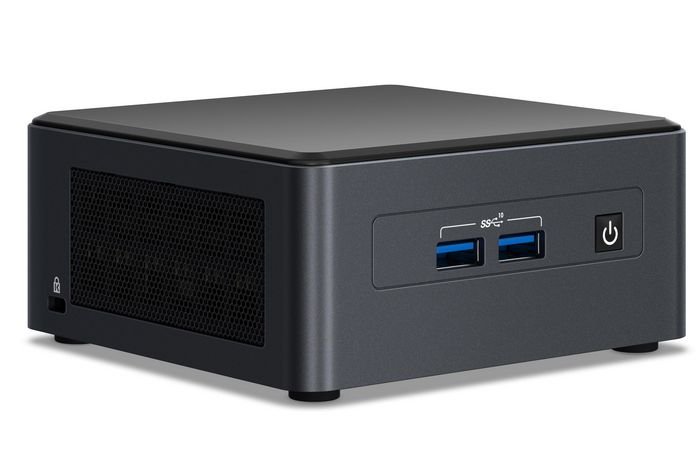

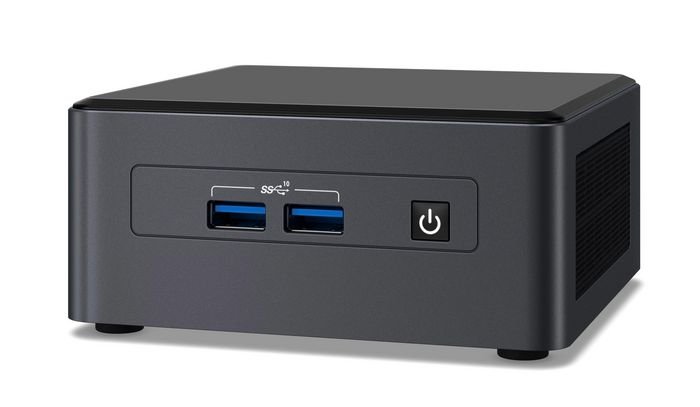

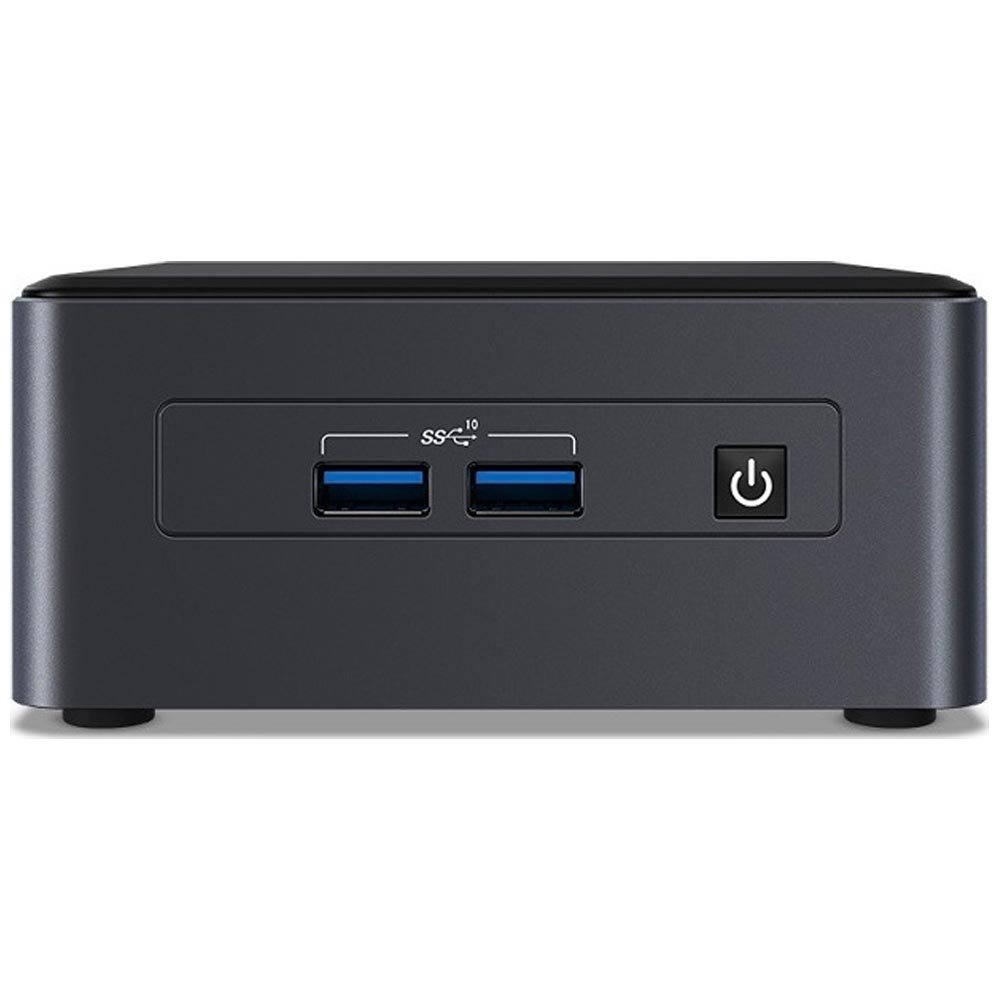

Intel NUC 11 Pro Kit NUC11TNHv5
Intel Core i5-1145G7 Processor (8M Cache | up to 4.40 GHz | with IPU)
