| Chassis Dimensions | 117 x 112 x 51mm |
|---|---|
| P/N | NUC11PAHi3 |
| TPM | No |
| M.2 Card Slot (storage) | 22×80 |

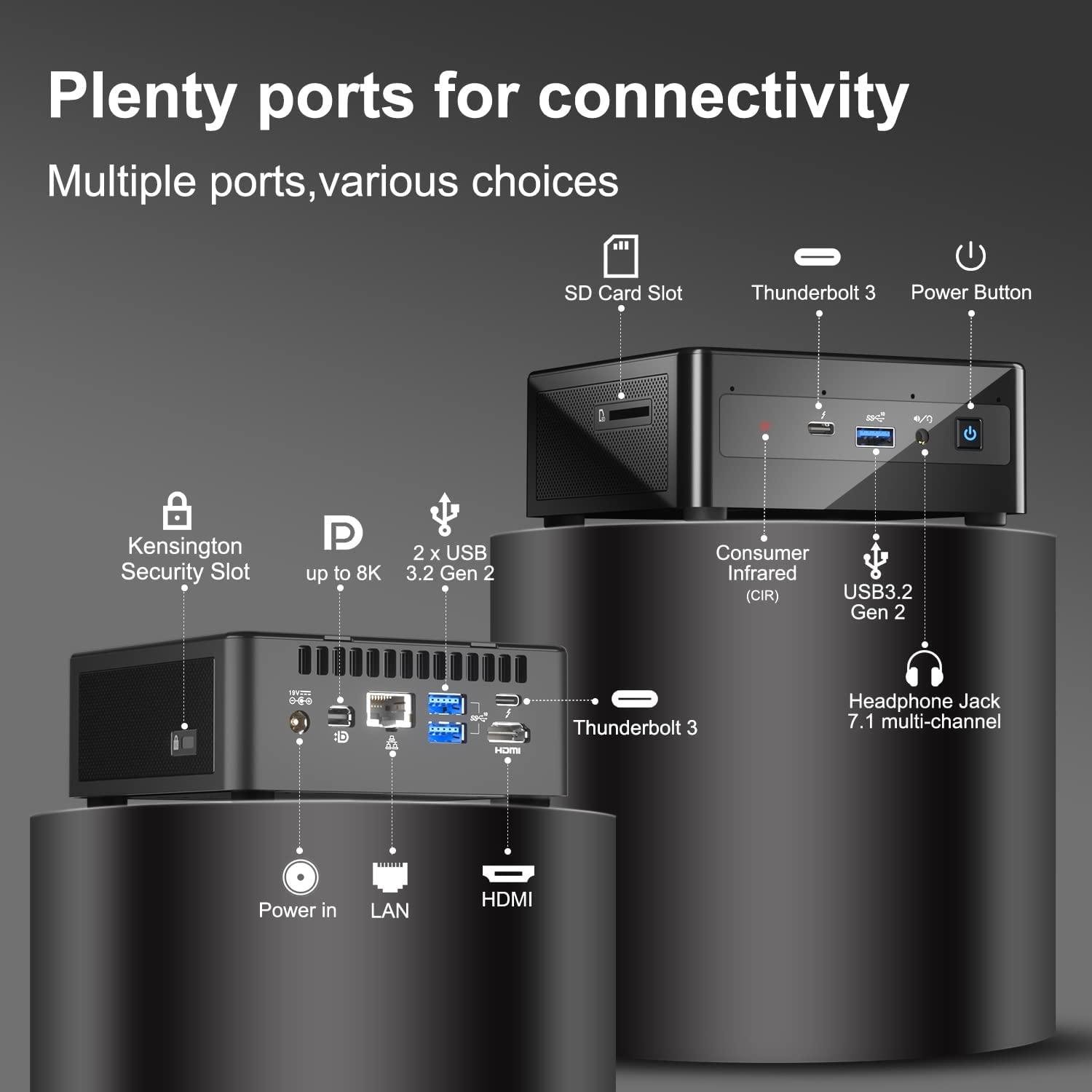

| USB Configuration | 2x front (Type-A, Type-C) and 3x rear USB 3.2 Gen2 (2x Type-A, Type-C); USB 2.0, USB 3.1 Gen2 via internal headers |
| USB 3.0 Configuration (External + Internal) | 2B 2F + 1 |
| Max Memory Size (dependent on memory type) | 64 GB |
| # of USB Ports | 7 |
| USB Revision | 2.0, 3.2 Gen2 |
| Consumer Infrared Rx Sensor | Yes |
| Packaging Details | BOX |
| PCI Express Revision | Gen4 |
| Removable Memory Card Slot | SDXC with UHS-II support |
| Code Name | Products formerly Panther Canyon |
| Product Name | Intel NUC 11 Performance kit – NUC11PAHi3 |
| Graphics Output | HDMI 2.0b; USB-C (DP1.4); MiniDP 1.4 |
| Max # of Memory Channels | 2 |
| Processor Included | Intel Core? i3-1115G4 Processor (6M Cache, up to 4.10 GHz) |
| Integrated Graphics | Yes |
| Max # of DIMMs | 2 |
| Product Collection | Intel NUC Kit with 11th Generation Intel Core? Processors |
| Total Threads | 4 |
| Integrated Wireless | Intel Wi-Fi 6 AX201 |
| Socket | Soldered-down BGA |
| Brand | Intel |
| Total Cores | 2 |
| # of Internal Drives Supported | 2 |
| ECC Memory Supported | No |
| Embedded Options Available | No |
| Integrated Bluetooth | Yes |
| Integrated LAN | Intel Ethernet Controller i225-V |
| Internal Drive Form Factor | M.2 and 2.5" Drive |
| USB 2.0 Configuration (External + Internal) | 0 + 1 |
| Audio (back channel + front channel) | 7.1 digital (HDMI mDP); L+R mic (F) |
| Intel HD Audio Technology | Yes |
| Max Memory Bandwidth | 51.2 GB/s |
| Total # of SATA Ports | 2 |
| Max # of SATA 6.0 Gb/s Ports | 2 |
| Intel Rapid Storage Technology | Yes |
| Max Turbo Frequency | 4.10 GHz |
| Supported Operating Systems | Windows 11, 64-bit*, Windows 10, 64-bit* |
| Lithography | 10 nm SuperFin |
| Intel Platform Trust Technology (Intel PTT) | Yes |
| PCI Express Configurations | M.2 slot with PCIe X4 lanes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| # of Thunderbolt? Ports | 2x Thunderbolt? 3 |
| DC Input Voltage Supported | 19 VDC |
| Memory Types | DDR4-3200 1.2V SO-DIMM |
| Application | PC |
| Board Number | NUC11PABi3 |
| Warranty | 1 Year |
| Description | Other features: Includes far-field quad array microphones |
| Products Status | New |
Intel NUC 11 Performance kit-NUC11PAHi3
Intel Core i3-1115G4 Processor (6M Cache | up to 4.10 GHz)
| Chassis Dimensions | 117 x 112 x 51mm |
|---|---|
| P/N | NUC11PAHi3 |
| TPM | No |
| M.2 Card Slot (storage) | 22x80 |
| USB Configuration | 2x front (Type-A, Type-C) and 3x rear USB 3.2 Gen2 (2x Type-A, Type-C); USB 2.0, USB 3.1 Gen2 via internal headers |
