| S/PDIF Out Connector | TOSLINK |
|---|---|
| M.2 Card Slot (storage) | 22×80; 22×80, 110 |
| USB 3.0 Configuration (External + Internal) | 8 |
| Max Memory Size (dependent on memory type) | 64 GB |
| # of USB Ports | 10 |
| USB Revision | 2.0, 3.2 Gen2 |
| Consumer Infrared Rx Sensor | Yes |
| Intel Optane? Memory Supported | Yes |
| # of Internal Drives Supported | 2 |
| ECC Memory Supported | No |
| P/N | NUC11PHKi7CAA |
| PCI Express Revision | Gen3 |
| Product Name | Intel NUC 11 Enthusiast Mini PC – NUC11PHKi7CAA |

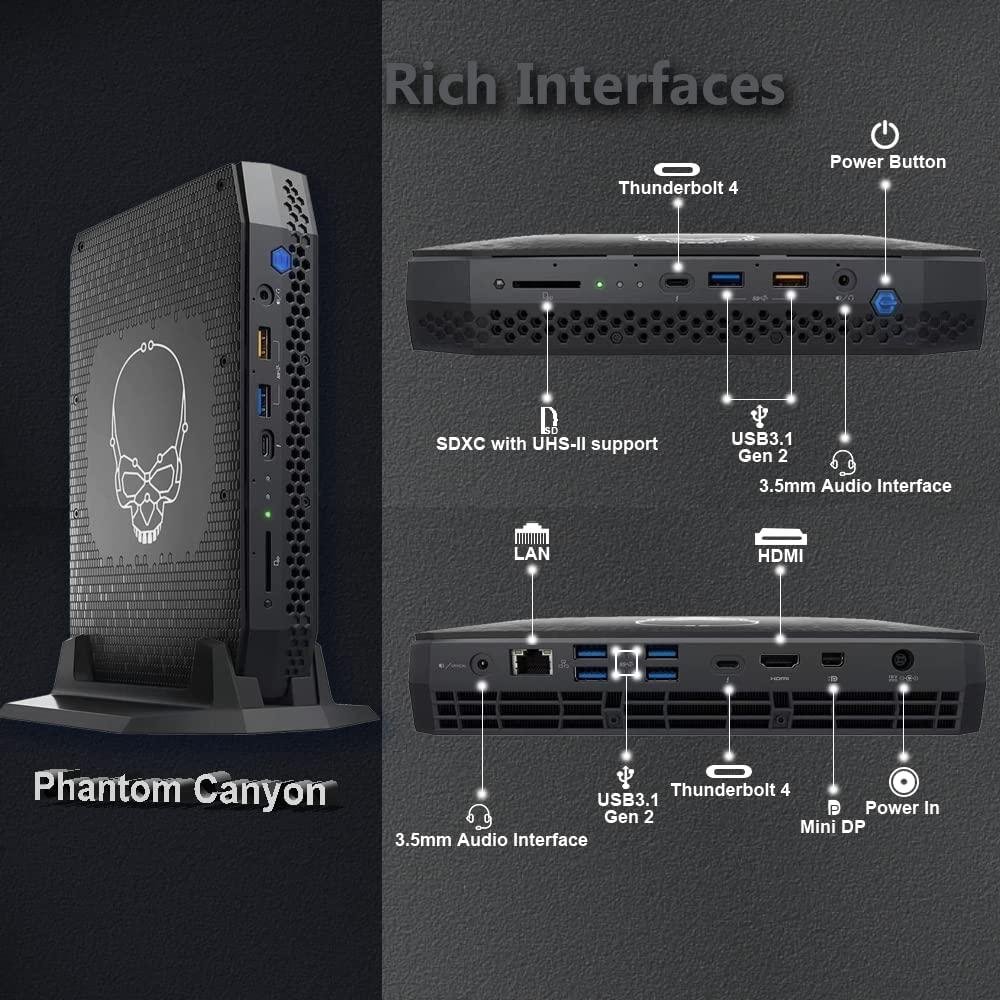

| Graphics Output | 2x TBT4; HDMI 2.0a; mDP 1.4 |
| Discrete Graphics | Nvidia Geforce RTX 2060 |
| Max # of Memory Channels | 2 |
| Processor Included | Intel Core? i7-1165G7 Processor (12M Cache, up to 4.70 GHz) |
| Included Memory | 2x 8GB DDR4-3200 RAM |
| Integrated Graphics | Yes |
| Max # of DIMMs | 2 |
| Product Collection | Intel NUC Mini PC with 11th Generation Intel Core? Processors |
| Total Threads | 8 |
| Integrated Wireless | Intel Wi-Fi 6 AX201 |
| Total Cores | 4 |
| Socket | Soldered-down BGA |
| Brand | Intel |

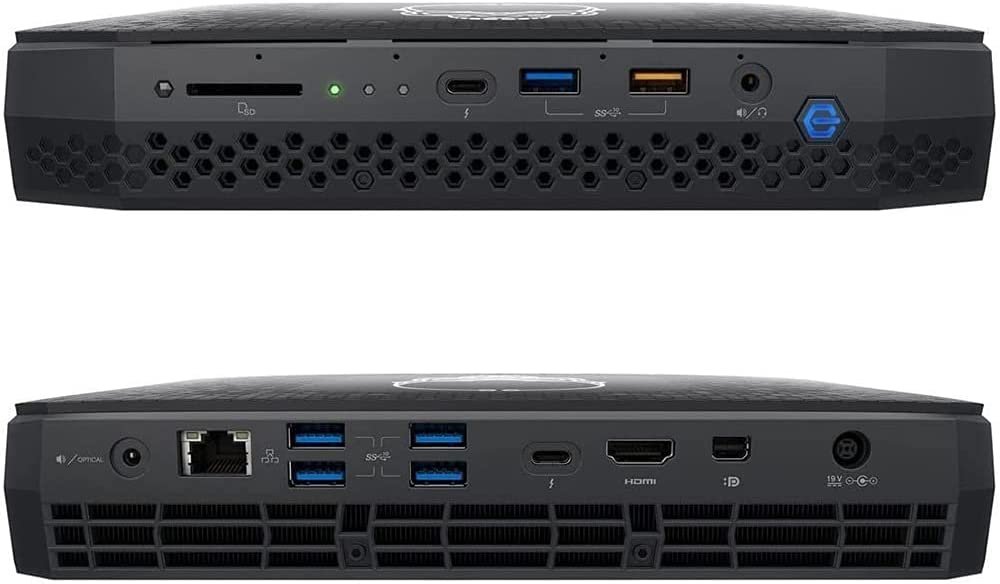

| USB Configuration | 3x front (2x Type-A, 1x Type-C) and 5x rear (4x Type-A, 1x Type-C); 2x USB 2.0 via internal headers |
| Code Name | Products formerly Phantom Canyon |
| TPM | No |
| Lithography | 10 nm SuperFin |
| Integrated LAN | Intel Ethernet Connection i225-LM |
| Internal Drive Form Factor | M.2 SSD |
| USB 2.0 Configuration (External + Internal) | 2 |
| Audio (back channel + front channel) | 7.1 digital; L+R+mic (F); L+R+TOSLINK (R) |
| Intel HD Audio Technology | Yes |
| Max Memory Bandwidth | 51.2 GB/s |
| Total # of SATA Ports | 1 |
| Max # of SATA 6.0 Gb/s Ports | 1 |
| Included Storage | 512GB |
| Intel Rapid Storage Technology | Yes |
| Supported Operating Systems | Windows 11, 64-bit*, Windows 10, 64-bit* |
| Warranty | 1 Year |
| Packaging Details | BOX |
| Intel Platform Trust Technology (Intel PTT) | Yes |
| PCI Express Configurations | Dual M.2 slots with PCIe x4 lanes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| # of Thunderbolt? Ports | 2x Thunderbolt? 4 |
| Memory Types | DDR4-3200 1.2V SO-DIMM |
| Application | PC |
| Board Number | NUC11PHBi7 |
| Embedded Options Available | No |
| Description | NVIDIA RTX 2060 w/ 6GB VRAM, Optane? Mem H10 (32GB+512GB) Solid State Storage, 16G RAM, Windows 11 Home included. Other features: Includes far-field quad array microphones, stand for vertical usage, VESA plate, RGB-backlit logo with replaceable mask. |
| Integrated Bluetooth | Yes |
| Max Turbo Frequency | 4.70 GHz |
| Removable Memory Card Slot | SDXC with UHS-II support |
| Products Status | New |

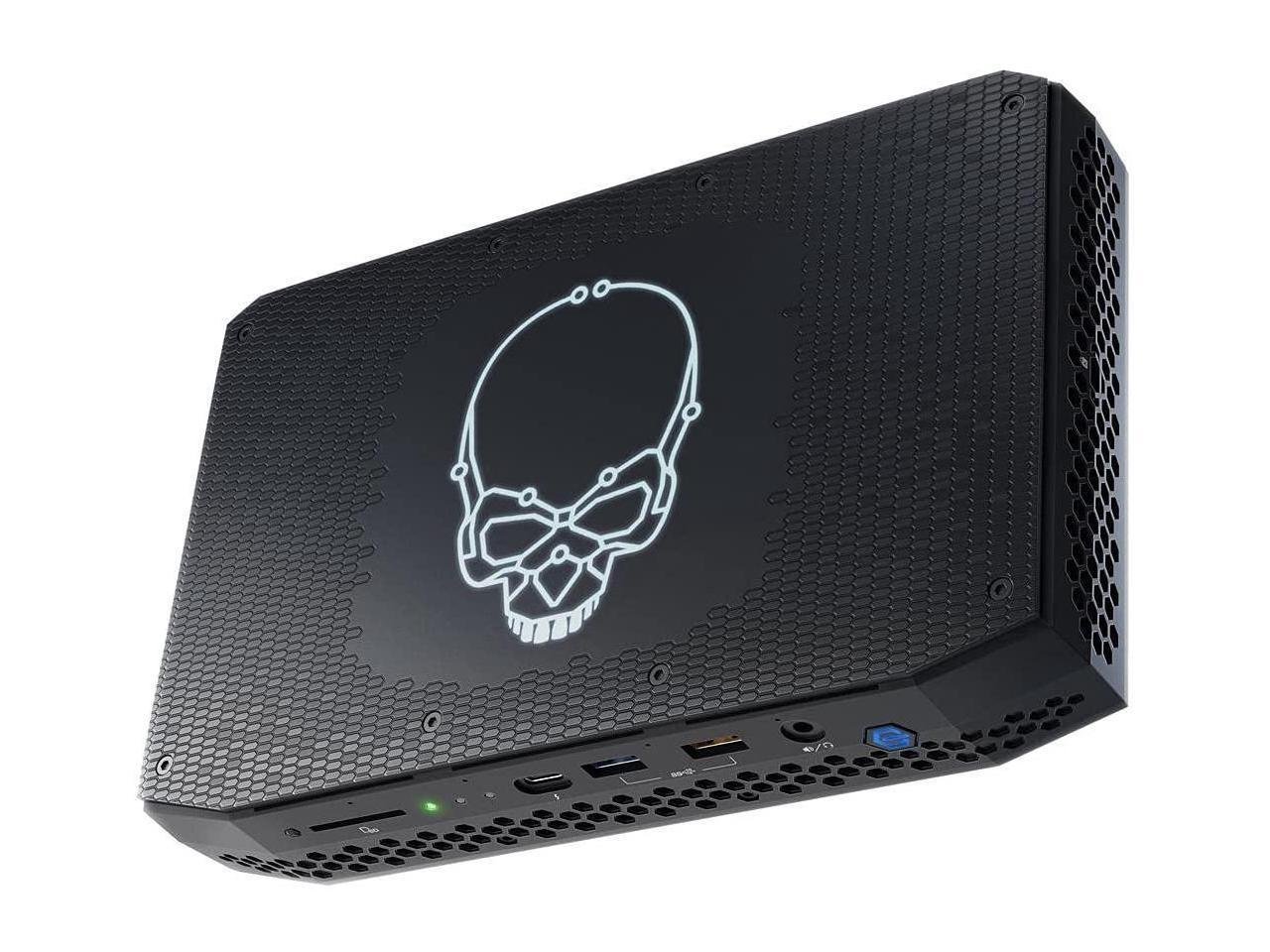

Intel NUC 11 Enthusiast Mini PC-NUC11PHKi7CAA
NVIDIA RTX 2060 w/ 6GB VRAM | Optane Mem H10 (32GB+512GB) Solid State Storage | 16G RAM | Windows 11 Home included.
