| Chassis Dimensions | 117 x 112 x 38mm |
|---|---|
| TPM | No |
| USB Configuration | 2x front (Type-A, Type-C) and 3x rear USB 3.1 Gen2 (2x Type-A, Type-C); 2x USB 2.0 via internal headers |
| USB 3.0 Configuration (External + Internal) | 2B 2F + 0 |
| Max Memory Size (dependent on memory type) | 64 GB |
| # of USB Ports | 7 |
| USB Revision | 2.0, 3.1 Gen2 |
| Consumer Infrared Rx Sensor | Yes |
| Intel Optane? Memory Supported | Yes |
| # of Internal Drives Supported | 1 |
| PCI Express Revision | Gen3 |
| Packaging Details | BOX |
| Code Name | Products formerly Frost Canyon |
| Product Name | Intel NUC 10 Performance kit – NUC10i7FNKP |
| Graphics Output | HDMI 2.0b; USB-C (DP1.2) |
| Max # of Memory Channels | 2 |
| Processor Included | Intel Core? i7-10710U Processor (12M Cache, up to 4.70 GHz) |
| Included Memory | 2x 4GB DDR4-2666 |
| Integrated Graphics | Yes |
| Max # of DIMMs | 2 |
| Product Collection | Intel NUC Kit with 10th Generation Intel Core? Processors |
| Total Threads | 12 |
| Integrated Wireless | Intel Wi-Fi 6 AX201 |
| P/N | NUC10i7FNKP |
| Socket | Soldered-down BGA |
| Brand | Intel |
| M.2 Card Slot (storage) | 22×42/80 |
| Removable Memory Card Slot | SDXC with UHS-II support |
| Total Cores | 6 |
| Lithography | 14 nm |
| Integrated LAN | Intel Ethernet Connection I219-V |
| Internal Drive Form Factor | M.2 SSD |
| USB 2.0 Configuration (External + Internal) | 0 + 2 |
| Audio (back channel + front channel) | 7.1 digital (HDMI mDP); L+R mic (F) |
| Intel HD Audio Technology | Yes |
| Max Memory Bandwidth | 42.6 GB/s |
| Total # of SATA Ports | 2 |
| Max # of SATA 6.0 Gb/s Ports | 2 |
| Included Storage | 256GB NVMe SSD |
| Intel Rapid Storage Technology | Yes |
| Supported Operating Systems | Windows 11, 64-bit*, Windows 10, 64-bit* |
| Warranty | 1 Year |
| Description | Other features: 256GB NVMe SSD, includes far-field quad array microphones |
| Intel Platform Trust Technology (Intel PTT) | Yes |
| PCI Express Configurations | M.2 slot with PCIe X4 lanes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| # of Thunderbolt? Ports | 1x Thunderbolt? 3 |
| DC Input Voltage Supported | 19 VDC |
| Memory Types | DDR4-2666 1.2V SO-DIMM |
| Application | PC |
| Board Number | NUC10i7FNB |
| Embedded Options Available | No |
| Integrated Bluetooth | Yes |
| Max Turbo Frequency | 4.70 GHz |
| ECC Memory Supported | No |
| Products Status | New |

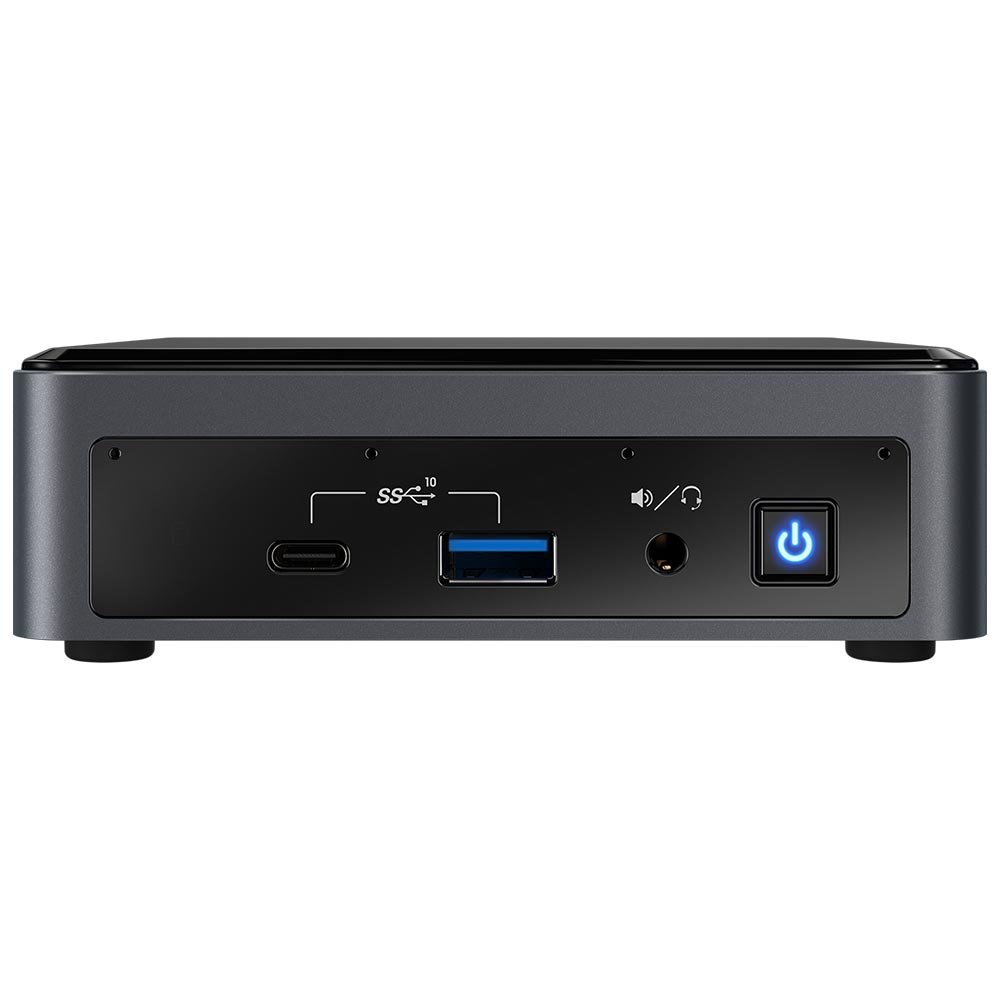

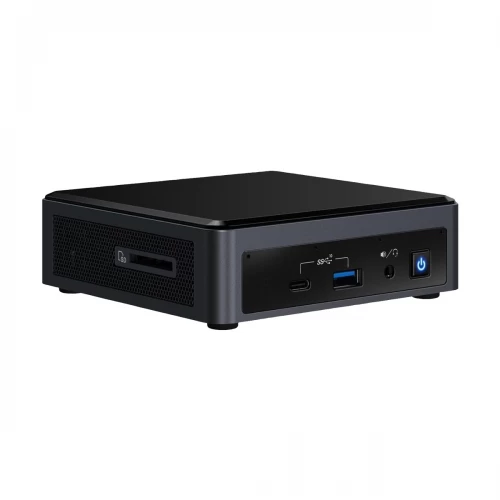

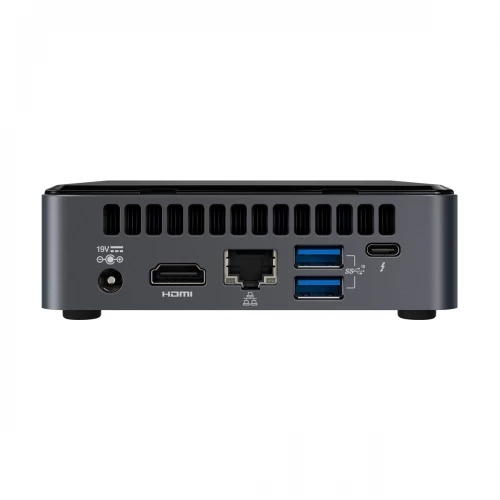

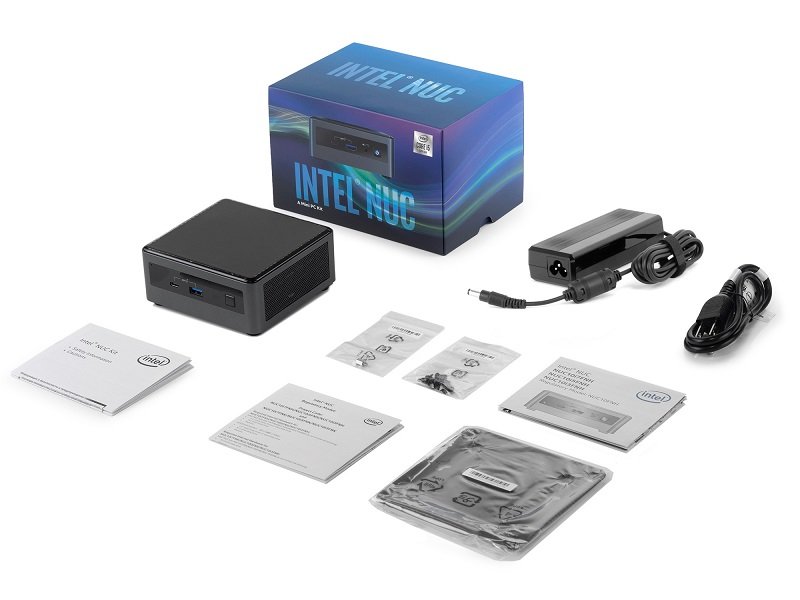

Intel NUC 10 Performance kit-NUC10i7FNKP
Other features: 256GB NVMe SSD | includes far-field quad array microphones
