| Brand | Intel |
|---|---|
| Products Status | New |
| Application | Desktop |
| Series | Intel 525 |
| Model | SSDMCEAC120B301 |
| Device Type | Internal Solid State Drive (SSD) |
| Used For | Consumer |
| Form Factor | 1.8" |
| Capacity | 120GB |
| Memory Components | MLC |
| Interface | Mini-SATA (mSATA) |
| Max Sequential Read | Up to 550 MBps |
| Max Sequential Write | Up to 500 MB/s |
| 4KB Random Read | Up to 50,000 IOPS |
| 4KB Random Write | Up to 80,000 IOPS |
| MTBF | 1,200,000 hours |
| Features | Advanced Encryption Standard (AES) 128-bit Encryption, Data Compression, End-to-End Data Protection, Enhanced ruggedness, High I/O and throughput performance, High reliability, Increased system responsiveness, Low power, Minimum weight, Small form-factor |
| Power Consumption (Idle) | 275 mW |
| Power Consumption (Active) | 350 mW |
| Operating Temperature | 0??C ~ +70??C |
| Storage Temperature | -55??C ~ +95??C |
| Operating Humidity | 5% to 95% RH |
| Max Shock Resistance | 1000G |
| Max Vibration Resistance | Non-operating: 3.13 G (5-800 Hz), Operating: 2.17 G (5-700 Hz) |
| Height | 3.7mm |
| Weight | <10 g |

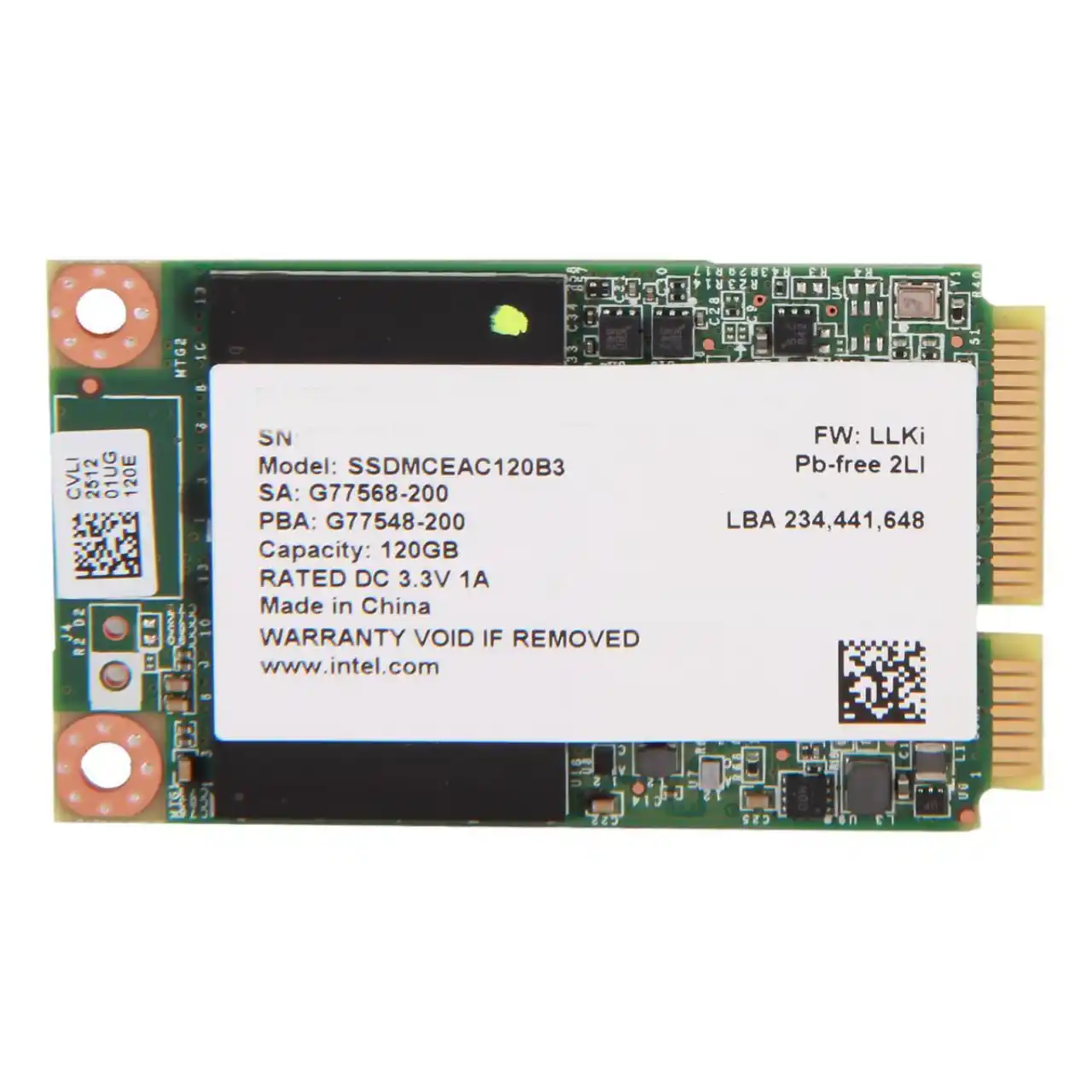

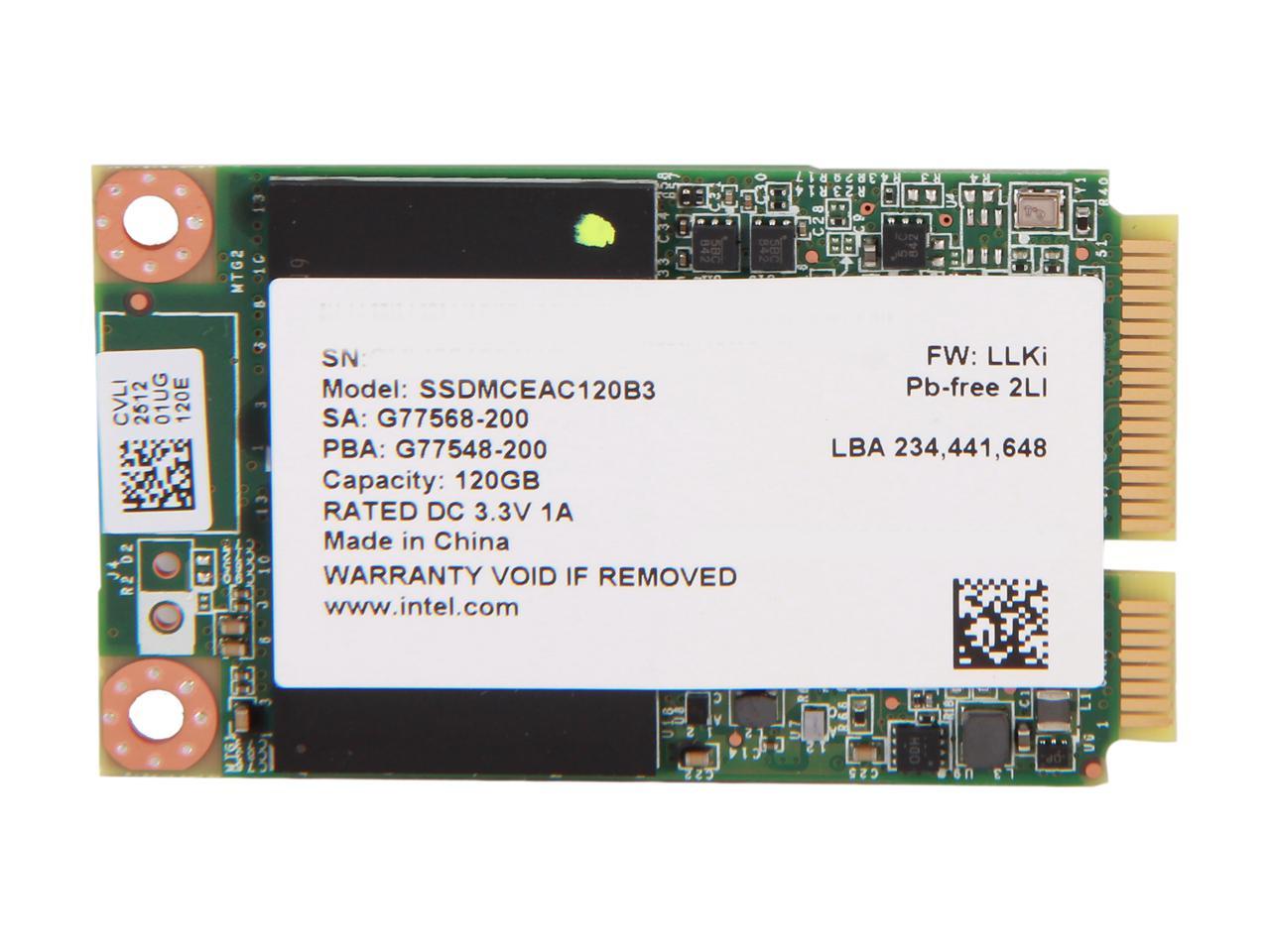

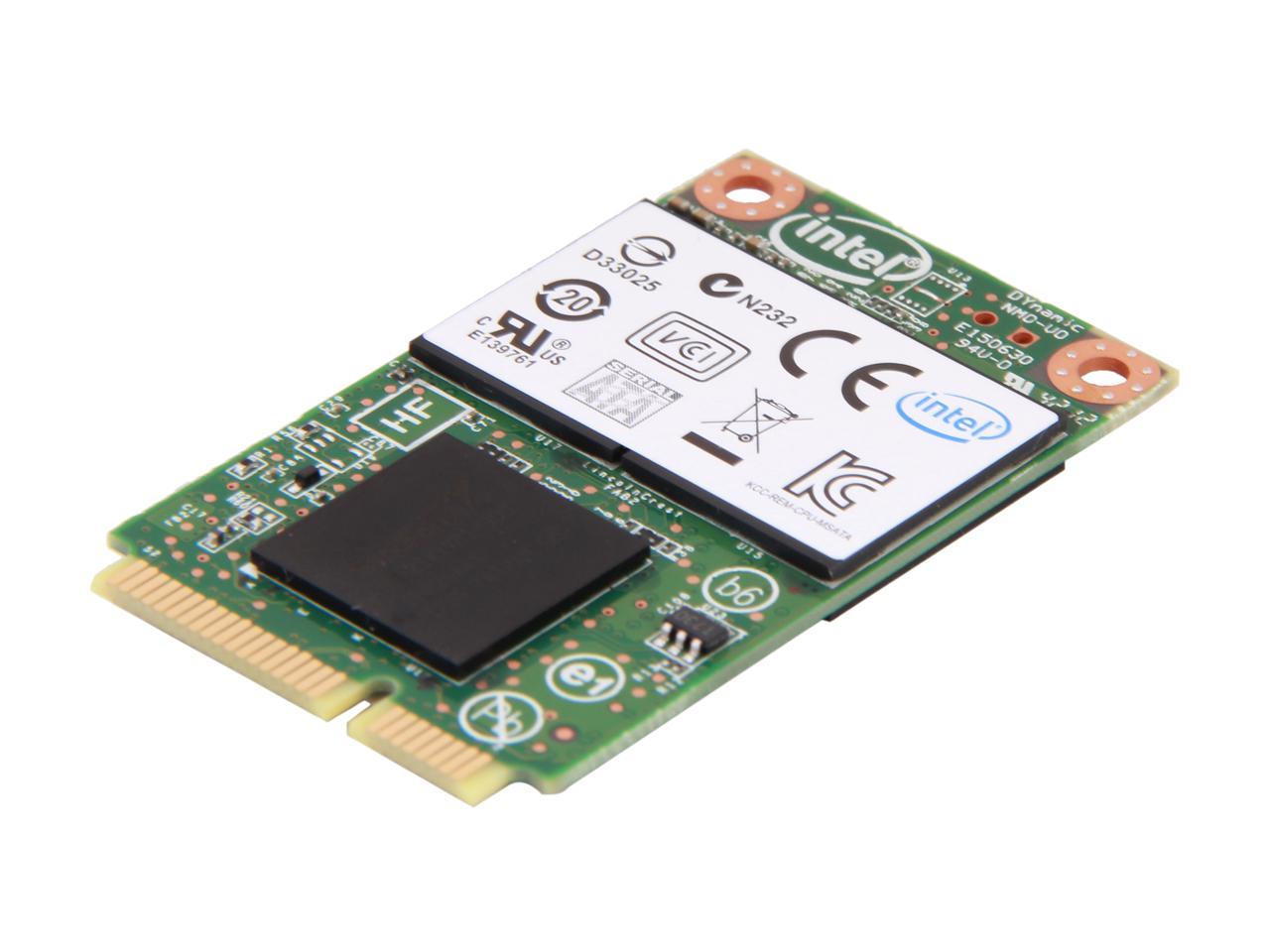

Intel 525 Series Lincoln Crest SSDMCEAC120B301 mSATA 120GB SATA III MLC Internal Solid State Drive (SSD)
| Brand | Intel |
|---|---|
| Products Status | New |
| Application | Desktop |
| Series | Intel 525 |
| Model | SSDMCEAC120B301 |
