| Brand | Huawei |
|---|---|
| Warranty | 1 Year |
| Part Number | 02354GCT |
| Model | CE6863E-48S6CQ |
| Other part numbers | 02354GCW (CE6863E-48S6CQ switch (48*25GE SFP28, 6*100GE QSFP28, 2*AC power modules, 4*fan modules, port-side intake)), 02354GCX (CE6863E-48S6CQ switch (48*25GE SFP28, 6*100GE QSFP28, 2*AC power modules, 4*fan modules, port-side exhaust)) |
| Short Name | CE6863E |
| Dimensions with packaging (H x W x D) [mm (in.)] | 175 mm x 650 mm x 550 mm (6.9 in. x 25.6 in. x 21.7 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] | – Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.), – Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.56 in.) |
| Weight without packaging [kg (lb)] | 5.7 kg (excluding optical modules, power modules, and fan modules) |
| Weight without packaging (full configuration) [kg (lb)] | 7.8 kg (17.2 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported) |
| Weight with packaging [kg (lb)] | 8.95 kg |
| Weight with packaging (full configuration) [kg (lb)] | 11.05kg |
| Installation Type | Cabinet Installation |
| CPU | 4-core, 1.4 GHz |
| Memory | DRAM: 4 GB |
| NOR Flash | 64 MB |
| NAND Flash | 4 GB |
| USB | Supported |
| Power supply mode | AC,DC,HVDC |
| Console port | RJ45 |
| Service port supporting the stack function | 25GE optical ports, and 100GE optical ports |

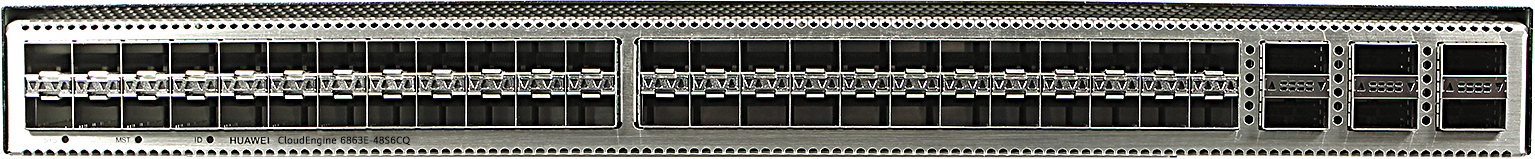

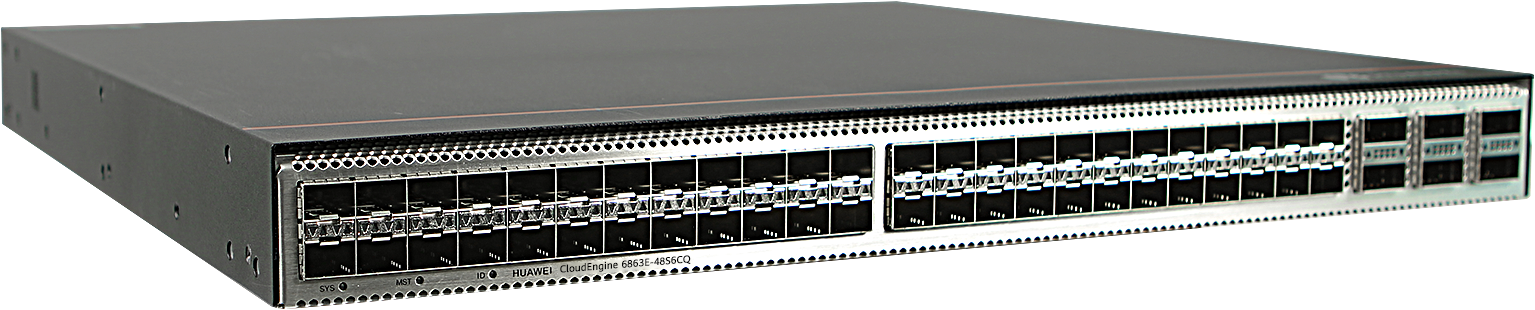

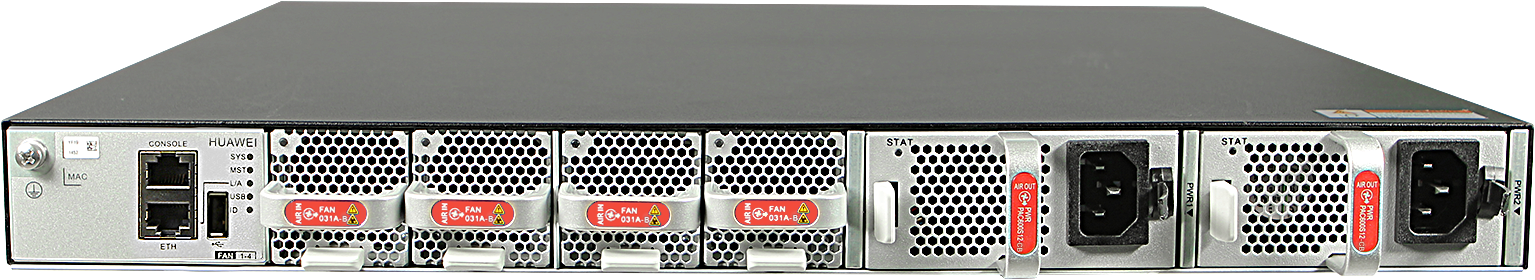

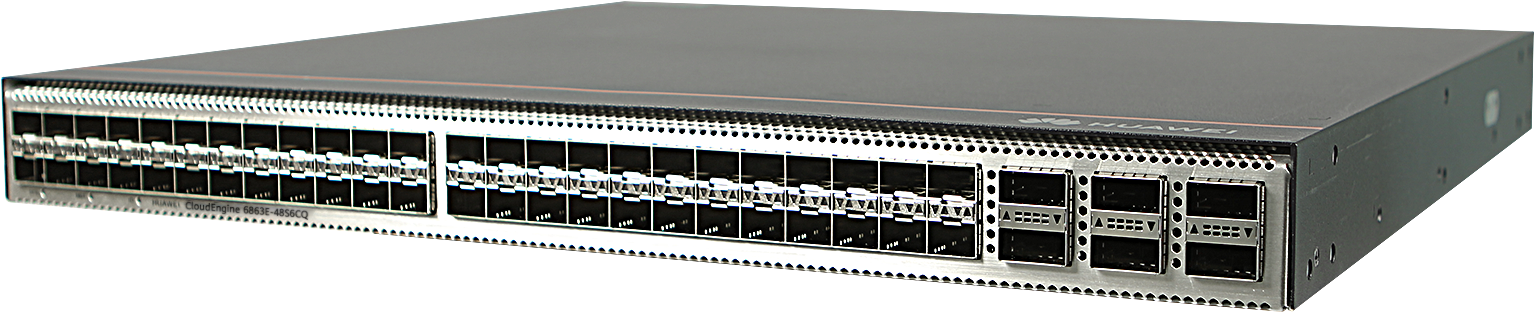

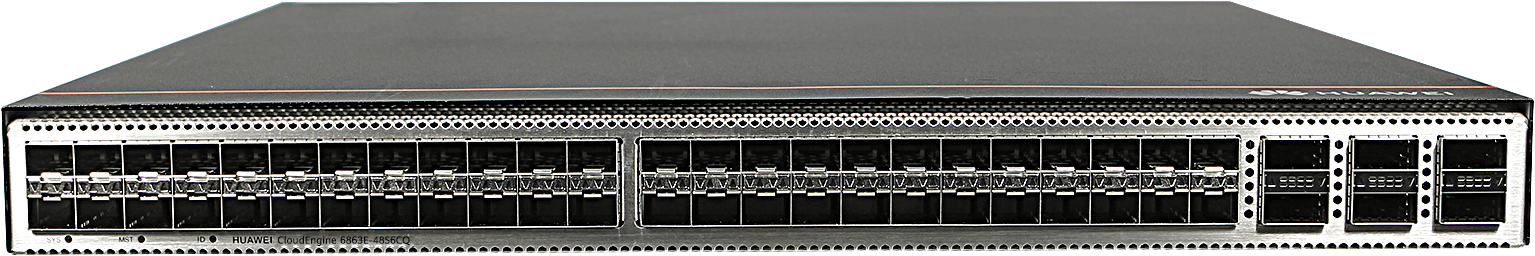

Huawei CE6863E-48S6CQ switch (48*25GE SFP28, 6*100GE QSFP28, without fan and power modules)
| Brand | Huawei |
|---|---|
| Warranty | 1 Year |
| Part Number | 02354GCT |
| Model | CE6863E-48S6CQ |
| Other part numbers | 02354GCW (CE6863E-48S6CQ switch (48*25GE SFP28, 6*100GE QSFP28, 2*AC power modules, 4*fan modules, port-side intake)), 02354GCX (CE6863E-48S6CQ switch (48*25GE SFP28, 6*100GE QSFP28, 2*AC power modules, 4*fan modules, port-side exhaust)) |
