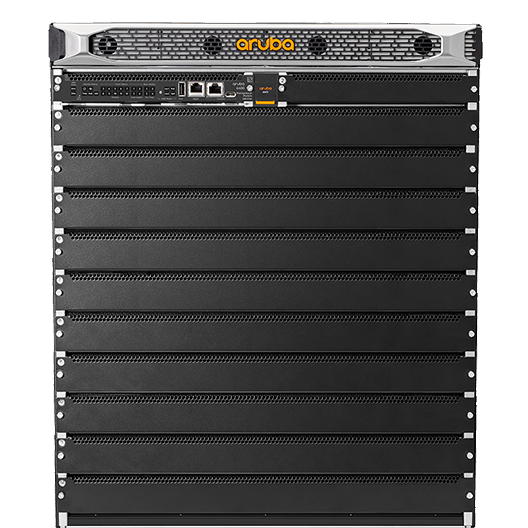

HPE Aruba CX 6410 Switch - R0X27A

Brand

HPE Aruba

Model

R0X27A

Performance

Routing/switching capacity: 28 Tbps Throughput: 20 Bpps

Capacity

Virtual interfaces (VLANs): 2000, IPv4 routing table entries: 32000, IPv6 routing table entries: 32000, Multicast routes: 8000, Unicast entries (IPv6): 64000, Unicast entries (IPv4): 64000, IGMP groups: 8000, MLD groups: 4000

Jumbo Frame Support

Yes

Brand	HPE Aruba
Model	R0X27A
Performance	Routing/switching capacity: 28 Tbps Throughput: 20 Bpps
Capacity	Virtual interfaces (VLANs): 2000, IPv4 routing table entries: 32000, IPv6 routing table entries: 32000, Multicast routes: 8000, Unicast entries (IPv6): 64000, Unicast entries (IPv4): 64000, IGMP groups: 8000, MLD groups: 4000
Jumbo Frame Support	Yes
Routing Protocol	OSPF, BGP, OSPFv3
Remote Management Protocol	SNMP 1, SNMP 2, SNMP 3, IPv4, IPv6
Encryption Algorithm	MD5, SSL
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features	Power over Ethernet (PoE), Quality of Service (QoS), Deficit Weighted Round Robin (DWRR), non blocking ports, Strict Priority (SP), CPU protection, Protocol Independent Multicast (PIM), Bootstrap Router (BSR) Mechanism, draft-ietf-savi-mix, Virtual Switch Extension (VSX)
Compliant Standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.1w, IEEE 801.1p, IEEE 802.1t, IEEE 802.1v, IEEE 802.3ak, IEEE 802.3at, IEEE 802.3ax, IEEE 802.3bt
Interfaces	1 x console RJ-45, 1 x USB-C console, 1 x USB
Installed Modules Qty (Max)	2 (installed) / 10 (max)
Power Device	Internal power supply
Installed Qty	1
Max Supported Qty	4
Voltage Required	110-127 / 200-240 VAC (power supplies sold separately)
80 PLUS Certification	80 PLUS Platinum
Included Accessories	4 x fan tray slots, management module with 1 open slot
Rack Mounting Kit	Included
Width	17.4 in

HPE Aruba CX 6410 Switch – R0X27A
