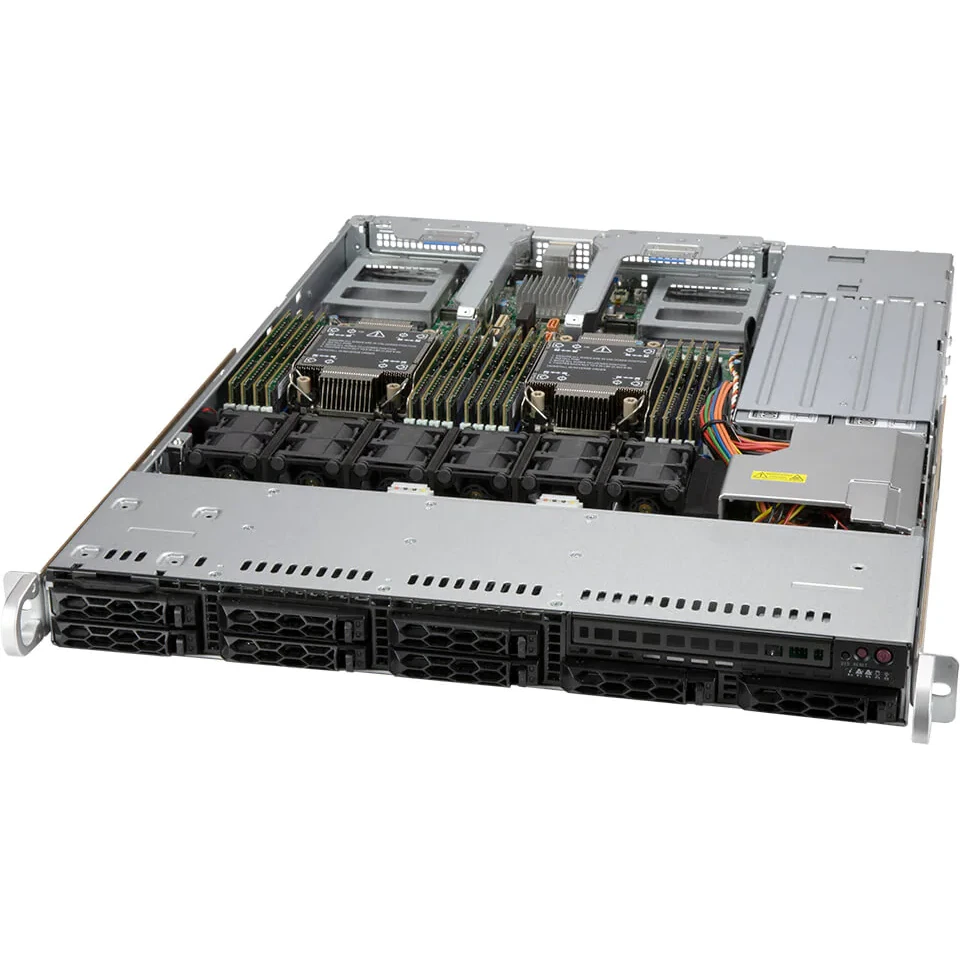

CloudDC SuperServer SYS-120C-TR

Brand

Supermicro

Motherboard

Super X12DDW-A6

CPU

Dual Socket P4 (LGA-4189) 3rd Gen Intel? Xeon? Scalable processors

Core Count

Up to 40C/80T; Up to 60MB Cache per CPU

Note

Supports up to 270W TDP CPUs (Air Cooled)* *Air Cooled CPUs with TDP over 185W only supported under specific conditions. Contact a Supermicro representative for details.?

Brand	Supermicro
Motherboard	Super X12DDW-A6
CPU	Dual Socket P4 (LGA-4189) 3rd Gen Intel? Xeon? Scalable processors
Core Count	Up to 40C/80T; Up to 60MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)* *Air Cooled CPUs with TDP over 185W only supported under specific conditions. Contact a Supermicro representative for details.?
Max GPU Count	Up to 2 double-width or 2 single-width GPU(s)
Supported GPU	Intel PCIe: Intel Data Center GPU Flex 140, NVIDIA PCIe: A2,L4
Memory	Memory Capacity: 16 DIMM slots, Up to 4TB: 16x 256 GB DRAM, Up to 6TB: 8x 256 GB DRAM and 8x 512 GB PMem, Memory Type: 33200MHz ECC DDR4 RDIMM;LRDIMM;PMEM, Intel? Optane? persistent memory 200 series
Memory Voltage	1.2 V
Error Detection	ECC
Form Factor	1U
Model	CSE-LB13AC2-R860AW
Height	1.7" (43mm)
Width	17.2" (437mm)
Depth	23.5" (597mm)
Package	7.7" (H) x 23.7" (W) x 31.8" (D)
Weight	Gross Weight: 40 lbs (18.14 kg)
