| Brand | Cisco |
|---|---|
| Model | N9K-C93180YC-FX |
| Ports | 48 x 1/10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports |
| Downlink supported speeds | 1/10/25-Gbps Ethernet, 16/32-Gbps Fibre Channel |
| CPU | 6 cores |
| System memory | Up to 32 GB |
| SSD drive | 128 GB |
| System buffer | 40 MB |
| Management ports | 1 RJ-45 port, L1 and L2 ports are unused |
| USB ports | 1 |
| RS-232 serial ports | 1 |
| Power supplies (up to 2) | 500W AC, 930W DC, or 1200W HVAC/HVDC |
| Typical power (AC/DC) | 260W |
| Maximum power (AC/DC)* | 425W |
| Input voltage (AC) | 100 to 240V |
| Input voltage (High-Voltage AC [HVAC]) | 200 to 277V |
| Input voltage (DC) | ?C48 to ?C60V |
| Input voltage (High-Voltage DC [HVDC]) | ?C240 to ?C380V |
| Frequency (AC) | 50 to 60 Hz |
| Fans | 4 |
| Airflow | Port-side intake and exhaust |

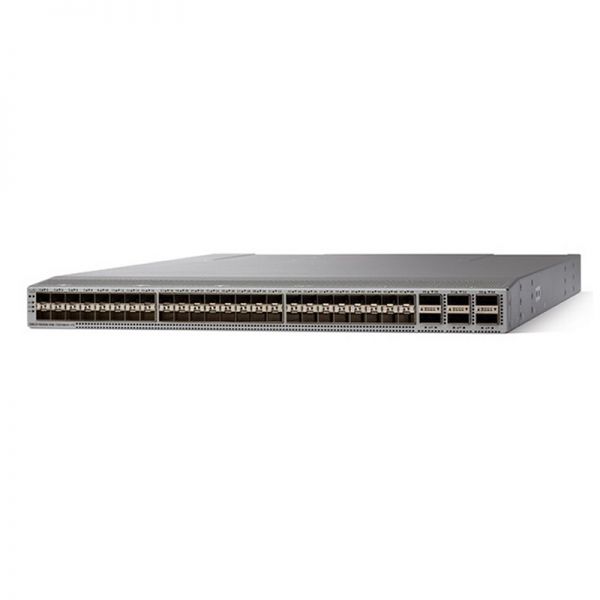

Cisco Nexus 93180YC-FX – switch – 48 ports – managed – rack-mountable
| Brand | Cisco |
|---|---|
| Model | N9K-C93180YC-FX |
| Ports | 48 x 1/10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports |
| Downlink supported speeds | 1/10/25-Gbps Ethernet, 16/32-Gbps Fibre Channel |
| CPU | 6 cores |
