| Brand | CISCO |
|---|---|
| Certification | FCC |
| Model Number | WS-C3560CX-8XPD-S |
| Ethernet Ports | 6 x 10/100/1000 Gigabit Ethernet plus 2 Multigigabit Ethernet 100/2500/5000/10000 |
| PoE Output Ports | 8 PoE+ |
| Available PoE Power | 240W |
| Uplinks | 2 x 10G SGP+ |
| Default Software | IP Base (IP Services with RTU License) |
| Powering Option | Internal power supply |
| Forwarding Bandwidth | 46 Gbps |
| Switching Bandwidth (full-duplex capacity) | 92 Gbps |
| Flash memory | 128 MB |
| Memory DRAM | 512 MB |
| Max VLANs | 1023 |
| VLAN IDs | 4000 |
| Maximum transmission unit (MTU) | Up to 9000 bytes |
| Jumbo frames | 9198 bytes |
| Forwarding rate 64 Byte Packet Cisco Catalyst 3560-CX | 68.4 mpps |
| Dimensions (H x W x D) | 4.44 x 26.9 x 26.4 cm , 1.75 x 10.6 x 10.4 in |

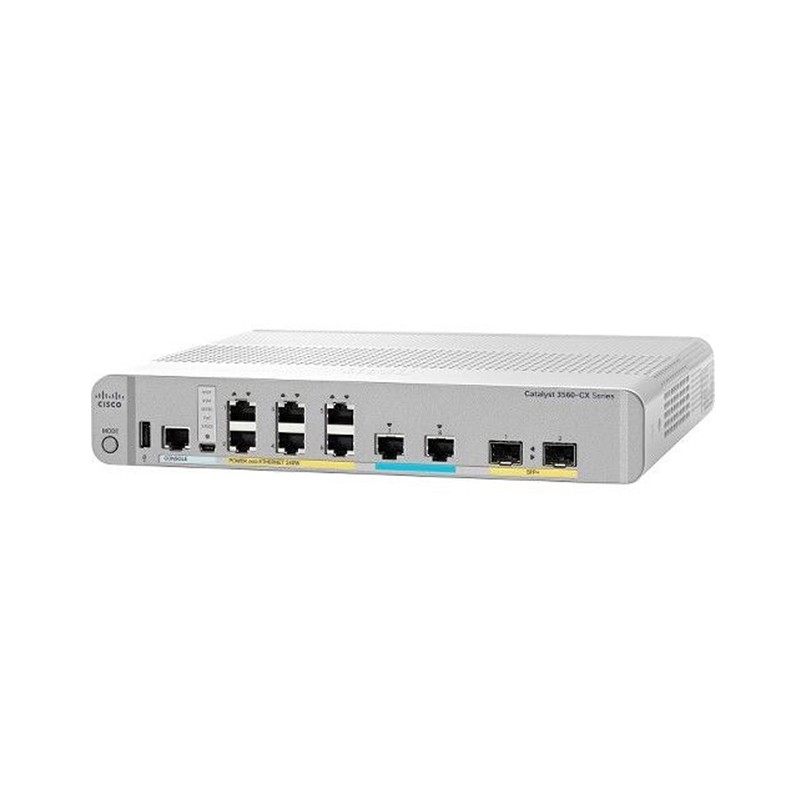

Cisco Catalyst 3560-CX Compact Switch WS-C3560CX-8XPD-S
| Brand | CISCO |
|---|---|
| Certification | FCC |
| Model Number | WS-C3560CX-8XPD-S |
| Ethernet Ports | 6 x 10/100/1000 Gigabit Ethernet plus 2 Multigigabit Ethernet 100/2500/5000/10000 |
| PoE Output Ports | 8 PoE+ |
