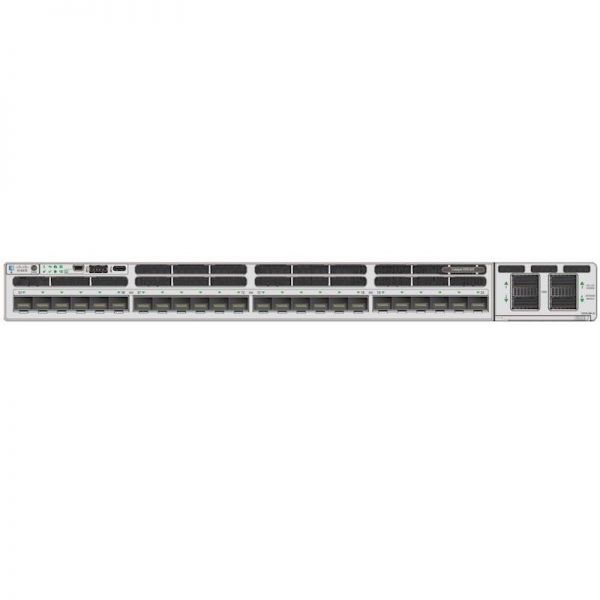

Cisco C9300X-24Y-A 9300 24-port 25G/10G/1G SFP28 w/ modular uplinks ?C Network Advantage

Brand

Cisco

Model

C9300X-24Y-A

Device Type

Switch - 24 ports - L3 - managed - stackable

Enclosure Type

Rack-mountable 1U

Subtype

25 Gigabit Ethernet

Brand	Cisco
Model	C9300X-24Y-A
Device Type	Switch – 24 ports – L3 – managed – stackable
Enclosure Type	Rack-mountable 1U
Subtype	25 Gigabit Ethernet
Ports	12 x 1/10/25 Gigabit SFP28
Performance	Switching capacity: 2000 Gbps, Switching capacity with stacking: 3000 Gbps, Forwarding rate: 1488 Mpps, Forwarding rate with stacking: 2232 Mpps
Capacity	IPv4 routing table entries: 39000, IPv6 routing table entries: 19500, Flexible NetFlow entries: 128000, VLAN IDs: 4094, Switched virtual interfaces (SVIs): 1000, Packet buffer size: 32 MB, MAC addresses: 32000, Multicast routing flow table: 8000, QoS scale entries: 4000, ACL scale entries: 5000, PVST instances: 1000, STP Virtual Ports for PVST: 13000, STP Virtual Ports for MST: 1000, Jumbo frame size: 9198 byte
MAC Address Table Size	32000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
RAM	16 GB
Flash Memory	16 GB
Status Indicators	Status
Interfaces	24 x 1/10/25GBase-X SFP28, 1 x USB 2.0
Power Device	Internal power supply
Power Provided	715 Watt
Voltage Required	AC 120/230 V (50/60 Hz)
Width	17.5 in
