| Brand | Cisco |
|---|---|
| Model | C9500-16X-E |
| Switching capacity | Up to 480 Gbps |
| Forwarding rate | Up to 360 Mpps |
| Total number of MAC addresses | Up to 64,000 |
| Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) | Up to 64,000 indirect, Up to 80,000 host |
| Total number of IPv6 routes | Up to 32,000 indirect, Up to 40,000 host |
| QoS ACL scale | Up to 18000 |
| Security ACL scale | Up to 18000 |
| FNF entries | Up to 512,000 |
| DRAM | 16 GB |
| Flash | 16 GB |
| VLAN IDs | 4000 |
| Total Switched Virtual Interfaces (SVIs) | 4000 |
| Jumbo frame | 9198 bytes |
| Dimensions (H x W x D) | 1.73 x 17.5 x 21.52 in |
| Rack units (RU) | 1 RU |
| Input voltage | 90 to 264 VAC |
| Operating temperature | 32?? to 104??F (0?? to 40??C) |
| Storage temperature | -4?? to 149??F (-20?? to 65??C) |

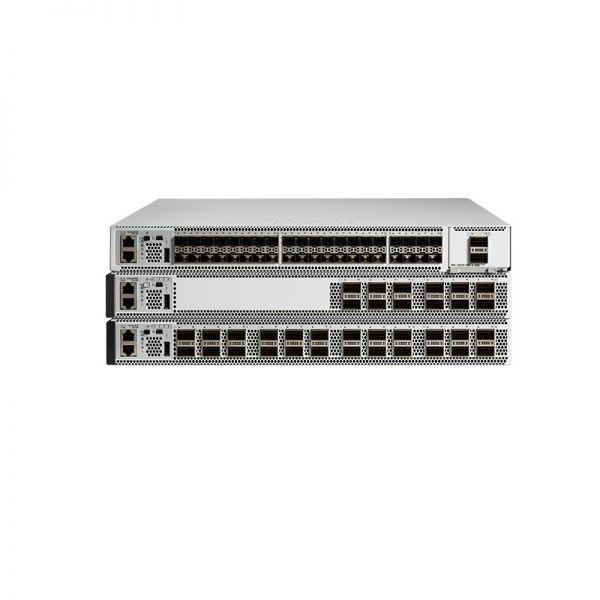

C9500-16X-E Catalyst 9500 Series 16 Port Switch
| Brand | Cisco |
|---|---|
| Model | C9500-16X-E |
| Switching capacity | Up to 480 Gbps |
| Forwarding rate | Up to 360 Mpps |
| Total number of MAC addresses | Up to 64,000 |
