| Brand | ?Brocade |
|---|---|
| Width | 17.3 in |
| Depth | 15.5 in |
| Height | 1.7 in |
| Weight | 14.99 lbs |
| Min Operating Temperature | 23 ??F |
| Max Operating Temperature | 122 ??F |
| Humidity Range Operating | 5 – 95% (non-condensing) |
| Min Storage Temperature | -13 ??F |
| Max Storage Temperature | 158 ??F |
| Humidity Range Storage | 0 – 95% (non-condensing) |
| Device Type | Switch – 48 ports – L3 – managed – stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x Gigabit SFP |
| Performance | Switching capacity: 336 Gbps, Forwarding performance: 250 Mpps, Stacking bandwidth: 160 Gbps |
| Capacity | Virtual interfaces (VLANs): 4096, Spanning Tree Protocol instances: 254, IPv4 routes: 16000, IPv6 routes: 3000 |
| MAC | Address Table Size 32000 entries |
| Jumbo Frame Support | 9216 bytes |
| Max Units In A Stack | 12 |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, ECMP, MLDv2, MLD |

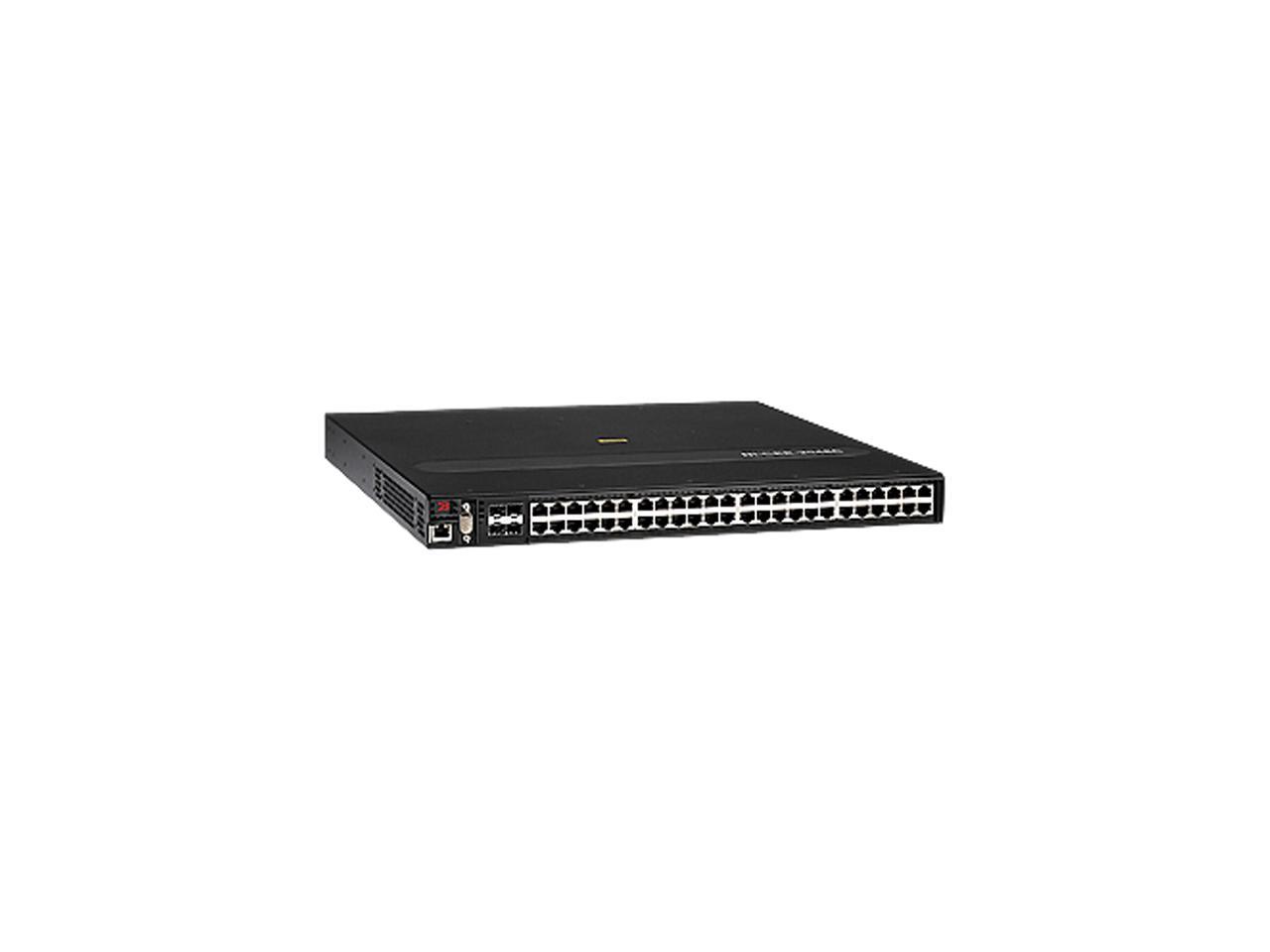

Brocade ICX7450-48F 48-Ports Layer-3 Rack-Mountable Managed Switch
| Brand | ?Brocade |
|---|---|
| Width | 17.3 in |
| Depth | 15.5 in |
| Height | 1.7 in |
| Weight | 14.99 lbs |
