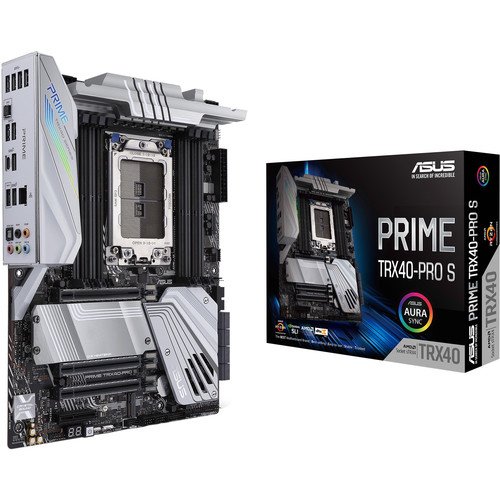

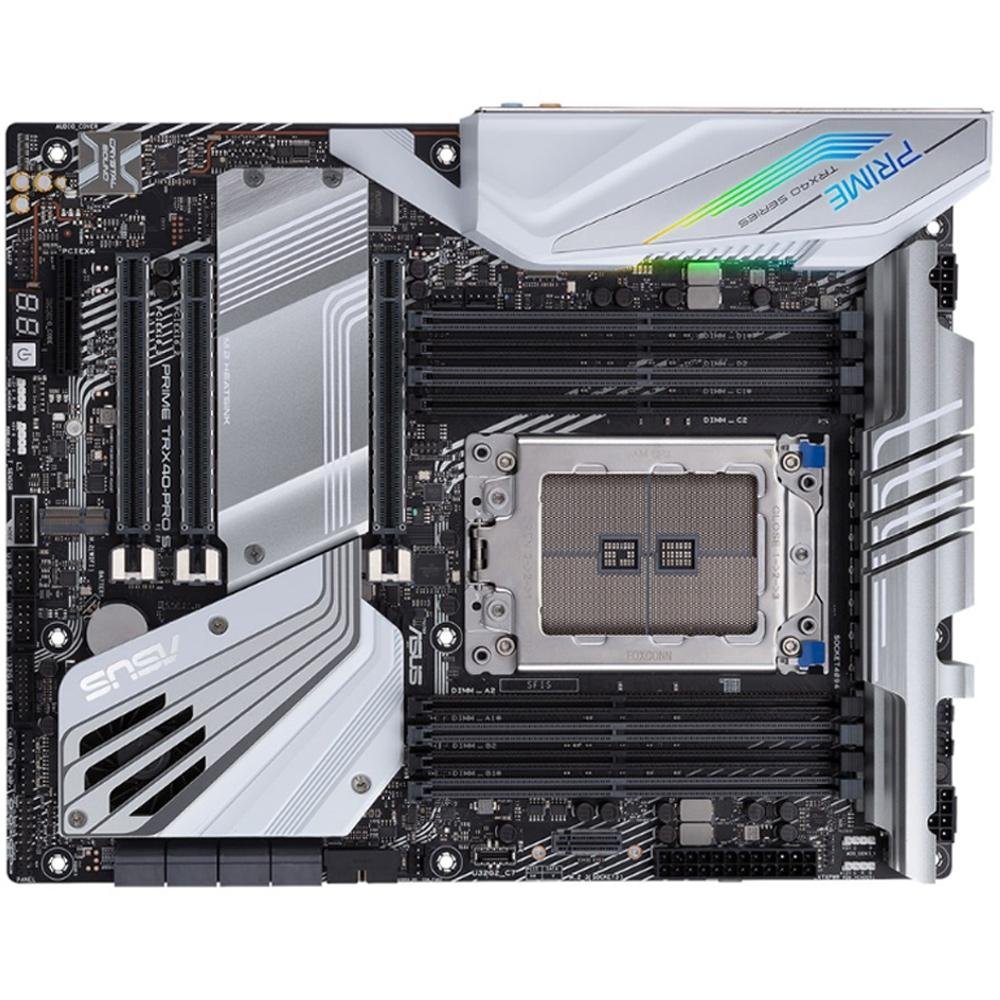

ASUS PRIME AMD TRX40-PRO S TRX4 ATX Motherboard

Internal I/O Connectors

1 x Q_Code 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 with E key for Wi-Fi module 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x W_PUMP+ connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) x With flexkey function 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x USB 3.2 Gen 2 front panel connector

Products Status

New

Form Factors

ATX

Chipset

AMD TRX40

Application

Workstation

Internal I/O Connectors	1 x Q_Code 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 with E key for Wi-Fi module 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x W_PUMP+ connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) x With flexkey function 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x USB 3.2 Gen 2 front panel connector
Products Status	New
Form Factors	ATX
Chipset	AMD TRX40
Application	Workstation
USB Ports	4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C) AMD TRX40 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) (1 at mid-board) AMD TRX40 chipset : 6 x USB 3.2 Gen 1 port(s) (2 at back panel, , Type-A, 4 at mid-board) AMD TRX40 chipset : 2 x USB 2.0 port(s) (2 at mid-board) ASMedia? USB 3.2 Gen 1 controller : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, , Type-A) GL852G USB Hub : 2 x USB 2.0 port(s) (2 at mid-board)
Socket	sTRX4
Warranty	1 Year
Brand	ASUS
Back I/O Ports	1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 2 (teal blue) (3 x Type-A+1 x Type-C) (one port can be switched to USB BIOS FlashBack?) 6 x USB 3.2 Gen 1 (blue) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x USB BIOS FlashBack? Button(s)
Product Name	ASUS TRX40-PRO S
Packaging Details	BOX
Size	30.5cmx24.4cm
Memory	8 x DIMM, Max. 256GB, DDR4 4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/2933/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
CPU Brand	AMD
Platform	AMD
