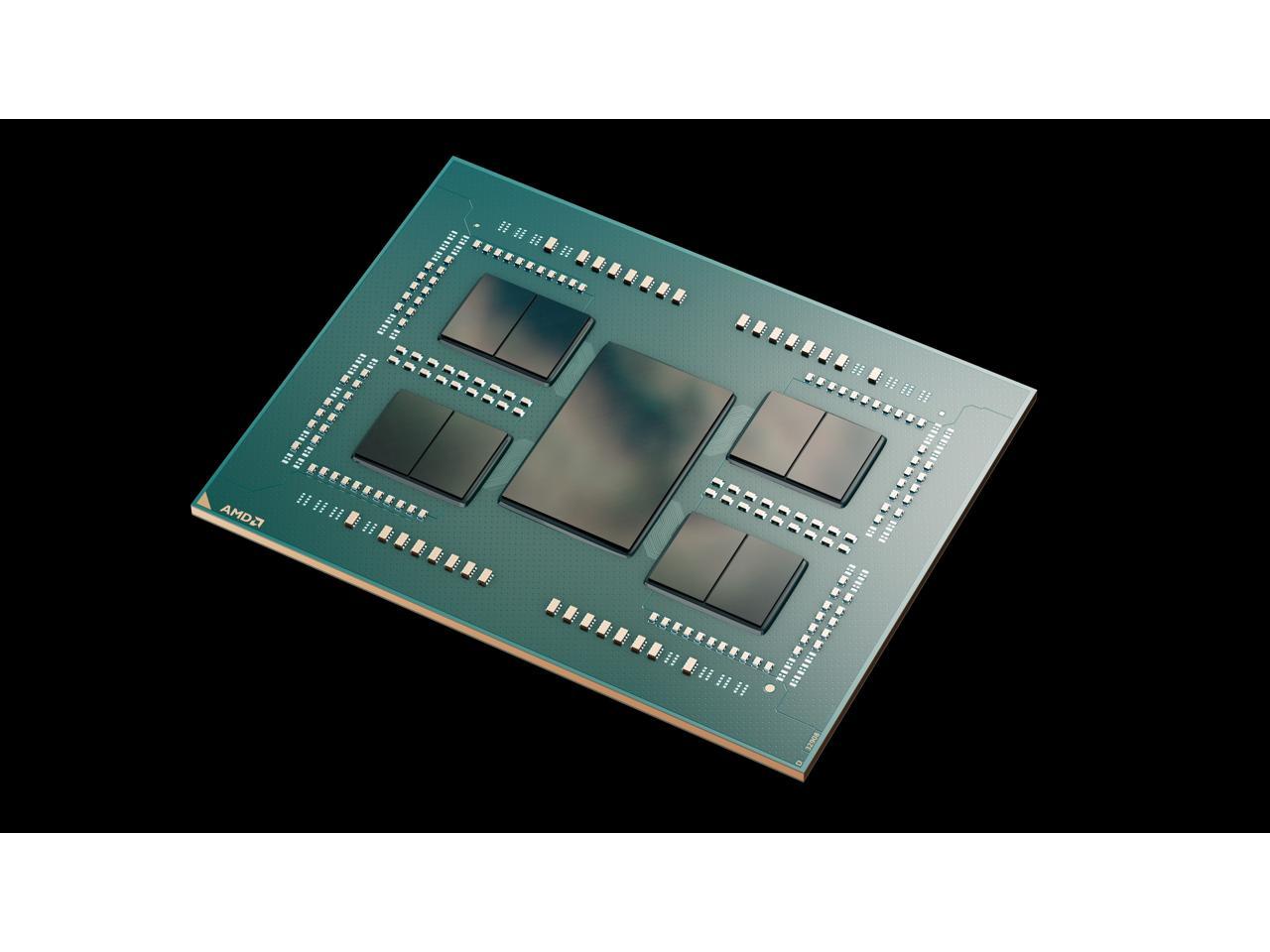

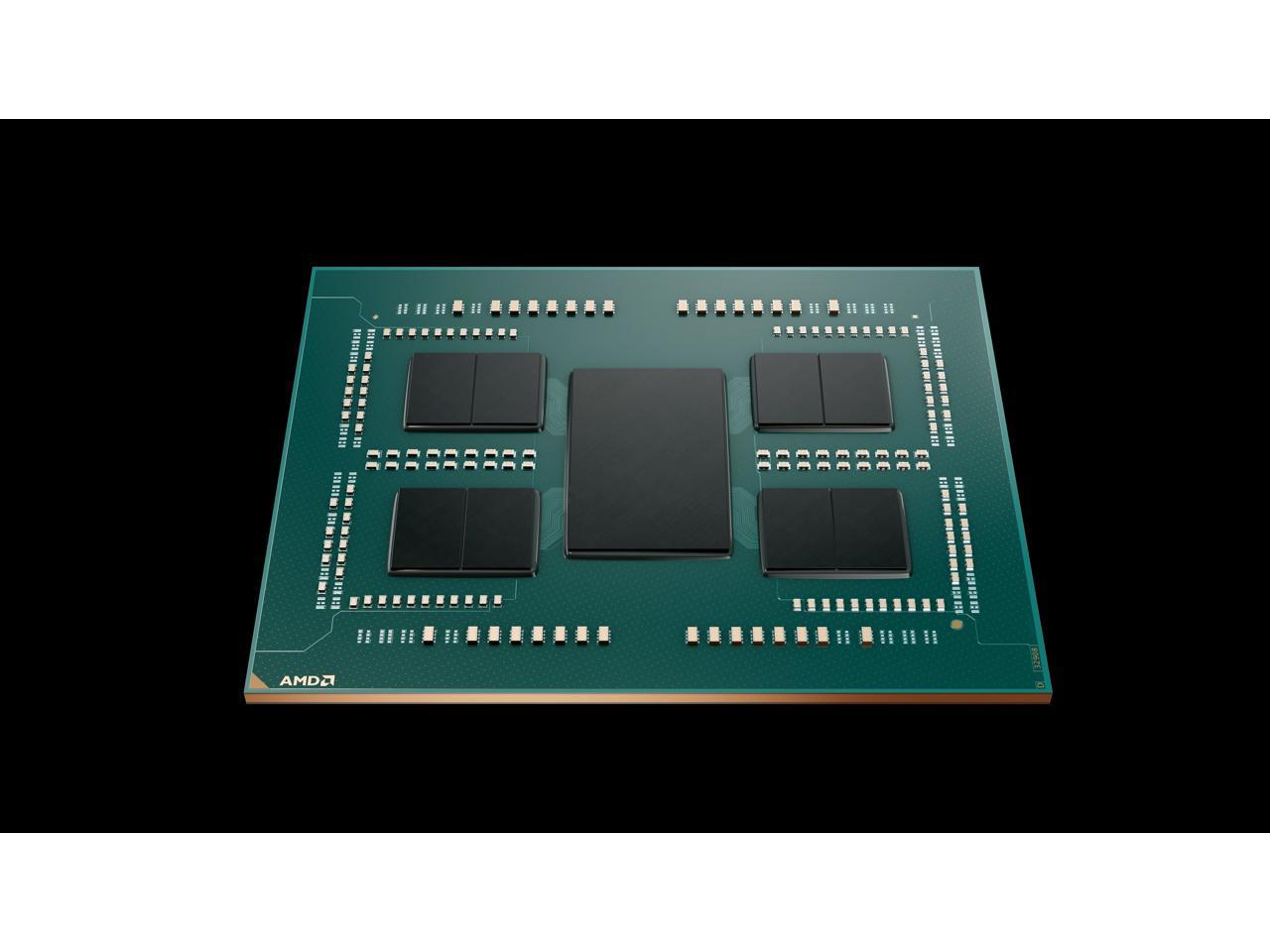

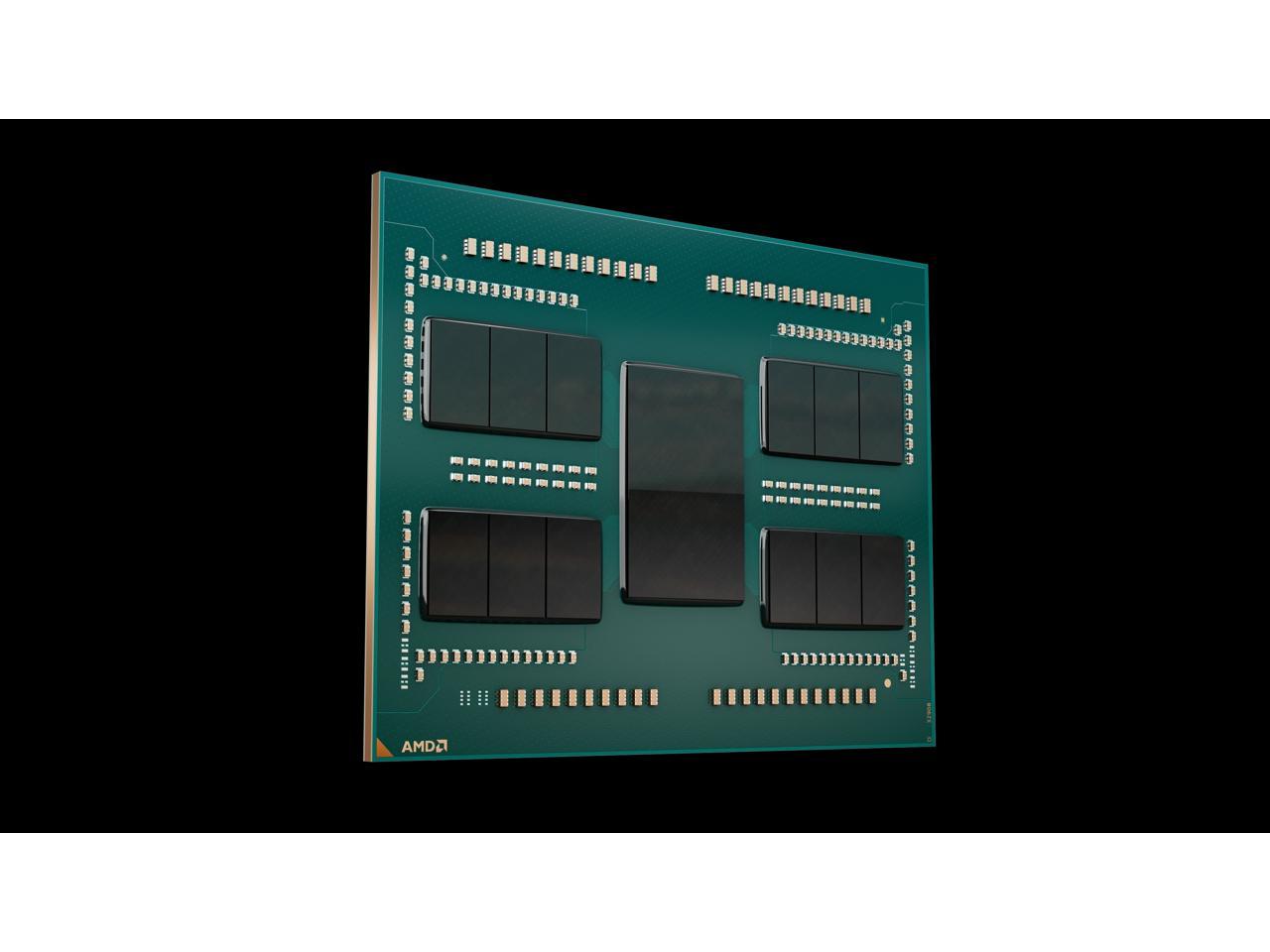

- Processor Technology for CPU Cores: TSMC 5nm FinFET Processor Technology for I/O Die: TSMC 6nm FinFET Storm Peak 350W
- 256MB L3 Cache
- 64MB L2 Cache
- None Integrated Graphics
| Brand | AMD |
|---|---|
| Products Status | New |
| Product Family | Ryzen Threadripper |
| Series | AMD Ryzen Threadripper 7000 Series |

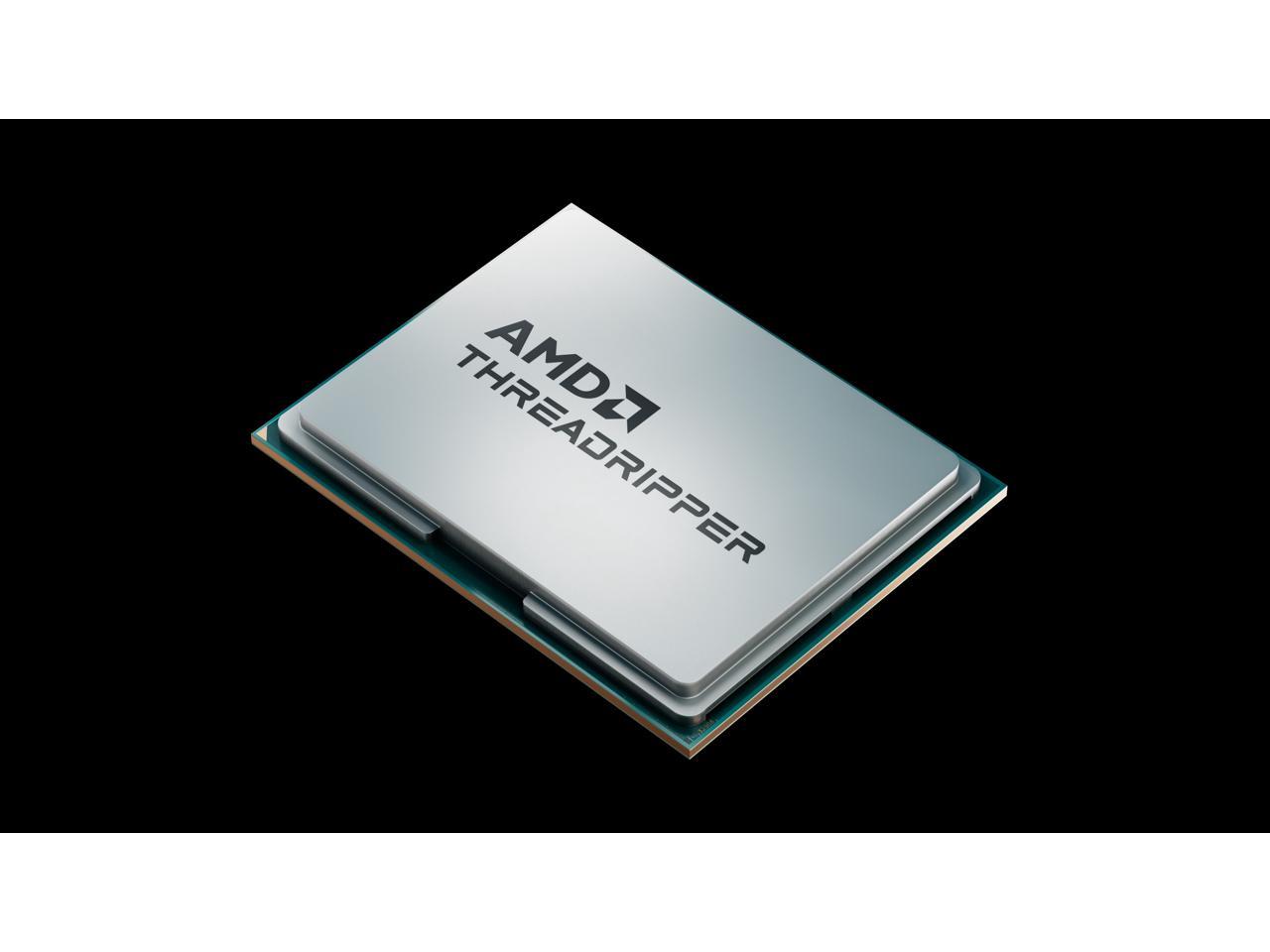

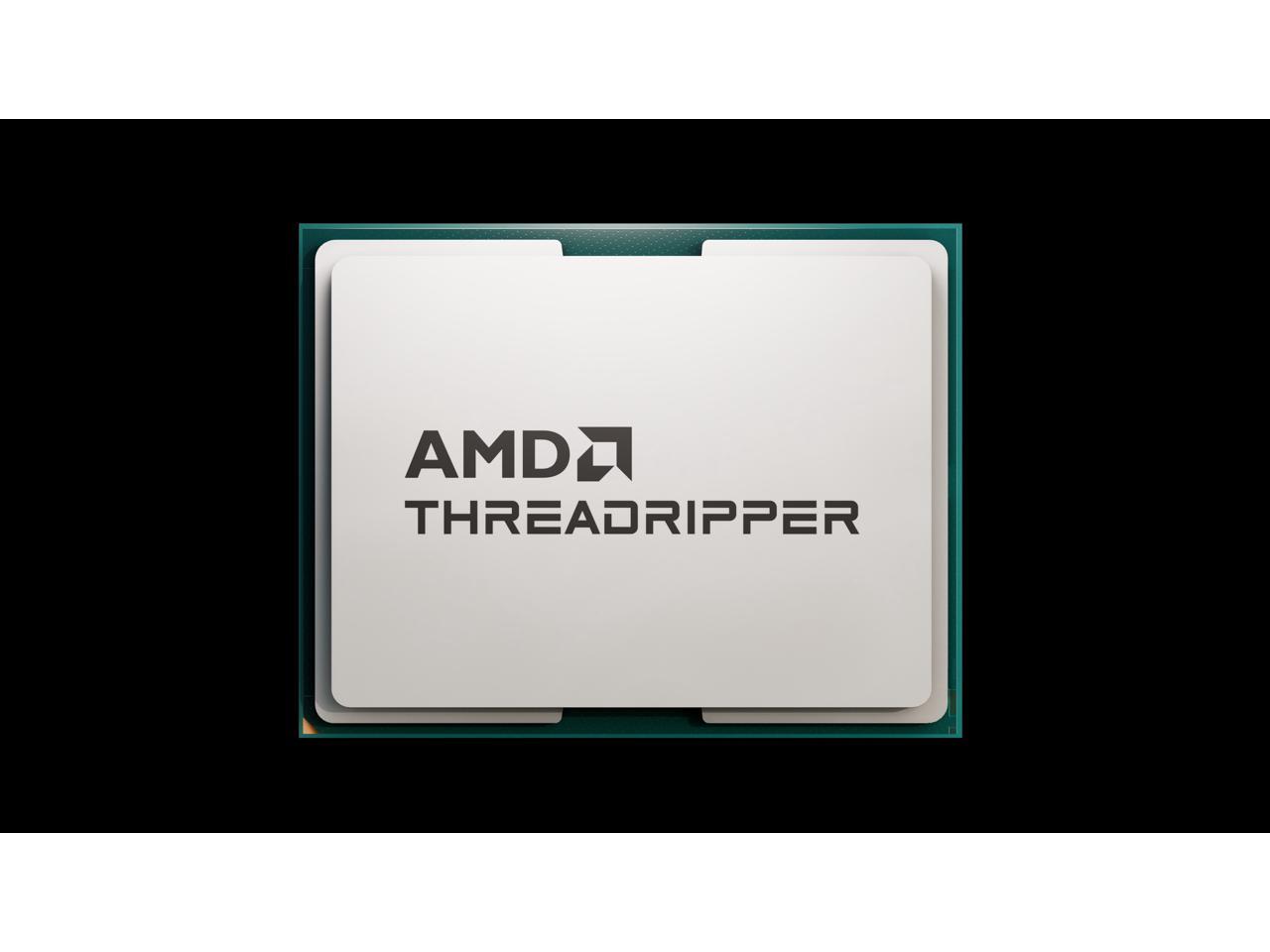

| Part Number | AMD Ryzen Threadripper 7980X |
| Product ID Boxed | 100-100001350WOF |
| Product ID Tray | 100-000001350 |
| Application | Desktop |
| CPU Socket Type | sTR5 |
| Total Cores | 64 |
| Total Threads | 128 |
| Max. Boost Clock | Up to 5.1 GHz |
| Operating Frequency | 3.2 GHz |
| L2 Cache | 64 MB |
| L3 Cache | 256 MB |
| TDP | 350 W |
| L1 Cache | 4 MB |
| Manufacturing Tech | TSMC 5nm FinFET |
| Unlocked for Overclocking | Yes |
| Thermal Solution (PIB) | Not Included |
| Max. Operating Temperature (Tjmax) | 95??C |
| Launch Date | 10/19/2023 |
| *OS Support | RHEL x86 64-Bit, Ubuntu x86 64-Bit, Windows 11 – 64-Bit Edition |
| PCI Express? Version | PCIe? 5.0 |
| Memory Types | DDR5 |
| Memory Channels | 4 |
| System Memory Specification | Up to 5200 MT/s |
| Graphics Model | Discrete Graphics Card Required |
| Supported Technologies | AMD EXPO? Technology, AMD Ryzen? Technologies |
